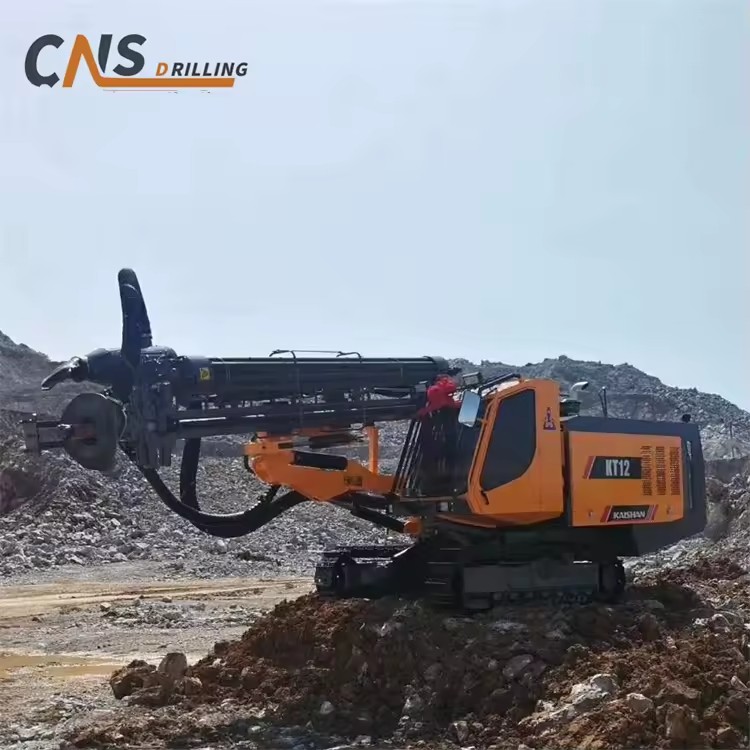

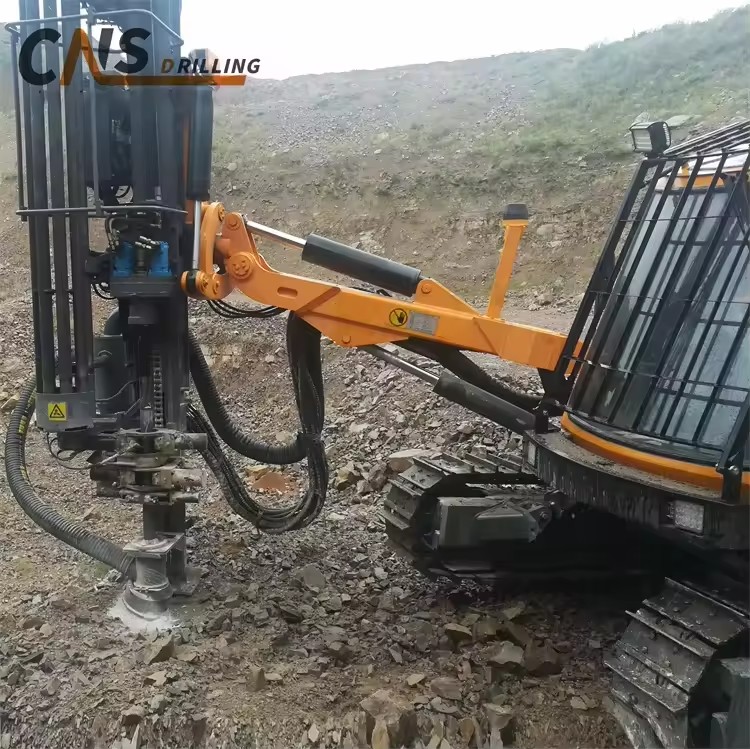

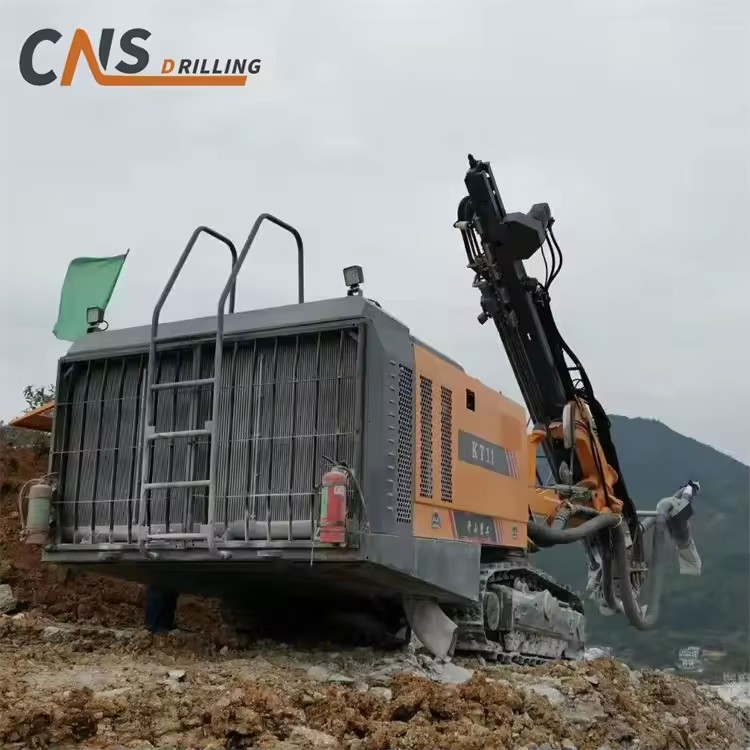

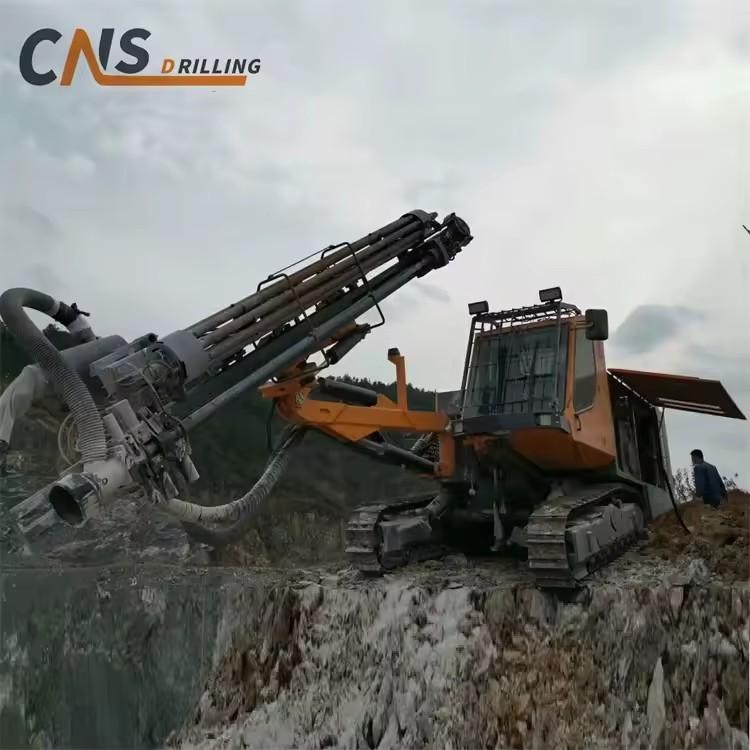

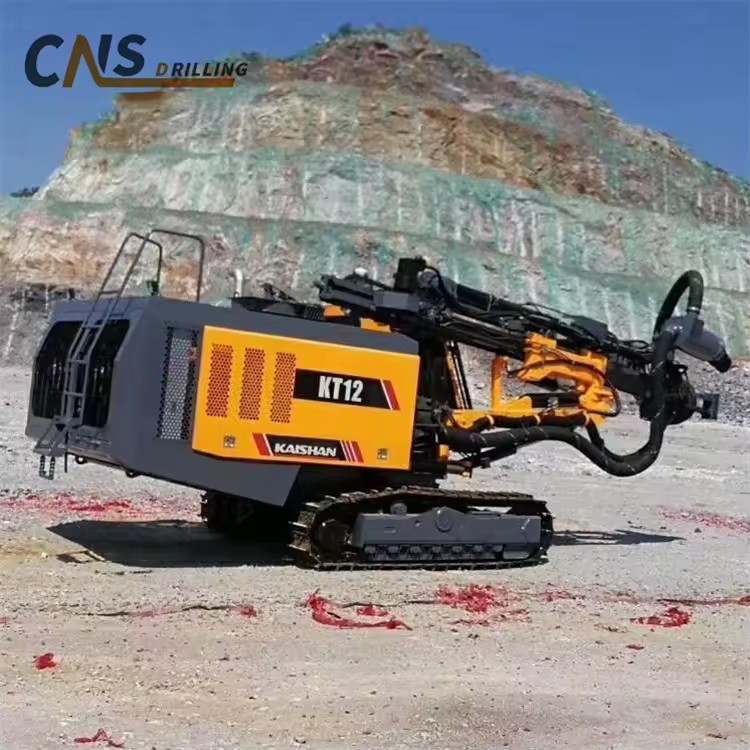

Best Sale Integrated Ratio All-rounder DTH Mine Drilling Rig Blasting Rock Drilling for KT12

Available for enquiry 0.0 · 0 reviews
USD

$ 357,520.00 357520.0 USD $ 357,520.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
MINING BOREHOLE DRILLING
Type
DOWN THE HOLE DRILLING RIG
Drilling Depth
Economical depth 25m
Drilling Diameter
90mm(3.54in), 115mm(4.53in), 80MM(3.15in), 100MM(3.94in), 110MM(4.33in), 105MM(4.13in), 152MM(5.98in), 178MM(7.01in), 203MM(7.99in), 200MM(7.87in), 115-152mm(4 1/2"-6")
Power Type
Diesel
Core components
Motor, Engine
Product description

KT12 Integrated drilling rig mine Drilling Diameter： Φ115-152mm(4 1/2"-6")

Specifications
Model#*KT12*
Weight17500kgs
Dimension9830×2580m×3320mm
Diesel EngineCummins QSL8.9-C360-30,265kw/360hp/ 2200r/min
Drilling Hardnessf=6-20
Drilling DiameterΦ115-152mm(4 1/2"-6")
Depth of Economical Drilling28m / 8.5ft
Number of Rods6+1
Capacity of Screw Air Compressor20m³/min(706cfm)
Discharge Pressure of Screw Air Compressor2.2MPa(319Psi)
DTH HammerStandard K5 (Optional:K4,K5)
Drilling RodStandard Φ89X4000mm (Optional:Φ76X4000mm)
Drilling BitStandard Φ136mm-K5 (Optional:Φ120/125/130/146mm-K4,Φ136/140/146/152mm-K5)
Rotary Speed0-100rpm
Rotary Torque (Max.)3450N.m(Max.)
Lifting Force120KN
Method of FeedRoller Chain
Compensation Length of Beam1353mm
Feed Stroke4490mm
Traveling Speed0-3.0km/h
Climbing Capacity≦25°
Ground Clearance420mm
Lifting Angle of Drill BoomDown 20°,Up 47°
Swing Angle of Drill BoomLeft 21°,Right 50°
Swing Angle of CarriageLeft 35°,Right 95°
Pitch Angle of Carriage114°
Leveling Angle of Track±10°
Method of Dust ColllectingDry type (Hydraulic Cyclonic Laminar Flow)
Traveling Control SystemHydraulic Pilot
Drilling Control SystemHydraulic Pilot
Anti-JammingAutomatic Electro-Hydraulic Anti-Jamming
Voltagge24V DC
Safe CabMeet the Requirements of ROPS & FOPS
Indoor NoiseBelow 85dB(A)
SeatAdjustable
Air-ConditioningStandard Temperature
EntertainmentRadio
Description images

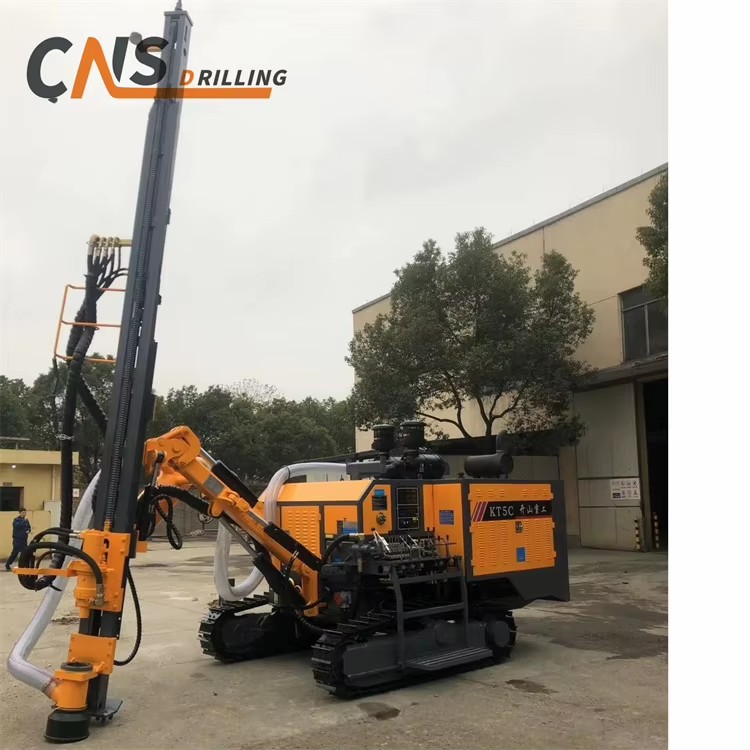

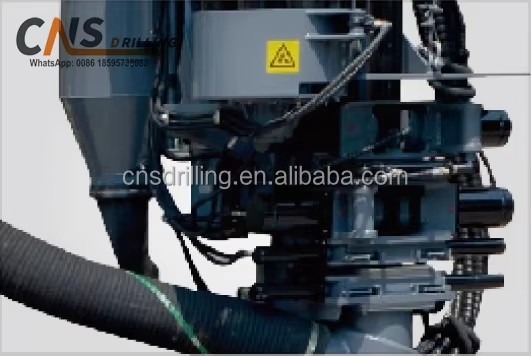

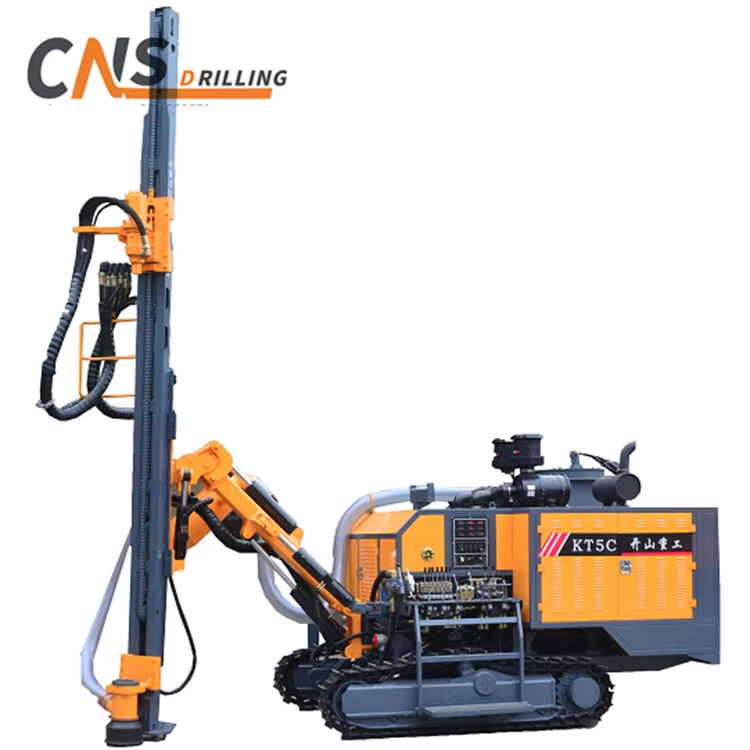

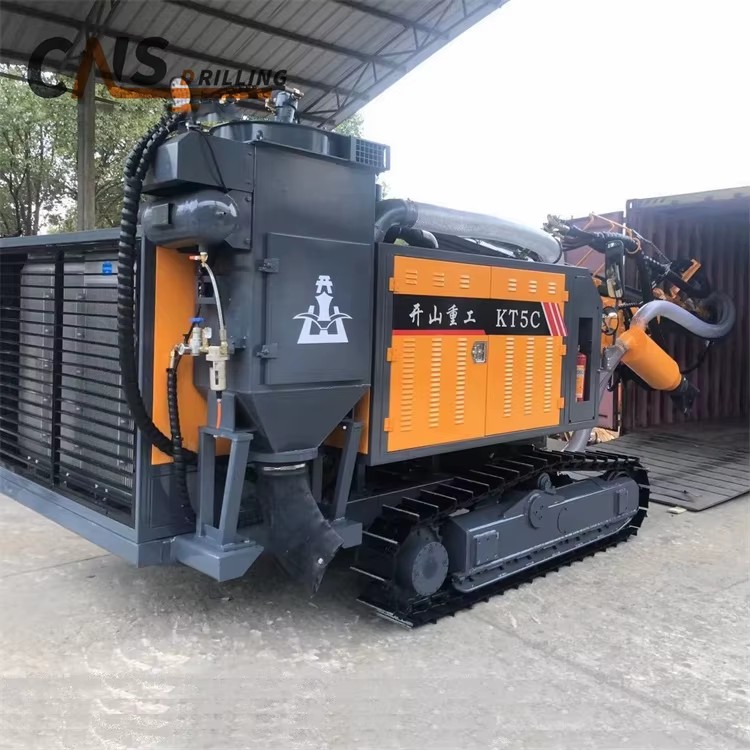

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
MINING BOREHOLE DRILLING
Type
DOWN THE HOLE DRILLING RIG
Drilling Depth
Economical depth 25m
Drilling Diameter
90mm(3.54in), 115mm(4.53in), 80MM(3.15in), 100MM(3.94in), 110MM(4.33in), 105MM(4.13in), 152MM(5.98in), 178MM(7.01in), 203MM(7.99in), 200MM(7.87in), 115-152mm(4 1/2"-6")
Power Type
Diesel
Core components
Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
Zhejiang, China
Weight
15500 KG(34171.65lb)
Dimension (L*W*H)
9100*2520*3600mm(358.27*99.21*141.73in)
Mobility
Crawler
Application
dth drill rig with remote control
Engine
Cummins QSL8.9-C360-30,265kw/360hp/ 2200r/min
SCREW AIR COMPRESSOR
20m3/min(706cfm)
Pressure of Screw Air Compressor
2.2MPa(319Psi)
DRILLING ROD
DIA.76/89*4000MM
Function
big hole drilling rig rental
Drilling method
DTH DOWN THE HOLE
DUST COLLECT
DRY TYPE
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
KT12
Power (W) (Product option)
265 KW(355.37hp)
Lead time
30 days
Minimum order
1 Units
