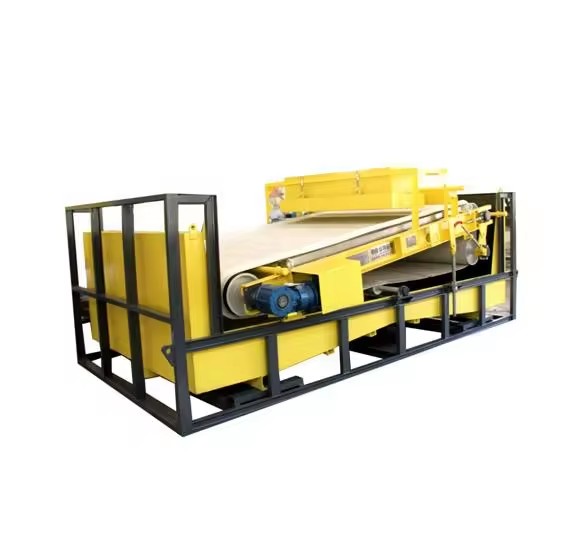

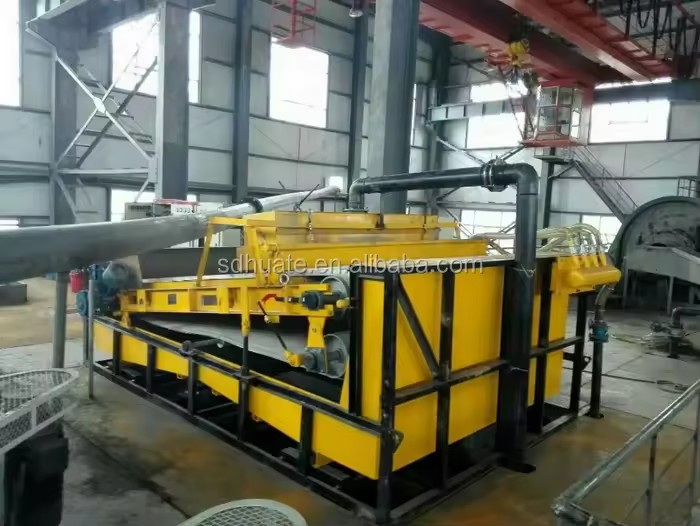

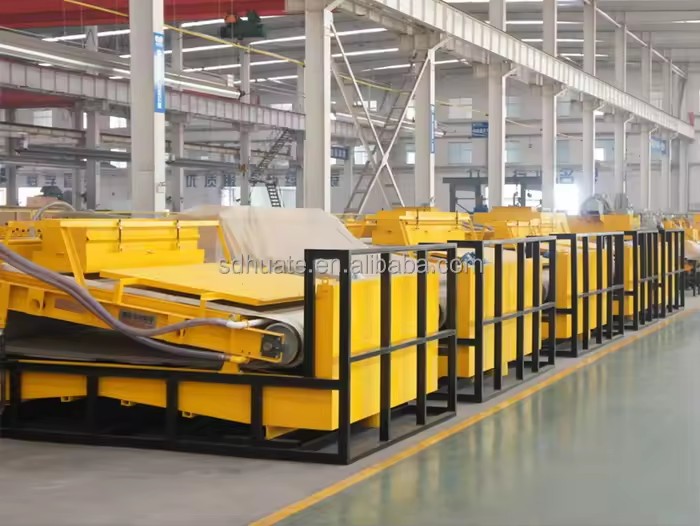

Wet Belt Strong Magnetic Plate Magnetic Separator for Non-metallic/Metallic Minerals

Available for enquiry 0.0 · 0 reviews
USD

$ 7,820.00 7820.0 USD $ 7,820.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Magnetic Separator
Voltage
Customer Local Standard
Core components
Motor, Magnetic system
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Product description
01 High magnetic filed intensity02 Big magnetic system area
The magnetic system is made up of the rare earth NdFeB magnets with high performance. It has a very wide poly face, lots of magnetic poles. It ’ s with a very high magnetic induction ability and a very high magnetic gradient. The magnetic intensity in some part can reach 17000 Gs.At present, the largest width for the magnetic system is 2500 mm, and its largest length is 3000 mm.
03 Even material distribution04 Thorough iron discharge

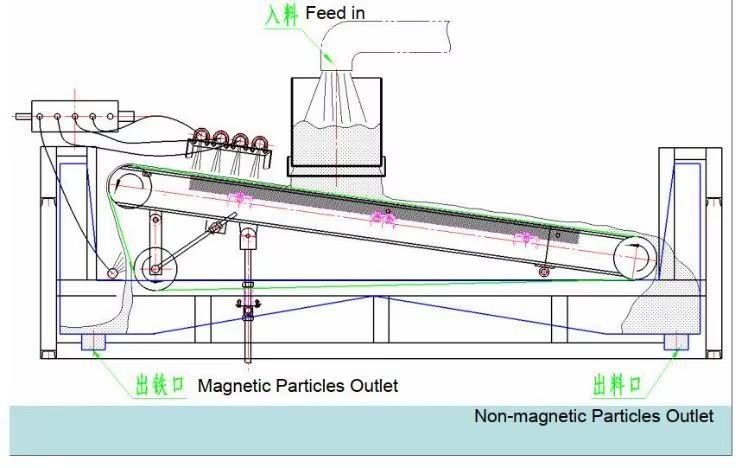

Double-layer orifice plate is used for material distribution, which is stable and uniform, and the material depth is small.There are various belts specially designed to remove the iron for the customer ’ s choice. Made by the compound materials with high quality, the belt can serve for a long lifetime and remove the iron remarkably.
05 Energy and water saving06 Protect the WHIMS
Driven by one motor with small power, it ’ s very energy-saving. With the special controllable design of water system, water is greatly saved.Used in conjunction with the WHIMS to reach the limit level of magnetic separation iron removal!

It is used for iron removal and purification of non-metallic minerals in wet processing, especially for wet iron

removal of non-metallic minerals such as quartz sand, potassium feldspar, and soda feldspar. In addition, it has

a good separation performance for weak magnetic minerals such as hematite, limonite, specularite, siderite

manganese ore, and tantalum-niobium ore.

ModelWidth of magnetic system (mm)Length of magnetic system (mm)Magnetic field intensity (Gs)Feed concentration (%)Water supply pressure (Mpa)Feed size (mm)Processing capacity (t/h)Motor power (kW)
SGB-081580015009000~1200020~25≥ 0.215-81.1 (1.5)
SGB-1020100020008-121.5 (2.1)
SGB-12201200200010-152.2 (3)
SGB-15251500250015-202.2 (3)
SGB-20252000250020-253 (4)
SGB-20302000300020-253 (4)
SGB-25252500250025-304 (5.5)
SGB-25302500300025-304 (5.5)

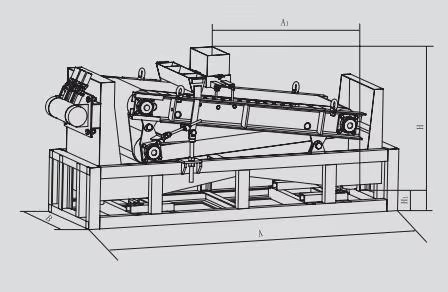

ModelA (mm)B (mm)H (mm)A1 (mm)H1 (mm)
SGB-0815364013201850200098
SGB-1020414015202500
SGB-1220414017202500
SGB-1525464020203000
SGB-2025464025203000
SGB-2030514025203055
SGB-2525464031003000
SGB-2530514031003055

engaged in R&D, manufacturing and technical services of electric-magnetic separation equipment for 31

years, providing customers with packaged solutions. The company specializes in the design, manufacture and

supply of superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron

separator, mineral processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic mineral

processing equipment, ocean&lake ecological equipment and so on. Our service scope involves coal, mine, electricity

building material, metallurgy, port, environmental protection etc.. With more than 15,000 customers, our equipment

are exported,, J apan, I taly,,,,, and many other countries.

Description images
Wet Belt Strong Magnetic Plate Magnetic Separator for Non-metallic/Metallic Minerals
Wet Belt Strong Magnetic Plate Magnetic Separator for Non-metallic/Metallic Minerals
Wet Belt Strong Magnetic Plate Magnetic Separator for Non-metallic/Metallic Minerals
Wet Belt Strong Magnetic Plate Magnetic Separator for Non-metallic/Metallic Minerals
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Type
Magnetic Separator
Voltage
Customer Local Standard
Core components
Motor, Magnetic system
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
Patented Product
Production Capacity
up to 40 t/h
Place of origin
China, Shandong
Weight
2000 kg
Dimension (L*W*H)
Varies
Application
Iron removal from Silica Sand
Material
Stainless Steel
Induced field intensity
11000 Gauss
Feeding size
3 mm
Applicable Industries
Energy & Mining
Showroom Location
Germany, Russia, South Korea, Indonesia, India
Condition
New
Marketing Type
Ordinary Product
Warranty of core components
More than 5 years
Selling Units
Single item
Single package size
364X132X185 cm
Single gross weight
2000.0 kg
Model number
SGB Series
Power (W) (Product option)
1.1-4 kW
Lead time
90 days
Minimum order
1 Units
