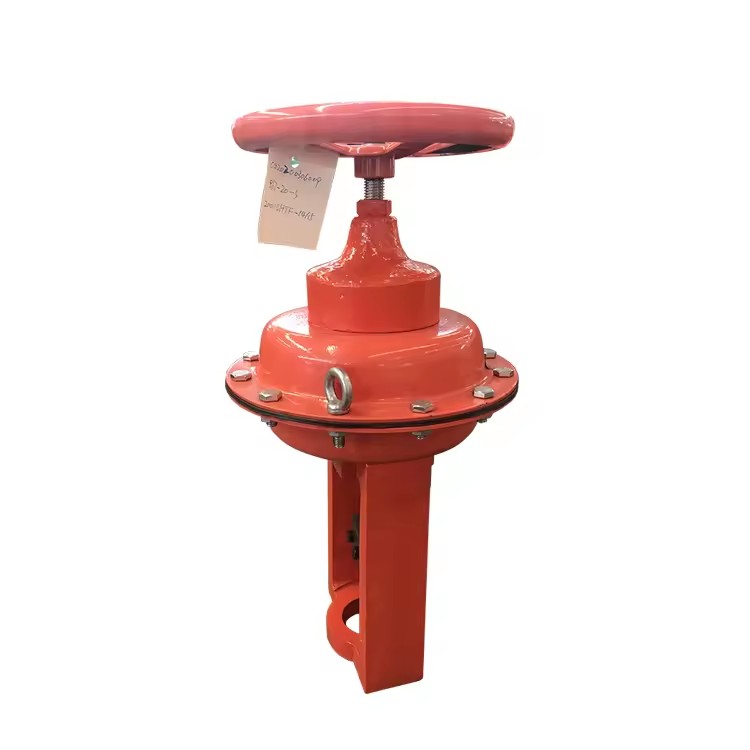

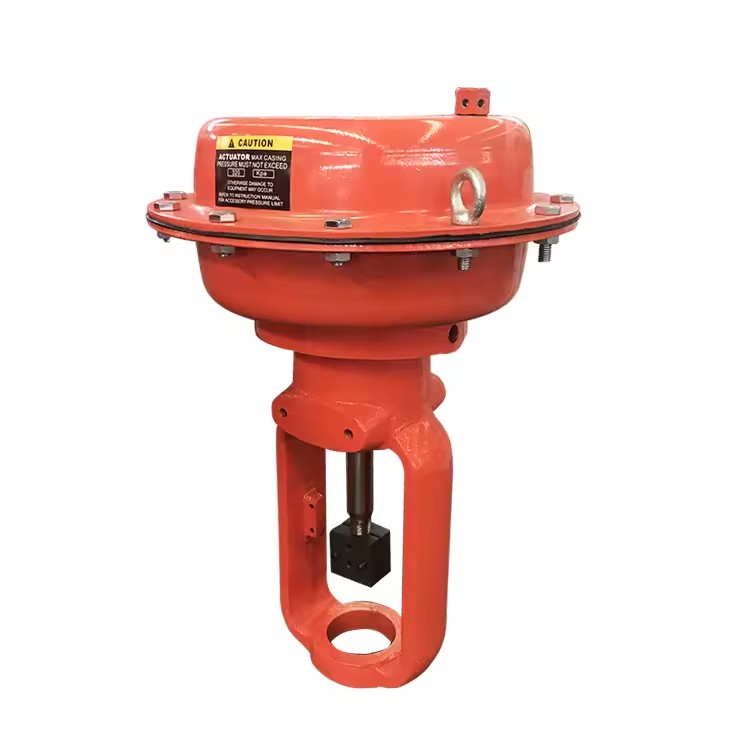

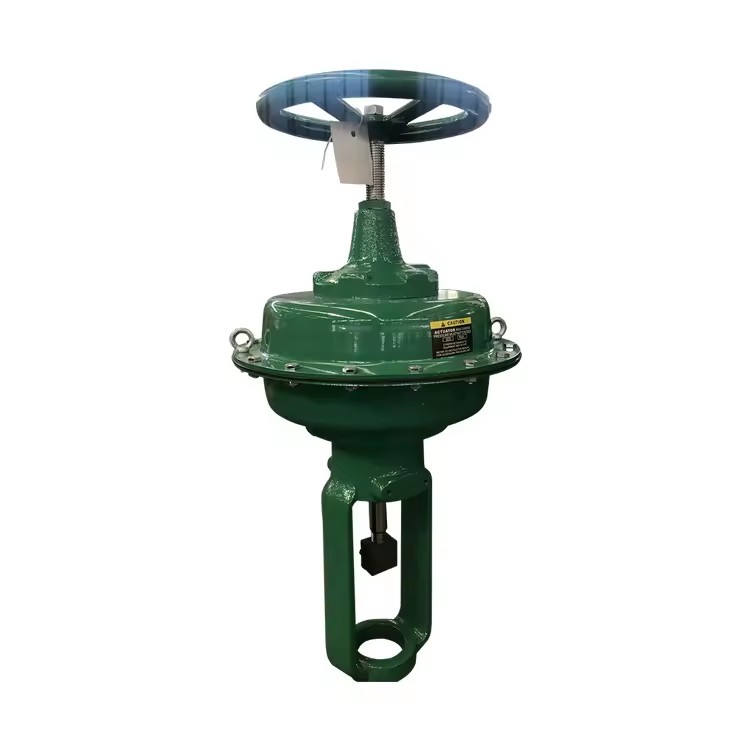

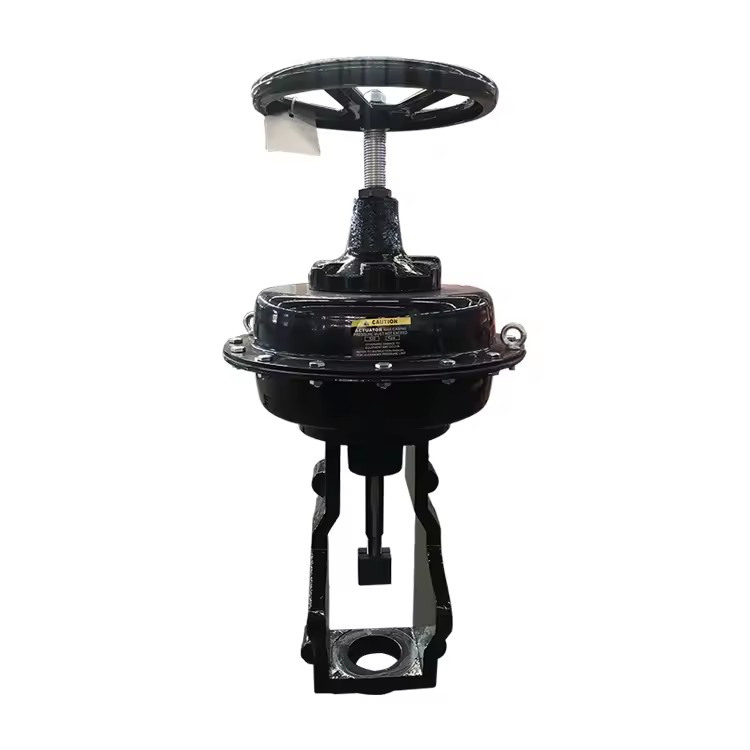

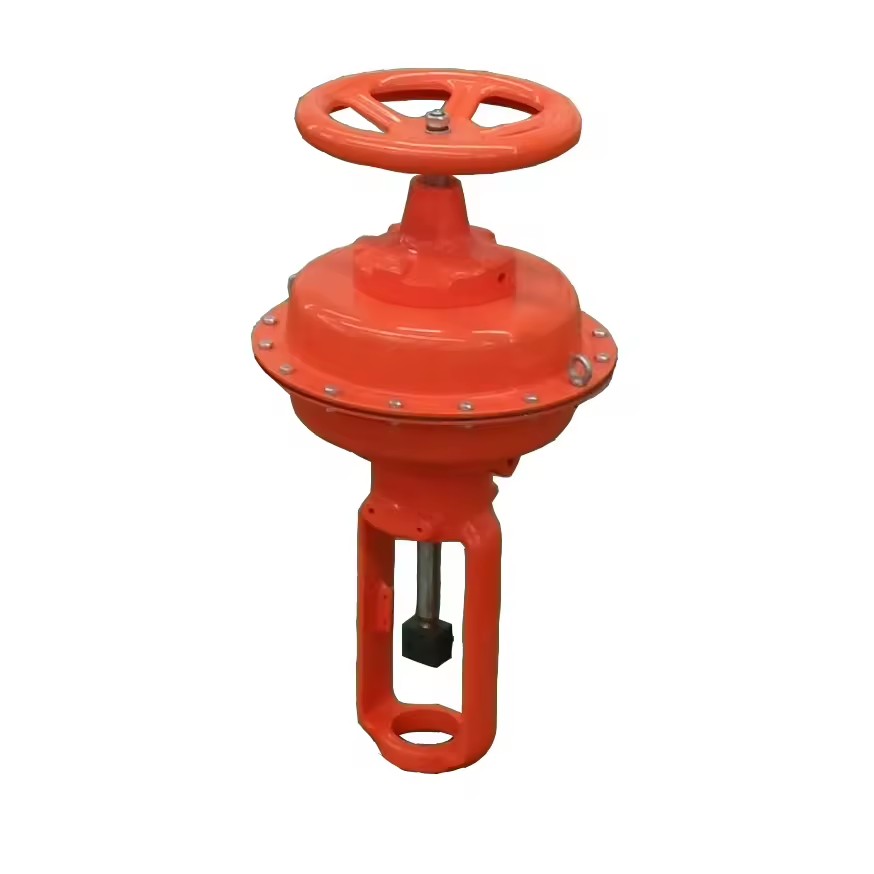

Name: Reverse Action Side Handwheel Diaphragm Single Acting Pneumatic Actuator
SKU: B2B-11997
Price: 670.0 USD
Availability: PreOrder

Product description

Series	957、967
Form	multi-spring structure
Models	20、30、34、40、45、50、70
Action	1.positive action 2.reverse action
Maximum Thrust Output	see table 1
Route	see table 2
Supply Gas Pressure	320Kpa
Spring Range	positive action:20～100Kpa、40～200Kpa reverse action:80～200Kpa、120～240Kpa
Environment Temperature	standard form:-40℃～82℃ special form(choose):-18℃～149℃、-54℃～149℃
Major Parts Materials	Standard Form	membrane housings: steel film: chemigum film substrate: steel O-type ring: chemigum route sign: stainless steel pointer: stainless steel spring of actuator: steel guide rod of actuator: galvanized steel clamp block: galvanized steel holder: cast iron hand wheel: nodular cast iron
Special Form	film: fluororubber (-18℃～149℃) silicone synthetic rubber (-54℃～149℃) O-type ring: silicone synthetic rubber guide rod of actuator: galvanized steel connecting bolt：galvanized steel
Coating color	orange
Attachment	locator, air filter depressurizer, limit switch, solenoid valve, lock up valve, amplifier, etc
Equipment Selection	manual operation mechanism, Special air piping and special air fittings, using with high temperature environment, using with low temperature environment, Salt corrosion prevention, designated coating color, etc.

Positive Action ( air-to-close )

Reverse Action ( air-to-open )

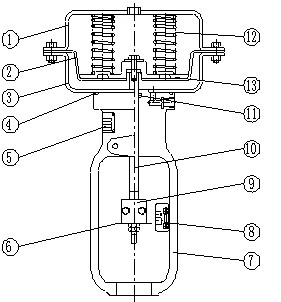

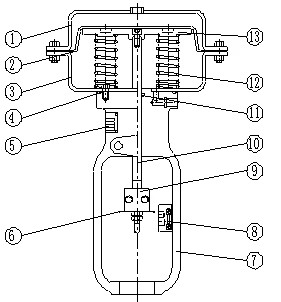

Actuator’s Parts List
① sheeting shell	② film	③ film casing	④ O-type ring
⑤ name plate	⑥ pointer	⑦ holder	⑧ route sign
⑨ clamp block	⑩ guide rod of actuator	⑪ O-type ring	⑫ spring of actuator
⑬ film substrate
