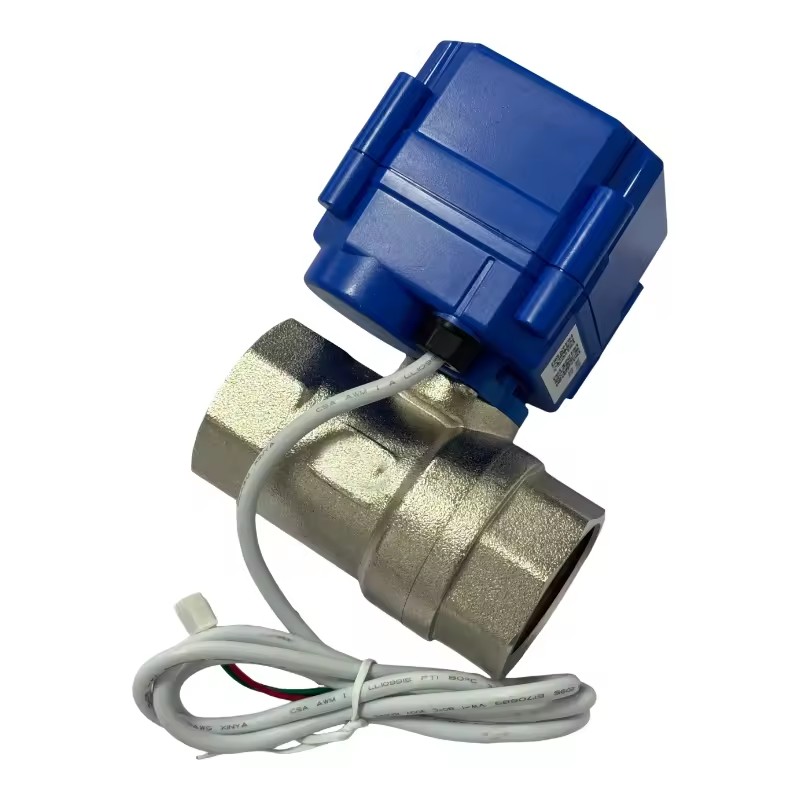

Reduced Bore Electric Ball Valve RDNT20 Series | Double Female Thread Straight Ball Valve | Water Treatment/Chemical Piping

• Connection Size
  • 1/2 in
  • 3/4 in
• Operating Pressure
  • 100 psi
  • 200 psi
• Operating Temp. Range
  • 0-90°C
• Media
  • Base
• Sealing Material
  • PTFE
  • EPDM
  • FKM
  • NBR
  • FPM
• Connection Type
  • Thread
  • NPT
• Power
  • electric
• Ball Material
  • Carbon Steel
  • Cast Iron
• Port Size
  • 1/4 in
  • 1 in
  • 3/4 in
  • 1/2 in
  • 3/8 in
• For Maximum Pipe Size
  • 50 mm
• Application
  • Other
• Temperature of media
  • Medium Temperature
• Structure
  • Ball
• Customized support
  • OEM
  • ODM
• Warranty
  • 1 years
• Place of origin
  • China
  • Tianjin
• Model number (Specification)
  • 20 Straight-through ball valve5
• Type
  • Float Valves
• Voltage
  • DC5/12V AC/DC24V AC95-265V
• Pressure
  • 1.0MPa
• Color
  • Blue
• MOQ
  • 10pcs
• Packing
  • Carton Box
• Medium
  • Water Oil Gas
• Selling Units
  • Single item
• Single package size
  • 7.5X7X10 cm
• Single gross weight
  • 0.5 kg
• Size (Product option)
  • 1/2 in
  • 3/4 in
  • 1 1/4 in
• Material (Product option)
  • Cpvc-DC5/12V
  • Cpvc-AC/DC24V
  • Cpvc-AC95-265V
