Product video
Certifications CE · ISO · CE

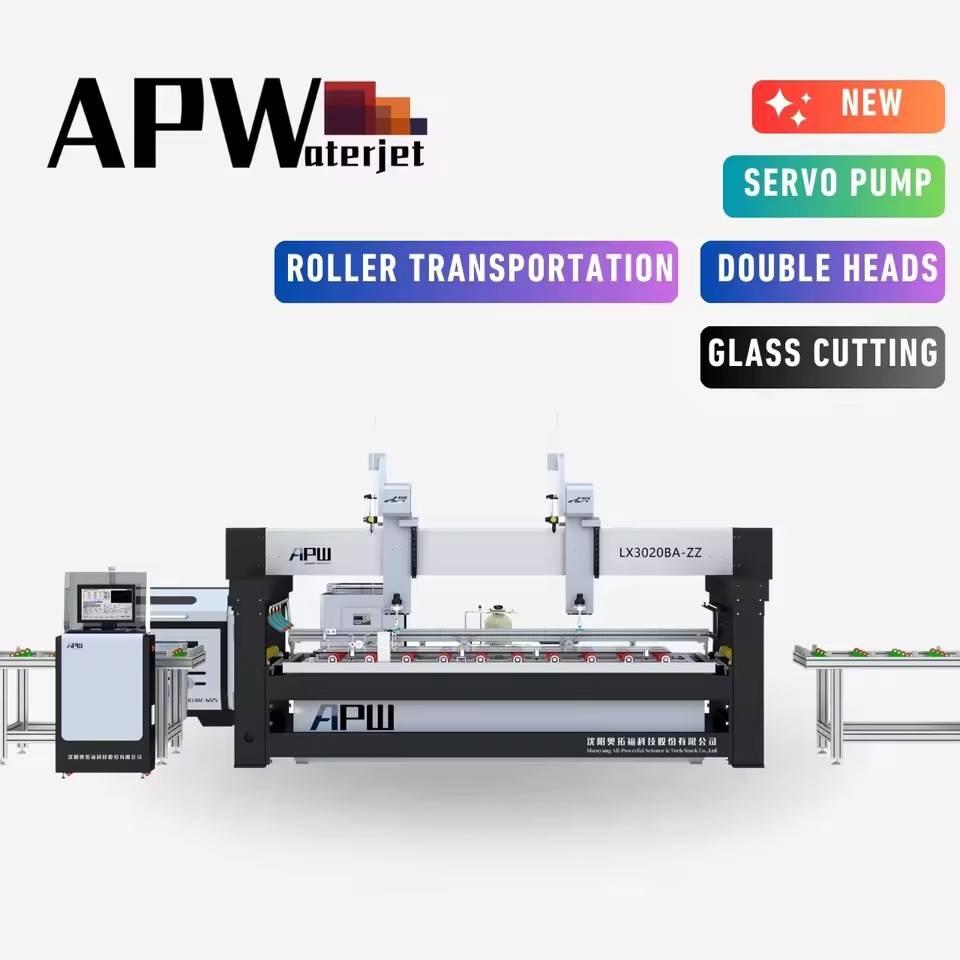

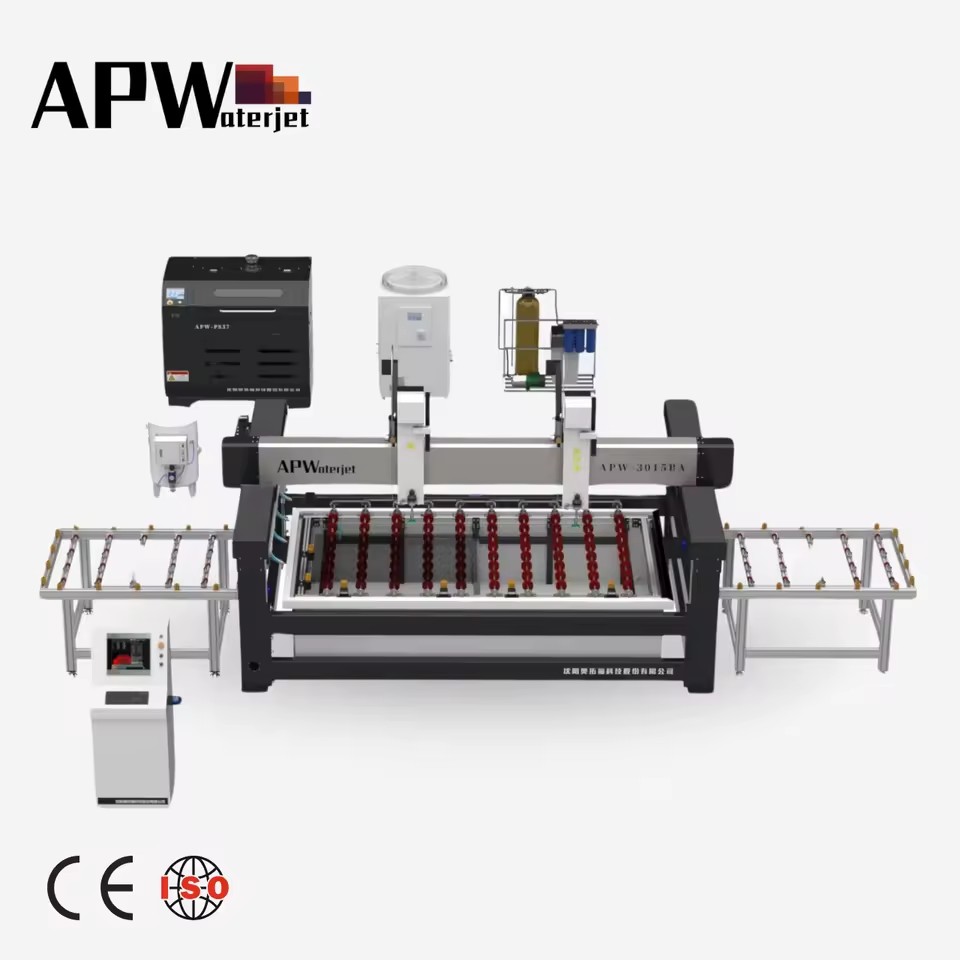

APW Water Jet CNC Cutter glass Stone Marble Waterjet Granite Waterjet Cutting Machine with 5 Axis

Available for enquiry 0.0 · 0 reviews
USD

$ 52,340.00 52340.0 USD $ 52,340.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
1 Year
Product description

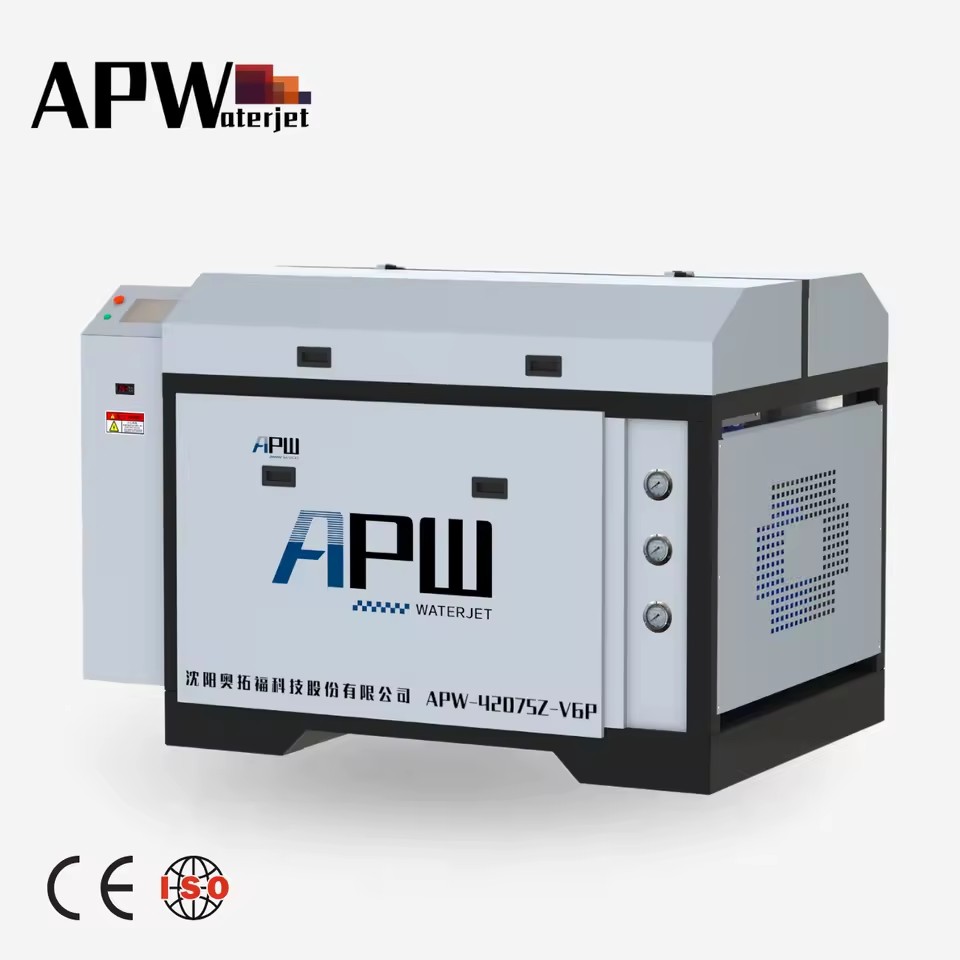

APW-A15 pump

update

power rate

37KW

Max.Pressure

420MPa

intensifier

1 pic

dual-intensifier

HP Flow Rate

3.7L/MIN

Max. Orifice

0.33mm

electricity supply

AC380V 50HZ 3PH

ambient Temp.

5-40℃

accumulator

1.0L

1.2L

oil tank

114L

size

1710*1025*1191mm

Weight

980KG

color

white

customerizel

TABLE-3020BA

table size(X-Y)

3000-2000mm

repeatability

0.03mm

cutting accuracy

0.1mm

traverse speed

10m/min

transform system

ball crew

gear rack with grating

load capacity

500KG/square meter

structure

bridge style

drive way

servo control

ball screw

TBI

linear guide

WON

Sand supplier-DN500

120KG

300KG

supply style

negative pressure

Head-BP

axis

3

AC 5-axis

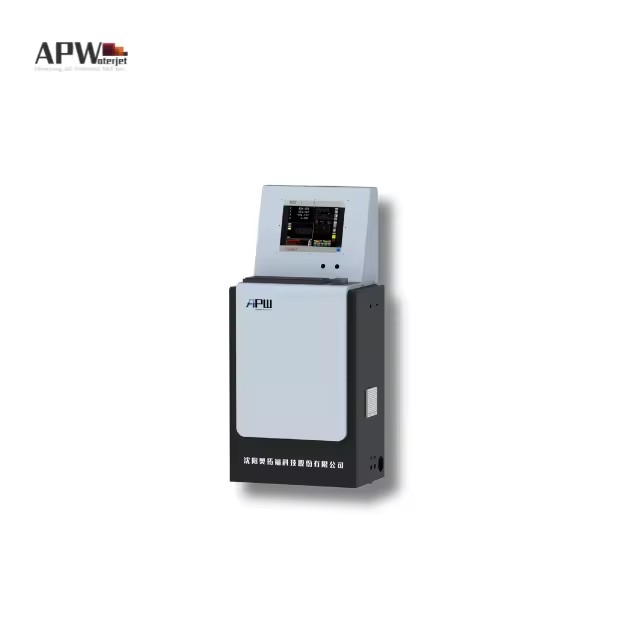

Control system

NC studio

CHiller

chill style

heat exchanger

oil cooler

APW IS PROFESSIONAL.

1.drafts chinese national standard of waterjet cutter (GB/T 26136)

2.offer 1200 combos of waterjet to 70+ countries,8000+ end users

3.23 years history since 2001

4.totally OBM factory

5.ONLY thing we do is waterjet

6.follow 9001 QC processing

7.customers’industry include glass/quartz stone/marble/concrete/ceramic tile metal rubber /nylon/carbon fiber/plastic/nylon/

foam.....

Products Details

Data

Customer

Company Profile

Certifications & compliance
CE
Complies with EU standards
Description images
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    45 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 32 fields
Voltage
380V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
3000mm*2000mm*150mm(118.11in*78.74in*5.91in)
Key selling points
High-Accuracy
Rated power
37KW/50HZ
Place of origin
China, Liaoning
Weight (kg)
2000
Table travel (x) (mm)
3000
Table travel (y) (mm)
2000
Table travel (z) (mm)
150
Cutting accuracy(mm)
±0.01
After-sales Service Provided
Engineers available to service machinery overseas
Certification
CE, ISO
Continuous working time
24hours
Max. Water flow rate
3.7L/min
Cutting accuracy
±0.1mm
The brand of motor
Siemens
Max. Orifice diameter
0.33mm
Nozzle diameter
1.02mm
The hydraulic pump brand
Rexroth
Max pressure
420mpa/60000psi/4137bar
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
APW-LX3020BA
Effective cutting range (mm)
3000×2000
Certifications & Compliance
CE
Lead time
45 days
Minimum order
1 Units
