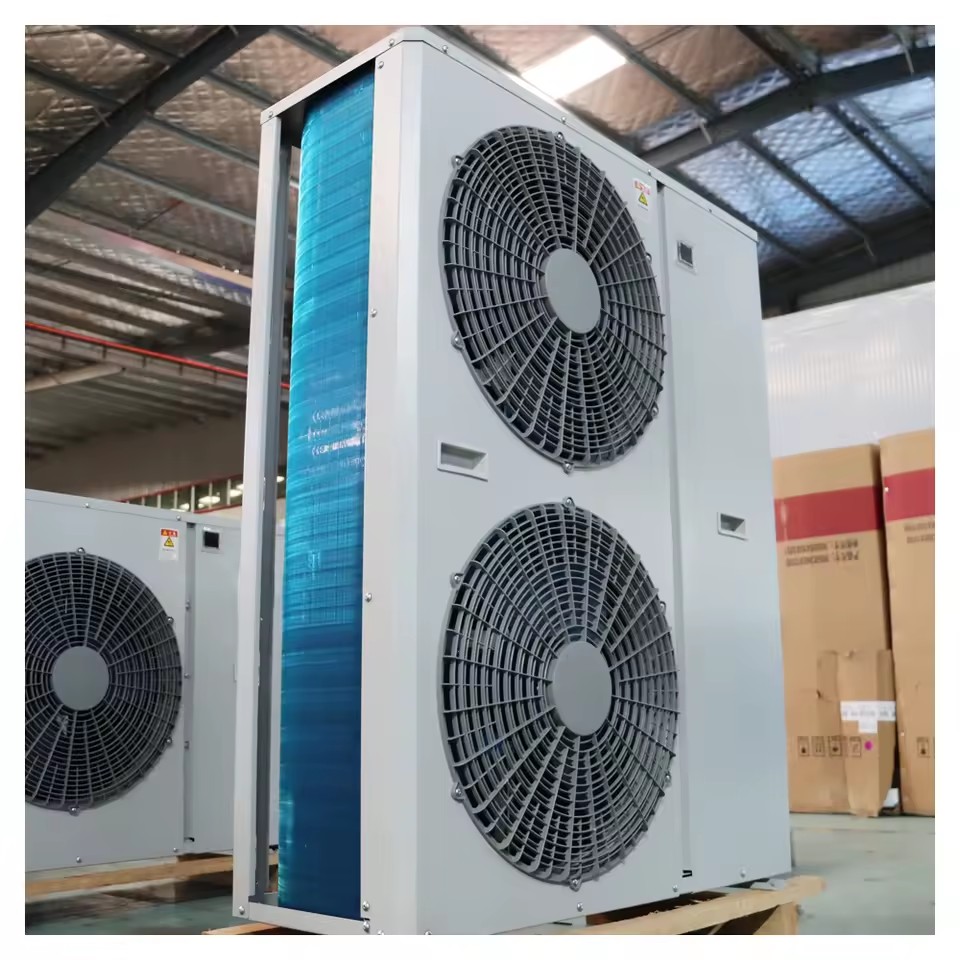

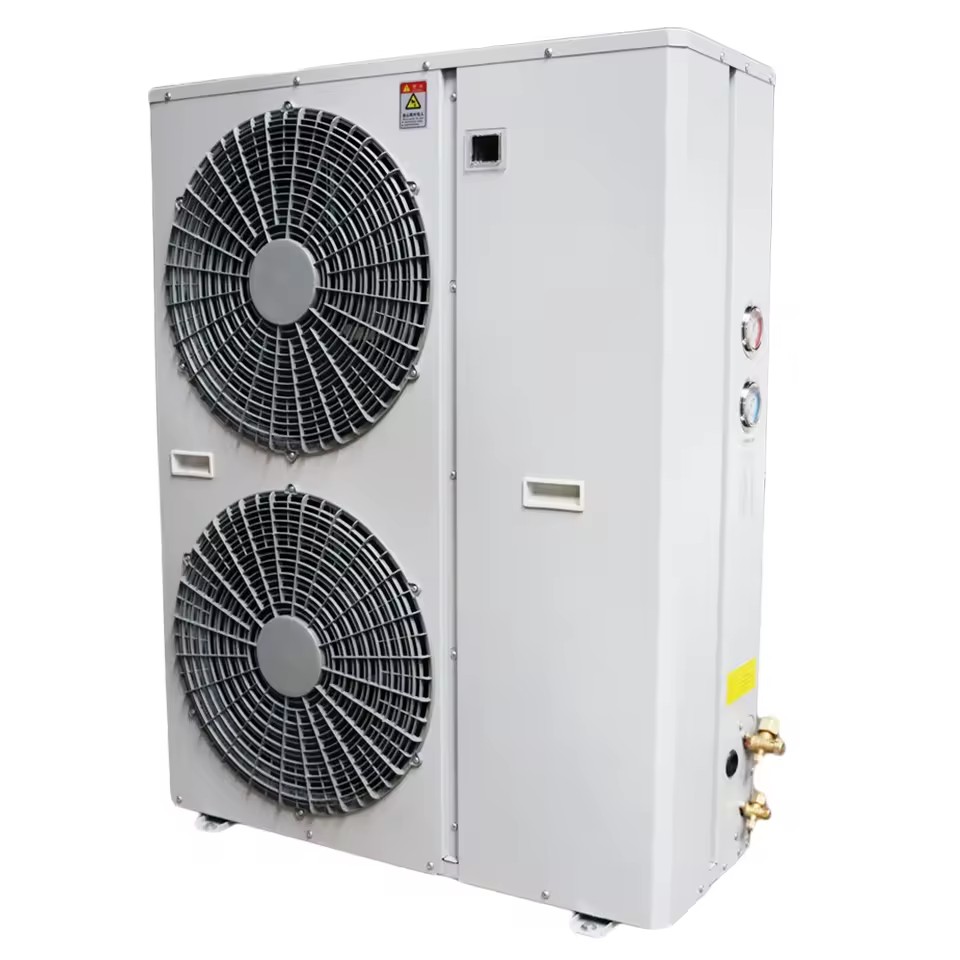

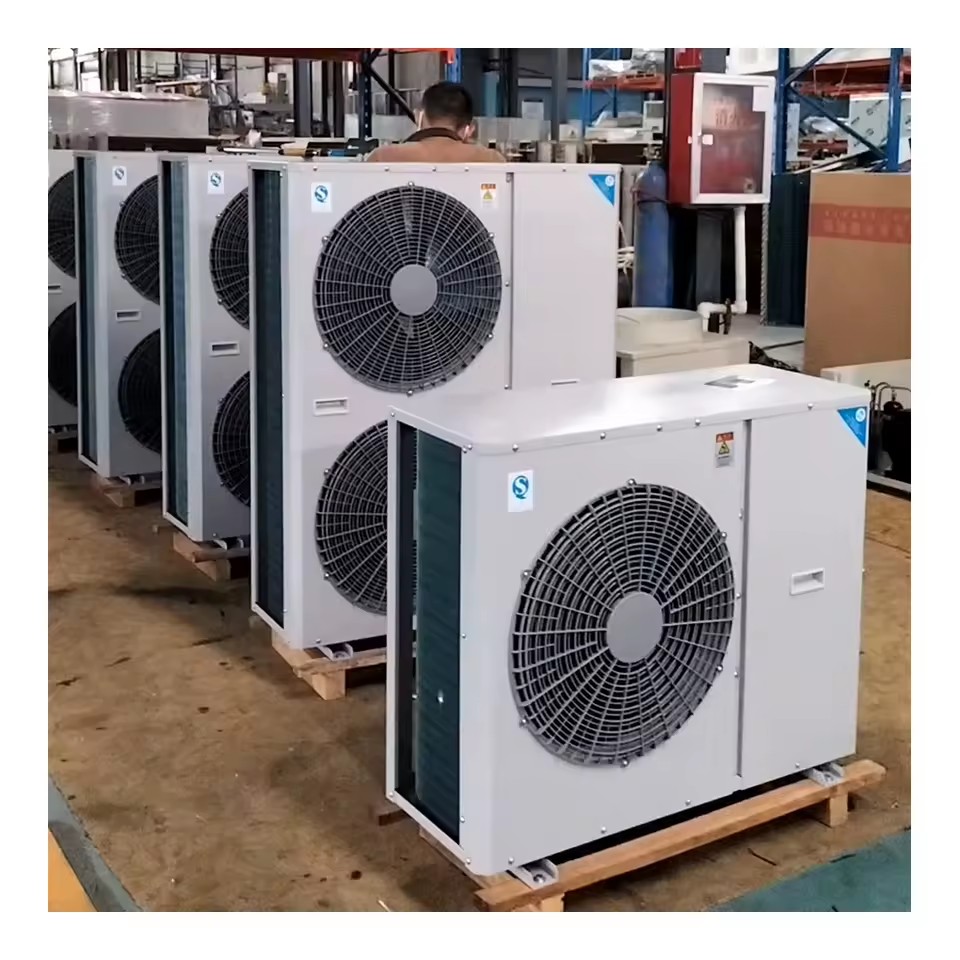

5HP Low Temperature Scroll Compressor Condensing Unit Cold Room Equipment

Product Importer Gallery 01 · d7781ecc25

Product Importer Gallery 02 · c1a7b3af1c

Product Importer Gallery 03 · 87d9edee1d

Product Importer Gallery 04 · 39f0694598

Product Importer Gallery 05 · 750536aa5b

Product video

Certifications CUL

5HP Low Temperature Scroll Compressor Condensing Unit Cold Room Equipment

Name: 5HP Low Temperature Scroll Compressor Condensing Unit Cold Room Equipment
SKU: R9BH-H36N-M6XM
Price: 610.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 610.00 610.0 USD $ 610.00

Minimum order quantity: 1 Units

Key attributes

View all

Temperature

25~-10°C

Voltage

380 V, 220 V, 110 V, 440V

Compressor Type

Scroll

Refrigerant

R-404A, R-22

Core components

Motor

Warranty

1 Year

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

R404 MEDIUM/HIGH BACK PRESSURE 50Hz
MODEL	AOS-2HP	AOS-3HP	AOS-3HP	AOS-3.5HP	AOS-4HP	AOS-5HP	AOS-6HP
HORSE POWER	2HP	3HP	3HP	3.5HP	4HP	5HP	6HP
NOMINALCAPACITY	3200	5000	5000	6000	7000	8000	8800
DISPLACEMENT	44	58.2	74	74	90.2	112.5	124.4
OUTLINE SIZE	700320560	955365800	9553651250
GROSS WEIGHT(kg)	82	92	92	93	93	125	127
NET WEIGHT(kg)	80	86	86	87	87	118	120
PIPE(mm)	IN φ16 OUT φ10	IN φ19 OUT φ12
FAN SIZE(mm)	1Ad.400mm	1Ad.450mm	2Ad.450mm
REFRIGERANT	R404
OIL	RL-32H
NOISE(dB)(at 1m)	56	57	57	57	58	62	62
REFRIGERANT CHARGE (kg)	2-2.5	2.5-3.5	2.5-3.5	2.5-3.5	3-4	5.5-6.5	6-7
REFRIGERATION VOLUME (m³)	25	40	40	45	50	70	80
REFERENCE EVAPORATING (m²)	20-25	25-30	25-30	35	25-35	30-45	40-48

R22 MEDIUM/HIGH BACK PRESSURE 50Hz
MODEL	AOS-2HP	AOS-3HP	AOS-3HP	AOS-3.5HP	AOS-4HP	AOS-5HP	AOS-6HP
HORSE POWER	2HP	3HP	3HP	3.5HP	4HP	5HP	6HP
NOMINALCAPACITY	3200	5000	5000	6000	7000	8000	8800
DISPLACEMENT	44	58.2	74	90.2	112.5	124.4	134.8
OUTLINE SIZE	700320560	955365800	9553651250
GROSS WEIGHT(kg)	82	92	92	93	93	125	127
NET WEIGHT(kg)	80	86	86	87	87	118	120
PIPE(mm)	IN φ16 OUT φ10	IN φ19 OUT φ12
FAN SIZE(mm)	1Ad.450mm	2Ad.450mm
POWER SUPPLY	220-240V-50Hz	380V-3PH-50Hz
REFRIGERANT	R22
OIL	SUNISO3GS	SUNISO4GS
NOISE(dB)(at 1m)	56	57	57	57	58	62	63
REFRIGERANT CHARGE (kg)	2-2.5	2.5-3.5	2.5-3.5	2.5-3.5	3-4	5.5-6.5	6-7
REFRIGERATION VOLUME (m³)	25	40	40	45	50	70	80
REFERENCE EVAPORATING (m²)	20-25	25-30	25-30	35	25-35	30-45	40-48

Q: Are your products customizable?

A: Yes, we offer comprehensive customization services, allowing us to design and manufacture products according to

Q: What is the production lead time?

A: Typically, the production lead time for standard products is 30 days. Custom products vary depending on their complexity, and the specific time will be confirmed with the customer.

Q: Do you offer international shipping?

A: Yes, we offer global shipping services, supporting a variety of logistics methods to ensure the safe and timely arrival of your products.

Q: Do you provide after-sales service?

A: We provide comprehensive after-sales service, including technical support for product issues, to ensure a worry-free experience.

Q: How do we ensure product quality?

A: We strictly adhere to international quality management systems. From raw material procurement, production and processing to final product, we undergo multiple quality inspections to ensure the highest quality standards.

Q: What happens if there are any quality issues with the product?

A: We are committed to providing quality assurance services. If there are any quality issues with the product, we will provide returns, exchanges, or repairs based on the specific circumstances.

Certifications & compliance

CUL

Canadian safety standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Temperature

25~-10°C

Voltage

380 V, 220 V, 110 V, 440V

Compressor Type

Scroll

Refrigerant

R-404A, R-22

Core components

Motor

Warranty

1 Year

Key selling points

Energy Saving

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

Model number (Specification)

5HP Low Temperature

Dimension(L*W*H)

955x365x800MM

Type

Scroll Condensing Unit

Horse power

5HP

Compressor Model

C-SBR180H38Q or Customized

Liquid Injection

Optional

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power(W) (Product option)

14~30KWH/DAY

Certifications & Compliance

CUL

Lead time

20 days

Minimum order

1 Units
