API 4F Origin 120t 650hp Truck-mounted Pulling Unit

Available for enquiry 0.0 · 0 reviews
USD

$ 1,144,020.00 1144020.0 USD $ 1,144,020.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
workover rig
Power Type
Diesel
Voltage
380V/460v
Machinery test report
Provided
Warranty
1 Year
Core components
Bearing, Engine, Pump
Product description

API 4F single drum XJ450 80ton truck-mounted pulling unit

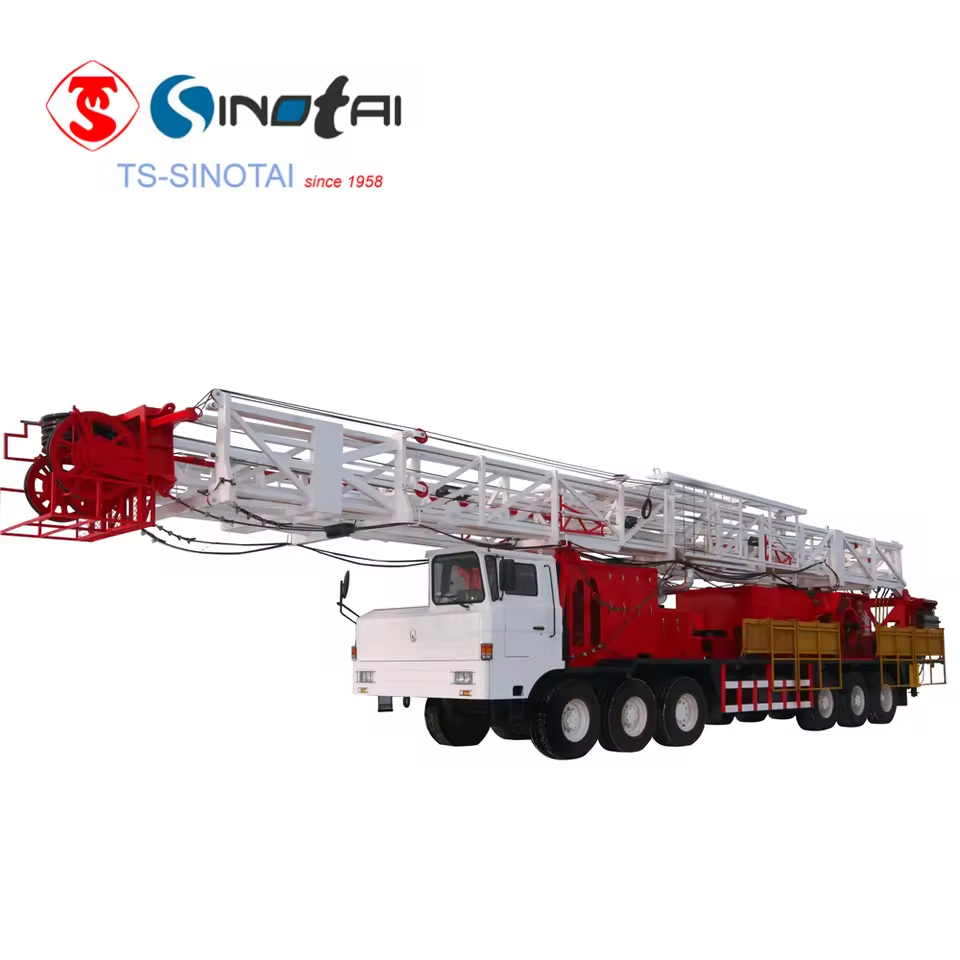

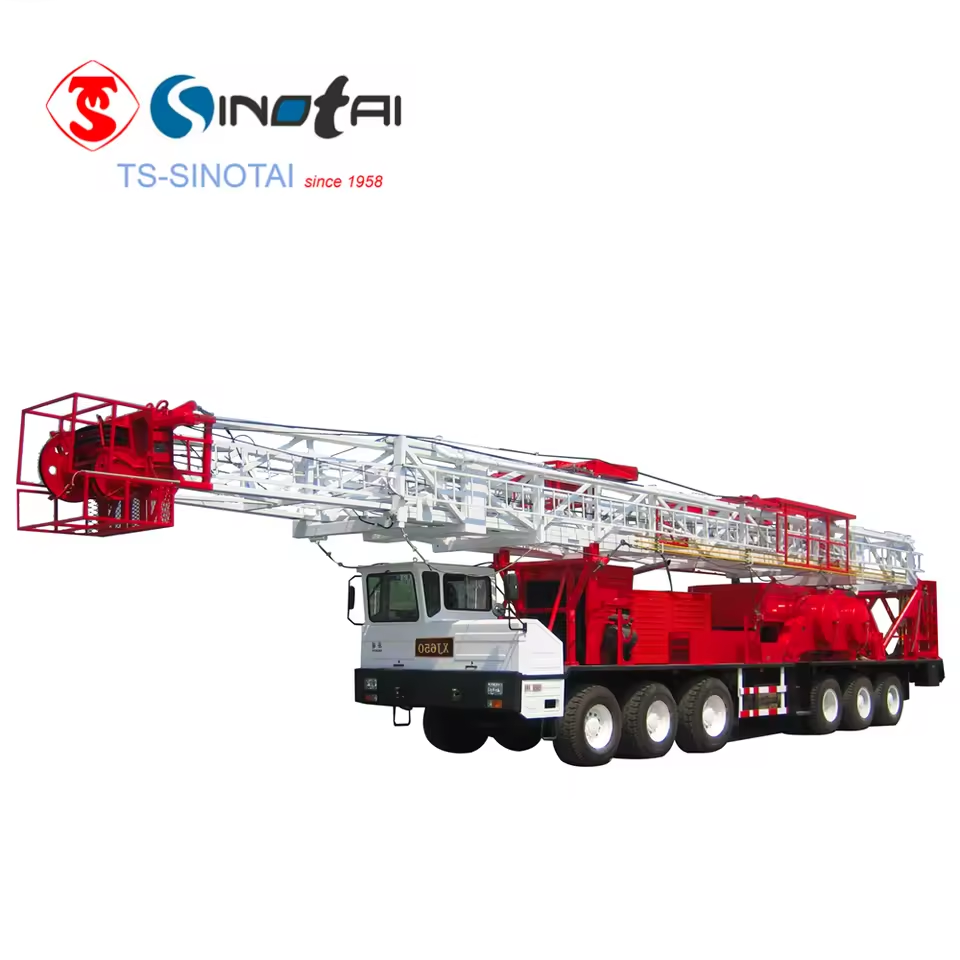

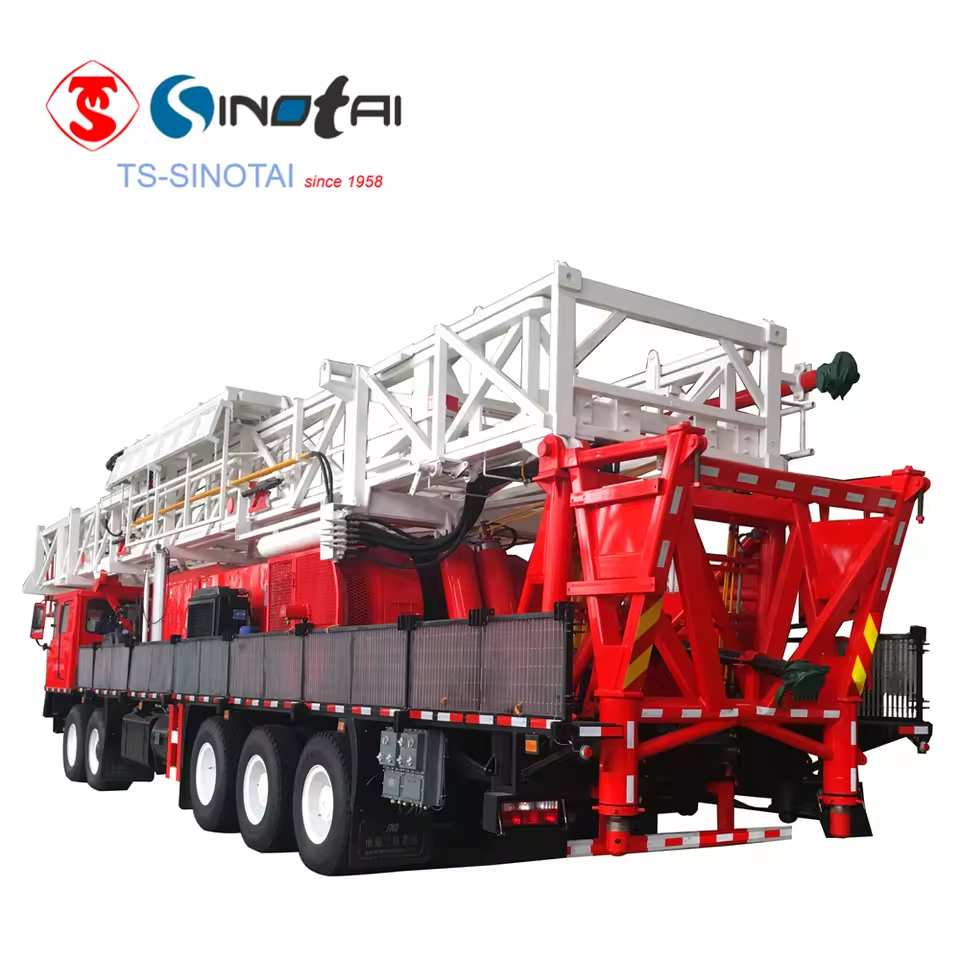

XJ650 ( 120t ) workover& drilling rig is one of the best selling, single engine and high power, self- propelled rig. The rig adopts 12x8 driven type chassis, Caterpillar engine and Allission transmission (can use brand also), and double drum draw-works. Max. hook load is 1580KN. The rig equipped with rotary table, platform, and swivel etc.

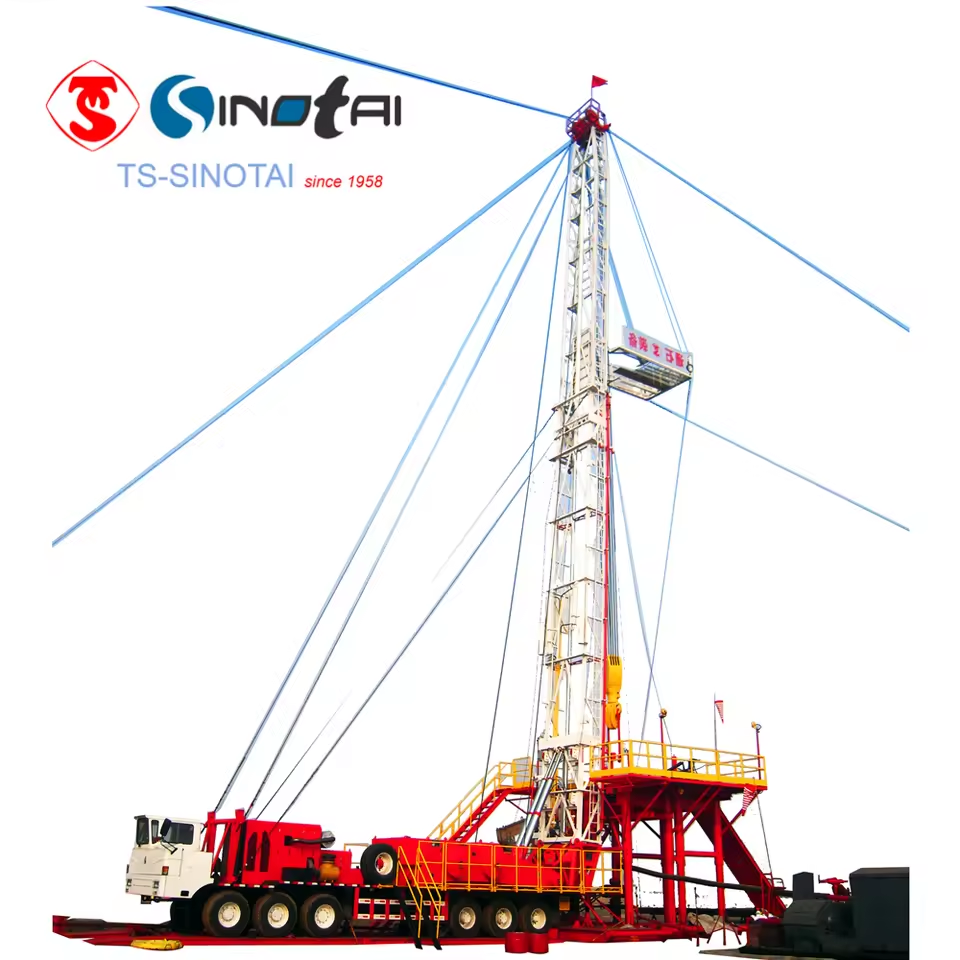

Adopts double section hydraulic lifting, flexible mast, the height is 35m.

Equipped with double CAT C18 engine and Allission M6620 transmission. The performance is stable and reliable.

The driven model of self-propelled chassis is 12x8. Single cab. With heater.

The main drum adopts ATD324 disc brake, and assis brake is air control disk type brake.

Anti-collision crown block.

Fingerboard of monkey board is longitudinal arrangement, the beam space can be adjusted. Equipped with aid climbing implement and escape device.

All pneumatic pipelines adopt FESTO quick-coupling and pipeline.

Meter system adopts 24V DC, and lighting system supplied power by external AC power.

DescriptionXJ650(120t)
Workover depthΦ73mm (2 7/8”upset tubing)m8500
Service depthΦ73mm( 2 7/8”DP)m7000
Φ88.9mm( 3 1/2”DP)m5500
Φ114mm(4 1/2”DP)m4200
Drilling depth2000
Rated hook load1200
Max. hook load1580
Engine modelCAT C18
Engine power470 ( 630 )
TransmissionAllision M6620
Chasssis driving form12x8
Approach/departure25°/ 16°
Min. ground clearance310
Derrick height35
Derrick typefront opened, double section hydraulic lifting, flexible mast
Valid rope number8 ( 4x5 )
Hoist rope diameterΦ29
Transportation dimensions ( length x with x height )19.90x3.10x4.37
Total weight55000
DrumSingle / double drum
Main drum assist brake systemAir control disk type brake / hydraulic control disc brake / hydraulic brake
Description images
API 4F Origin 120t 650hp Truck-mounted Pulling Unit
API 4F Origin 120t 650hp Truck-mounted Pulling Unit
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Type
workover rig
Power Type
Diesel
Voltage
380V/460v
Machinery test report
Provided
Warranty
1 Year
Core components
Bearing, Engine, Pump
Video outgoing-inspection
Provided
Place of origin
China, Jilin
Model number (Specification)
XJ650
Weight
55000 KG
Dimension (L*W*H)
19.90x3.10x4.37
Application
oilfield
Drum
single/double
Rig type
truck-mounted
Drilling Depth
3000m
Chassis
12x8
Engine model
CAT C18
Transimission
Allision M6620
Capacity
120t
Minimum Order Quantity
1 Set
Packaging Details
bulk cargo
Port of dispatch
Tianjin Sea Port
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
300 sets per Year
Power (W) (Product option)
630kw
Lead time
90 days
