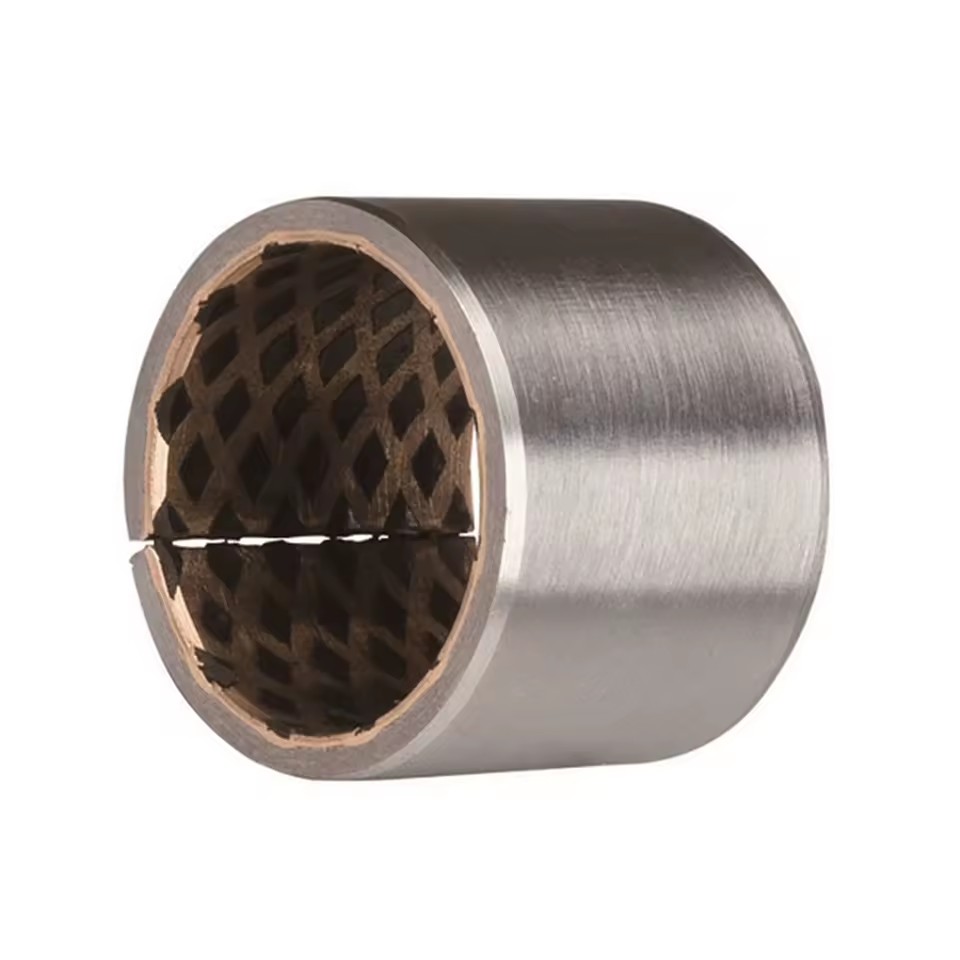

Bimetallic Alloy Plain Bushing Oil Retaining Self Lubricating Bi-Metal Sliding Sleeve for Automobile Engine Parts

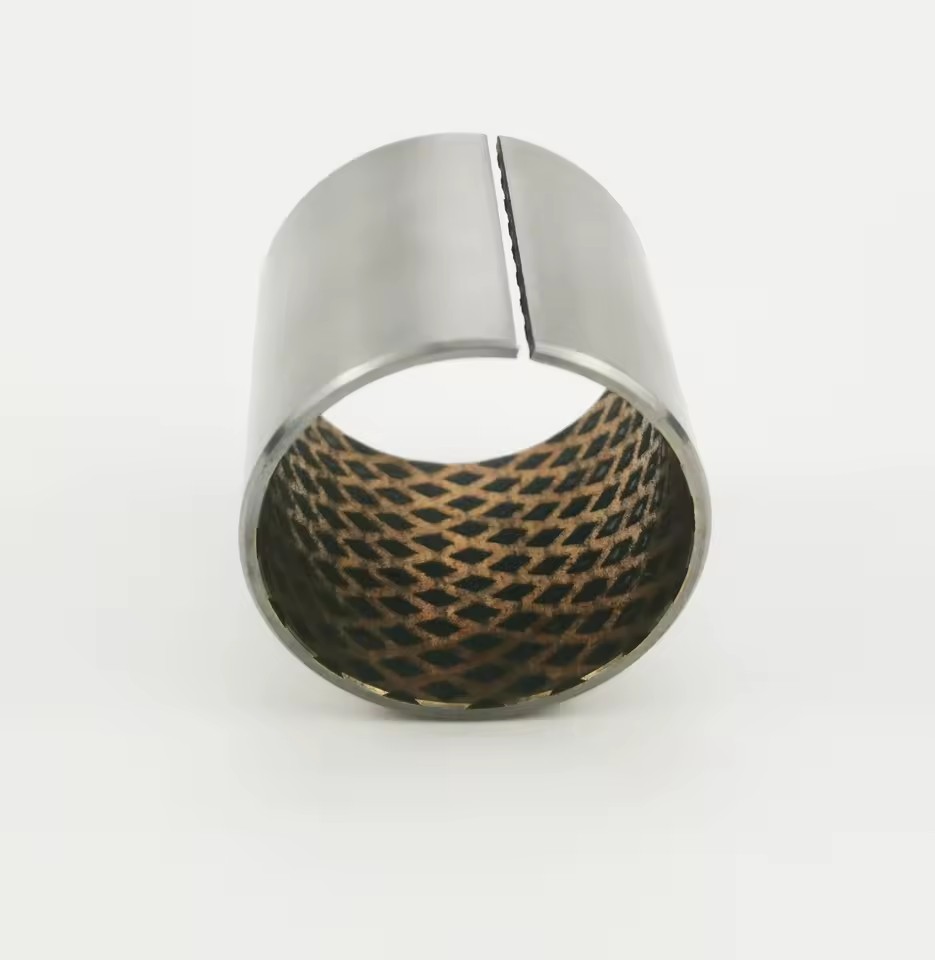

Product Importer Gallery 01 · 56da9cd7a8

Product Importer Gallery 02 · ed4b42946d

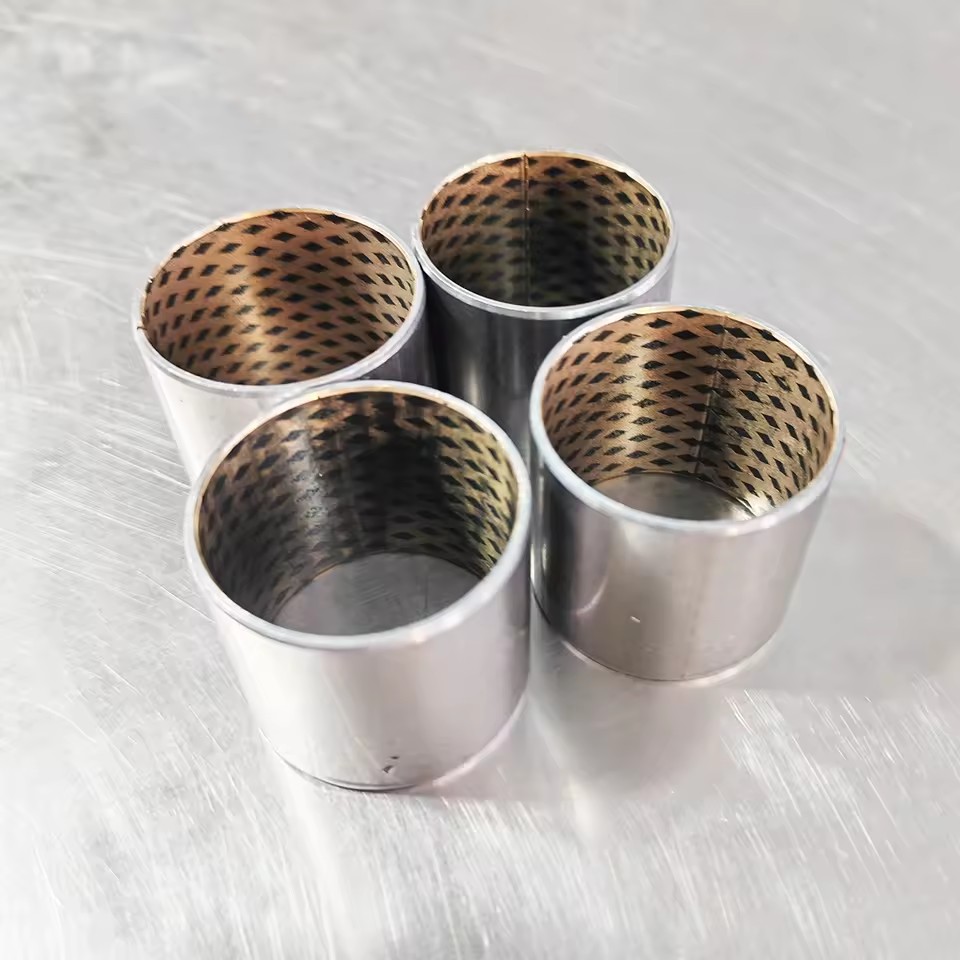

Product Importer Gallery 03 · b920ddcd4a

Product Importer Gallery 04 · b8d0679e3a

Product Importer Gallery 05 · ffd585b023

Product video

Bimetallic Alloy Plain Bushing Oil Retaining Self Lubricating Bi-Metal Sliding Sleeve for Automobile Engine Parts

Name: Bimetallic Alloy Plain Bushing Oil Retaining Self Lubricating Bi-Metal Sliding Sleeve for Automobile Engine Parts
SKU: R2PC-RGZ3-T2BQ
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 100 Units

Key attributes

View all

Material

Customization

Shaft Diameter

customization

Type

Sleeve

Bore Geometry

Round

Overall Length

customization

Inside Diameter Tolerance

±0.01 mm

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

This product adopts high-quality low-carbon steel plate as the base, with a sintered porous bronze layer in the middle. The surface is rolled with a mixture of PTFE and lead. The surface friction layer of CSHF-6 material is generally 0.02-0.06mm thick.

It features excellent self-lubrication, outstanding wear resistance, low friction coefficient, good running-in performance and low noise. It perfectly combines the advantages of metal materials and multi-element polymers.

Widely applied to sliding parts of various machinery, including printing machinery, textile machinery, hydraulic handling equipment, tobacco machinery, fitness equipment, agricultural machinery and other industrial fields.

Frequently asked questions

Yes, we can offer material test report, factory inspection certificate and related documents.

Strict quality inspection before shipment, stable friction performance, high load capacity, wear resistance and long service life.

Suitable for high load, low speed, dry friction, water medium, high temperature and harsh working conditions.

Widely used in hydraulic, construction machinery, agricultural machinery, metallurgy, mining, water conservancy, ship, automobile, textile and printing equipment.

Yes, OEM and ODM custom service are available, we can produce according to your drawings or samples.

Stock items: 3-5 days; custom order: 15-25 days according to quantity.

By sea, by air, by express (DHL / FedEx / TNT / UPS) all available.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 15 fields

Material

Customization

Shaft Diameter

customization

Type

Sleeve

Bore Geometry

Round

Overall Length

customization

Inside Diameter Tolerance

±0.01 mm

Outside Diameter Tolerance

±0.05 mm

Heat Temp

≤ 280 °C

Lubrication

Self-Lubricating

Applicable Industries

Manufacturing Plant, Machinery Repair Shops, Construction works, Energy & Mining, Other

Place of origin

China, Henan

Model number (Specification)

CSHF-6

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Lead time

7 days

Minimum order

100 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Bimetallic Alloy Plain Bushing Oil Retaining Self Lubricating Bi-Metal Sliding Sleeve for Automobile Engine Parts

Open URL

Price

$ 20.00

Bimetallic Alloy Plain Bushing Oil Retaining Self Lubricating Bi-Metal Sliding Sleeve for Automobile Engine Parts product image

Product information

Attributes

Material

Customization

Shaft Diameter

customization

Type

Sleeve

Bore Geometry

Round

Overall Length

customization

Inside Diameter Tolerance

±0.01 mm

Outside Diameter Tolerance

±0.05 mm

Heat Temp

≤ 280 °C

Lubrication

Self-Lubricating

Applicable Industries

Manufacturing Plant, Machinery Repair Shops, Construction works, Energy & Mining, Other

Place of origin

China, Henan

Model number (Specification)

CSHF-6

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg
