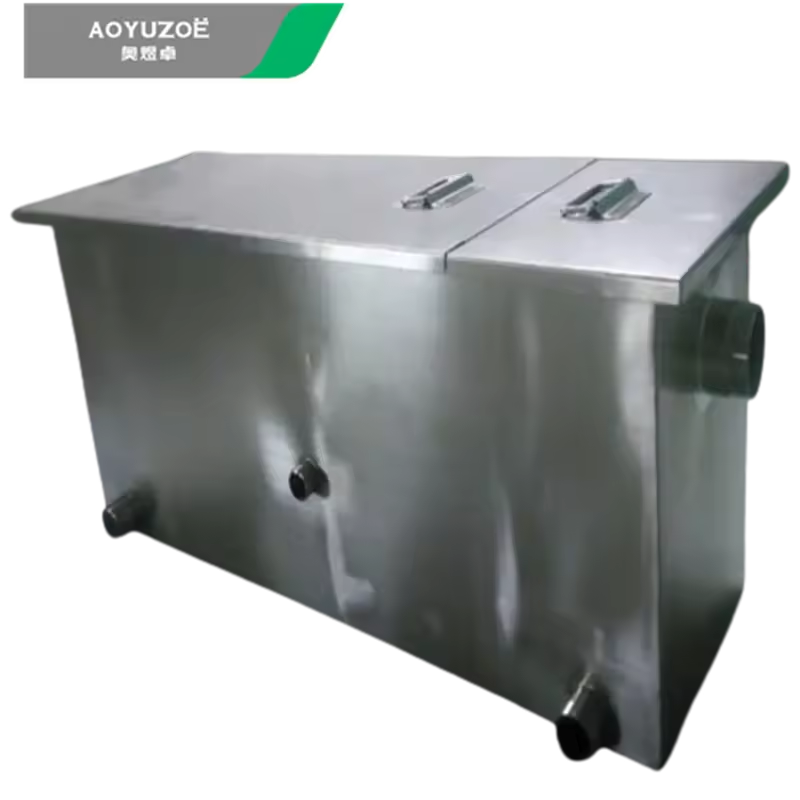

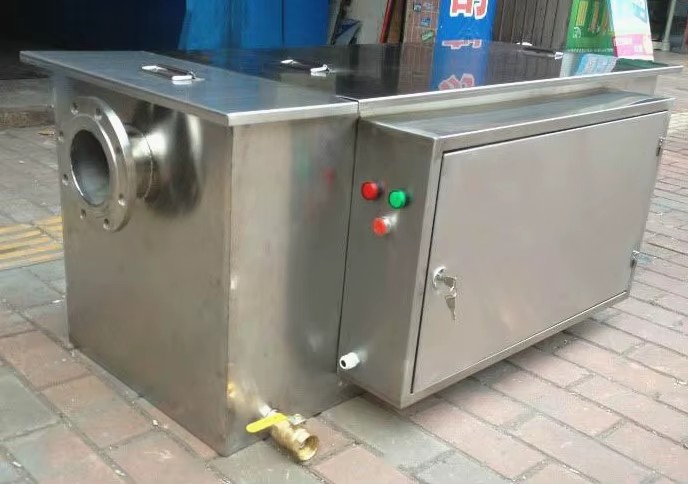

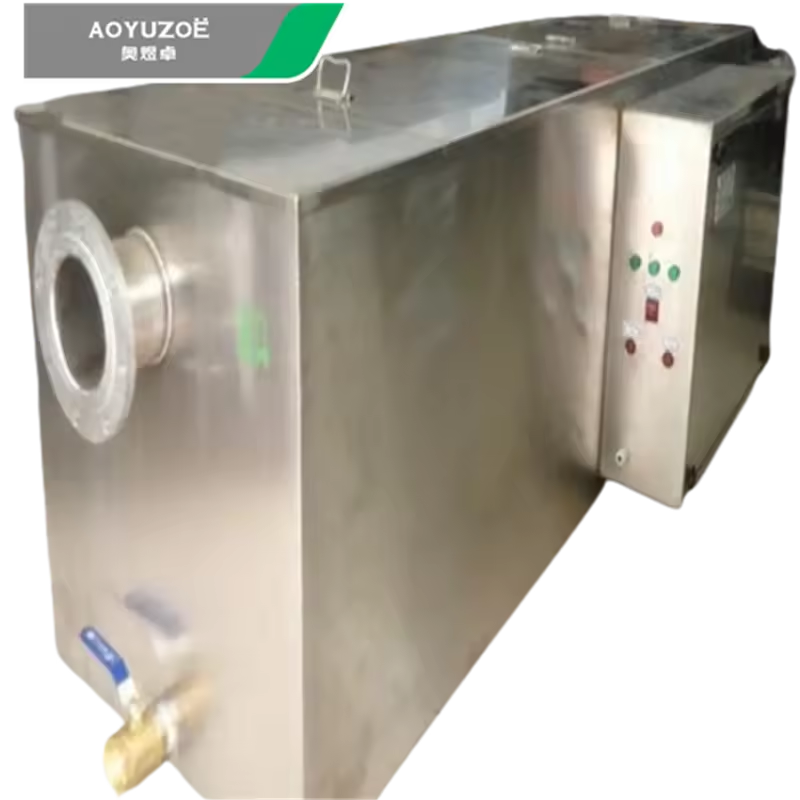

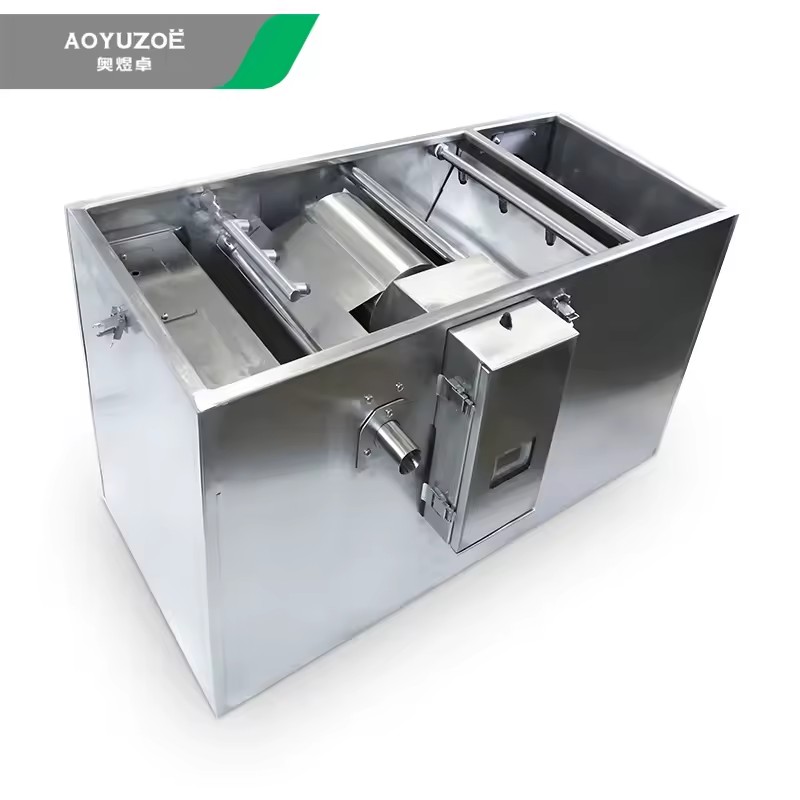

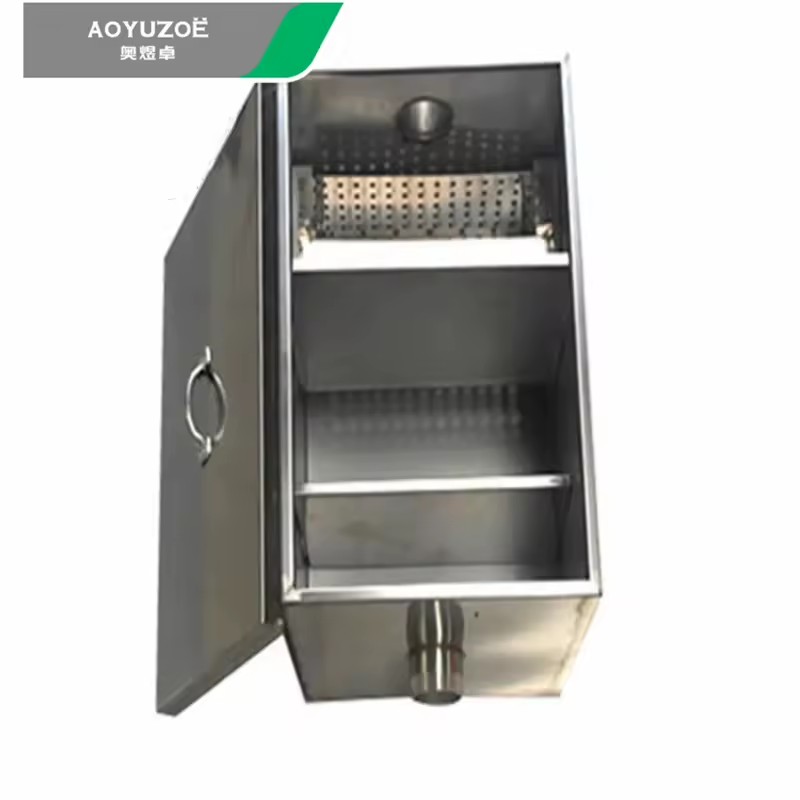

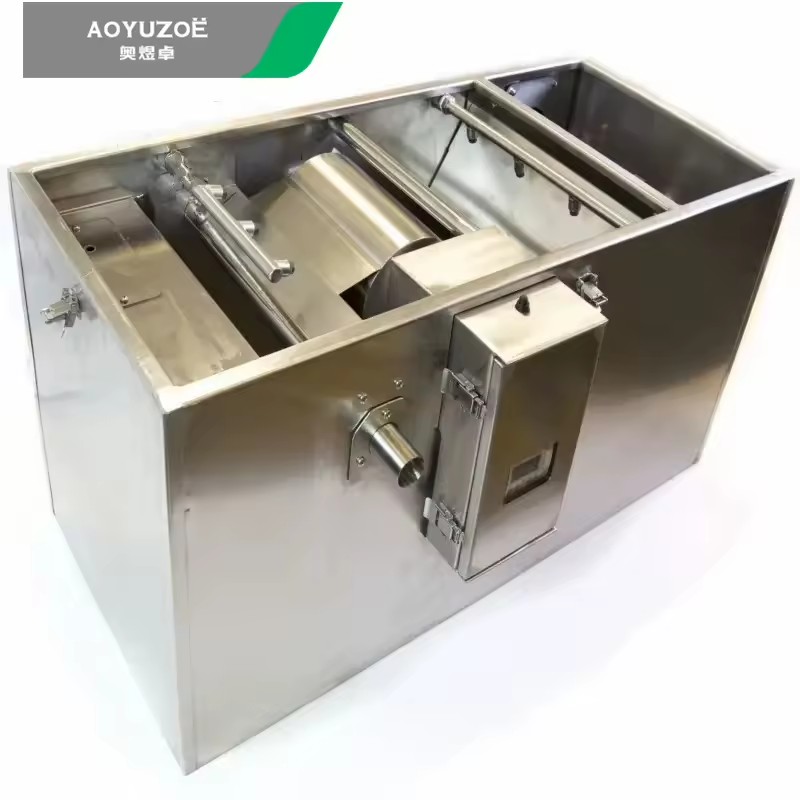

AOYUZOE Automatic Underground Stainless Steel Oily Oil Water Separator Grease Trap Interceptor Radiator

Introduction

Our oil –water separator /grease trap with high efficiency, speed quick, easy operation and maintenance convenient, widely used in the hotel, shopping market, restaurant, also can used in food process factory, fresh food supermarket, slaughter house etc all kinds of oily sewage place.

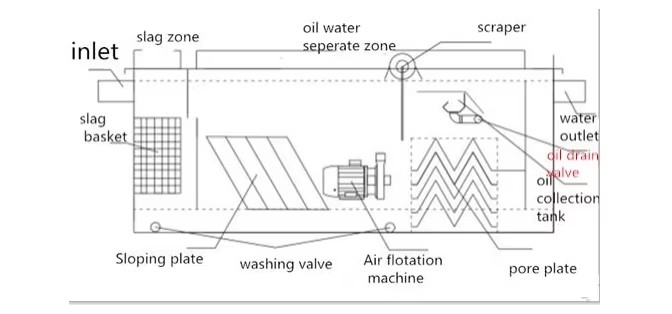

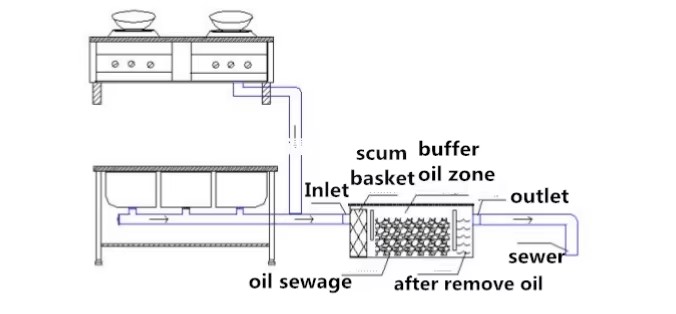

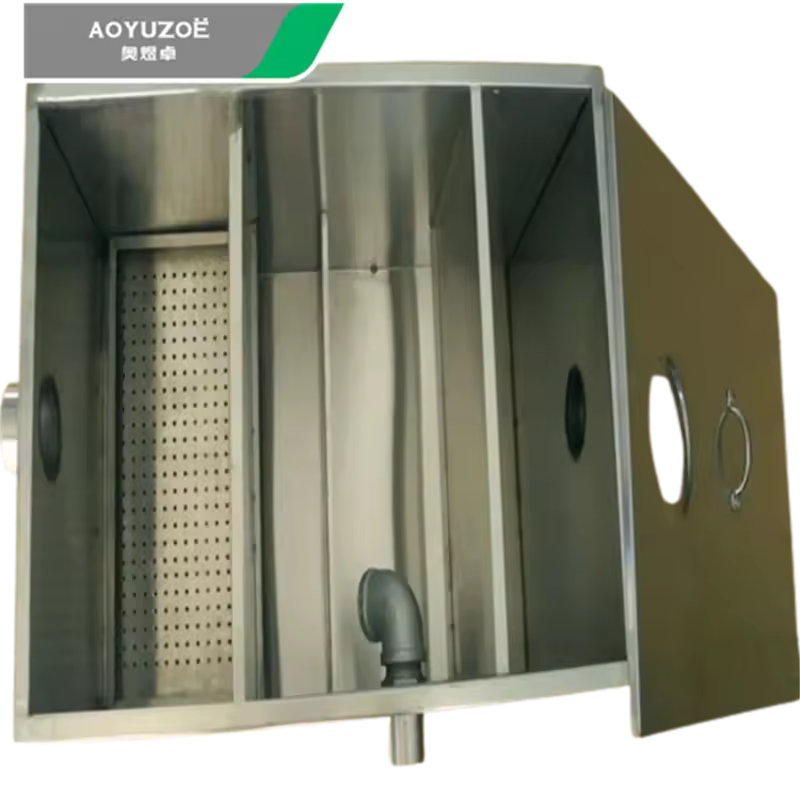

Working principle Catering oil water through the inlet pipe into the automatic oil-water separator box, Installed in the stainless steel septic tank inlet automatically coarse particles debris automatically isolated. Sewage through the orifice plate and ramp into the air after the floating area, Micro bubbles generated by the micro bubble generator in the air float zone, Due to surface tension, Micro-bubble generator in the ultra-fine bubbles in the floating process will be the majority of emulsified oil from water decomposition, The small impurities in the water and oil adhesion on the tiny bubbles, Float to sleep, scraped to the oil collection tank by the scraper automatically, discharge outside equipment by the oil pipe,however, clean water without oil discharge by the outlet pipe after grease trap, automatic oil grease trap with heating function In cold areas below the set temperature, the heating function automatically run to avoid the temperature is too low oil and water condensation equipment, oil and water separation Characteristics 1, Automatic oil-water separator is made of stainless steel, resistant to corrosion,durable 2, slag box which specially designed upper coarse and lower fine,remove the suspension solid in the water,separate the solid in the sewage automatically,reducing the blocking in the future 3, Micro-bubble device combine air flotation technology, improve the oil remove rate more than 30% than the first generation of non-powered oil-water separator 4, microcomputer control system, can automatic control equipment start and stop time, save time and labor, safe and convenient 5, Mechanical automatic scraper oil, the oil-scraping system which control system is designed with intermittent operation function, save power, lower noise, meantime lengthen scraper lifetime

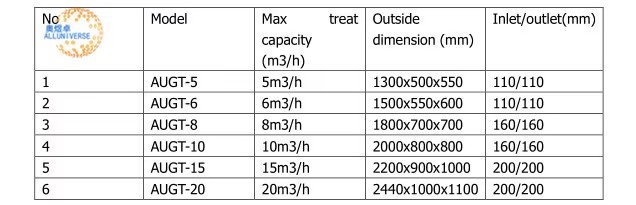

Main technique parameter

Pre-Sales Service

* Inquiry and consulting support. * Sample testing support. * View

After-Sales Service

* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. *After-sale service: 12 months warranty service of whole machine and lifetime maintenance; *Quick responses: inquires or after-sale questions be replied within 24 hours. *Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply, with only cost charge after guarantee period.
