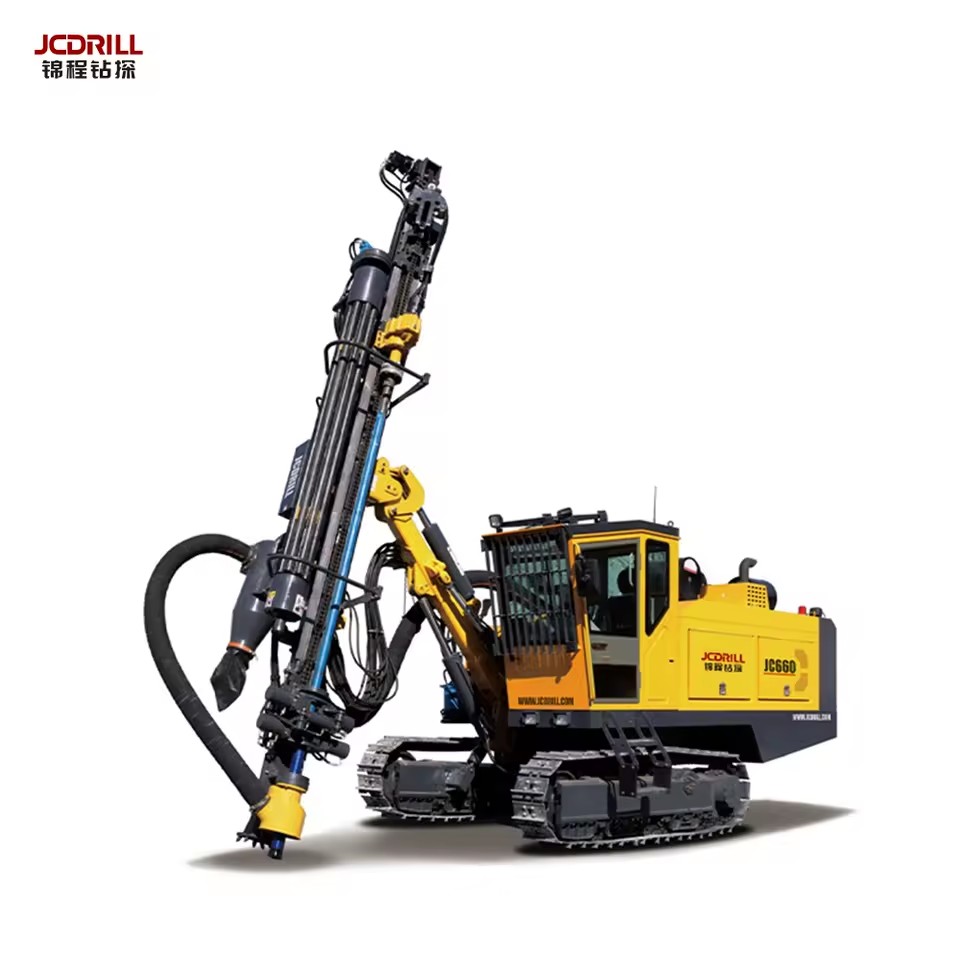

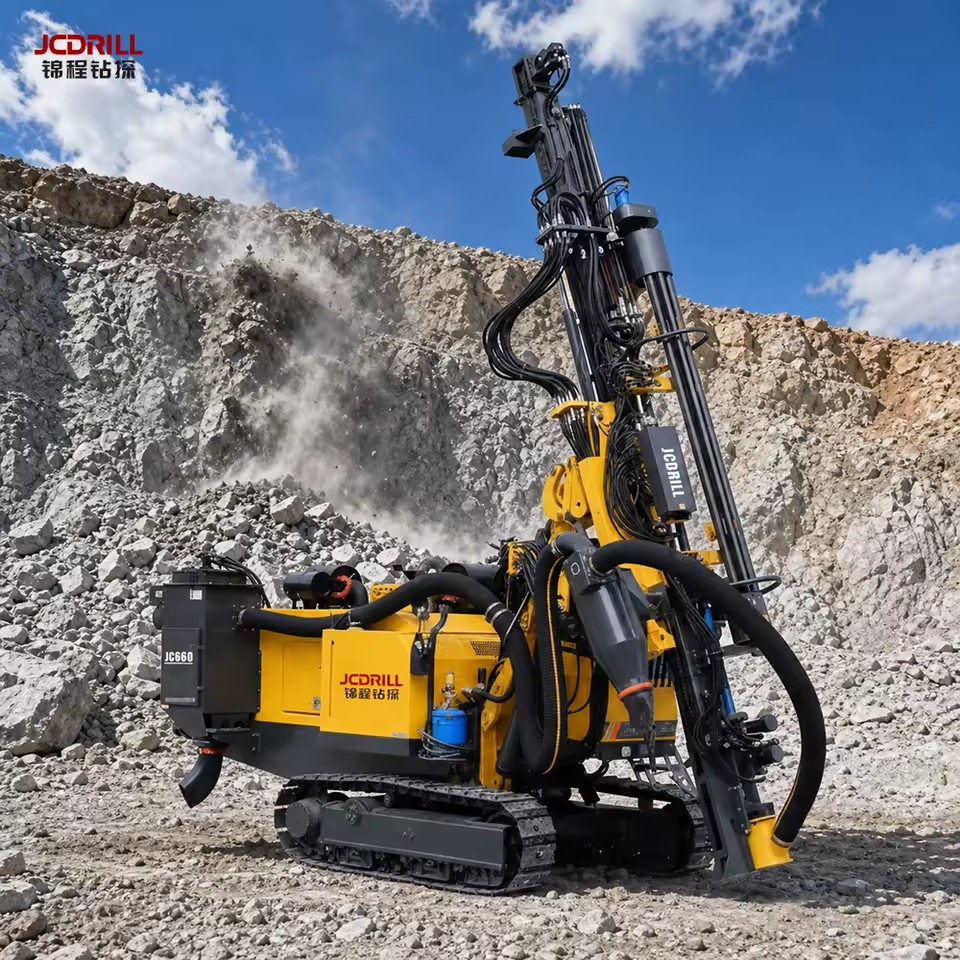

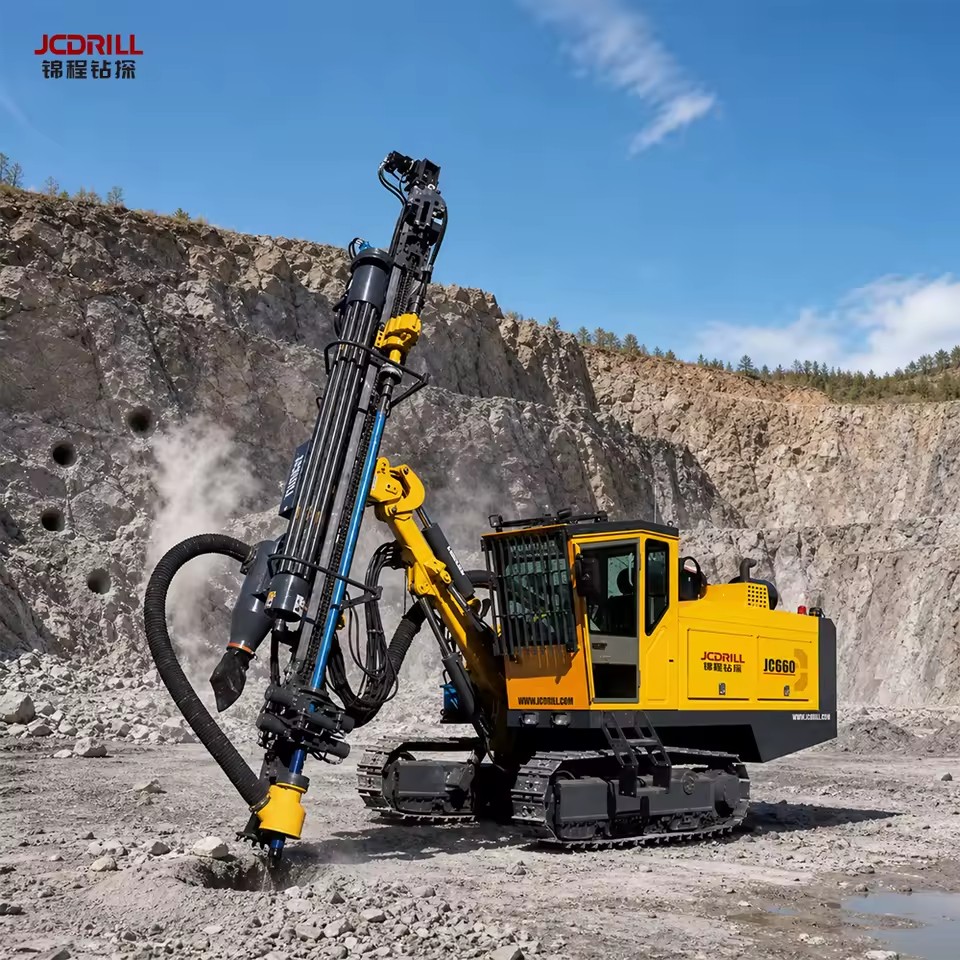

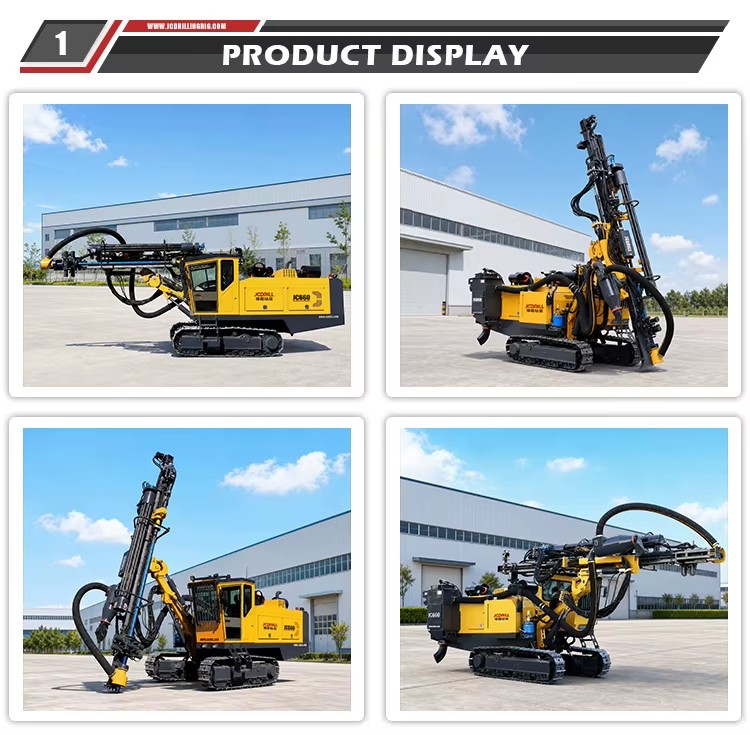

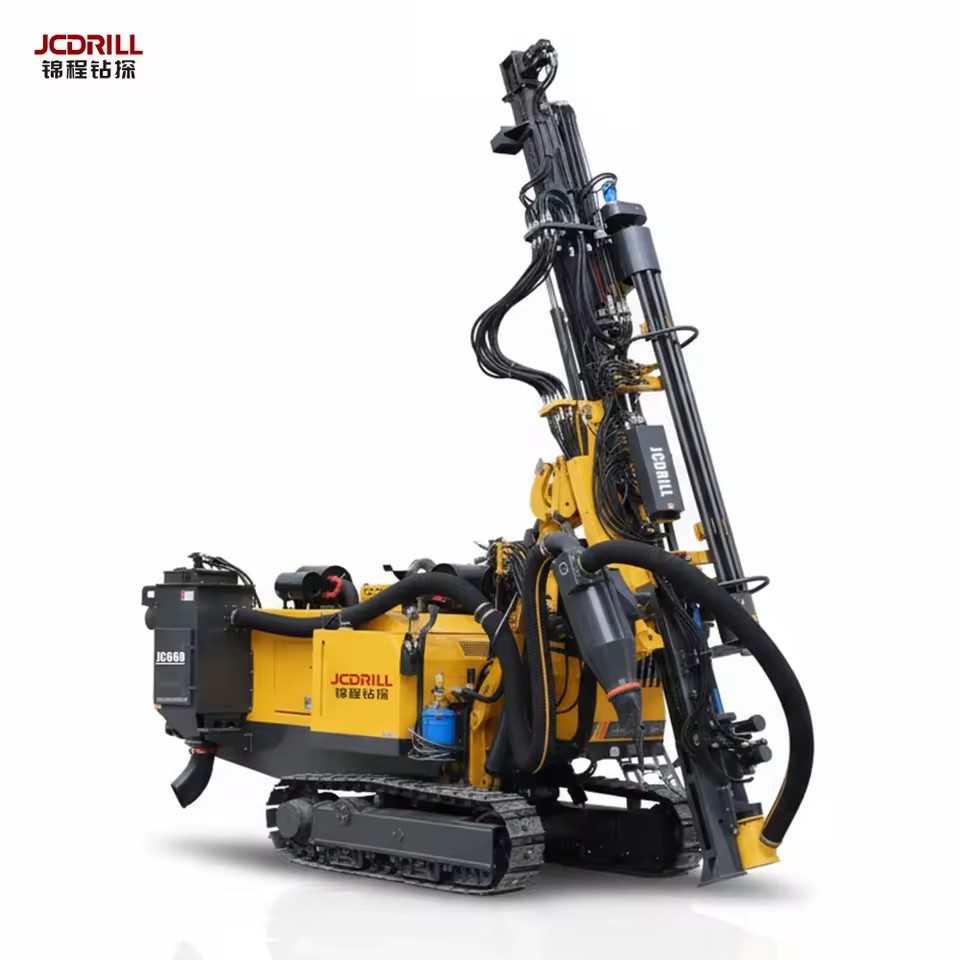

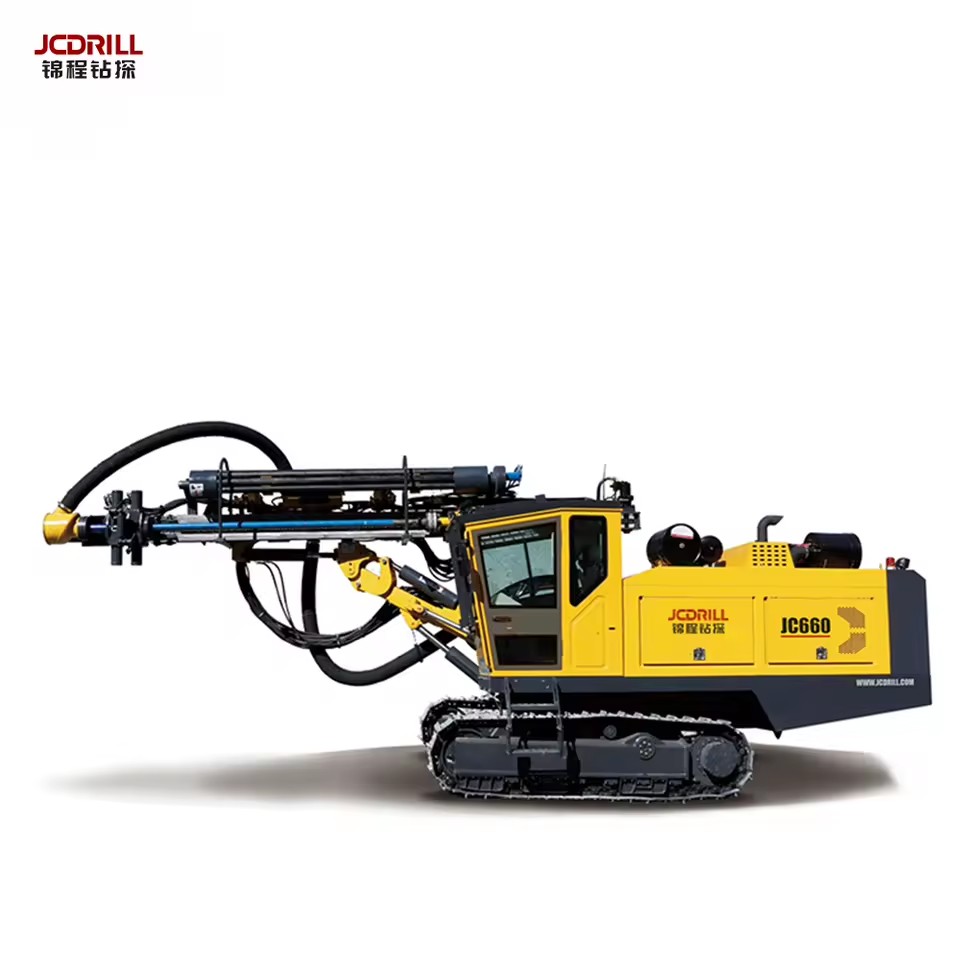

Jc660 Quarry Mining Drilling Rig With Operator Cab Auto Rod Change and Dust Collector for Hard Rock

Product Importer Gallery 01 · 3188c2871b

Product Importer Gallery 02 · 9c0cd248b1

Product Importer Gallery 03 · 36d4b3a5c9

Product Importer Gallery 04 · 31f0e84aec

Jc660 Quarry Mining Drilling Rig With Operator Cab Auto Rod Change and Dust Collector for Hard Rock

Name: Jc660 Quarry Mining Drilling Rig With Operator Cab Auto Rod Change and Dust Collector for Hard Rock
SKU: QX7K-WG98-ZKSX
Price: 120160.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 120,160.00 120160.0 USD $ 120,160.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Ore

Type

dth drill rig

Drilling Depth

Max.24m, 24m

Drilling Diameter

90-130mm(3.54-5.12in)

Power Type

Diesel

Core components

Bearing, Motor, Gear, Engine, Pump, Gearbox

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

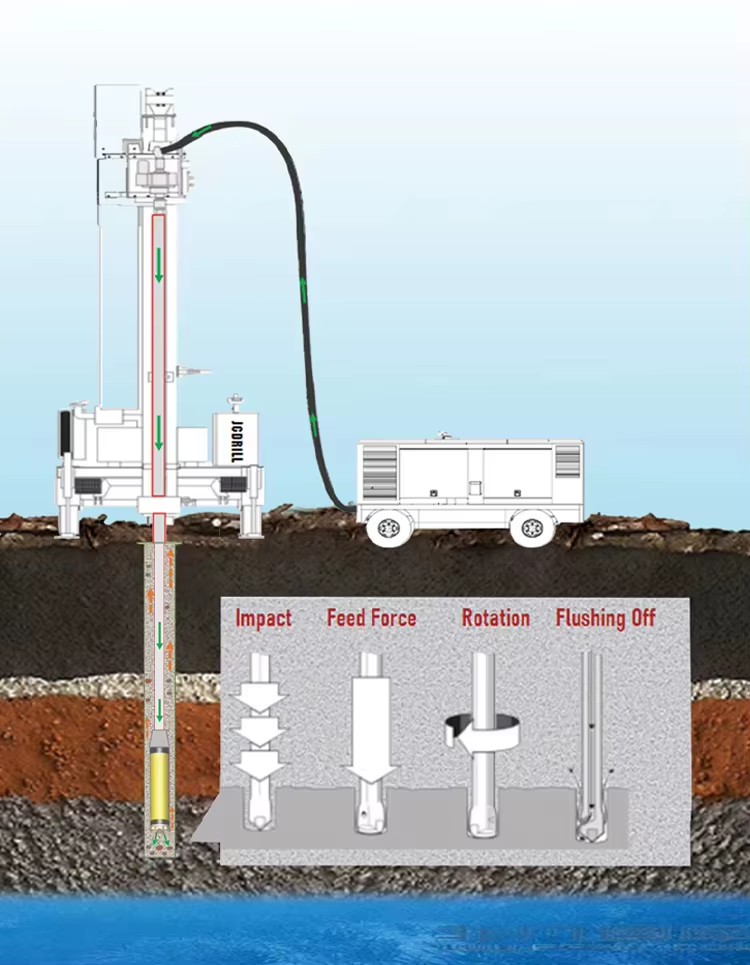

JC660 DTH Rock Blasting Drilling Rig

DRILLING RIG	Unit	JC660
Drilling Range	mm	90-130
Maximum Drilling Depth	m	60
Horizontal Drilling Height	mm	3600
Drill Rod Diameter	mm	76
Drill Rod Length	mm	4000
Number of Rods Stored	PCS	5+1

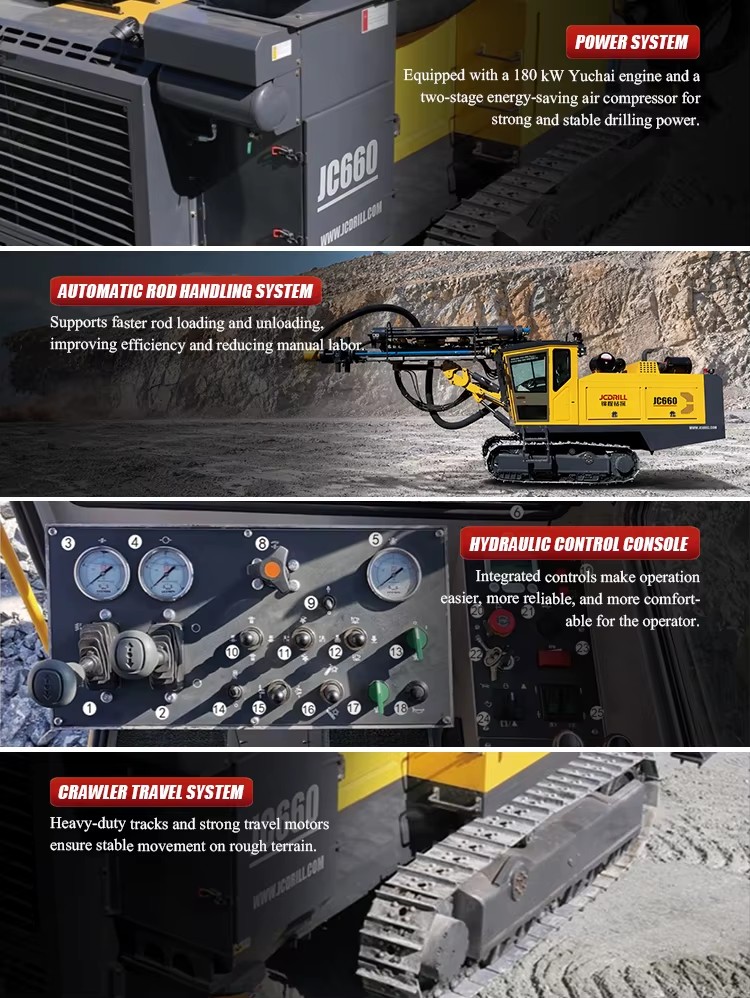

Automatic Rod Handling Drilling Depth	m	24
ENGINE
Model	Yuchai YCA08280-T301
Emission Standard	National III Emission Standard
Operating Speed	rpm	2200
Rated Power	kW	206
Fuel Tank	L	550
AIR COMPRESSOR
Manufacturer	BSC BOSS Twin-Screw Compressor
Discharge Pressure	MPa	2
Discharge Flow	m³/min	16
PROPULSION
Slide travel	mm	4115
Rapid feed rate	m/min	60
Lifting force	KN	20
Rotational speed	rpm	0-140
Rotational torque	N.m	0-3400
Ambient temperature	℃	35/50
Altitude	m	≤2500
TRAVEL SYSTEM
Maximum travel speed	km/h	0-2.5
Ground clearance	mm	25
Climbing ability	°	350
Track width	mm	+/-6
DUST COLLECTION
Filtration Area	㎡	16
Number of Filter Cartridges	16
Dust Suction Pipe Diameter	5"
Motor Speed	rpm	3700
SHIPPING DIMENSIONS
Length	mm	9000
Width	mm	2700
Height	mm	3300
Weight	kg	13500
*Standard drilling rig parameters, excluding drill rod kits and optional components

$56,231 / set

A: Yes. JCDRILL is a leading and certified manufacturer of drilling machinery. We provide a comprehensive range of products to meet your diverse project requirements.

A: We accept both T/T and L/C payment terms. For T/T: 30% deposit in advance, with the remaining 70% payable before shipment. For L/C: We accept 100% irrevocable L/C without soft clauses.

A: As an experienced international supplier, JCDRILL supports all Incoterms 2010. Our most commonly used terms include FOB, CIF, CFR, and CIP.

A: Delivery time depends on the product type: Mud pump products: approximately 3–15 days for production Standard machines: typically available for delivery within 15 days In many cases, we can arrange immediate shipment for in-stock equipment.

A: We offer 24/7 year-round customer support, including holidays. Our service commitment: Response within 15 minutes Issue resolution within 24 hours

A: We operate global spare parts centers stocked with specialized components. Standard delivery: within 72 hours Maximum delivery time: within 1 week

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Usage

Ore

Type

dth drill rig

Drilling Depth

Max.24m, 24m

Drilling Diameter

90-130mm(3.54-5.12in)

Power Type

Diesel

Core components

Bearing, Motor, Gear, Engine, Pump, Gearbox

Warranty

1.5 year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Shandong

Weight

13500 KG(29762.41lb)

Dimension (L*W*H)

9000*2700*3300mm(354.33*106.30*129.92in)

Mobility

Crawler Mounted

Rig type

Crawler Mounted/ DTH

Hole Diameter

90-130mm

Engine type

YUCHAI

Operation system

Full Hydraulic

Application

Mining/ Blast holes/ Tunnel construction

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

JC660

Power (W) (Product option)

206kW(276.25hp)

Lead time

45 days

Minimum order

1 Units
