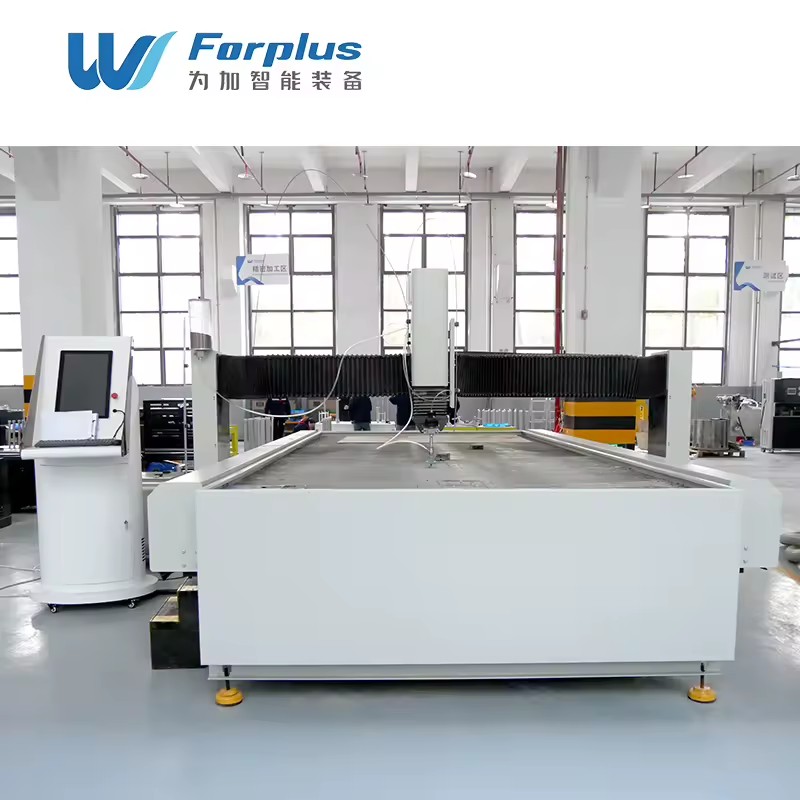

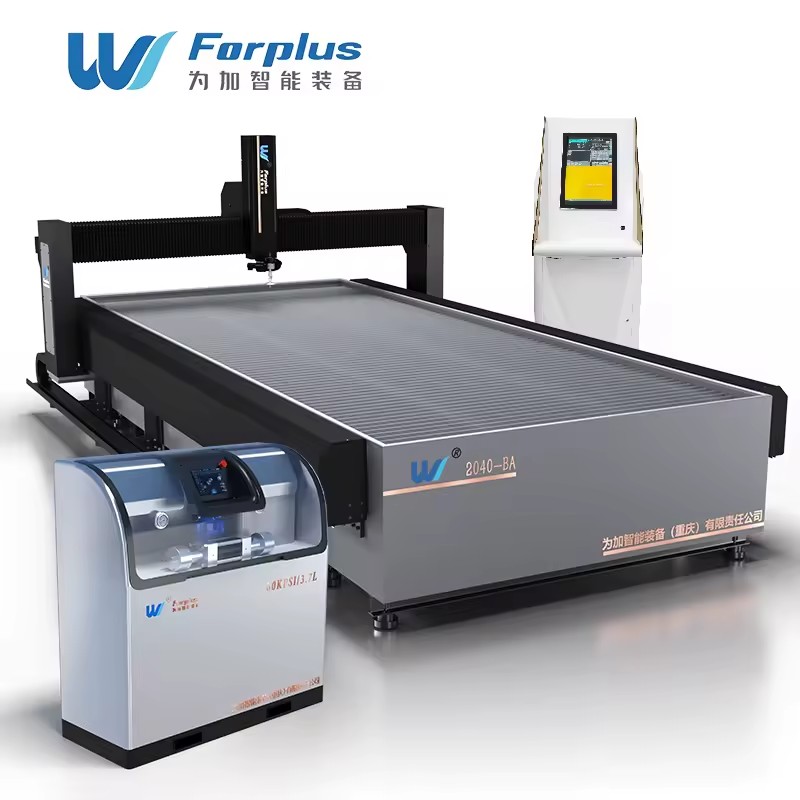

Forplus Waterjet 5 Axis ultra High Pressure Water Jet Cutting Machine Cnc Waterjet for Stone Water Jet Cutters

Forplus standard waterjet cutting platform

X travel

2000mm

Y travel

3000mm

Z travel

150mm-1000mm

Cutting head assembly

AB 5 axis

Forplus 1 + N series high pressure pump-P60K37L

Rated pressure

60000psi(420MPa)

Rated flow

3.7L/min

Rated power

37.9KW

Max gem orifice

0.33mm

Model

Forplus-L2030-Z150

X、Y、Z travel

2000mm、3000mm、150mm-1000mm

Machine structure

gantry structure

Transmission mode

ball screw,linear guide rail

Positioning accuracy

±0.05mm

Re-positioning accuracy

Max no-load speed

10M/min

Abrasive feeding system

continuous abrasive feeding module

Abrasive removal system

spiral-flow type auto abrasive removal system

standard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)

Water tank platform

linear grid,corrugated grid,honeycomb (optional)

Height measurement

laser-measurement

Power requirement of electric cabinet

single phase 220V 50HZ

Compressed air pressure

≥5bar

Compressed air caliber

φ12mm

This link provides product parameters

Product advantages

1.

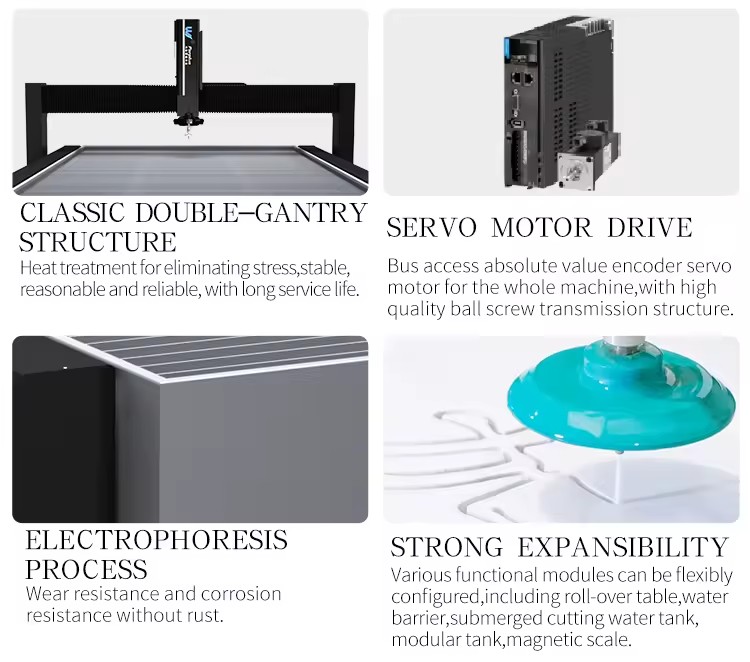

Standard double gantry structure

heat treatment for eliminating stress,stable without deformation,longlife time. 2.

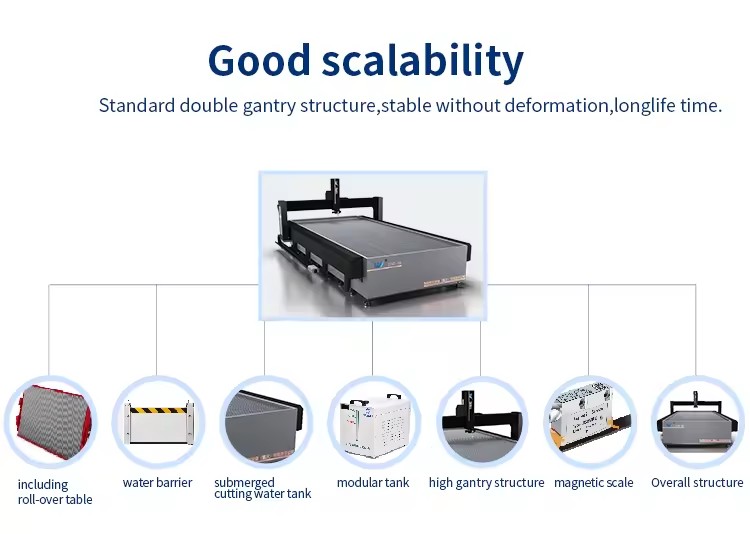

Strong expansibility

.Modular design of machine tool,unified interface.for each installed module，Various modules can be flexibly cluding but not to machine body,fully enveloped module,automatic lifting module,turning table,3-axis and 5-axis cutting head assembly,various auxiliary spindles,automatic abrasive supply module, quantitative abrasive removal module,and swirl abrasive removal module cluding but not to height detection,grating scale，angle detection, drilling,level regulating water tank etc. 3.

Servo motor drive for the whole machine

，Bus access absolute value encoder servo motor for the whole machine,with high quality ball screw transmission structure. 4.Standard ECS professional water jet cutting

CNC control system.

5.

Double-layer protection for transmission mechanism

isolating water and abrasive.

Details Images

5 axis cutting head

The 5 axis has the characteristics of high efficiency, high precision, flexibility and stability, which can realize precise cutting at different angles and directions to adapt to more complex processing requirements. The 5 axis can be widely used in aerospace, automotive manufacturing, mold manufacturing, medical devices and other fields, especially suitable for processing complex hook faces and precision parts.

heat treatment for eliminating stress,stable without deformation,longlife time.

Transmission structure is double-layer protection

X, Y, Z axis is designed with double sealing, external steel shell and high quality dust folding cloth are adopted, which can provide effective hard protection and full sealing for the machine, and it is the current effective sealing form of waterjet cutting machine.

CNC control system

Standard Italian ECS Professional waterjet cuting CNC control system.Servo-motor drive for the whole machine,Absolute value encoder closed-loop control.High precision, reliable control, and simple connection.

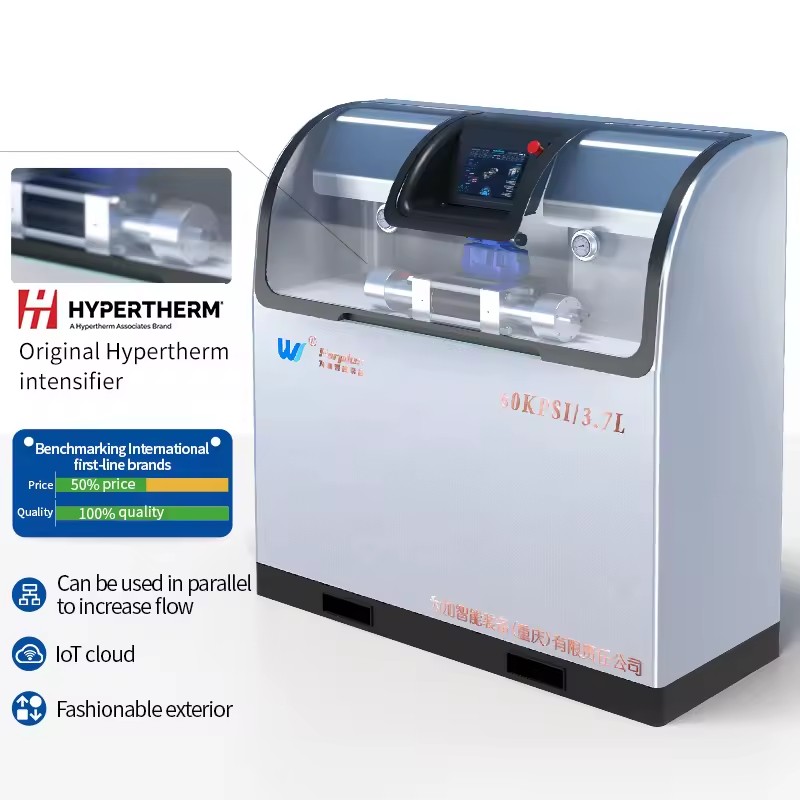

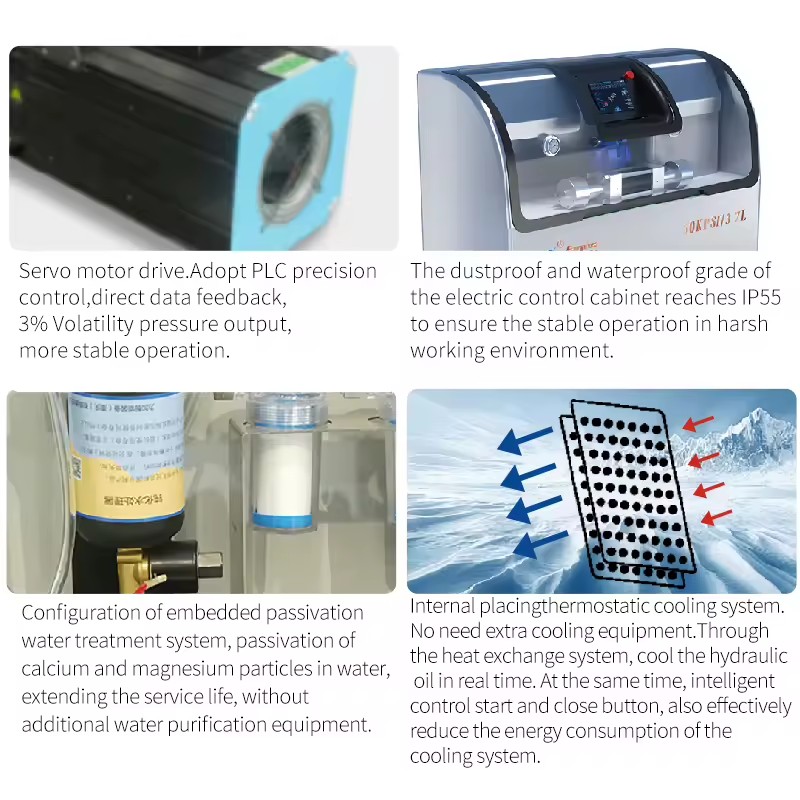

Forplus 1 + N series high pressure pump
