1.Working Table & Controllor
Model
1515
2515
3020
4020
2060
Dimension(mm)
2150*2150mm
3100*2150mm
4500*2300mm
5250*2300mm
2150*6500mm
Max. cutting range
1500*1500mm
2000*1500mm
3200*1750mm
4000*1750mm
2000*6000mm
Travel of Z axis
180mm
Servo system
Veichi
ball-screw linear-rail
ABBA/TBI, Brand
Re-positioning accuracy
±0.025mm/m
Cutting accuracy
±0.1mm
Max. running speed
15m/min
lubrication
Oil Immersion
Material
203stainless steel material tank,cast steel beam,rubber and stainless steel cover
Dimension(L*W*H)
1800*1000*1400mm
Weight
1200Kg
Power rate
37kw/50hp
Max. pressure
400Mpa /4000bar
Working pressure
320-350Mpa
Max. oil discharge
104L/min
Max. Flow rate
3.8 L/min
Power supply
380 V 50hz
Water supply
≥15.1L/min
Accumulator
1.5liter
Hydraulic system
Bosch Rexroth
Main Motor
Siemens Brand
Φ of orifice
0.30-0.33mm
AC220V 50/60Hz
Drawing system
Auto-CAD
Computer system
Windows 7
Function
Remoter controller
screen
Apply 19 inch LCD
Water jet software FLOWEDGE
Support DXF file and NC code
±0.05/1000mm
±0.15/1000mm
Max. prussure
400mpa
Orifice type
Parse 3
Max tilt angle
71 degree
AC 5 cutting head
To do tilt angle cutting
Nozzle type
6.35*1.02*76mm
application
tiles cutting
Boasting a +71° compensation angle, it excels in bevel cutting for both rock slabs and metal plates.
700*700*1350mm
150kg
Max. capacity
500kg
Max. air pressure supply
2bar
software controlling motor adjustting regulator
Eliminates abrasive waste
Product Description
Advantage of PMT waterjet cutting machine
1. Smooth cutting quality is.
Rexroth hydrualic and siemens motor and eletric part.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
About size, we have
4000*2000 mm, 3000*2000mm, 2000*1500mm, 2500*1550mm, 1500*1500,6000*1950mm
ect, which you want?

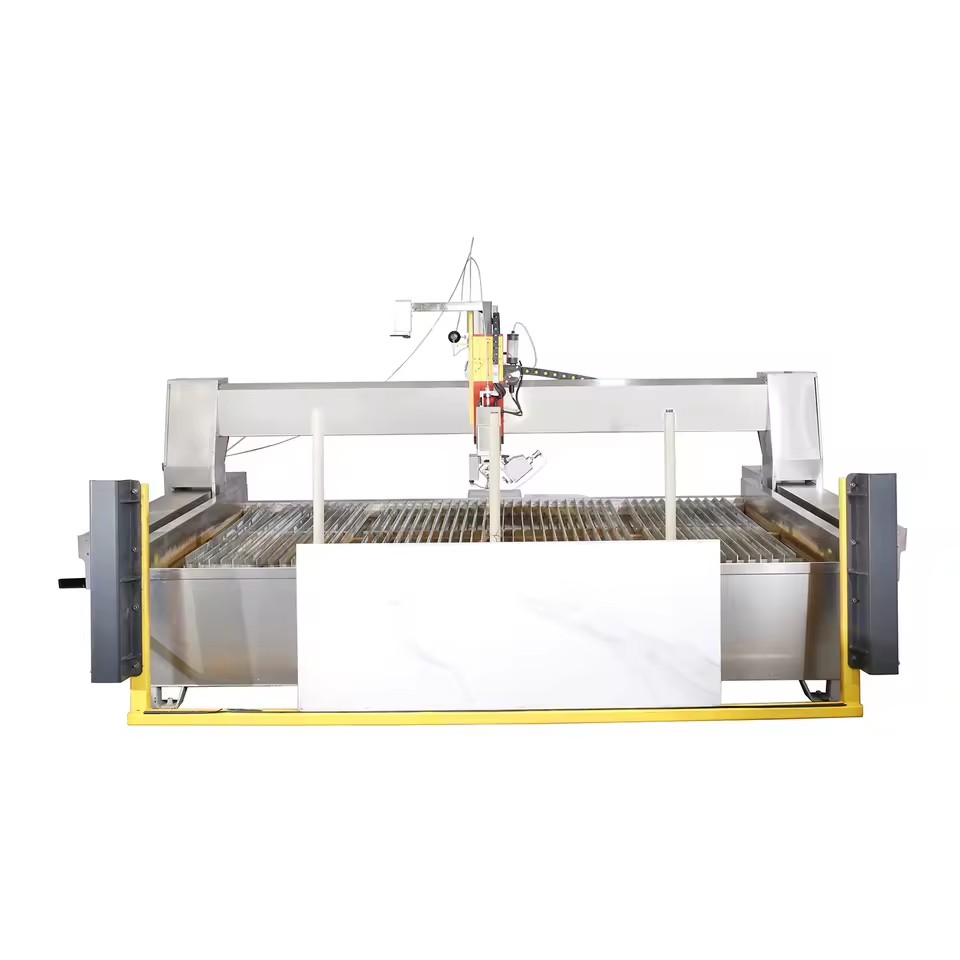

PMT waterjet cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis,suitable for processing a variety of complex big size parts.
The cutting table is a 2-D pc-controlled table, consisting of Y-axis, catcher, X-axis, Z-axis (cutting head rest), cutting head,high pressure hose, and the abrasive box. Both the X axis and the Y-axis are installed with linear guide and ball screw.

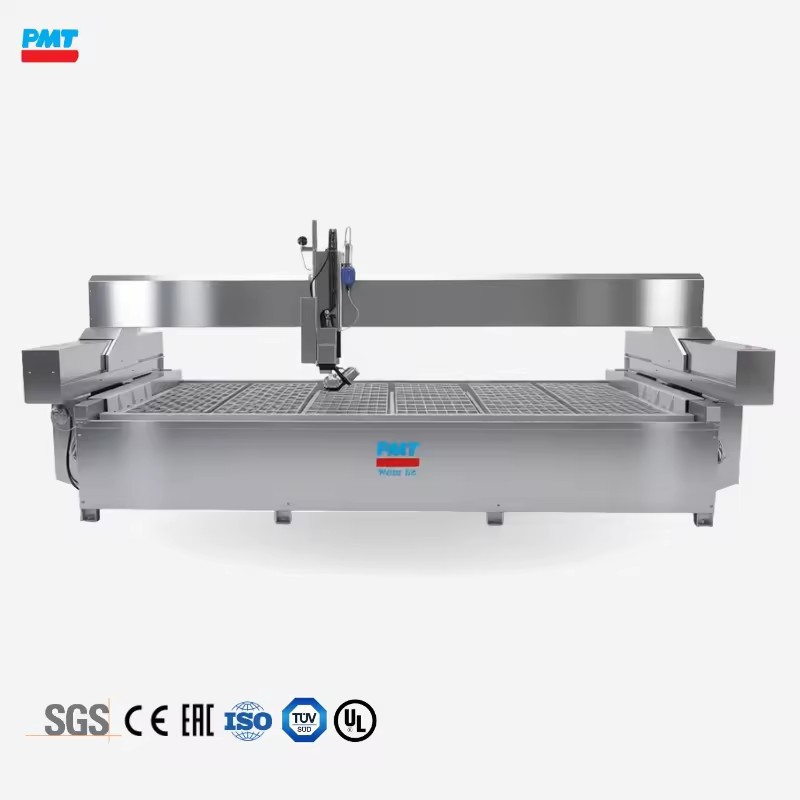

PMT CNC ultra-high pressure water cutting machine is a high-performance gantry-type large-stroke model, boasting excellent stability and adaptability. Its unique gantry structure makes it particularly ideal for cutting marble, countertops, and metal plates.
All components of the equipment are designed and manufactured in accordance with international standards. To guarantee stable performance, each unit undergoes 72-hour durability test before leaving the factory. These rigorous procedures ensure that key components can achieve a service life of up to 100,000 hours.
Waterjet cutting machine
1. Crafted via heavy-duty machine tool processing and high-temperature forging, the platform maintains structural stability
without deformation during operation.
2. Its innovative split-type design enables flexible configuration and expansion, catering
to cutting tasks of varying sizes and complexities. This structure also helps lower transportation costs and adapts seamlessly to
different production environments.
2. ESL

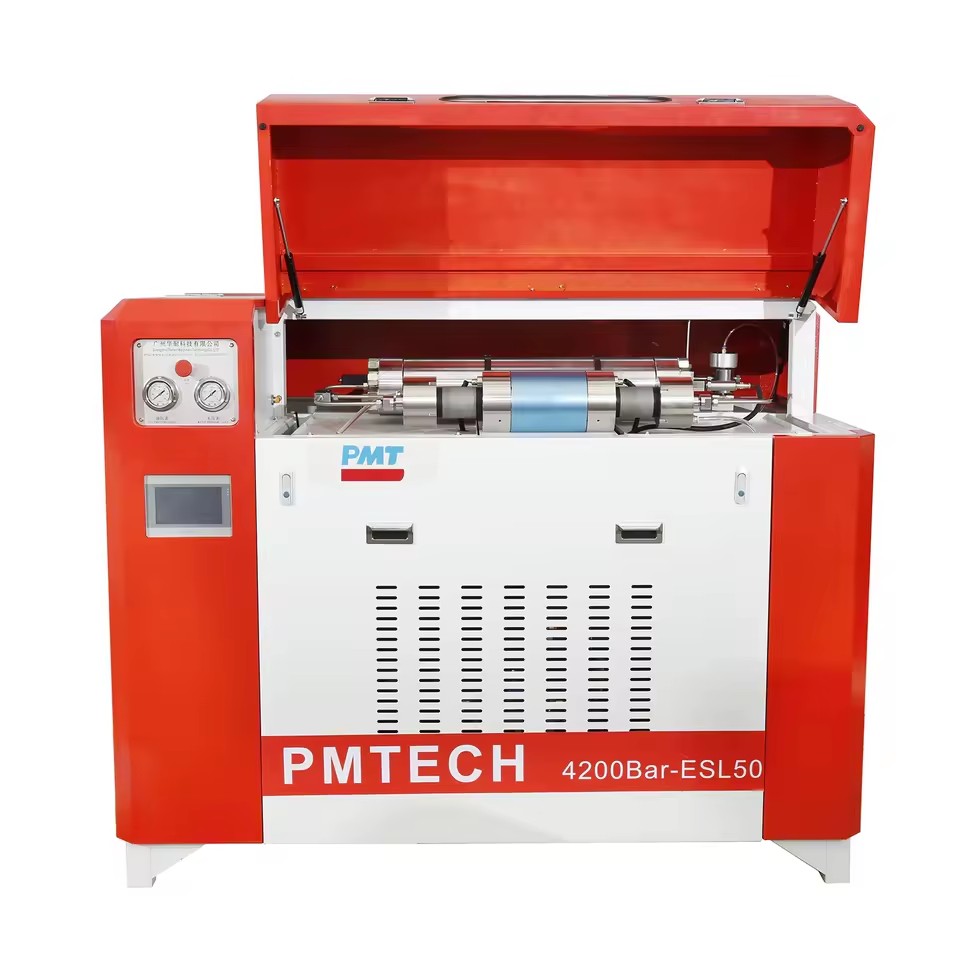

50 High presssure pump structure
It is includes water supply system
Hydraulic system
Waterjet Intensifer system
Electrical control system.
The motor is Siemen
Hydraulic system is
The main engine needs two water sources for cutting and cooling, thus we need two drainages: the cooling water drainage and the water leakage drainage.
Special definition is listed below
Cutting water: The intensifier must be supplied with water of 20-1000psi (1.4-6.9bar). The input water should not less than the output water by 1.5 times.
Cooling water (for the heat exchanger): The heat exchanger is used to adjust the accumulated heat in the hydraulic oil.
The hydraulic system consists of pressurization, filtration, and cooling systems. The intensification principle is: a motor of
37kw drives the hydraulic pump, then the pump will pressurize the hydraulic oil up to 20Mpa max.
C
Controller
Water jet software
FLOWEDGE
Support
DXF
file and NC code
1. Boasts superior cutting precision, with optimized water flow trailing for cleaner, more refined results. 2. Simplifies drawing operations, supporting point, arc, polyline, ellipse, polygon, and text input with ease. 3. Comes standard with the PMT FLOWEDGE system, delivering professional-grade, high-performance control. 4. Supports multi-language operation and offers customized service options to meet diverse needs.
1. Superior cutting performance: When handling shaped sharp corners or continuous sharp angles, it achieves smooth transitions with no obvious zero-point marks at the corners, resulting in far better finished effects. 2. Expanded processing capabilities: It can accomplish complex processes that AC 5-axis waterjets can't, such as cylindrical parquetry and large-angle chamfers. 3. High processing efficiency: Equipped with an infinitely rotating C-axis and fast cornering speed, it significantly boosts working efficiency.
5.
Abrasive Feeding System
1. Serves as a sand storage unit for water jet cutters, enabling automatic sand transfer to the sand bucket. 2. Enhances equipment automation, effectively lowering operators' labor intensity. 3. Features no electronic control requirements, boasting simple operation, high reliability, and maintenance-free performance.
Company Profile
00:00
After-sales service
Waterjet machine
Waterjet machine in
Waterjet machine
1, basic working principle of the super-high pressure water jet cutting machine2, working principle of the high-pressure system and supercharge
3, replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4, maintenance of the high-pressure system and judgment and troubleshooting of common failures
5, CNC Programming&operation&operation of the NC cutting platform
6, daily maintenance of the NC cutting platform
7, equipment installation
8, abrasive control and transportation operation and CNC communication
9, operation of the CAD / CAM software and CNC communication
10, working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional parts, high-pressure water switches and abrasive cutting head
1, Free warranty for the whole machine for one year or 2000 high-pressure/hour
2, Training of two personnel for operation and maintenance of equipment and one computer operator for the user
3, On-line installation and commissioning (the user is responsible for board and lodging)
4, Lifetime maintenance
5, To Guarantee long-term supply of spare parts
6, To enjoy upgrade of special prices when there are new products and technologies
7, Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after receipt notice. For a common failure, direct the user to resume production as soon as possible by way of
Certifications
Product packaging
Wate jet cutting machine package
wooden package out side, inside soft packages or all of soft film and ensure safety. including hp pump,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm, 4000-6000kgs,whole one set waterjet machine equiment.
Water jet
spare parts
soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.
Delivery time for machines
15-30days Delivery time
waterjet spare parts
1-7days
FAQ
1. What is water jet cutting for metal?
It is a precision cutting method that uses a high-pressure stream of water (often mixed with abrasive particles like garnet) to cut through metal materials. The high velocity (up to 900 m/s) allows it to slice through metals without generating heat, minimizing distortion.
2. What types of metals can be cut with a water jet?
Most metals, including steel, aluminum, copper, brass, titanium, stainless steel, and even hardened alloys. It works on both thin sheets and thick blocks (up to several inches, depending on the machine).
3. Why choose water jet cutting over other methods (e.g., laser, plasma)?
No heat-affected zone (HAZ), preventing material warping or weakening. - High precision (tolerances as low as ±0.001 inches). - Can cut complex shapes without tool changes. - Works on reflective metals (e.g., aluminum) that challenge lasers
4: What is the advantage of water jet cutting head machine?
A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universalcutting machine.
5: How to choose the cutting table for waterjet cutting machine?
You need to offer the size of the materials.you want to process or the size of the cutting table.
6:How to solve the incision problem of water cutting for waterjet machine?
It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required
precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
7:Is the equipment easy to operate for waterjet cutting machine?
PMT intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network.
The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
8:What is application for waterjet cutting machine?
1. Metal cutting: Ideal for decoration materials, machine equipment shells, metal components, and other common metalwork scenarios. 2. Glass cutting: Suitable for household appliance glass, lamps, sanitary products, craft glass, and automotive glass. 3. Ceramic & stone cutting: for art puzzles and related crafts. 4. Clean water cutting for soft materials: Applicable to automotive interiors, sponge foam, etc. 5. Cutting of low-melting-point inflammables and explosives.
