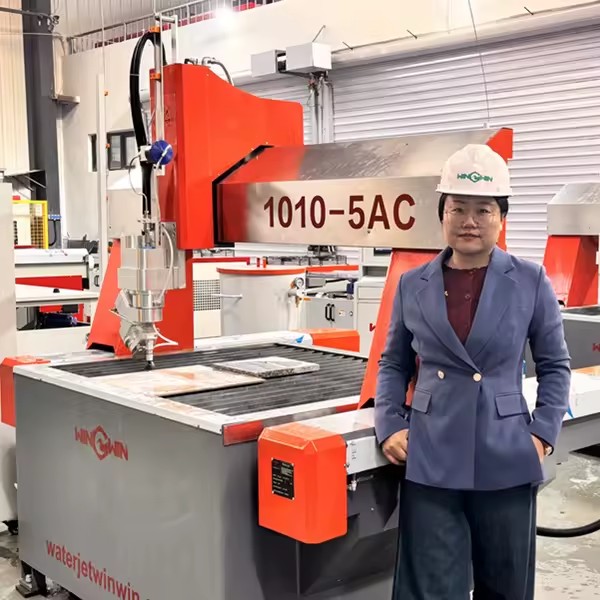

1000x1000mm Small Water Jet Cutter Glass Waterjet Cutting Machine

small waterjet cutter 1000x1000mm 5axis water jet

5 Axis small waterjet 1000x1000mm

Type

Gantry

Effective Working Area

X-Axis 1000mm, Y-Aixs 1000mm, Z-Axis 200mm

Swivel Angle Resolution

±0.01°

Cutting Accuracy

0.1mm

Control Accuracy

0.01mm

Repeatability of Positioning

0.025mm

Max. Travel Speed

10000mm/min

WWJET50 Intensifier Pump

Nominal Power Rate

50HP (37 kW)

Max. pressure

420Mpa /4200bar/60,000psi

Working pressure

360-380Mpa

Max. diameter of orifice

0.33mm

Max.Flowrate

3.8L/min

Accumulator capacity

1L

Size

1600mm*1200mm*1100mm

Weight

0.9t

Product Description

A small 5-axis waterjet cutter with a 1000x1000mm cutting area can be a versatile and powerful tool for precision cutting of various materials, including metals, stone, glass, plastics, and composites

Advantages of a Small 5-Axis Waterjet Cutter

1.High Precision: Capable of intricate cuts with tight tolerances

2.Material Versatility: Cuts metals, ceramics, glass, composites, and plastics

3. No Heat-Affected Zone (HAZ): Unlike laser or plasma, prevents warping

4.5-Axis Cutting: Enables bevels, countersinks, and complex 3D cuts

pact Size: Fits small workshops or prototyping environments

A.

High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can purchase the corresponding parts in any waterjet machine market.

B. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked

and prolong the service life of the Intensifier Pump.

C. Double-Level Water-Filtration System

WW5060JET adopts double layers of water filtration in low pressure water transport to remove hard metal elements from industrial water. The waterjet is less likely to produce scale, protecting important high pressure components and extending the service life of the entire Waterjet Cutting Machine.

D. 1L Large Capacity Accumulator

1L capacity accumulator, eliminate the fluctuation of the cutting, integral forging, no rubber seals, maintenance-free.

*

Brand

WEIHONG

Industrial-grade display, waterjet special software, easy to operate.

* Simulation operation, pause and start at any time, continue to cut from any position and point.

Wall Thickness

4.5mm ( Explosion-proof)

Air Pressure

0.4-0.8Mpa

Reasonable design, make this large-capacity abrasive tank cut 8-10 hours without interruption.

Large diameter flange at the bottom, easy to remove the debris.

The industrial chiller adopts automatic temperature control, which can meet continuous operation 24 hours a day.

Adopts shell-and-tube two-device linkage technology, low vibration, low noise, high-efficiency heat exchange material, and high energy efficiency ratio.

Use a water filtration system to remove calcium and magnesium ions from water to prevent scaling.

Good water quality will not only increase the life of the seal but also prolong the reliability and life of the nozzle, orifice

high pressure seal etc. resulting in more efficient cutting.

Optional Devices

Abrasive Removal System

When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each

other.

The device can be installed within 10m of the waterjet cutting machine.

The flow rate can reach 162L/min.

The abrasive removal rate is more than 90%.

During the entire abrasive removal process, the filtered water continues to be discharged into the water sink, and the water sink

does not need to be replenished after abrasive removal.

Waterjet Parts Warehouse
