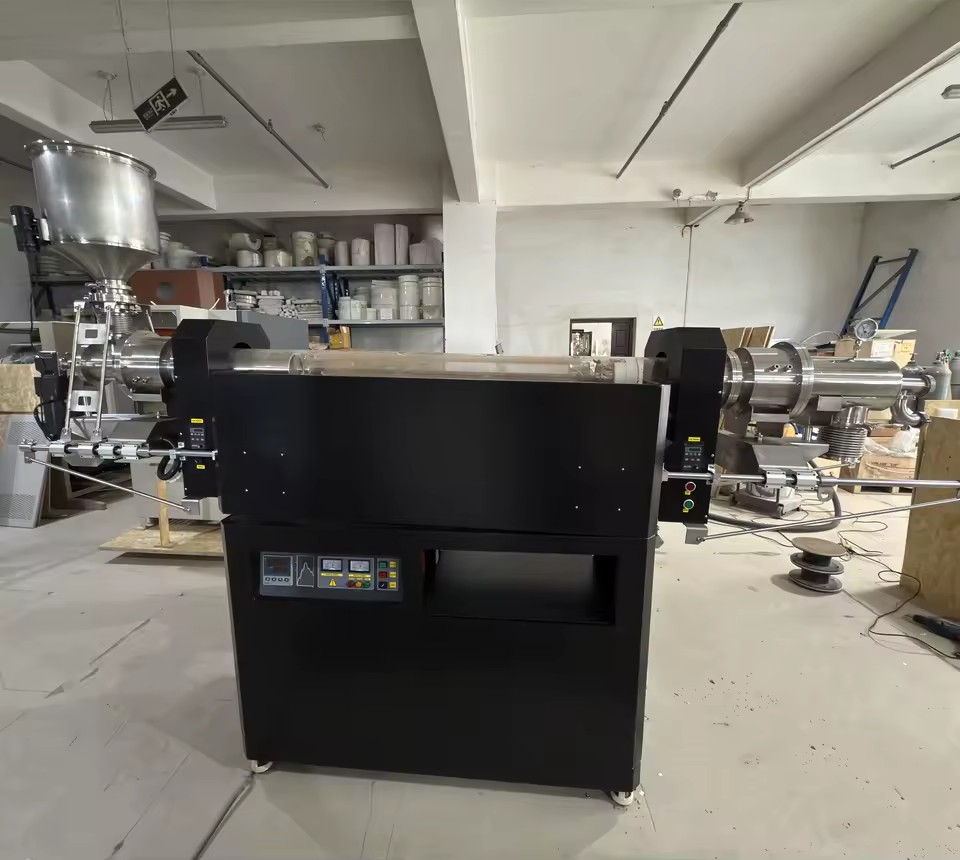

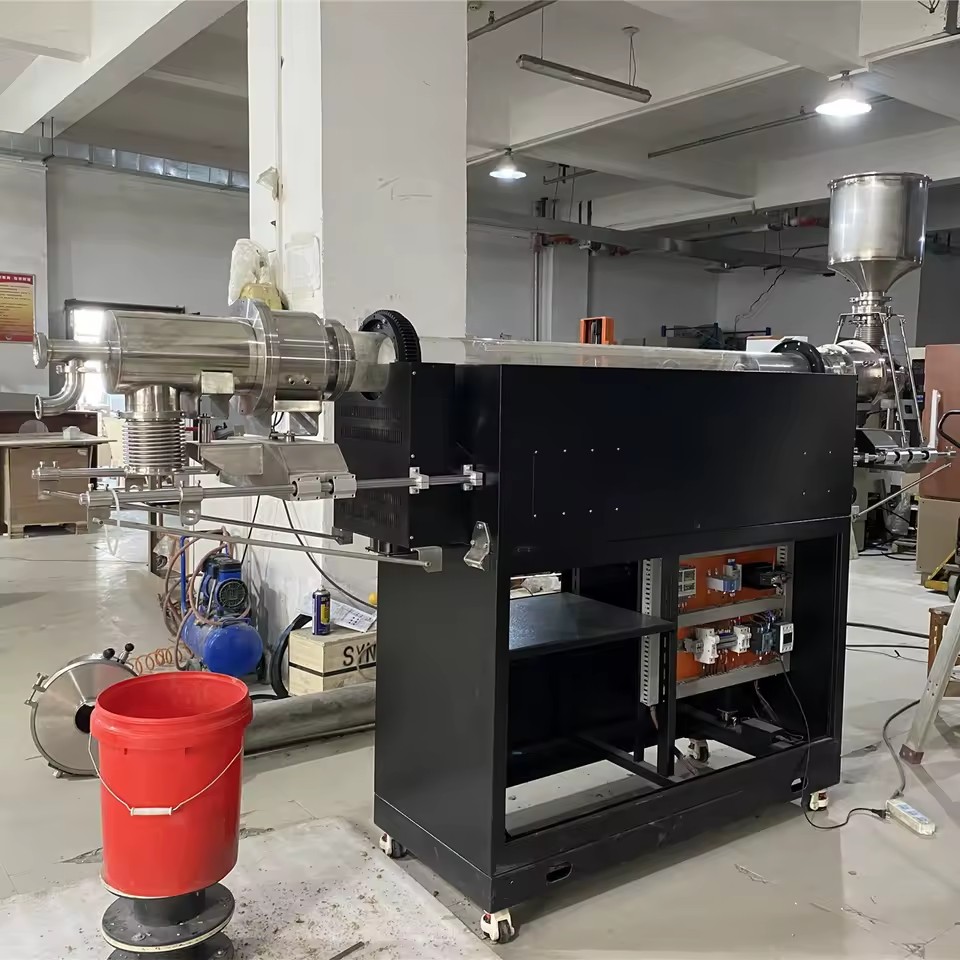

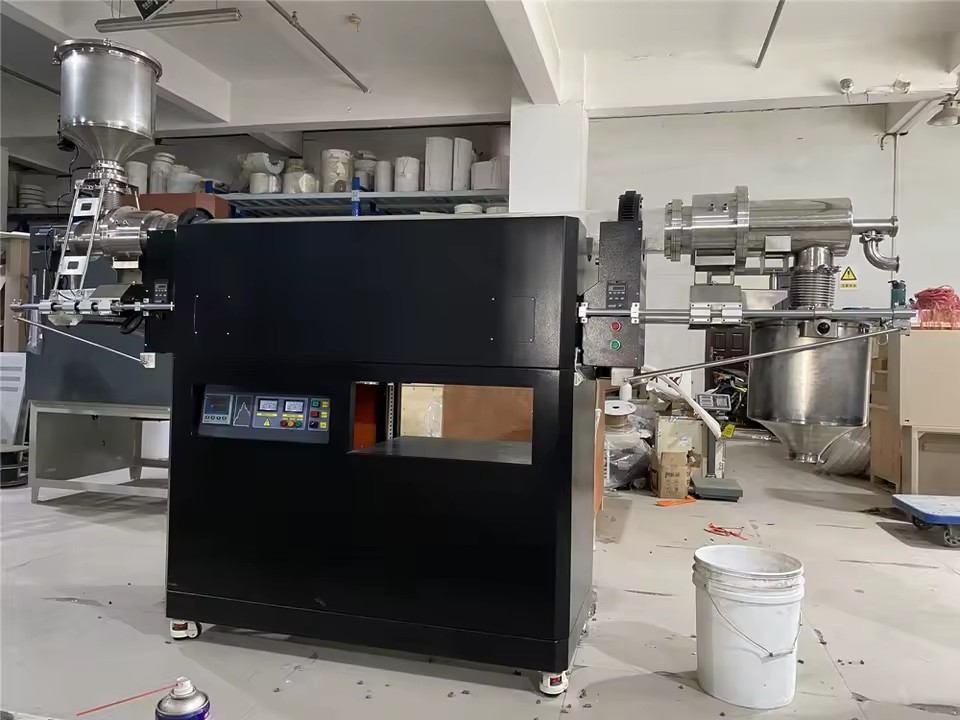

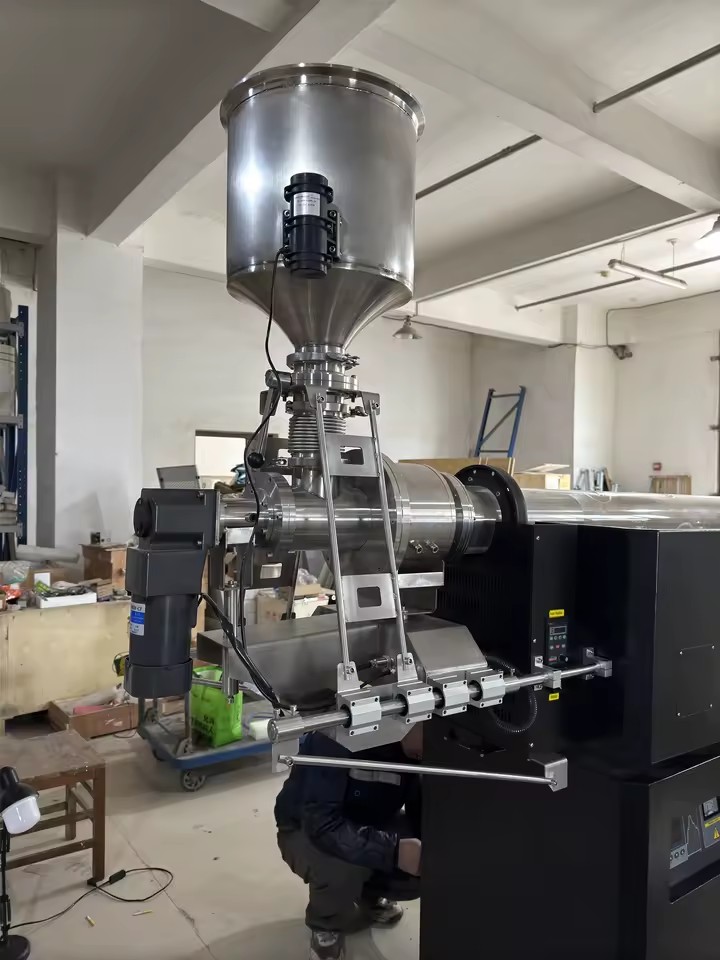

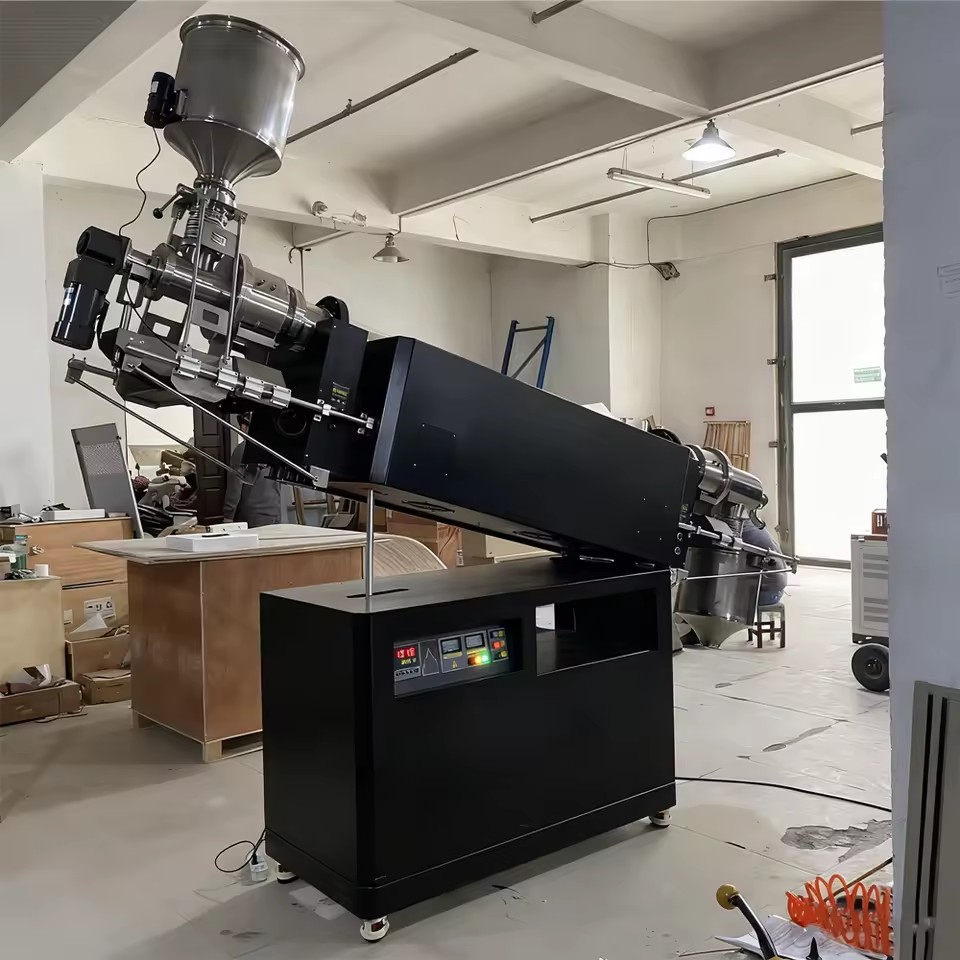

PID Control Continuous Feeding Multi-zone Heating Granular Material Processing High Temperature Rotating Tilting Tube Furnace

Available for enquiry 0.0 · 0 reviews
USD

$ 7,820.00 7820.0 USD $ 7,820.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Working Temperature(°C)
1700°C(3060°F), 1200°C(2160°F), 1400°C(2520°F)
Capacity (kg/h)
200 kg/h(440.92lb/h), 500 kg/h(1102.31lb/h), 800 kg/h(1763.70lb/h)
Usage
Heat Treatment Furnace, Melting Furnace, Sintering Furnace, Holding Furnace, Muffle Furnace
Voltage
380 V, 220 V, 440 V
Type
Resistance Furnace
Material
Stainless Steel, Aluminum
Product description

Product Description

Technical Parameter
PowerBy Size
VoltageAC 220V or 380V, 50/60Hz
Heating elementResistance wire/sic/Mosi2
Max. temp1200 or 1400 or 1700℃
Constant working temp.≤1200 or 1400 or 1700℃ for continuously

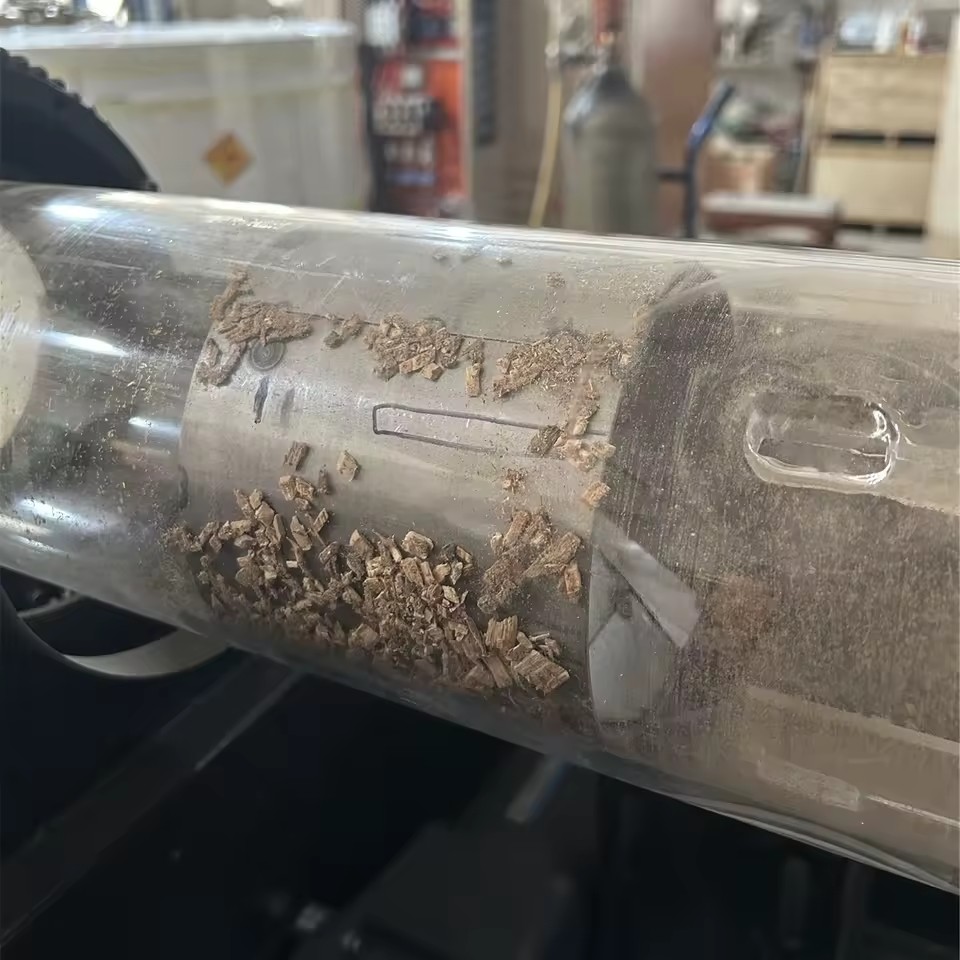

Tube MaterialSS310 / Quartz / Corundum Tube / etc.
Spec of TubeDia40mm*350mm + Dia80mm*600mm + Dia40*350mm Other customizable options
Heating zoneThree Heating Zones 600 mm (200mm+200mm+200mm) Other customizable options
Furnace tube rotation rate0~30r/min
Furnace body inclination angle0~30°
ChamberAlumina, high temperature fiber
ThermocoupleK or S type
Temp accuracy±1℃
Temp controlPID automatic control with 30 steps programmable
Over size of the furnace body1300mm L* 500mm W *1500mm H By Size
Note: We can provide customized making and designs according to the customers' requirements.
Description images

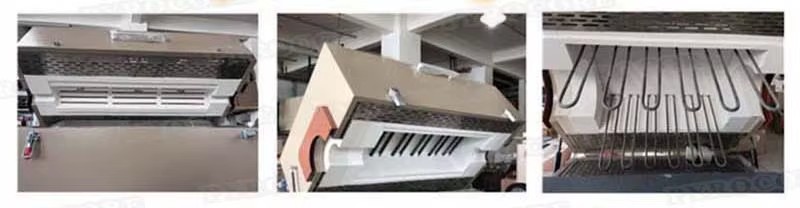

Product detail

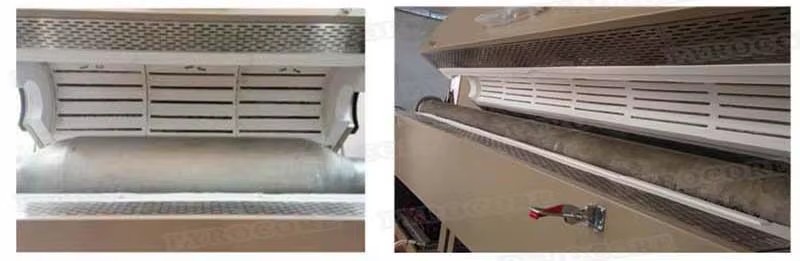

Product detail

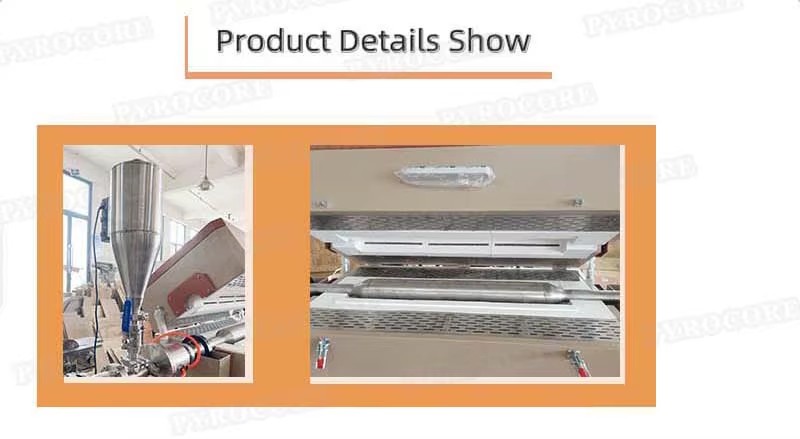

Product detail

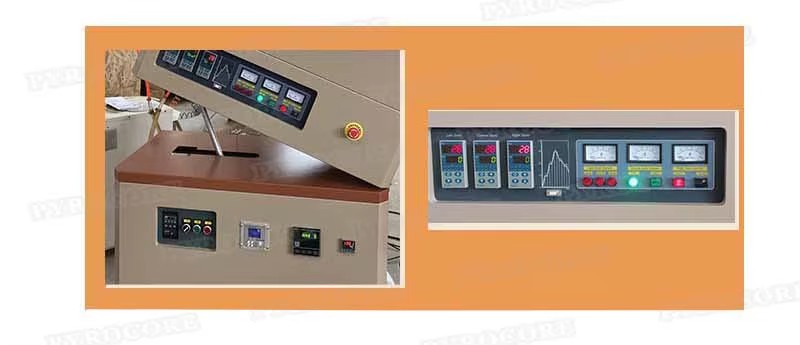

Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Working Temperature(°C)
1700°C(3060°F), 1200°C(2160°F), 1400°C(2520°F)
Capacity (kg/h)
200 kg/h(440.92lb/h), 500 kg/h(1102.31lb/h), 800 kg/h(1763.70lb/h)
Usage
Heat Treatment Furnace, Melting Furnace, Sintering Furnace, Holding Furnace, Muffle Furnace
Voltage
380 V, 220 V, 440 V
Type
Resistance Furnace
Material
Stainless Steel, Aluminum
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic, Easy To Operate, Competitive Price, Multifunctional, High-Accuracy, Long Service Life, High Productivity, High Safety Level, Eco-Friendly, Energy Saving, Low Noise Level, Remote Monitoring, Flexible Manufacturing, Low Maintenance Cost, High Rigidity, Remote Control, Patented Product, Accurate Temperature Control, Famous Brand PLC, Multilayer, IOT, Digital, Famous Brand Motor, Multi Color
Place of origin
China, Henan
Weight (t)
1
Dimension(L*W*H)
by size
Max temperature
1200C/1400C/1700C
Working temperature
1100C/1300C/1600C
Heating Element
Resistance Wire / Sic heater / Mosi2 heater
Heating rate
0-15C/min
Temperature Control
30 or 51 Segments Programmable + PID Control
Tube material
Stainless steel/quartz/corundum tube
Optional temperature zones
1/2/3/4 or customization
Certificate
CE ISO TUV
Application
etc, Sintering/heat treatment/heating/melting
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
GSL
Power (kW) (Product option)
Custom
Lead time
30 days
Minimum order
1 Units
