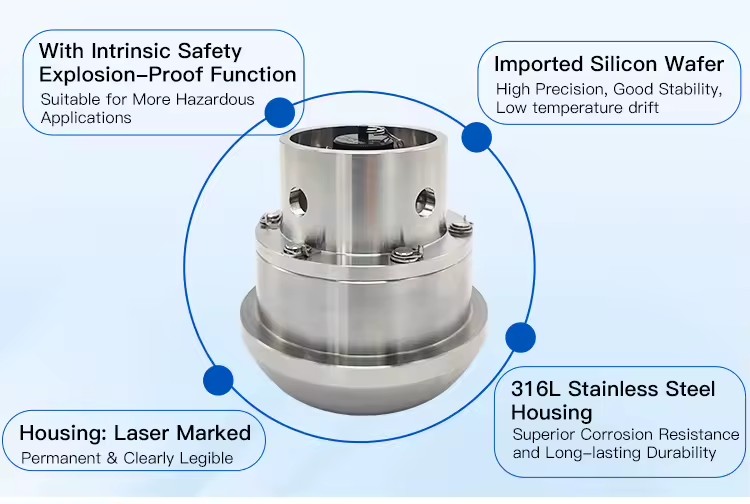

Product Importer Gallery 05 · 79f432325b

Product video

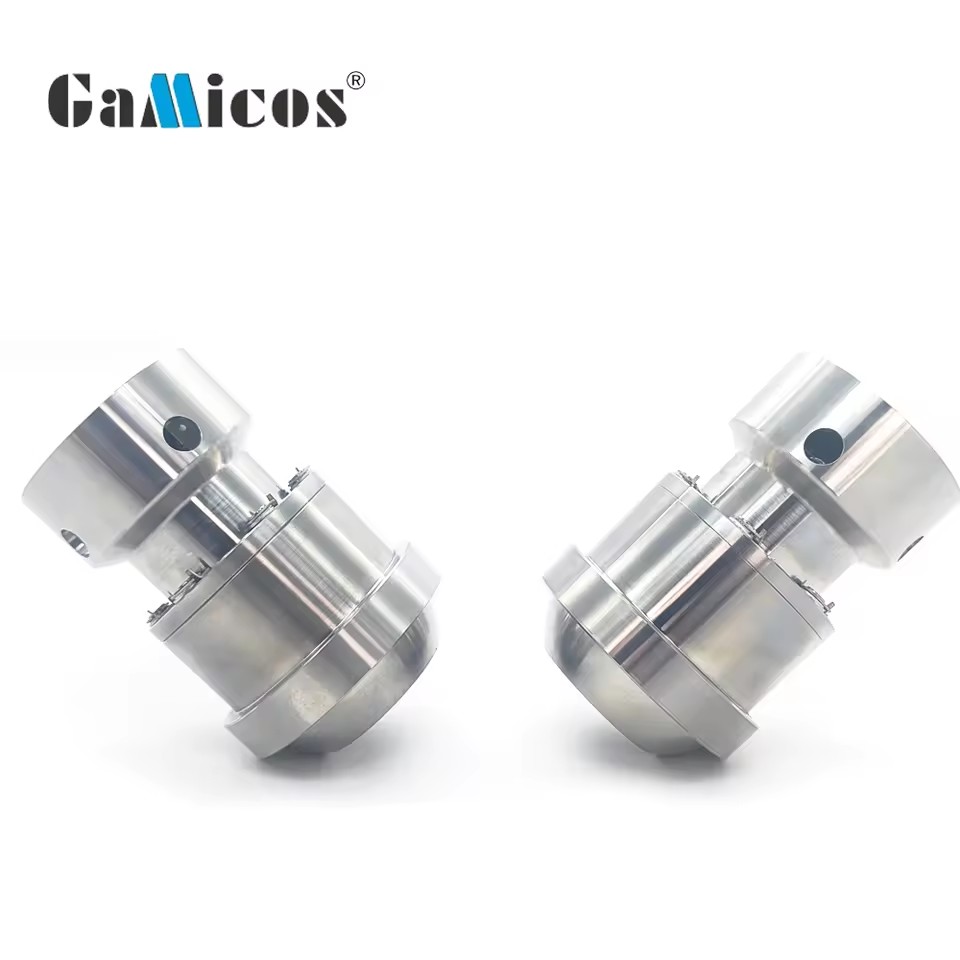

GPT400 Oil Field Drilling Cementing Fracturing Vehicle Hammer 0-1500Bar Accuracy 0.5%FS SS304/SS316 Union Pressure Transducer

Name: GPT400 Oil Field Drilling Cementing Fracturing Vehicle Hammer 0-1500Bar Accuracy 0.5%FS SS304/SS316 Union Pressure Transducer
SKU: QF9S-X3CA-YW24
Price: 710.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 710.00 710.0 USD $ 710.00

Minimum order quantity: 1 Units

Key attributes

View all

Ingress Protection

IP66

Warranty

1 Year

Customized support

ODM, OBM

Type

Hammer union pressure transmitter

Place of origin

China, Shaanxi

Model number (Specification)

GPT400

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

Multiple optional elastic body materials for flexible adaptation to complex corrosive and abrasive conditions.

Robust and durable structure, resistant to vibration and frequent shocks, suitable for harsh industrial environments.

Wider pressure port, specifically designed for measuring mixed adhesive media.

Fully welded integrated or assembled sealed stainless steel structure, suitable for abrasive and highly corrosive media.

Supports customer customization, covering multiple dimensions such as range, material, accuracy, and connection.

Integrated structural design for easy installation.

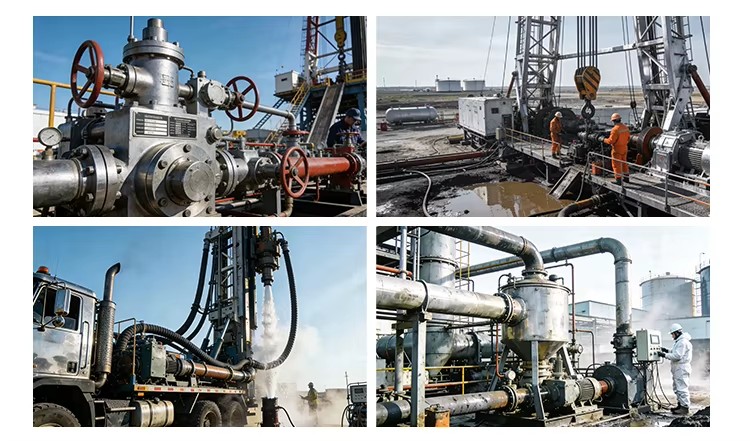

Oil & Gas Drilling, Mud Pumps / Mud Logging

Fracturing & Cementing, Acidizing Operations

Wellhead Measurement, Risers & Stimulation Engineering

Blowout Prevention Equipment, Sand Bypassing & Land Reclamation

Drilling Reinforcement, Crude Oil Sludge Treatment

Other harsh industrial environments requiring pressure measurement

Frequently asked questions

The GPT400 is designed for harsh industrial environments and is widely used in oil & gas drilling, fracturing and cementing, wellhead measurement, blowout prevention equipment, mud pumps, sand pumping, land reclamation, and other applications involving viscous or abrasive media such as drilling fluid, crude oil, mortar, and sludge.

4~20 mA (2~wire), 0~5V, 0.5-4.5V, 0-10V, RS485 digital signal

Yes. The diaphragm is available in materials such as 17-4PH, 15-5PH, and C276 stainless steel. The fully welded or assembled sealed structure ensures durability in corrosive and abrasive media like mud, crude oil, and slurry.

The response time is ≤3 ms (10% to 90% FS), enabling real-time pressure monitoring in dynamic applications.

Yes. Customization is supported in terms of pressure range, materials, accuracy, output signal, electrical connection, and dimensions to meet specific application requirements

Standard options include a 4/6-pin aviation plug. Custom interfaces such as direct leads, submersible cable outlets, or OEM-specific designs are also available upon request.

The transmitter can withstand over 10 million load cycles within the measuring range, offering excellent fatigue resistance and long-term stability.

The model number follows this structure: GPT400 - Range - Connection - Output - Power - Accuracy - Interface Example: GPT400-0/50MPa-Q1-T1-V1-A2-B1 This represents: 50MPa range, 1-inch connection, 4-20mA output, 12-30VDC power, 0.5% accuracy, aviation plug.

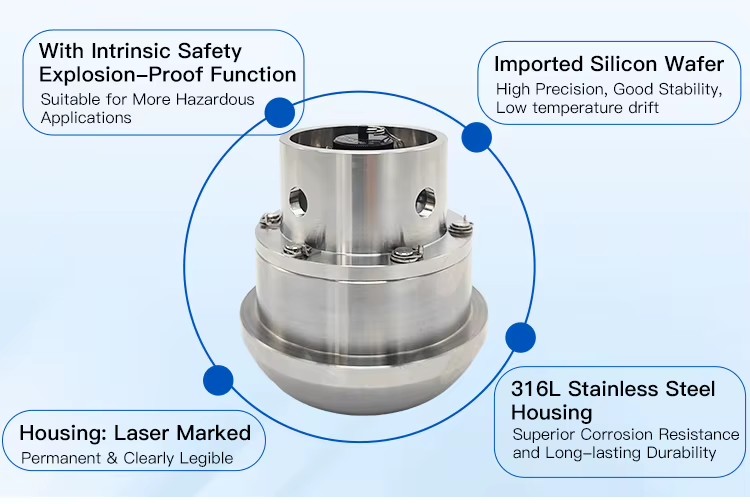

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

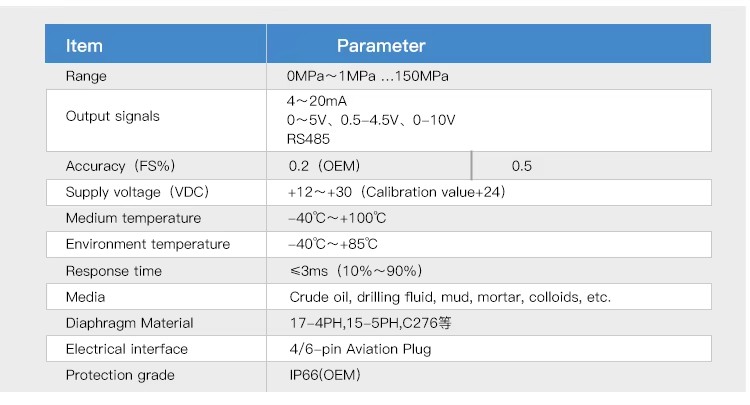

Technical specifications

Other details 21 fields

Ingress Protection

IP66

Warranty

1 Year

Customized support

ODM, OBM

Type

Hammer union pressure transmitter

Place of origin

China, Shaanxi

Model number (Specification)

GPT400

Material

Stainless Steel

Range

0MPa~1MPa...150MPa

Output signal

4~20ma, 0~5v, 0~10v, RS485

SUPPLY

12~30v

Medium Temperature

40°C~+100°C

Response time

3ms

Media

etc., mud, Crude oil, drilling fluid, mortar, colloids

Diaphragm material

17-4PH,15-5PH, C276

Protection grade

IP66(OEM)

Service life

10 million load cycles (within measuring range)

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Accuracy (Product option)

0.5

Pressure range (Product option)

0MPa~1MPa...150MPa

Lead time

20 days

Minimum order

1 Units
