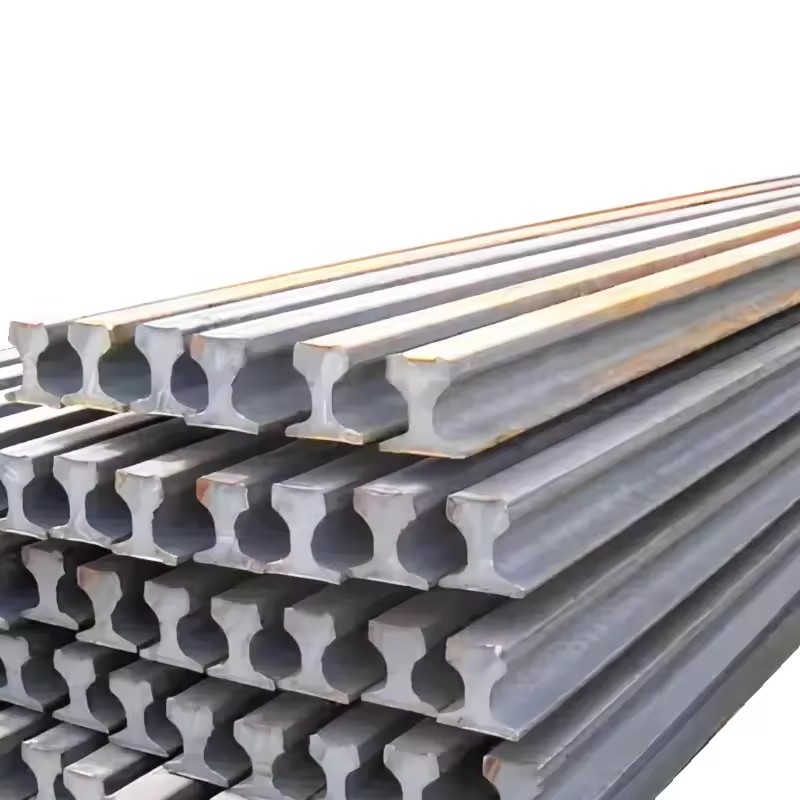

DIN 536 Standard Railway Steel Railroad Rail Railways Crane Heavy Rails A65 A75 A100 A120 A150 Crane Rail

Available for enquiry 0.0 · 0 reviews
USD

750.00 750.0 USD 750.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Application
Railway Rail / Railroad Track Material
Type
Heavy Rail
Standard
DIN
Alloy Or Not
Non-Alloy
Tolerance
±1%
Delivery Time
8 ~ 14 days
Product description
DIN 536 Standad Railway Steel Railroad Steel Rail Track Rail Railways Crane Heavy Rails A55 A65 A75 A100 A120 A150 Crane Rail
StandardAiSi ASTM bs DIN GB JIS EN(GB3426-82)
Grade700/900A/1100
Rail Height55-150mm or Customer's requirements
Bottom Width125-220mm or Customer's requirements
Web Thickness24-80mm or Customer's requirements
Head Width45-150mm or Customer's requirements
Place of Origin
Zhejiang
TypeCrane Steel Rail
Weight22.1kg/m 31.8kg/m 43.1kg/m 56.2kg/m 74.3kg/m 100kg/m
UsageRailway Mining,Architectural decoration,Structural pipe making, Gantry Crane, Train
Secondary Or NotNon-secondary
Tolerance±1%
Delivery Time8-14 days
SamplesFreely
Length10-12m or Customer's requirements
Payment TermT/T 30% Deposit
MOQ1 TON

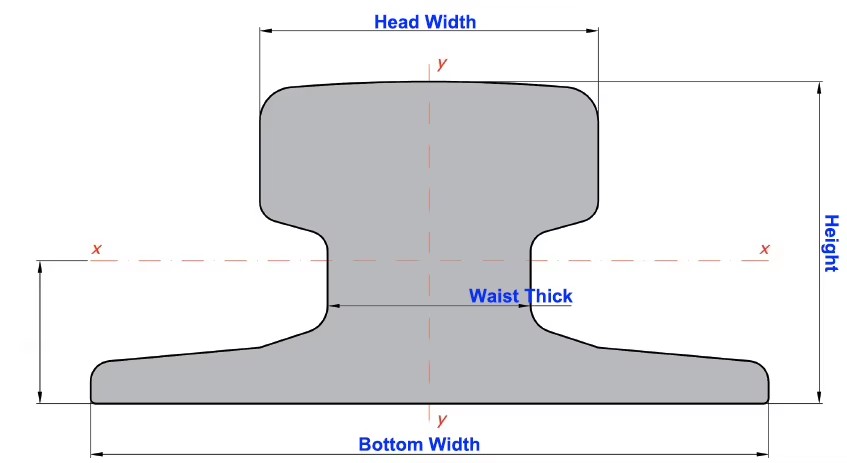

Product NameTypeSection Size/mmN.W. KG/MMaterialLength
HeightBottom WidthHead WidthWaist Thick
Crane railA4555125452422.1700/900A/110010-12M
A5565150553131.8700/900A/110010-12M
A6575175653843.1700/900A/110010-12M
A7585200754556.2700/900A/110010-12M
A100952001006074.3700/900A/110010-12M
A12010522012075100700/900A/110010-12M
A15015022015080150.3700/900A/110010-12M
Crane rail sizeMinimum tensile strength N/mm2C %Si % maxMn %P % maxS % max
A45, A55, A65, A75, A100, A120, A1506900.40-0.600.350.8-1.20.0450.045
A75, A1008800.60-0.800.500.80-1.300.0450.045
A120, A1508800.55-0.750.501.30-1.700.0450.045

Q:Do you provide free samples? A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs. Q:Do you accept small orders? A:You don't need to worry about this problem,just consult. Q:Do you accept the third party inspection? A:Yes absolutely we accept. Q:How could you guarantee your products? A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality. Q:What are the advantages of your company? A:(1): Prime quality and reasonable price. (2): Wide excellent experiences with after-sale service. (3): Every process will be checked by responsible QC which insures every product's quality. (4): Professional packing teams which keep every packing safely. (5): Trial order can be done in one week. (6): Samples can be provided as your requirements. Q:What is your terms of payment? A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight. Q:How about our price? A:Our price is very competitive because we are a factory.Pls feel free to

A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.

A:You don't need to worry about this problem,just consult.

A:Yes absolutely we accept.

A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality.

A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight.

A:Our price is very competitive because we are a factory.Pls feel free to

A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality ually the delivery time is within 7 days after we received your deposit.

Certifications & compliance
ISO 6892
Tensile Strength Tested
Description images

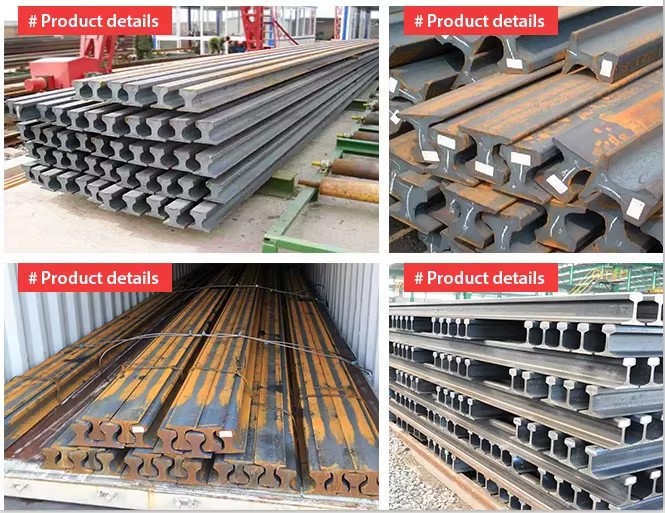

Product detail
Product detail
Product detail
Product detail
ISO 6892

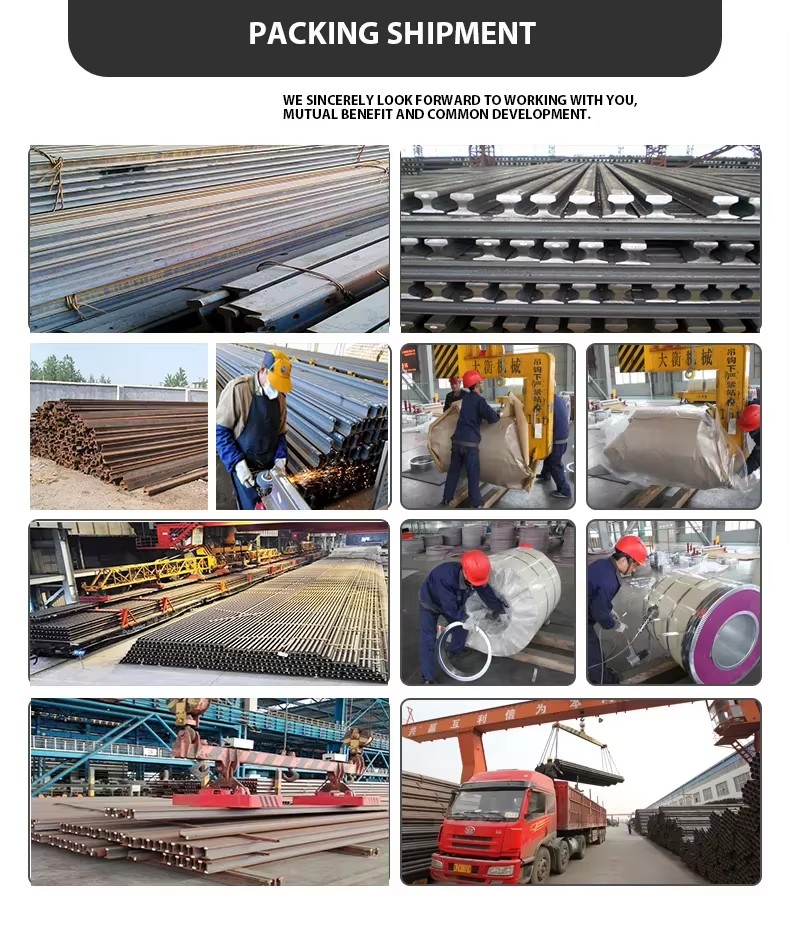

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Air + Express via FLY Logistics · Approx. shipping fee: $ 8.00 for 1 ton · Transit time: Est. 8-9 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Application
Railway Rail / Railroad Track Material
Type
Heavy Rail
Standard
DIN
Alloy Or Not
Non-Alloy
Tolerance
±1%
Delivery Time
8 ~ 14 days
Secondary Or Not
Non-Secondary
Grade
700/900A/1100
Place of origin
Zhejiang, China
Model number (Specification)
VG-Rails
Usage
Railway Mining/Train/Gantry Crane
Samples
Freely
Payment Term
T/T 30% Deposit
Name
Crane rail
Package
standard seaworthy package
MOQ
1 Ton
Size
A45 A55 A65 A75 A100 A120 A150
Hardness
260HB Min
Applicaiton
Subway
HS CODE
730210
Selling Units
Single item
Single package size
10X12X10 cm
Single gross weight
2.0 kg
Bottom Width (Product option)
125-220mm
Head Width (Product option)
45-150mm
Length (Product option)
10-12M
Rail Height (Product option)
55-150mm
Web Thickness (Product option)
24-80mm
