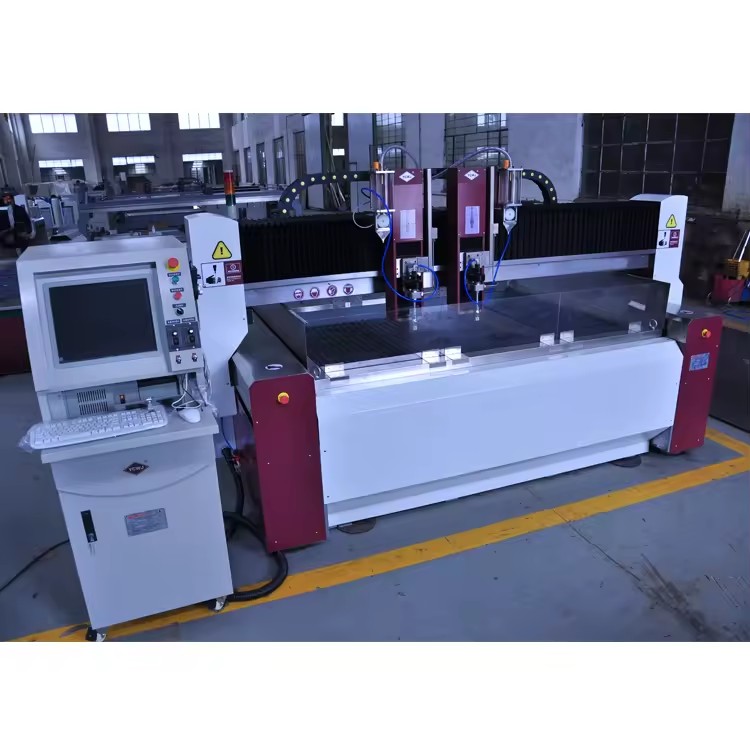

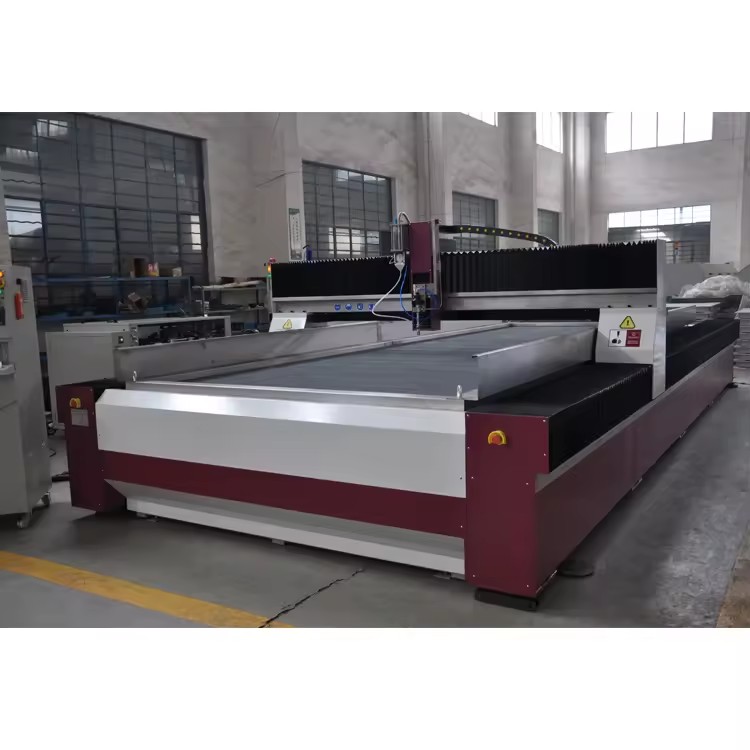

Factory Supply Water Jet Cutting Machine for Marble 5 Axis Machine

CNC Water Jet Cutting Machine Parameter(L=Gantry type)

Parameters

Unit

CY-L1010

CY-L2015

CY-L3015

CY-L3020

CY-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.025

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Product Description

As an advanced cutting equipment, the water jet cutting machine has a wide range of applications in the industrial field. A

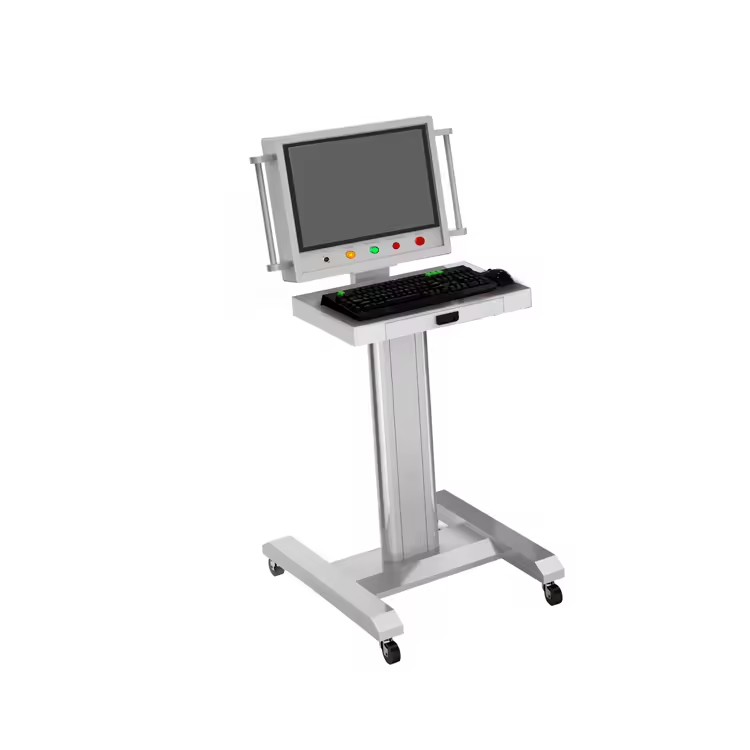

complete set of water jet cutting machines usually consists of five main parts: the first is the high-pressure system, which is the key to generating high-pressure water flow and provides strong power support for cutting; the second is the cutting platform, which bears the material to be cut and provides a stable foundation for the cutting operation; the third is the control system, just like the intelligent center of the equipment, accurately regulating various parameters of the entire cutting process; the fourth is the cooling system, which effectively reduces the temperature during the operation of the equipment to ensure the stability and safety of the equipment. The cooling system includes air-cooling system and water-cooling system, and it is necessary to reasonably choose the equipment with high or low cooling intensity according to different usage temperature environments to adapt to the specific working condition requirements; the fifth is the sand supply system, which plays an important role when abrasive water jet cutting is required to ensure the smooth supply of abrasives. The sand we use is generally 80-mesh garnet sand, which has good cutting performance and stability.

How is our CY waterjet cutting platform made?

Waterjet cutting head

Ultra-high pressure water jet is mainly divided into abrasive cutting and only water cutting(Including pure water cutting).

Therefore, the cutting head is also divided into abrasive waterjet cutting head and pure waterjet cutting head.

* Abrasive waterjet cutting is mainly used for cutting metal (such as carbon steel, stainless steel, etc.), nonferrous metal

(such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber) and so on.

* Only water cutting is mainly used for cutting rubber, foam, cloth, paper, rock wool, food （pure waterjet cutting）and so on.

What materials can a waterjet cut?

Alloys，Steels，Laminates，Composites，Plastics/Acrylics，Rubber，Gaskets，Fiberglass，Glass...

Customizable Waterjet Cutting Systems

Customizable X, Y, and Z axesMachine tool with a z-axis of 1 meter

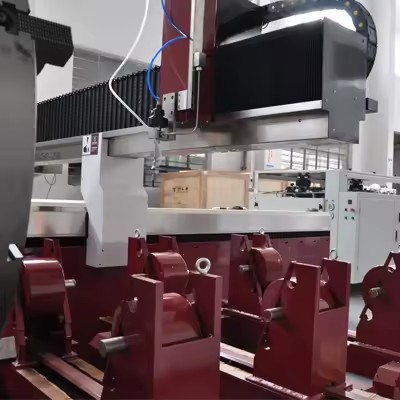

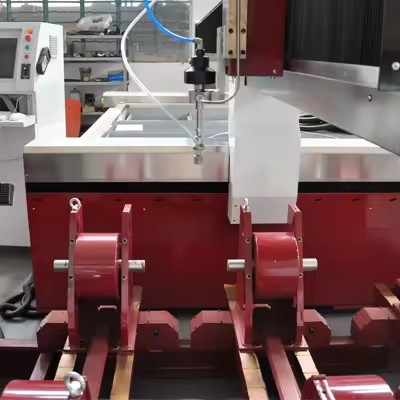

Customized model of tube plate integrated water cutting machine

Customization of water cutting production line

Specification

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa
