Product video

Zt5

Available for enquiry 0.0 · 0 reviews
USD

$ 101,260.00 101260.0 USD $ 101,260.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
mining used
Type
Rotary Drilling Rig
Drilling Depth
Max.25m
Drilling Diameter
100 mm(3.94in)
Power Type
Diesel
Voltage
380V
Product description
ModelZT5
Transport dimensions (L×W×H)8850*2180*2830 mm
Weight13800Kg
Rock hardnessf=6-20
Drilling diameter90-105mm
Ground clearance430mm
Leveling angle of track10°up, 10°down
Travelling speed0-3Km/h
Climbing capacity25°
Traction120KN
Torque1680Nm
Rotation speed0-120rpm
Lifting angle of drill boomUp 47°, down 20°
Swing angle of drill boomRight 50°, left 20°
Swing angle of carriageRight 95°, left 35°
Tilt angle of beam120°
Compensation stroke1200mm
Feed stroke3490mm
Maximum propelling force25KN
Method of propulsionMotoer+Roller chain
Depth of economical drilling24m
Number of rods7+1
Specifications of drilling rodΦ64x3000 mm
DTH hammerM30
EngineYuchaiYCA7240-T00
Output power176KW
Ratedrevolvingspeed2200rmin
Screw air compressorZhejiang
Air capacity12m3/min
Air pressure15Bar
Traveling control systemHydraulic pilot
Drilling control systemHydraulic pilot
Anti-JammingAutomatic electro-hydraulic anti-jamming
Voltage24V, DC
Safe cabMeet the requirements of ROPS & FOPS
Indoor noiseBelow 85dB (A)
SeatAdjustable
Air-conditioningStandard temperature
EntertainmentRadio

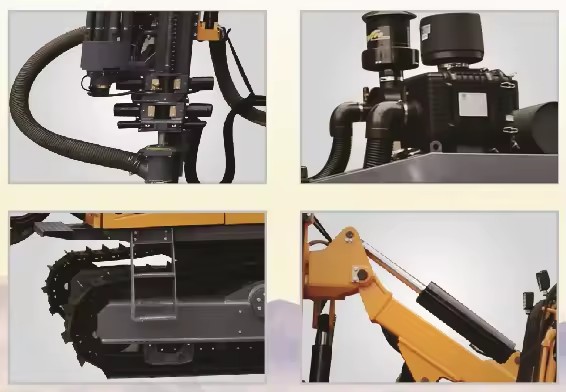

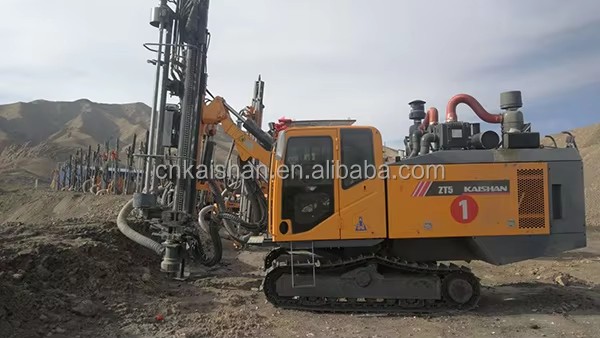

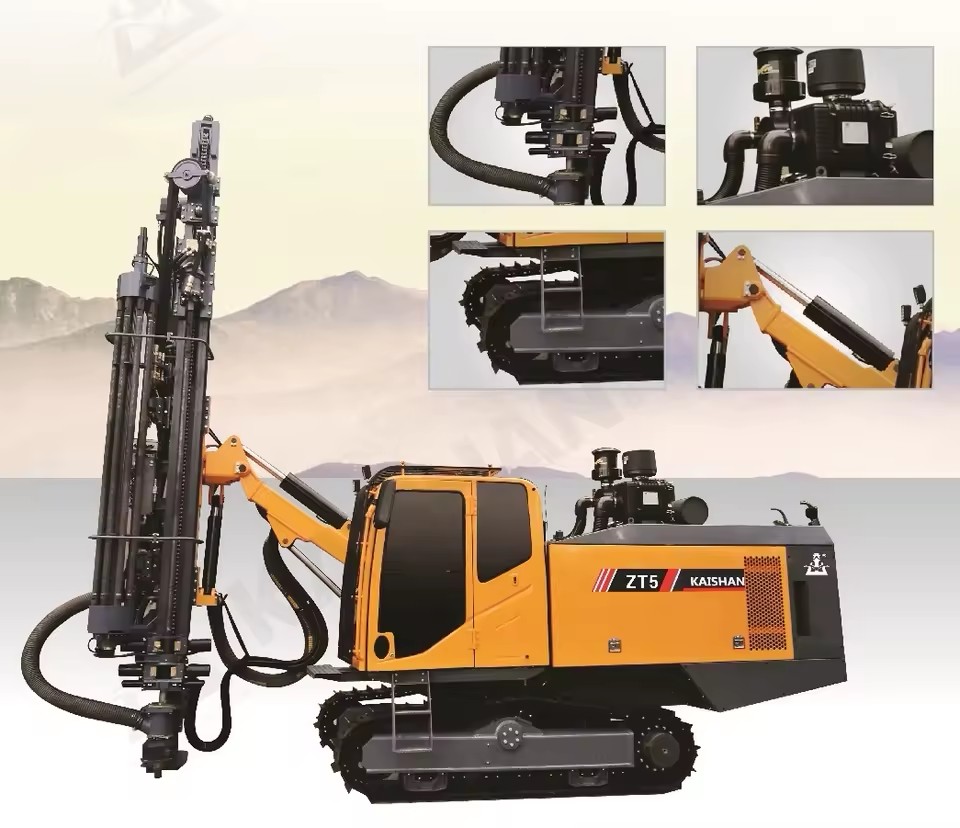

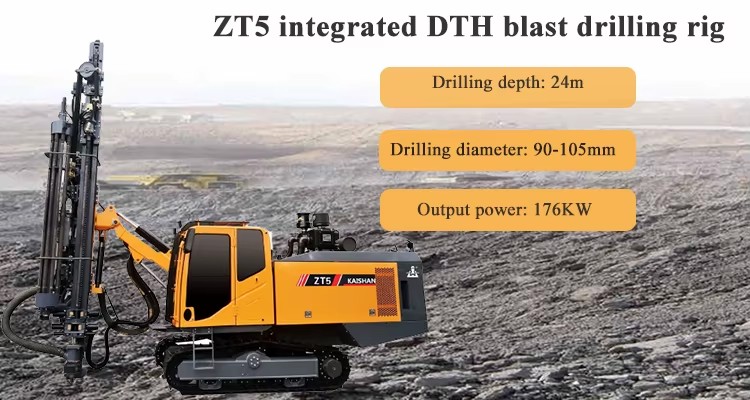

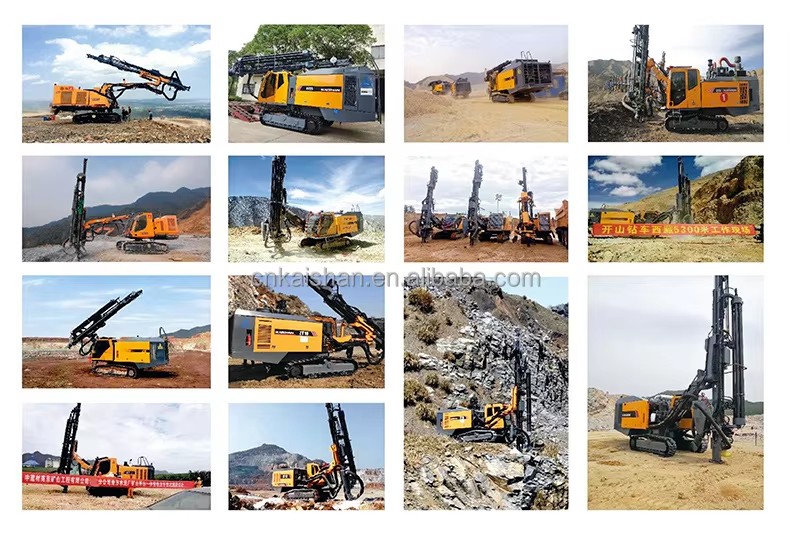

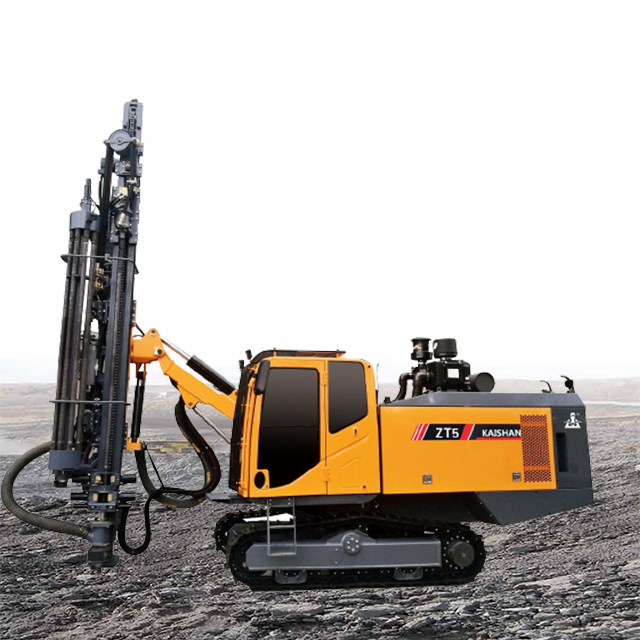

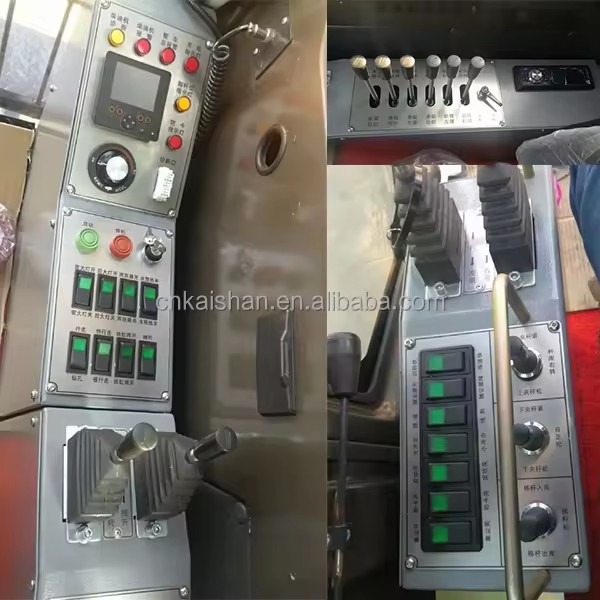

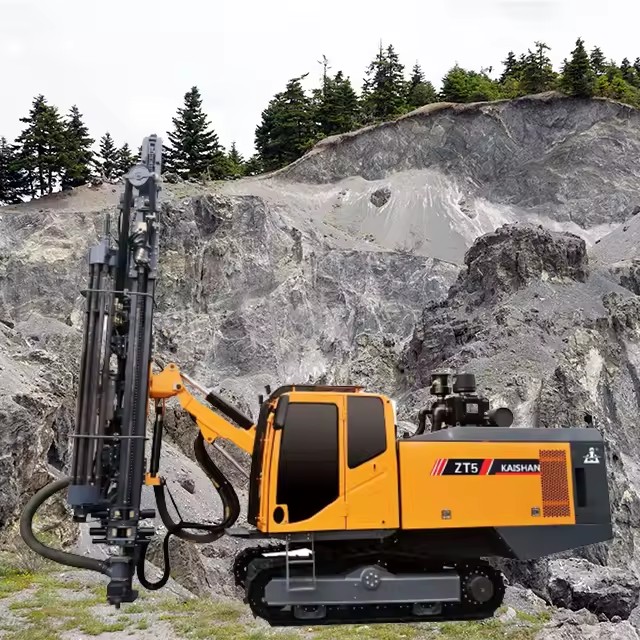

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    120 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
mining used
Type
Rotary Drilling Rig
Drilling Depth
Max.25m
Drilling Diameter
100 mm(3.94in)
Power Type
Diesel
Voltage
380V
Core components
Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
Zhejiang, China
Weight
13000 KG(28660.09lb)
Dimension (L*W*H)
8630*2100*2830mm(339.76*82.68*111.42in)
Model
ZT5
Rock hardness
F=6-20
Economic Drill depth
24m
Hole Diameter
90-105 mm
Rotating Speed
0-120 r/min
Rotation torque
1400 Nm
Biggest Push Pull
25000N
Push Mode
Hydro-Cylinder-Chain
Push Length
3490mm
After-sales Service Provided
Video Technical Support, Field maintenance and repair service
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Model number
ZT5
Power (W) (Product option)
176KW(236.02hp)
Lead time
120 days
Minimum order
1 Units
