Product video
Certifications CE

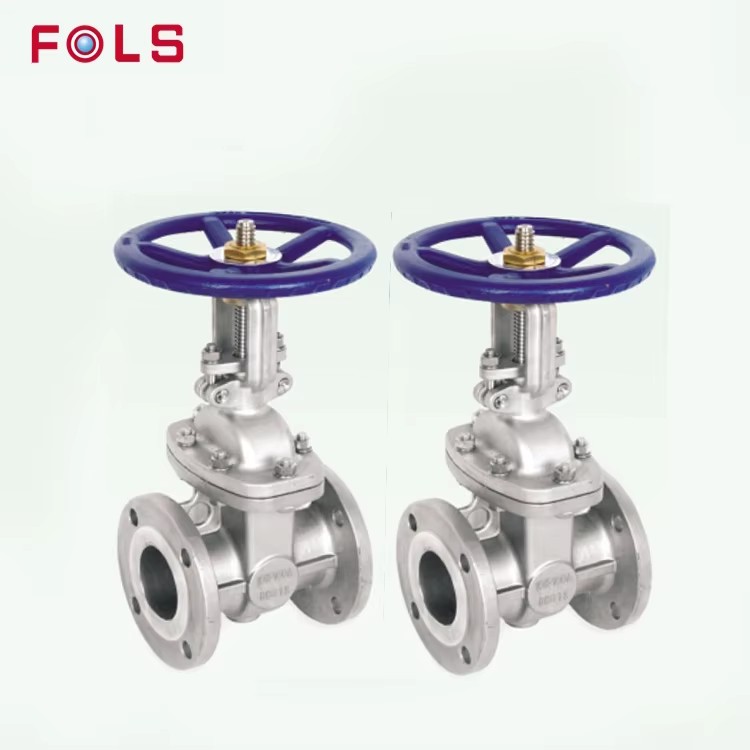

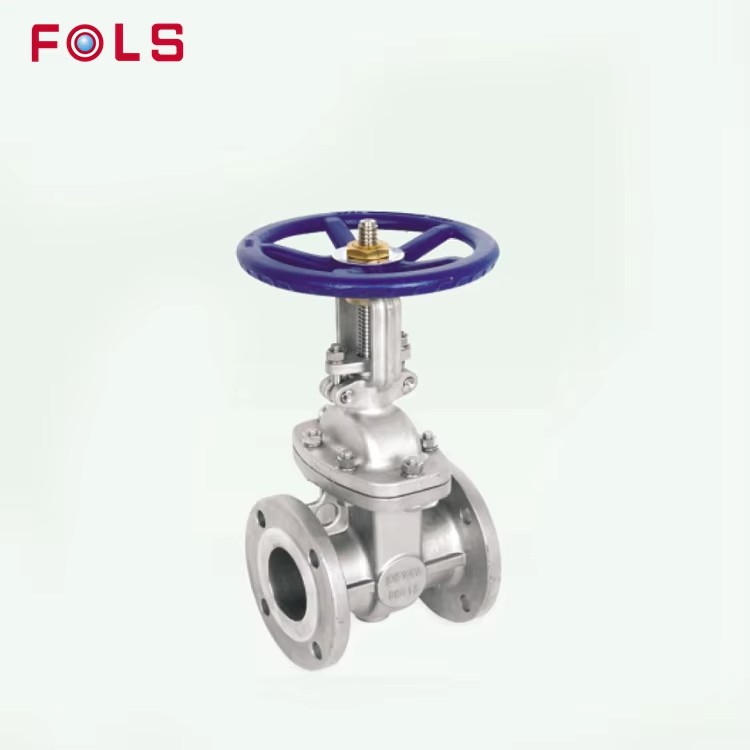

JIS B2212 Standard of WCB Cast Steel 10k 20k Wedge Disc Gate Valve with Flange

Available for enquiry 5.0 · 3 reviews
USD

$ 40.00 40.0 USD $ 40.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Pressure
High Pressure, Low Pressure, Medium Pressure
Media
water gas oil etc.
Material
SCPH2+13Cr, SCS13,SCS14
Temperature of media
Medium Temperature, Normal Temperature, Low Temperature, High Temperature
Power
Manual
Port Size
Standard, 1/2' -12'(DN15-300)
Product description
About Valve
Features

*1/2"-12"(DN15-DN300) *Working Temperature:10k/20k *Working Temperature:-20℃-180℃ *Rising stem *Design:AMSE B16.34 *Flange Dimension:JIS 2220 *Face to Face:JIS B2002 *Inspection&testing:JIS B2003

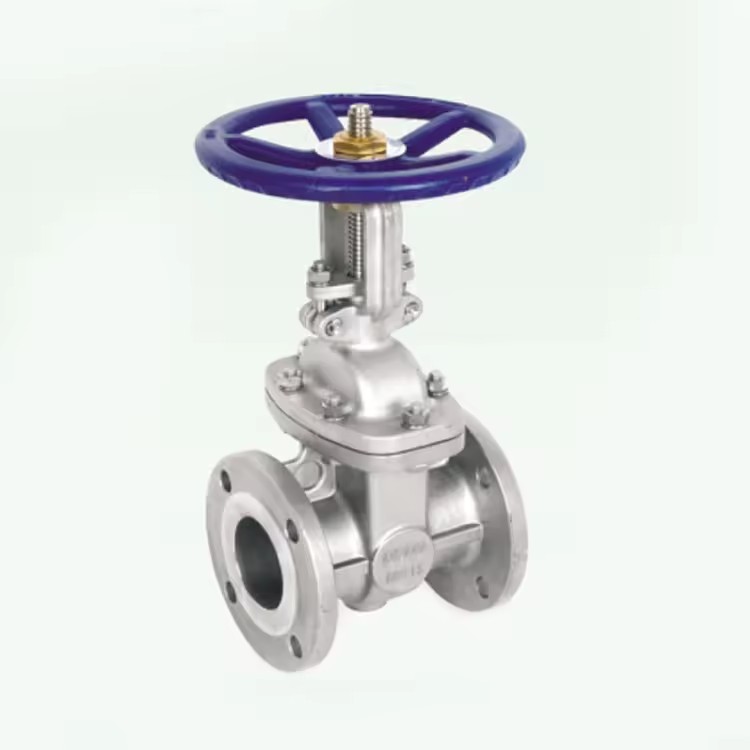

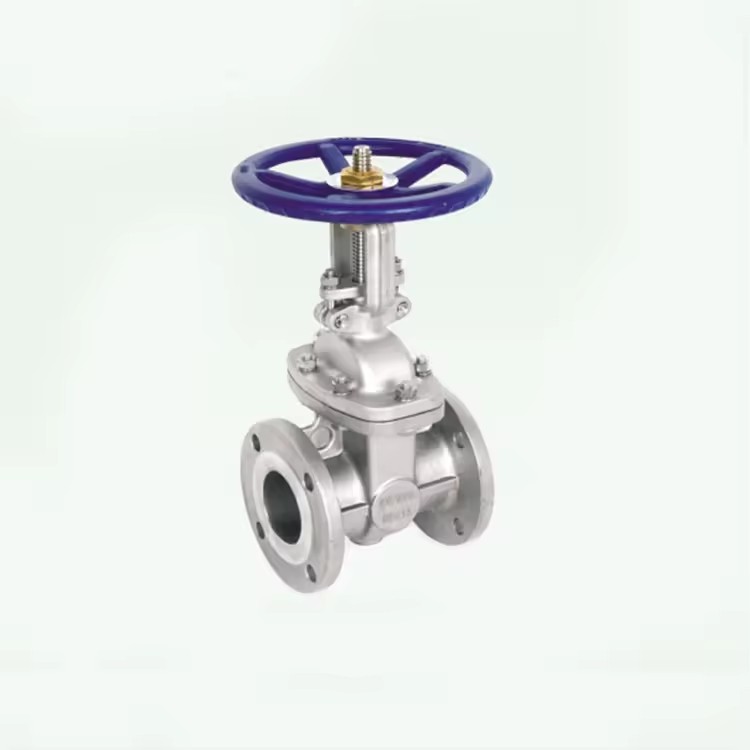

Product show

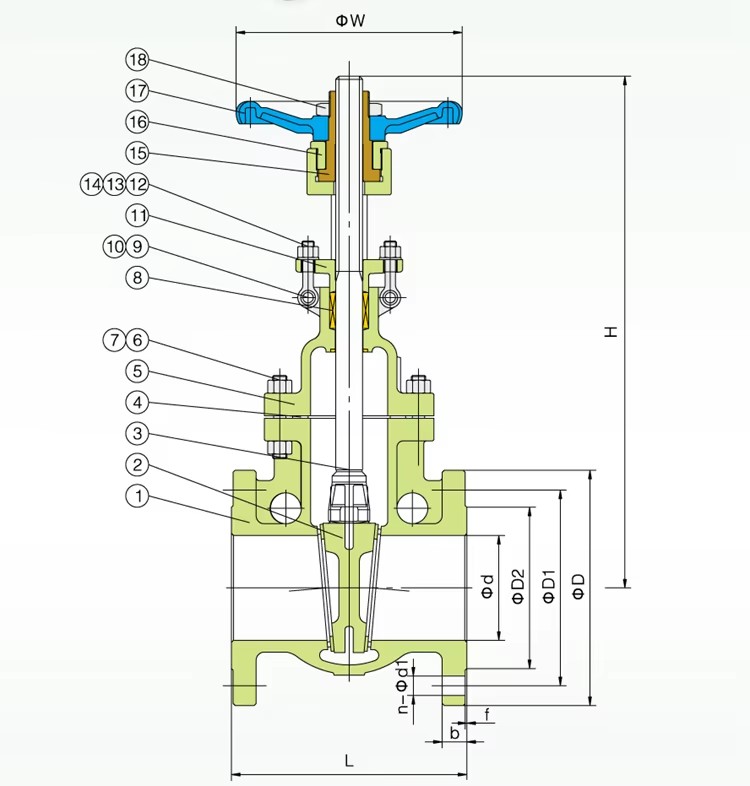

Material List
NO.PARTSMATERIALS
1BODYSCPHH2+13CrSCS13SCS14
2DISCSCPH2+13CrSCS13SCS14
3STEM20Cr13304316
4GASKETPTFE/304+Graphite
5BONNETSCPH2SCS13SCS14
6BOLT35CrMo304304
7NUT45304304
8PACKINGPTFE/Flexible Graphite
9CLEVIS PIN WITH HEAD35304304
10SPLIT PINQ235A304304
11GLANDSCPH2SCS13SCS13
12EYE BOLTS35CrMo304304
13FLAT PAD35Mn304304
14NUT45304304
15STEM NUTBronze
16BONNET NUT45304304
17HANDWEELFCD/SCPH2
18ROUND NUT45304304

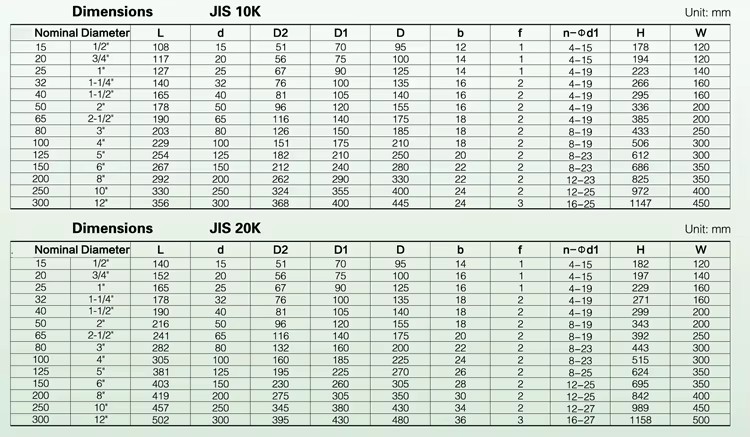

Dimensions
Our Certifications
FAQ

Q

A: We are factory.

Q: How long is your delivery time?

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Can I have a sample order?

Q: Can I have a sample order?

A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

Q: What is your terms of payment?

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment.

Certifications & compliance
CE
Complies with EU standards

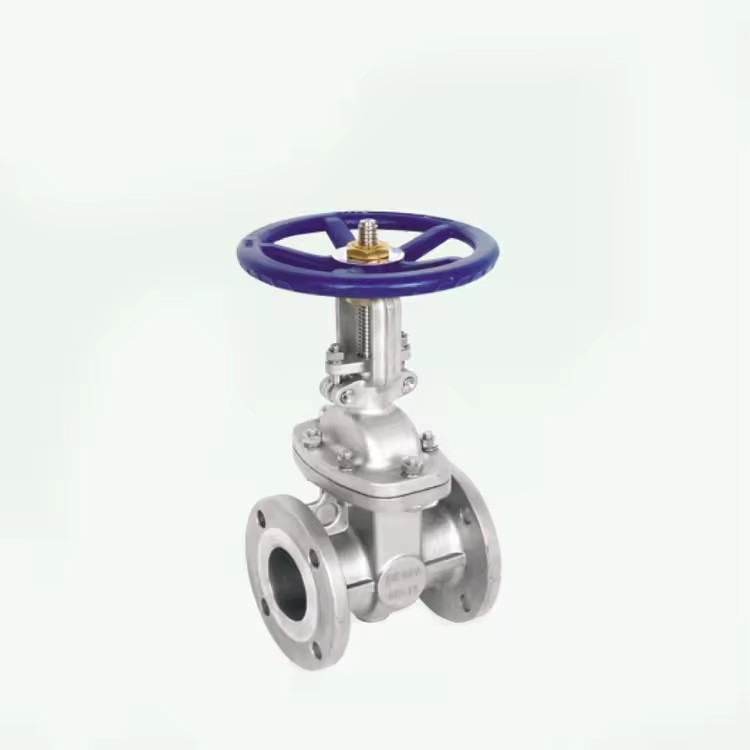

Description images
JIS B2212 Standard of WCB Cast Steel 10k 20k Wedge Disc Gate Valve with Flange
JIS B2212 Standard of WCB Cast Steel 10k 20k Wedge Disc Gate Valve with Flange
JIS B2212 Standard of WCB Cast Steel 10k 20k Wedge Disc Gate Valve with Flange
JIS B2212 Standard of WCB Cast Steel 10k 20k Wedge Disc Gate Valve with Flange
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    10 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Pressure
High Pressure, Low Pressure, Medium Pressure
Media
water gas oil etc.
Material
SCPH2+13Cr, SCS13,SCS14
Temperature of media
Medium Temperature, Normal Temperature, Low Temperature, High Temperature
Power
Manual
Port Size
Standard, 1/2' -12'(DN15-300)
Application
General
Structure
Gate
Model number (Specification)
FLTH54
Place of origin
China, Guangdong
Work pressure
10K/20K
Working temperature
20°C to 180°C
Stem type
rising stem
Design
AMSE B16.34
Flange Dimension
JIS 2220
Face to Face
JIS B2002
Inspection&testing
JIS B2003
Body
SCPH2+13Cr, SCS13,SCS14
Disc
SCPH2+13Cr, SCS13,SCS14
Packaging Details
Carton/polywood box
Port of dispatch
GuangZhou port, Shenzhen port
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
10000 pieces per Month
Certifications & Compliance
CE
Lead time
10 days
Minimum order
1 Units
