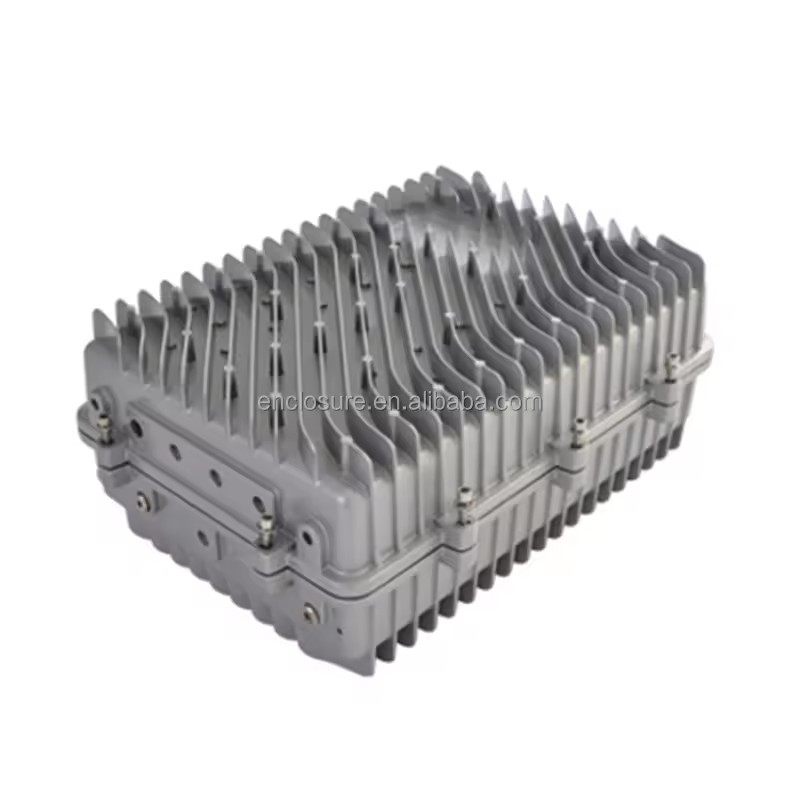

Product Importer Gallery 01 · c62c24e251

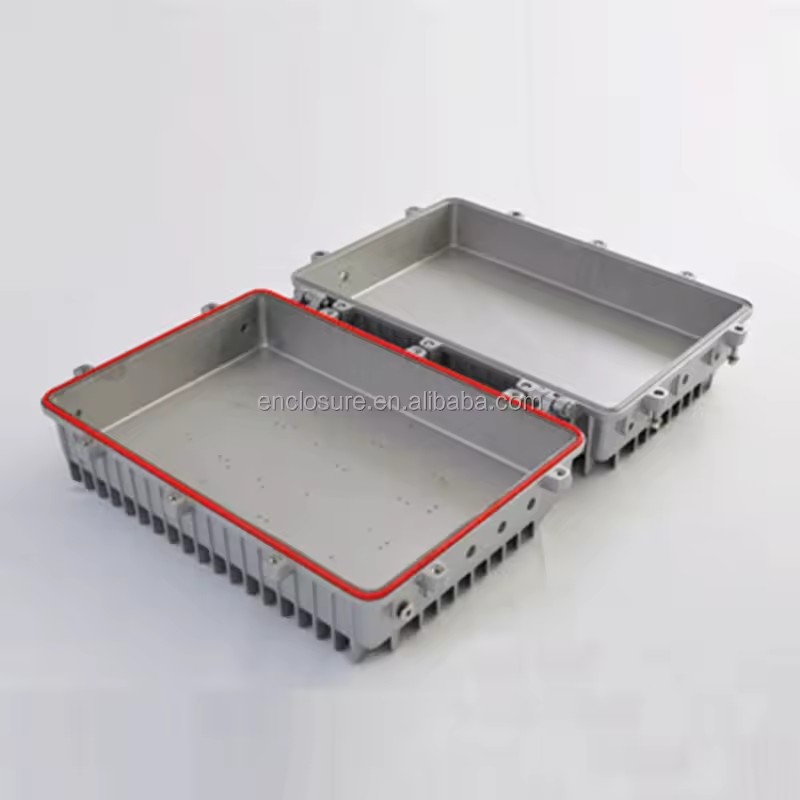

Product Importer Gallery 02 · 5edda8d008

Product video

CHANGHE IP65 CATV Amplifier Housing Amplifier Enclosure 473x324x138mm

Name: CHANGHE IP65 CATV Amplifier Housing Amplifier Enclosure 473x324x138mm
SKU: PZTX-EW83-P9JM
Price: 50.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 50.00 50.0 USD $ 50.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Junction Box

IP level

IP65

Place of origin

Zhejiang, China

Model number (Specification)

11B-24

Internal size

473x324x138mm

Material

Aluminum alloy

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

IP65 CATV Outdoor Amplifier Enclosure (11B-24)

T h e dimensions specified below are Length x Width x Height.

Model No.	Internal Dimensions	Mounting plate size
11B-24	473x324x138mm	460x320mm

Technical Features

Aluminium alloy die casting shaping

RFI and EMI shielding

IP 65 watertight and dust-proof (IEC60529: 2001) · High impact resistance (IK grade: IK08) · High corrosive resistance · Easy mounting

75Ωjoint

Can be used at a wide range of operating temperatures:-40℃～120℃(IEC60068: 1997)

The interior contains mounting pillars to accommodate mounting plates, supporting rails or circuit boards.

Product components

Parts name	No.	Materials
Lid	1	Die cast aluminium
Bottom	1	Die cast aluminium
Bolts	10	Stainless steel
Sealing ring	1	Silicone rubber
Metal shielding net	1

Product Dispaly

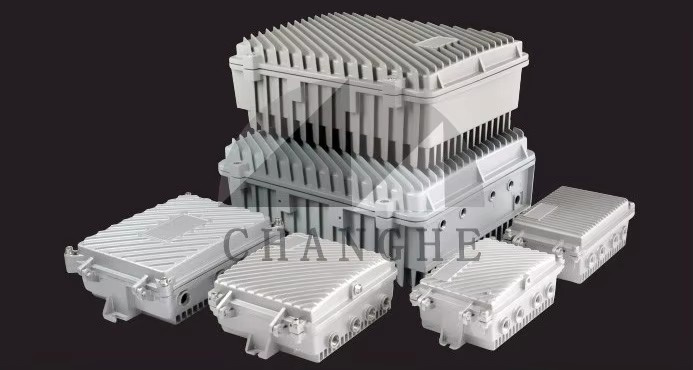

CHANGHE Outdoor CATV Amplifier Enclosures

Die-cast in aluminum alloy, CHANGHE amplifier enclosures offer high corrosive resistance and provide excellent RFI and EMI shielding. Internal dimensions range from 123x103x55 mm to 473x324x138 mm. >>For more detail, please visit our

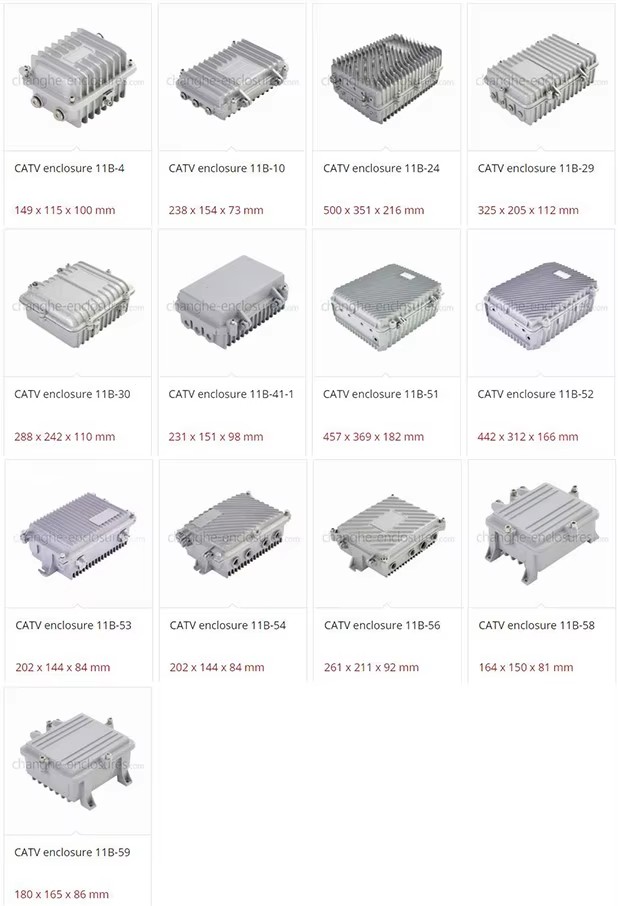

Model No.	Internal dimensions (mm)	Model No.	Internal dimensions (mm)
11B-4	130x90x75	11B-42	183x140x50
11B-6	168x87x72	11B-51	420x335x126
11B-10	210x130x58	11B-52	410x280x112.5
11B-11	211x132x87	11B-53	184.5x127x63
11B-13	255x146x81	11B-54	184.5x127x63
11B-14	316x165x130	11B-55	200x185x75.5
11B-24	473x324x138	11B-56	246x196x187
11B-29	300x180x98	11B-58	123x103x55
11B-30	258.5x213x100	11B-59	143x123x60
11B-41-1	209x129x90

Custom & Modified Enclosures When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you

Mold & Design - Special Paint Colors - Silk Screening - Punched Holes

Cutouts - Mounting plate design - Salt Mist Resistance - Non-inflammable sealing ring

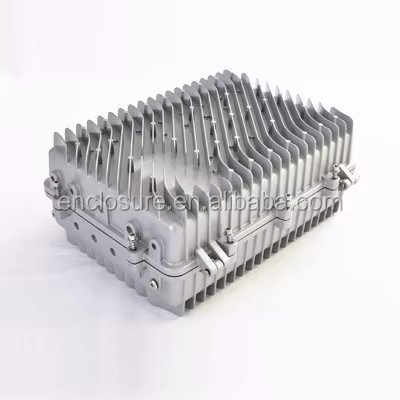

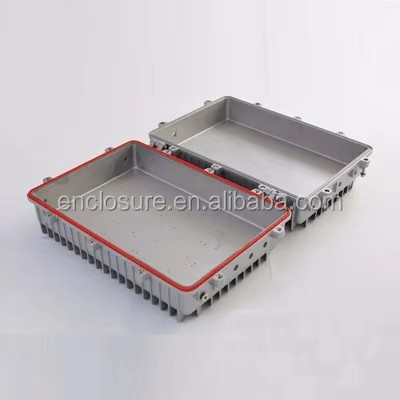

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Type

Junction Box

IP level

IP65

Place of origin

Zhejiang, China

Model number (Specification)

11B-24

Internal size

473x324x138mm

Material

Aluminum alloy

Application

Outdoor, harsh conditions

Operating temperature

40°C~120°C

Features

RFI and EMI shielding

Color

Grey

OEM

Support

Customization

Support

Packaging Details

packed in cartons, seaworthy export standard in strong carton suitable for international transportation

Port of dispatch

ningbo

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

1000 pieces per Day

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

CHANGHE IP65 CATV Amplifier Housing Amplifier Enclosure 473x324x138mm

Open URL

Price

$ 50.00

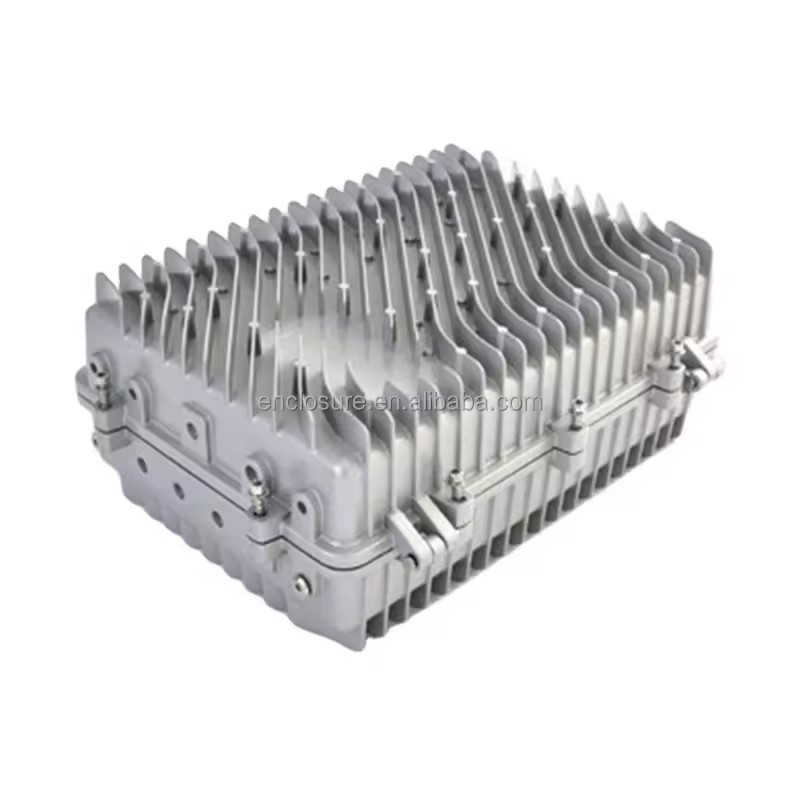

CHANGHE IP65 CATV Amplifier Housing Amplifier Enclosure 473x324x138mm product image
