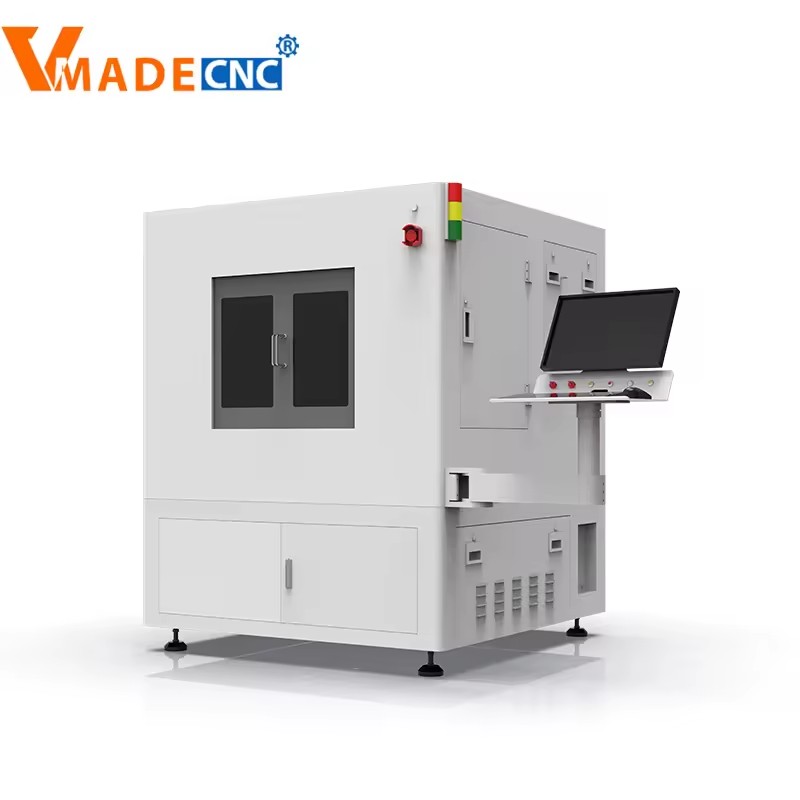

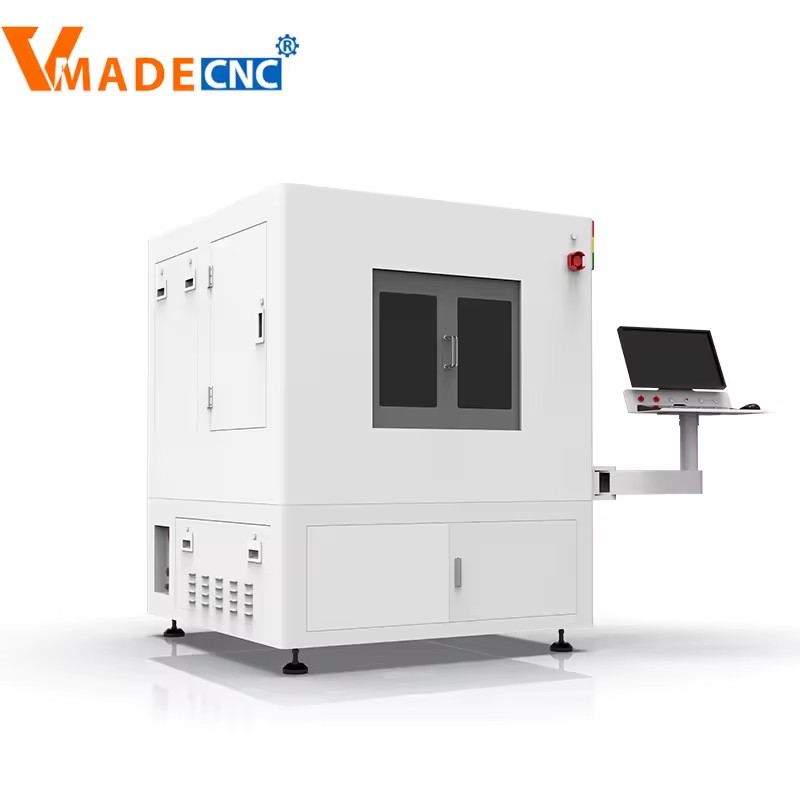

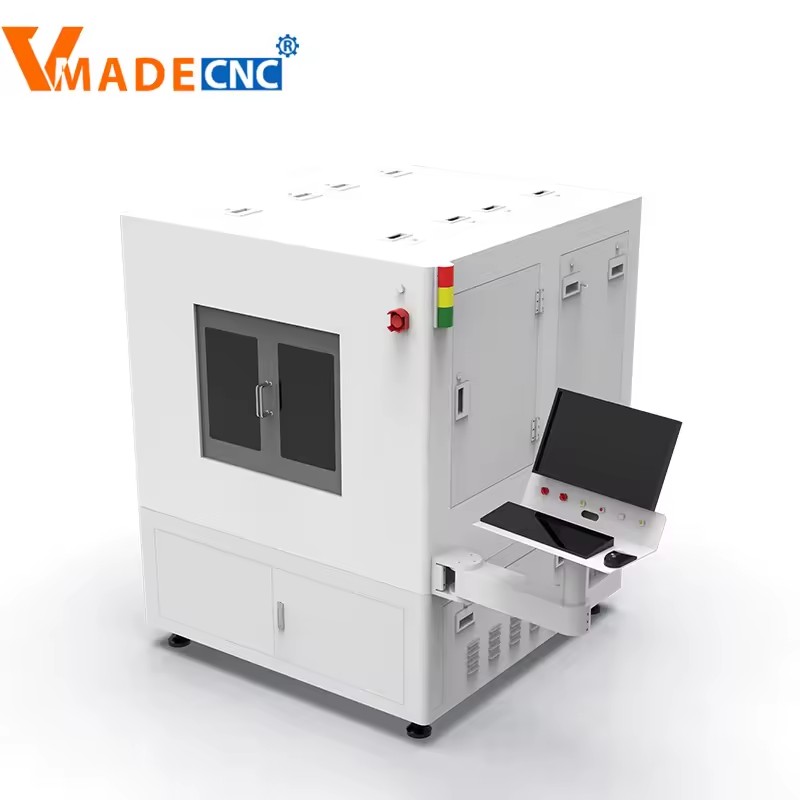

Automatic Smart Laser Cutter

Machine model

VBL6050

Laser source power

30W/50W/70W

Machine structure

X,Y,Z Marble Table

Max. stroke

600mm*500mm*100mm

Re-positioning accuracy of motion platform

±1um

positioning accuracy of motion platform

±2um

Supported files

DXF,PLT,DWG

CCD Vision positioning accuracy

±3um

Laser source wavelength

1064nm

Beam quality

M²＜1.3

Minimum focus spot

∅3um

Processing speed

0-500mm/s adjustable

Cooling type

Constant temperature water cooling

Machine Application

Adopted Picosecond IR Ultra-fast Lasers are robust and affordable, it produces high energy pulses with durations below 10 ps. The laser is based on a hybrid optical amplier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass ampliers. Compact and water-cooled, this laser is low maintenance and never needs realignment. With burst mode optional, it could be suitable for variety applications with low cost.

Detailed Images

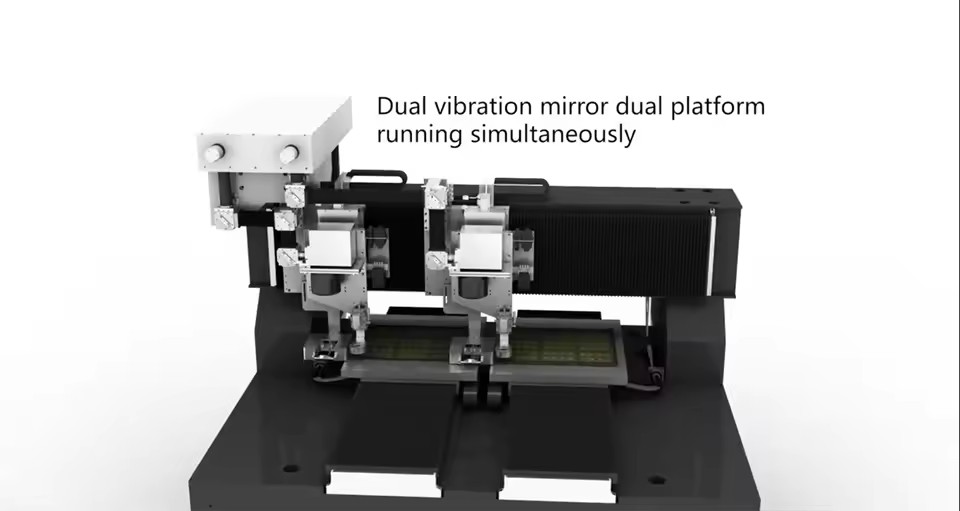

Two tables fabrication saves loading and unloading time. The fabrication efficiency of the equipment can be improved effectively by the dual-manipulator asynchronous structure design.For the materials with simple cutting design, the fabrication capacity can be increased double time by the asynchronous loading and unloading structure. The whole set of equipment achieves non-human operation through the whole process, from glass picking up in the material frame, to the laser cutting and lowering down to the material frame after being cut, which can realize the non-human operation of the whole process.

Safety and environment friendly Fully enclosed light path structure design,to ensure the stability of the light source output during the processing, make sure the quality of product processing. The self-locking shutter design ensures the safety of operation.

CCD intelligent camera auto positioning function, which identifies material location, identifies round shape,Cruciform shape and irregular MARK point precisely, improves fabrication accuracy.Adjustable fixture structure design, suitable for different types and sizes of products, increasing the versatility of products.High pressure vacuum pump adsorption device to ensure the positioning stability of the products.

Parameter

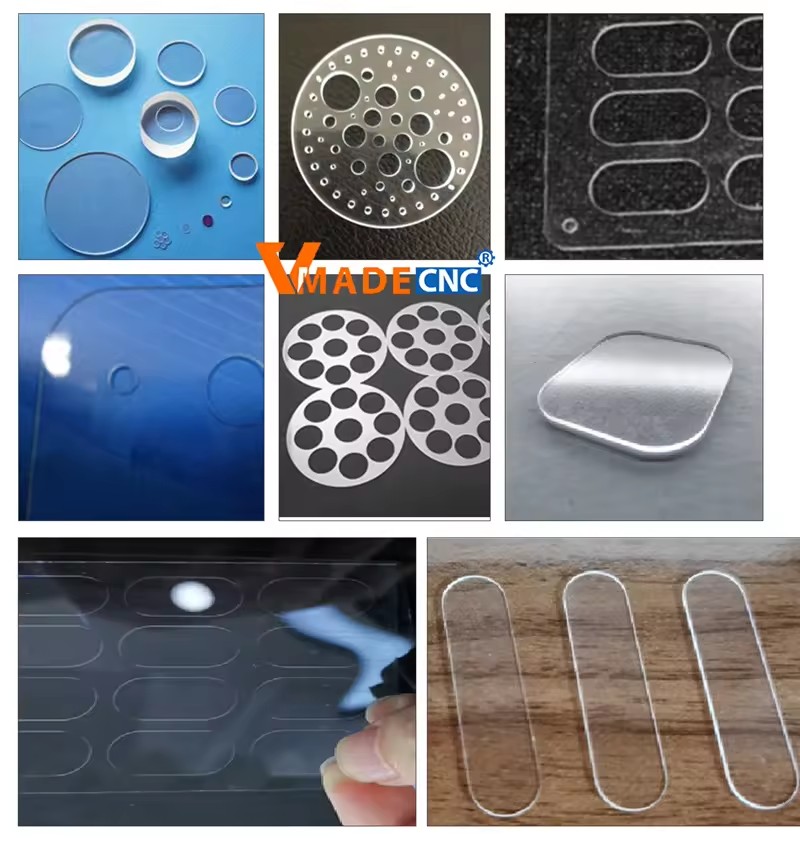

Samples

1. 0.1mm-6mm reinforced and non-reinforced glass cutting, such as
