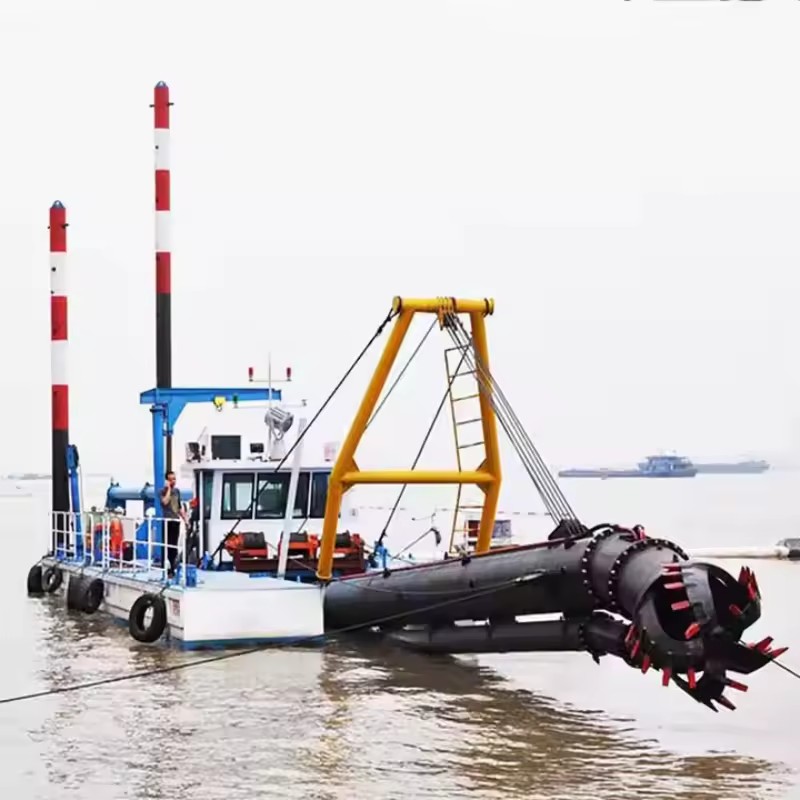

Professional Jet Suction Dredger Boat Diesel Engine Powered Cutter for Sand Dredging Construction for Port Harbor Deepening

Product features

Project

Standard type

Enhanced type of

Ultra-deep water type

Total power

800-2000kW

2000-5000kW

5000-8000kW

Depth of excavation

6-15m

15-25m

25-35m

Conveying distance

500-1500m

1500-3000m

3000-5000m

Mud pump flow

1000-3000m³/h

3000-6000m³/h

6000-12000m³/h

Applicable soil texture

SILT/FINE SAND

Clay/Gravel

Moderately weathered rock stratum

Product Description

Professional Jet Suction Dredger Boat Diesel Engine Powered Cutter for Sand Dredging Construction for Port Harbor Deepening

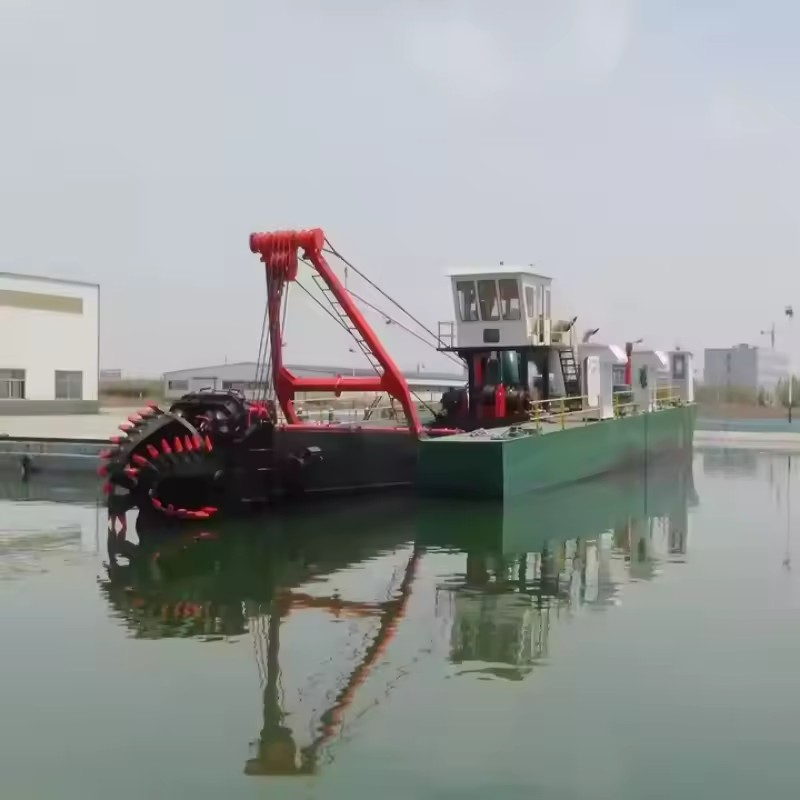

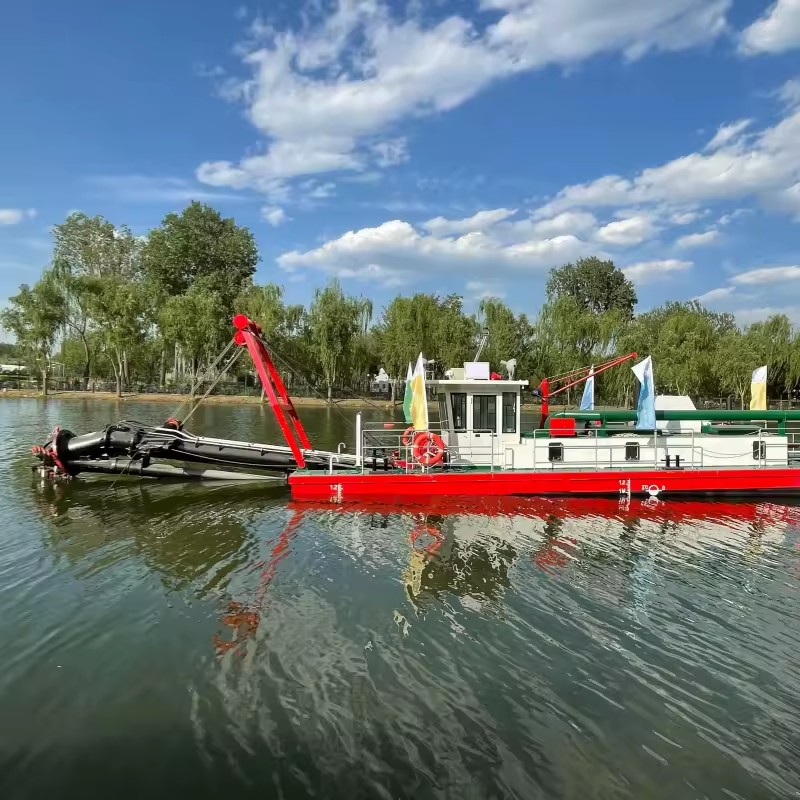

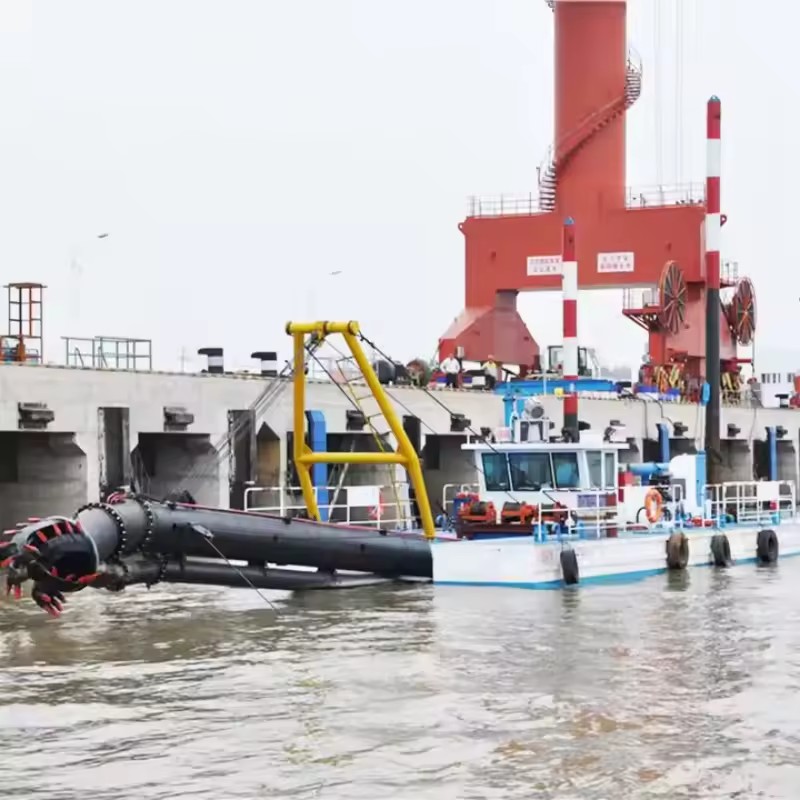

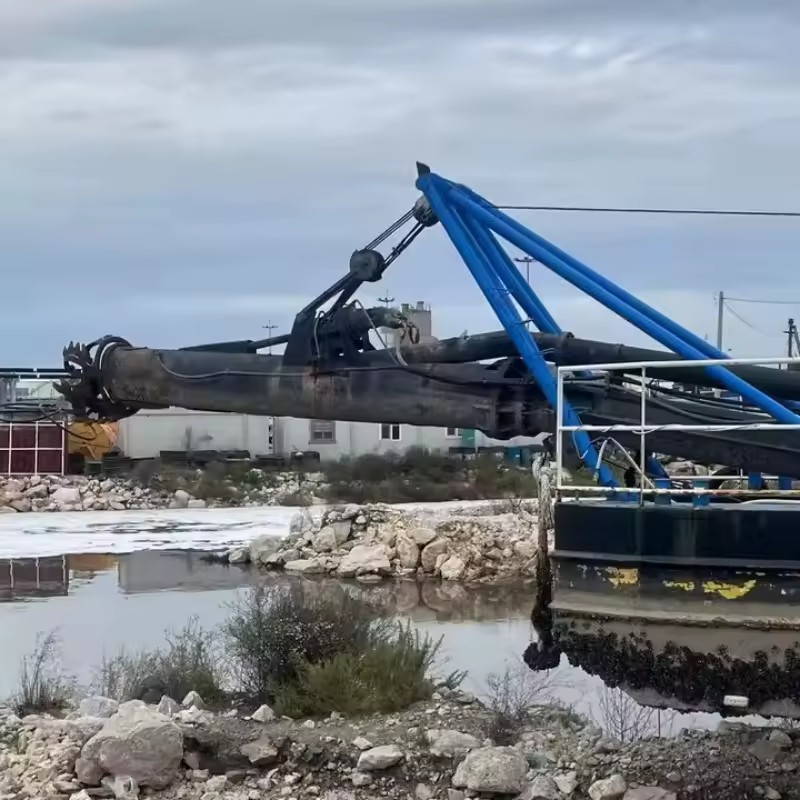

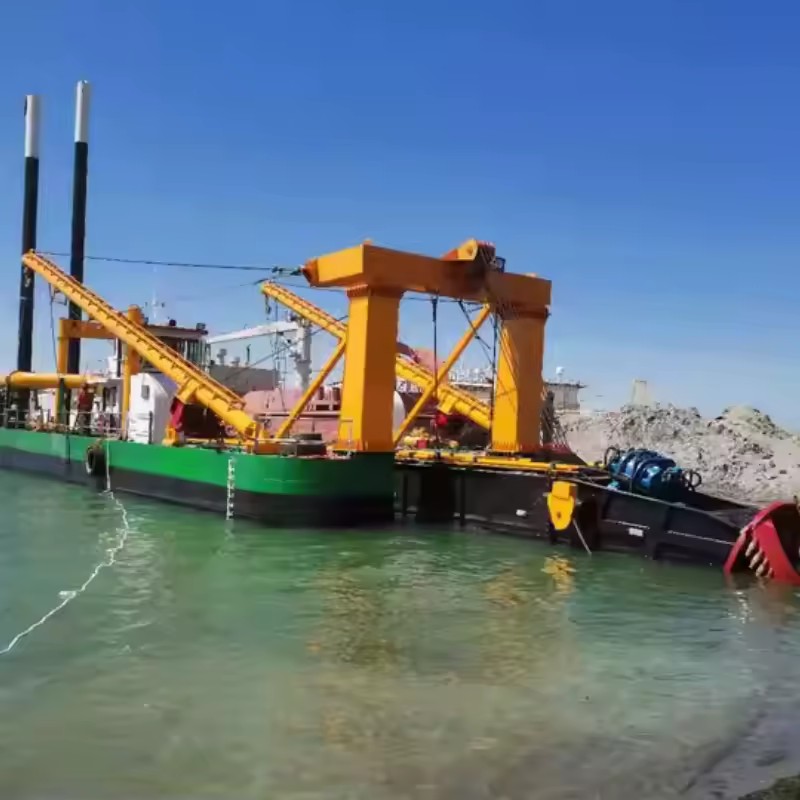

Cutter suction dredger (CSD) is the core equipment of modern dredging engineering. It rotates and cuts the underwater soil layer with high-strength alloy cutter and cooperates with high-power mud pump to continuously transport the sediment mixture to the designated area through the pipeline. With modular design, this product integrates excavation, transportation, positioning and monitoring, and is applicable to deepwater operation and complex working conditions. The dredging volume per day can reach 3000-15000m ³, greatly improving the project efficiency.

1) Super excavation system

Wear-resistant reamer

titanium alloy teeth+ceramic coating, service life increased by 40%, gravel layer can be broken (particle size ≤ 30cm)

Depth coverage

standard excavation depth of 6-25m, deep-water version up to 35m (hydraulic lifting bridge)

2) Intelligent job control

Three-dimensional positioning

GPS+Beidou dual-mode positioning, plane error ≤ 10cm, depth error ≤ 5cm

AI production monitoring

real-time display of dredging volume, mud concentration and fuel consumption, and automatic generation

of construction report

3) Efficient conveying system

Mud pump cluster

series high-power mud pump, conveying distance of 500-5000m (apparent power configuration)

Anti-blocking design

intelligently adjust cutting speed and pump pressure to eliminate pipe blockage

4) Environmental protection and low disturbance

Environmental protection cutter cover

reduce the diffusion of suspended solids and reduce the turbidity of water by 50%

Electric drive option

meeting zero emission requirement of port (400V/6.6kV HV power supply)

5)All-weather operation

Anti-wind wave design

6-anchor positioning system resists 8-level wind waves, with operation stability far exceeding counterparts

Modular cabin

the cab/engine room is fully enclosed and thermostatic, supporting construction in extremely cold/high temperature

environment

1) Cost saving

Fuel consumption reduced by 30%, wear parts life extended by 40%

2) Rush the construction period

Hour continuous operation, construction period shortened by 50%

3

) Risk control

Intelligent anti-collision system, construction accident rate reduced by 90%

4) Sustainability

Conforming to IMO Tier III emission standard and CCS/CE environmental protection certification

Specification

Company Profile

00:00

00:28

FAQ

Q1: Are you factory or trade company?

scientific research development, engineering design, production installation, and commissioning service.

Q2: Where your products have been exported before?

A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?

A3: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q4: How about the wear parts supply?

A4: We offer wear parts to our customer with our most favorable price. If there are problems you can't handle, we will send our

technicians to your place and you are therefore, responsible for all the cost involved

Q5: What about the payment method?

A5:T/T, L/C is available

Q6: What about after-sale service?

A6:12 months warranty for all kinds of products.
