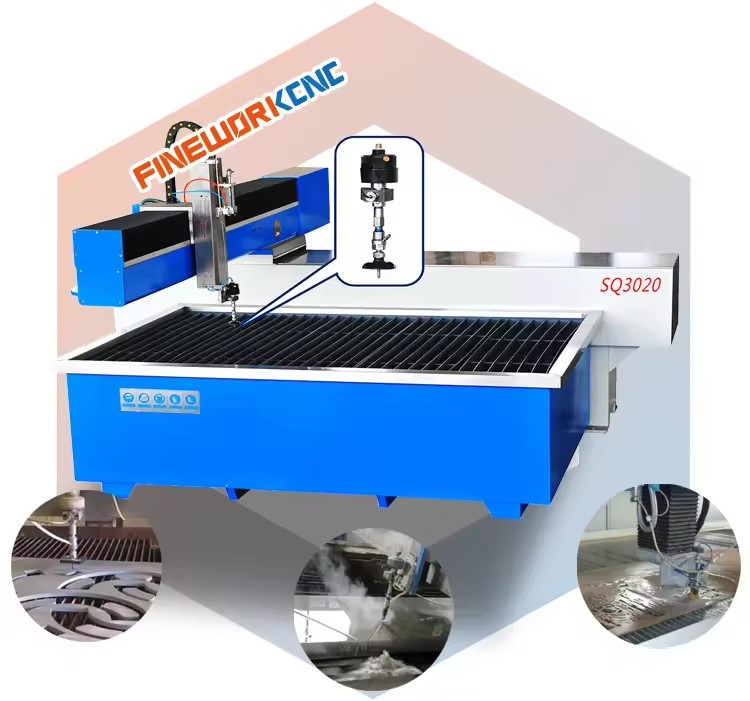

Water Jet Cutter Water Jet Cutting Machine Stone Tile Waterjet

Item

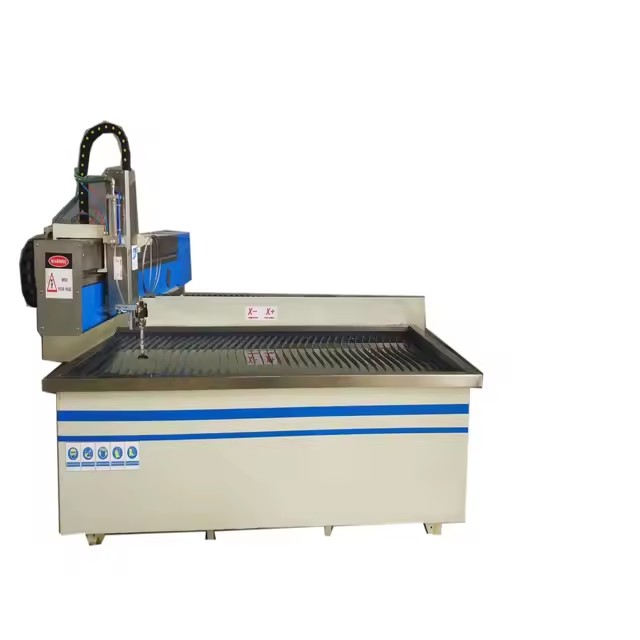

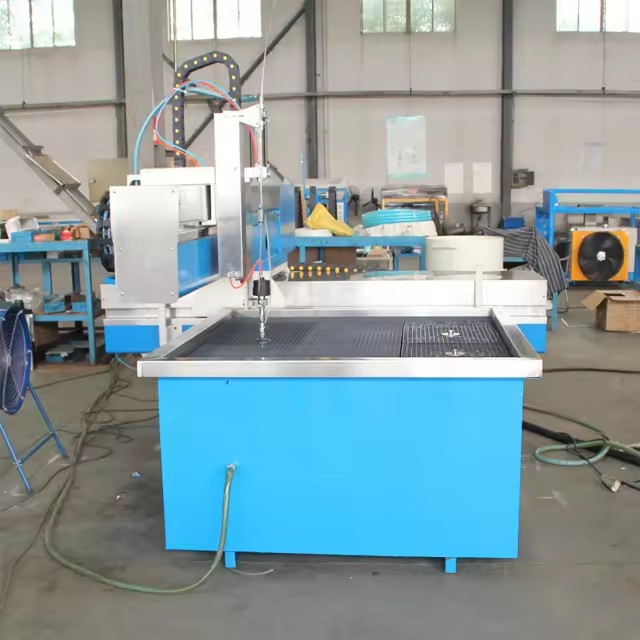

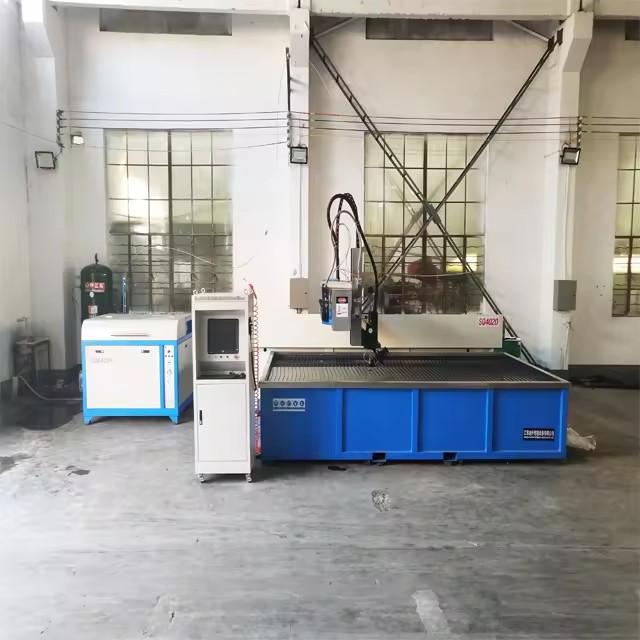

Water jet cutting machine

Model

1313

1325

1530

2515

2030

2040

Working size (mm)

1300*1300

1300*2500

1500*3000

2500*1500

2000*3000

2000*4000

Cutting Degree

AV 5 axis +-5 degree

Noise level

< 90db

Cutting Accuracy

+/- 0.02mm

Maximum pressure

413Mpa(60000psi) Axial Plunger pump

Maximum flow rate

3.8L/min Hydraulic system

Power supply

380v 50HZ 3P Hp Cylinder only support 380V three phase

Motor rated power

66A

Motor

servo motor and driver

Screw

TBI/ enterprise

Guide-way

Hiwin/ enterprise

This is a waterjet cutting machine which is popular with stones and tiles businessman. Compared with the classical 3axis waterjet machine,AV-5axis jetting machine could be straight cutting and angles s cutting application is wider.

Compared with the traditional 4axis waterjet machine,AV-5axis jetting machine could auto adjust the cutting s cutting precision would be higher and cutting speeo would be faster.

When you need to cut the stones and ceramic tiles as the floor inlay,you couldchoose the 2-4 degrees and realize any shape cutting.

No need for the secondary machining after the can help you save the production costespecially the places which own not too much population or labor cost is huge high. Due to the high-pressure water line has the feature of distribution, if you choose straight cutting and the lower surface would be bigger than the upper surface.

So that if you request the surface between the upper and lower is the sameespecially when you need to cut the metals the better way is to choose small angles cutting Each of the metals,like steel platestainless steel platealuminum platecopper plate. You can cut with different angles according to your machining requirement, and the precision would be higher.

00:00

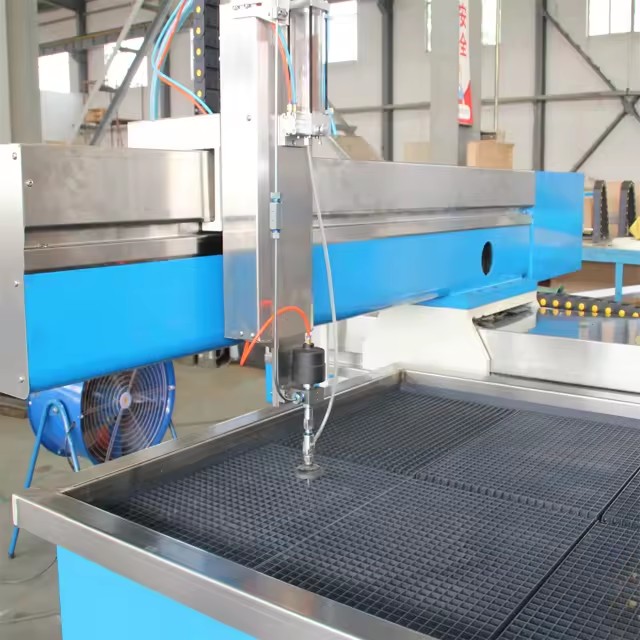

CUTTING TABLE

Cutting Tank

Tank is welded by double steel plate total weight is up to3000-4000kgs.Strong tank ensures the cutting being more stable.

Servo Motor

Machines running is driven by famous brand servo motor.Servo motor can better improve cutting precision.

Screw &Guide Rail

HIWIN ball screw &quide rail. with oil-immersed structurecan make cutting being more precise and protect elements.

Sand Valve

Patent design of sand valvecan -15% sand per can help customers ive more cost.

INTENSIFIER PUMP

Pump Motor

37kw/50hp Siemens motor is equipped in the pumpcan better help cut being thicker faster more stable

Electrical Equipment

ABB famous brans as AC contactor.Fully protect using safety for elec- tricity and being more stable.

Detection Device

Micro touch screen computer detects equipments statecan help customer oper- ate. and do the maintenance easier.

Cooling Device

Wing cooling structure is equipped inside the pump; better help save the spaces and protect elements.

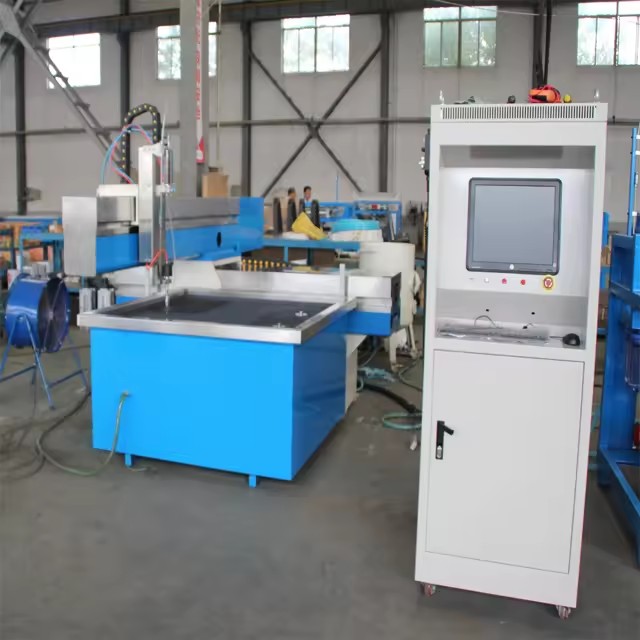

CONTROLCABINET

Cutting Software

NcStudio software,has English& Chinese language,help new uses better study operation easier and faster

Servo Driver

A series of servo drivers are arranged inside the cabinet detect the machinesrunning all the time.

Operate Device

Wireless keyboard & mouseas easier operate devicebetter help improve the working efficiency.

ABRASIVE FEEDER

FUNCTION

Use pneumaticstechnologyrealize automatic sand supply.

FEATURE

Automatic;high efficiency;less cost

ADVANTAGE

Can provide two machinesworking100L can provide 300-500mins sand quantity.
