Product video
Certifications CE

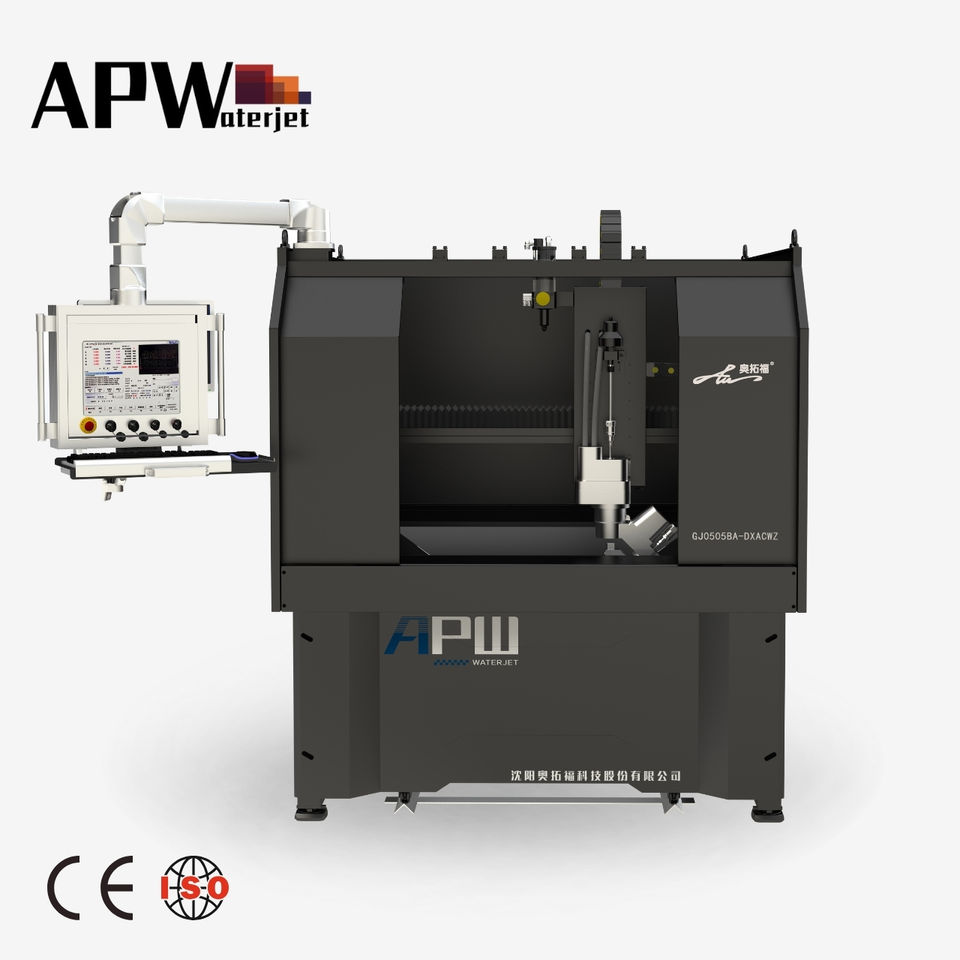

APW CNC Portable High-Accuracy 5-Axis Water Jet Cutting Machine with Pump for Metal and Glass

Available for enquiry 0.0 · 0 reviews
USD

$ 45,510.00 45510.0 USD $ 45,510.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
AC220V 50Hz/60Hz
Number of axes
5
Repeatability (x/y/z) (mm)
±0.003
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Product description
APW-V6 pumpupdate
power rate75KW
Max.Pressure420MPa
intensifier1 picdual-intensifier
HP Flow Rate12L/MIN
Max. Orifice0.46mm
electricity supplyAC380V 50HZ 3PH
ambient Temp.5-40℃
accumulator2L
oil tank114L
size2050*1400*1400
Weight3200kg
colorBlackcustomerizel
TABLE-GJ0505update
table size(X-Y)500-500mm
repeatability0.03mm
cutting accuracy0.1mmdual-intensifier
traverse speed10m/min
transform systemball crewgear rack with grating
load capacity500KG/square meter
structurebridge style
drive wayservo control1.2L
ball screwTBI
linear guideWON
Sand supplier-DN500update
load capacity120KG300KG
supply stylenegative pressure
Head-BPupdate
axis3AC 5-axis
Control systemupdate
NC studio
CHillerupdate
chill styleheat exchangeroil cooler
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    60 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 26 fields
Voltage
AC220V 50Hz/60Hz
Number of axes
5
Repeatability (x/y/z) (mm)
±0.003
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
1500x1500x2000
Key selling points
High-Accuracy
Rated power
5kw(6.71hp)
Place of origin
China, Liaoning
Weight (kg)
1500
Table travel (x) (mm)
500
Table travel (y) (mm)
500
Table travel (z) (mm)
150
Cutting accuracy(mm)
0.01
Apply
water jet cutting equipment
Main motor power
37KW
Max.working pressure
410Mpa
Max. flow rate
3.7L/min
Max. oil pressure
20Mpa
Accumulator volume
1.2L
Way of drive
AC servo
Max. moving speed
6000mm/min
Control accuracy
0.01mm
Power supply
220V 50Hz
Packaging and delivery 3 fields
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Product options 2 fields
Model number
APW-GJ0505BA-DXACWZ
Effective cutting range (mm)
500X500
Other details 1 field
Certifications & Compliance
CE
Lead time
60 days
Minimum order
1 Units
