Product video
Certifications CE

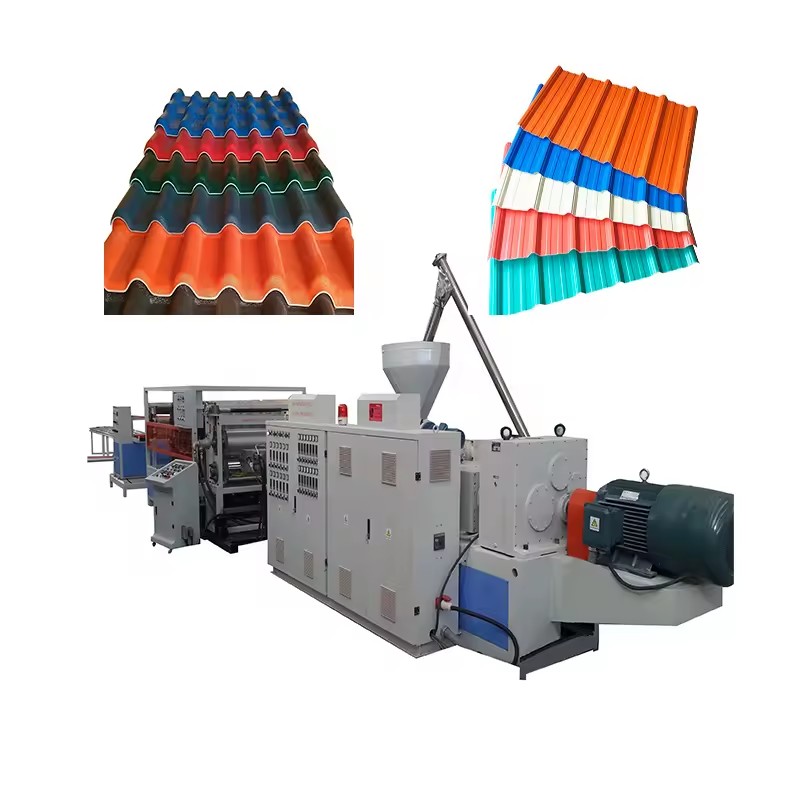

Pvc Upvc Plastic Corrugated Roofing Sheet Extrusion Line Wave Roof Tile Making Manufacturing Machine Production Equipment

Available for enquiry 5.0 · 3 reviews 2 sold
USD

$ 52,340.00 52340.0 USD $ 52,340.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Application
  • Plastic processed
  • Extruder type
  • Screw diameter (mm)
  • Voltage
  • Screw L/D Ratio
  • Screw Material
  • Key selling points
  • Machinery test report
  • Video outgoing-inspection
  • Warranty
  • Core components
  • Screw Design
  • Screw Speed (rpm)
  • Place of origin
  • Weight (kg)
  • Dimension(L*W*H)
  • Power (kW)
  • Width of products
  • Thickness of products
  • Raw material
  • Gas
  • Screw temperature control
  • Structure of extruder
  • Heating power
  • After-sales Service Provided
  • After Warranty Service
  • Selling Units
  • Single package size
  • Single gross weight
  • Output (kg/h)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Application
Sheet
Plastic processed
PVC, UPVC
Extruder type
twin screw
Screw diameter (mm)
65,80
Voltage
380 V, 220 V, 110 V, 440 V
Screw L/D Ratio
Unapplicable
Product description

PVC wave tile

pvc roofing sheet making manufacturing machine since 1990s

pvc roofing sheet making machine

PVC Roofing Sheet Extrusion Line series

Host ModelSJSZ-65SJSZ-80
The die shapeCoat hanger style flat plate die L=1300mmCooling die dimensions1300mm 600mmHauling power1.5KW (frequency conversion)
The forming unitCooling meanswater coolingCutting meansShear style (pneumatic)
Big waveR=15h=16.5 wave distance 63mm Wave distanceHauling velocity0.5-5m/minCutting follow distance500mm
Small waveR=9h=8 wave distance 36mm Wave distanceHauling roller length1300mmWork pressure0.4-0.6 MPa

PVC Glazed Roofing Sheet Extrusion Line

PVC Wave Roofing Sheet Extrusion Line

PVC trapezoidal Roofing Sheet Extrusion Line

NameQty
1. PVC wave tile/roofing sheet extrusion line 1.1 SJSZ65/132 conical twin screw extruder 1.2 mold 1.3 Forming machine 1.4 Cooling bracket and edge trimming device 1.5 haul off 1.6 Cutting 1.7 blankingOne Set
2. SWP360 Crusher-11KWOne set
3. SHR200/500 mixerOne set
4. SMP500 pvc millOne set

Products you may like

HDPE Pipe Machine Window Profile Machine PVC Roofing Machine

""-qingdao base and "well" -weihai base.if you need plastic machine

Certifications & compliance
CE
Complies with EU standards
Description images
Pvc Upvc Plastic Corrugated Roofing Sheet Extrusion Line Wave Roof Tile Making Manufacturing Machine Production Equipment
Pvc Upvc Plastic Corrugated Roofing Sheet Extrusion Line Wave Roof Tile Making Manufacturing Machine Production Equipment
Pvc Upvc Plastic Corrugated Roofing Sheet Extrusion Line Wave Roof Tile Making Manufacturing Machine Production Equipment
Pvc Upvc Plastic Corrugated Roofing Sheet Extrusion Line Wave Roof Tile Making Manufacturing Machine Production Equipment
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 33 fields
Application
Sheet
Plastic processed
PVC, UPVC
Extruder type
twin screw
Screw diameter (mm)
65,80
Voltage
380 V, 220 V, 110 V, 440 V
Screw L/D Ratio
Unapplicable
Screw Material
38CrMoALA
Key selling points
Automatic, Easy To Operate, Competitive Price, Multifunctional, High-Accuracy, Long Service Life, High Productivity, High Safety Level, Eco-Friendly, Energy Saving, Low Noise Level, Remote Monitoring, Flexible Manufacturing, Remote Control, IOT, Digital, Multilayer Co-Extrusion Line
Machinery test report
Provided
Video outgoing-inspection
Provided
Warranty
1 Year
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other, Screw
Screw Design
Double-screw
Screw Speed (rpm)
37
Place of origin
China, Shandong
Weight (kg)
8000
Dimension(L*W*H)
22*2.8*3.0 (m)
Power (kW)
55
Width of products
1000mm pvc corrugated sheet extrusion line
Thickness of products
0.8-3mm pvc corrugated sheet extrusion line
Raw material
pvc+additives pvc corrugated sheet extrusion line
Gas
about 80L/min for pvc corrugated sheet extrusion line
Screw temperature control
Normal temperature control with oil shortage alarming
Structure of extruder
Conical twin screw extruder pvc corrugated sheet extrusion line
Heating power
24kw*220V
After-sales Service Provided
Free spare parts
After Warranty Service
Video technical support
Selling Units
Single item
Single package size
10X10X5 cm
Single gross weight
2.0 kg
Output (kg/h)
200, 250, 400, 350
Model number
SJSZ-80/156, SJSG-65/132
Certifications & Compliance
CE
Lead time
31 days
Minimum order
1 Units
