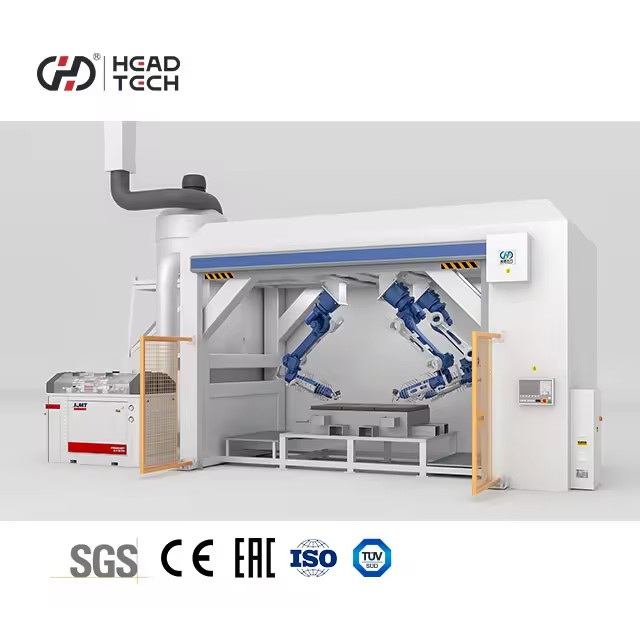

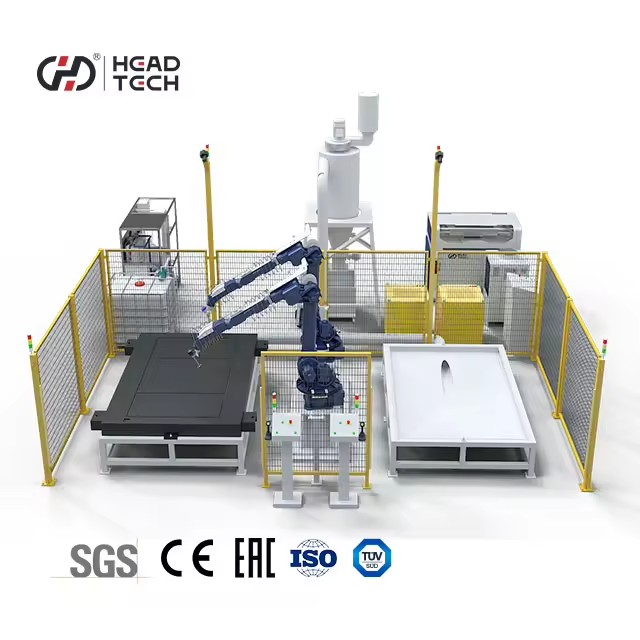

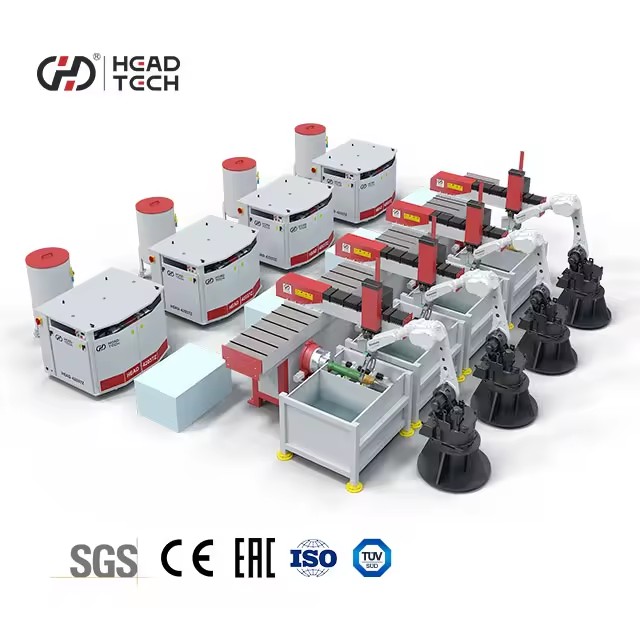

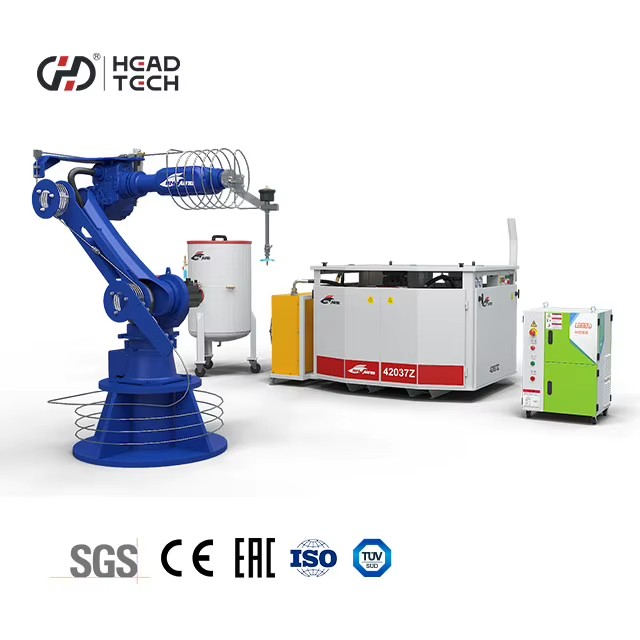

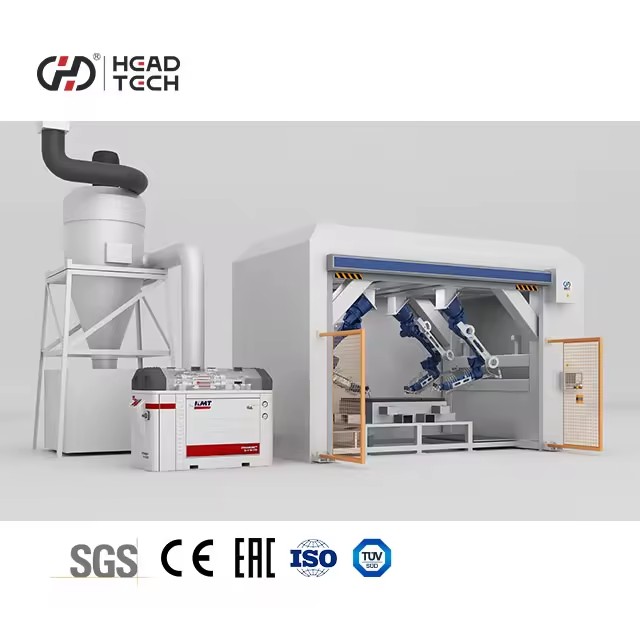

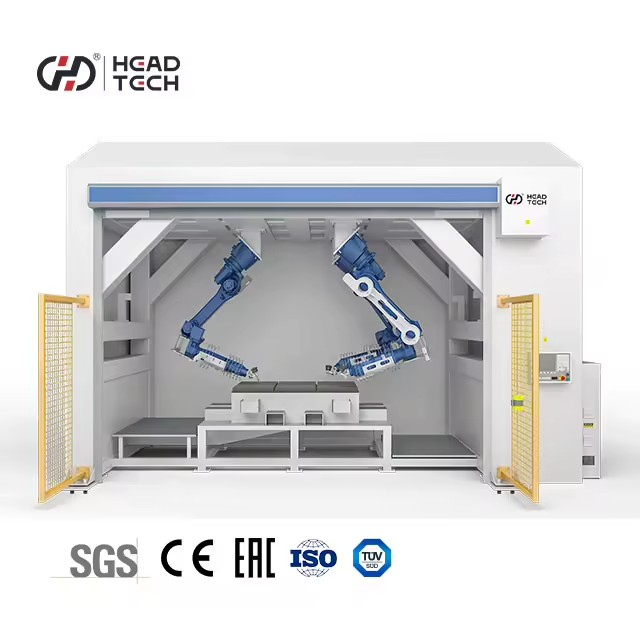

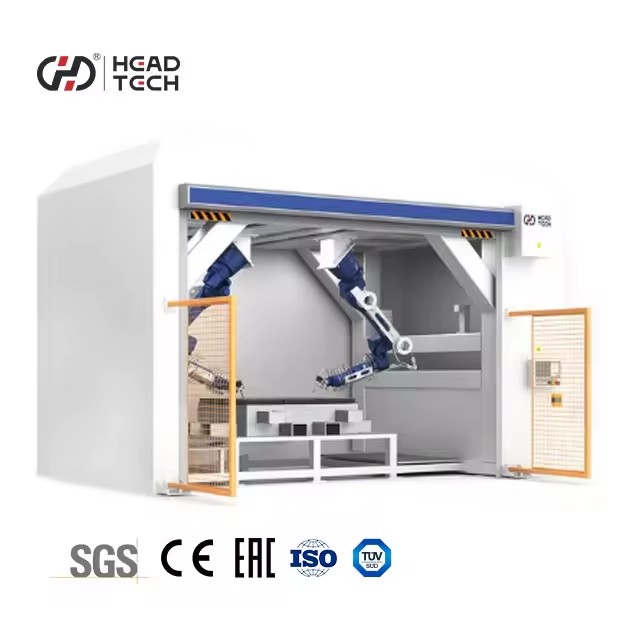

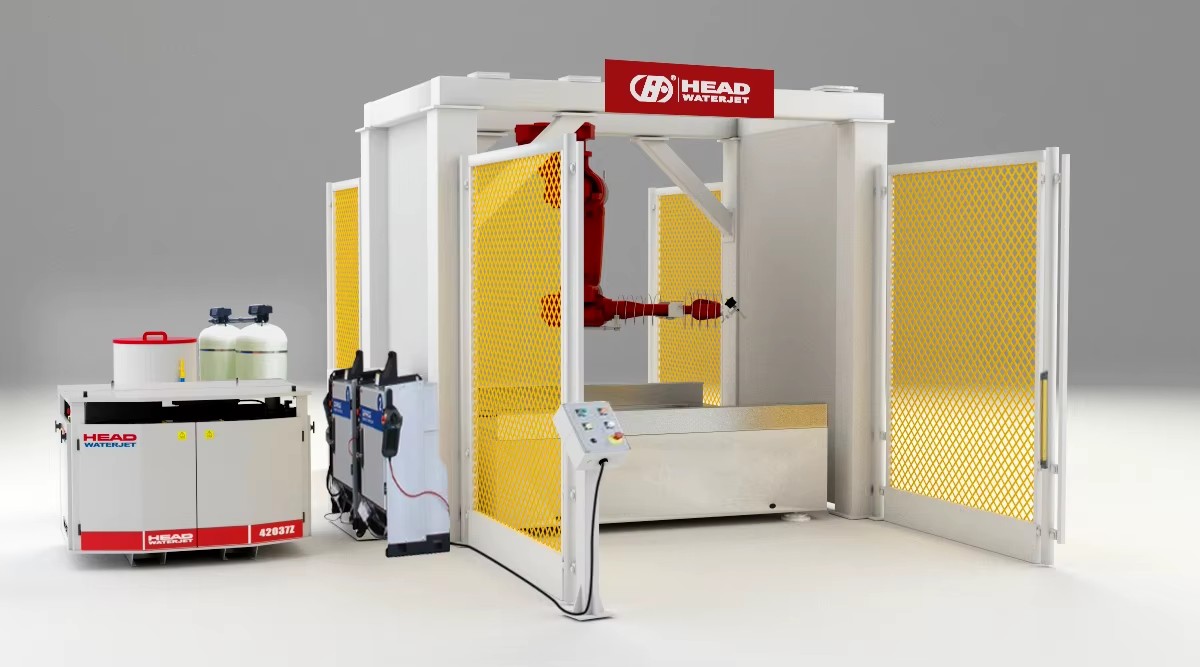

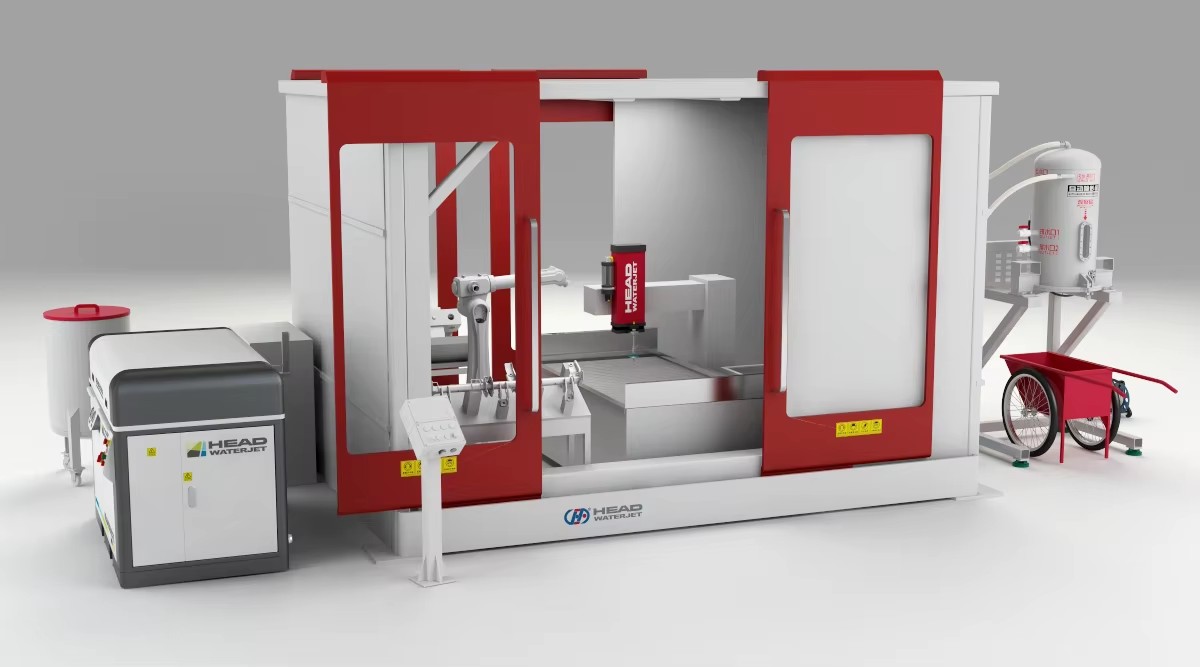

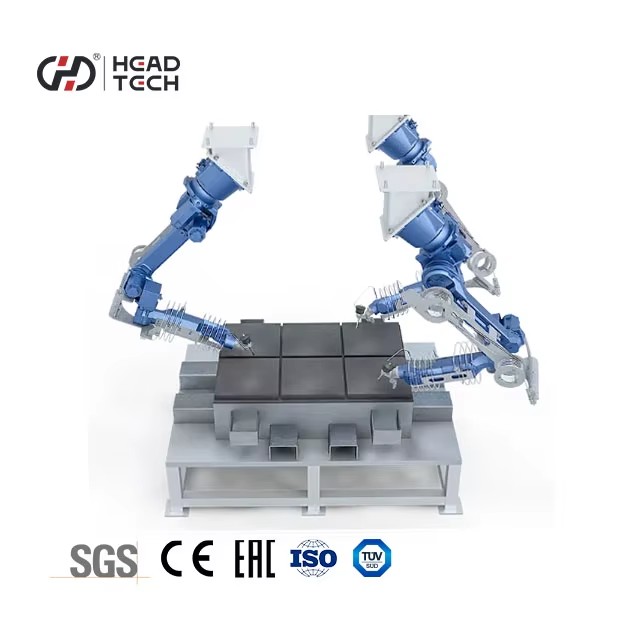

Name: Pure Water Cutting Abrasive Cutting CNC Robot Waterjet Cutting Machine
SKU: B2B-15168
Price: 52340.0 USD
Availability: PreOrder

Product description

Product description

Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.

Technical Details
NUMBER OF AXIS	6
MAX WORKING RANGE	3,124 mm
WEIGHT	560 kg
MOUNTING OPTIONS	Ceiling, Wall, Floor
POWER SUPPLY	4 kVA
REPEATABILITY	0.07 mm
PAYLOAD	20 kg
R AXIS	400 °/s

Features

• 50 HP High 420 MPa pressure for smooth finish cutting at high speed. • Main heart of Supercharger, "Intensifier" is "". • User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. • All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts. • Use special water cutting machine software, a day to achieve a comprehensive grasp •Non-standardized model design customization，Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db.

>>>Try to Read This · Our Service

1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

Our Package Advantage

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

5. We will take photos for you to confirm that all machine and accessories have been packed, and record the loading and unloading methods

Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Voltage

380V 3PH 50HZ

Number of axes

Repeatability (x/y/z) (mm)

±0.002

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

as to machine

Key selling points

High Productivity

Rated power

37KW

Place of origin

China, Liaoning

Weight (kg)

6000

Table travel (x) (mm)

Table travel (y) (mm)

Table travel (z) (mm)

3124

Cutting accuracy(mm)

0.1

Total platform power

37kw

Positioning accuracy

±0.002mm

Waterjet cutting accuracy

±0.1mm

Max cutting thickness

200mm

Max pressure

420mpa/60000psi/4137bar

Control accuracy

0.01mm

PLC

Siemens Japan

CNC System & Software

WEIHONG CNC

SERVO MOTOR

Japan

Repeatability

0.07 mm

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

Fanuc R-2000iB/165F

Effective cutting range (mm)

4000×2000, 2500×1500, 1000×1000, 1500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 3000×2000, 1000×3000, 1500×2500

Lead time

30 days

Minimum order

1 Units
