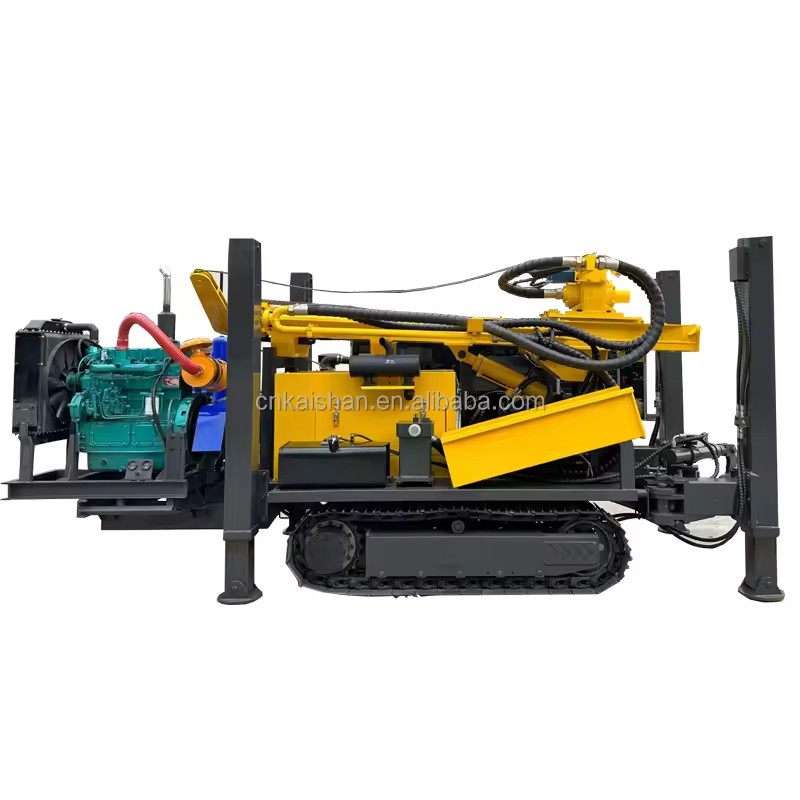

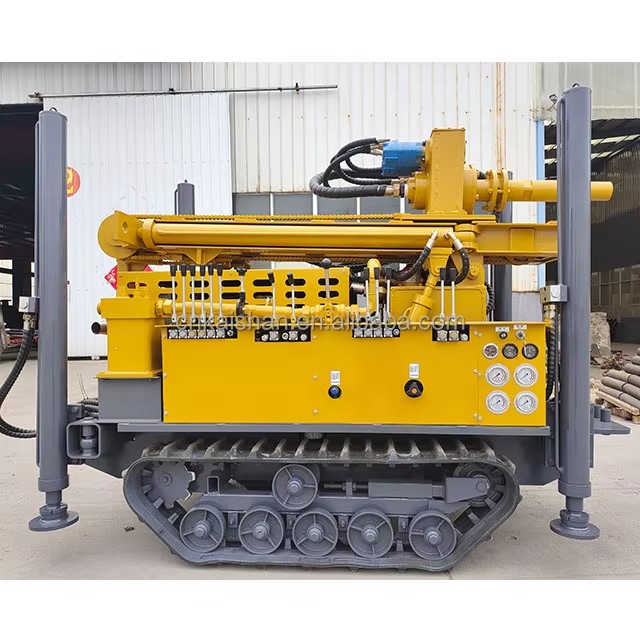

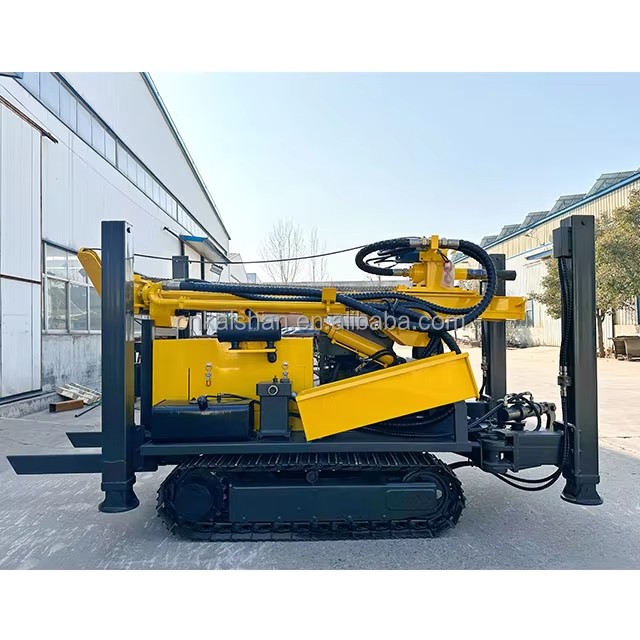

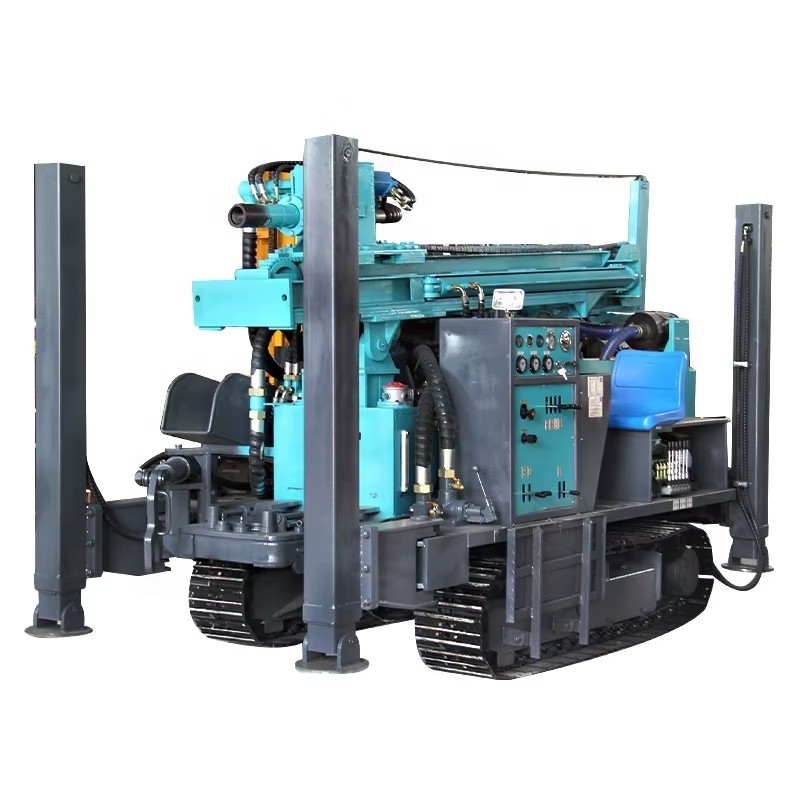

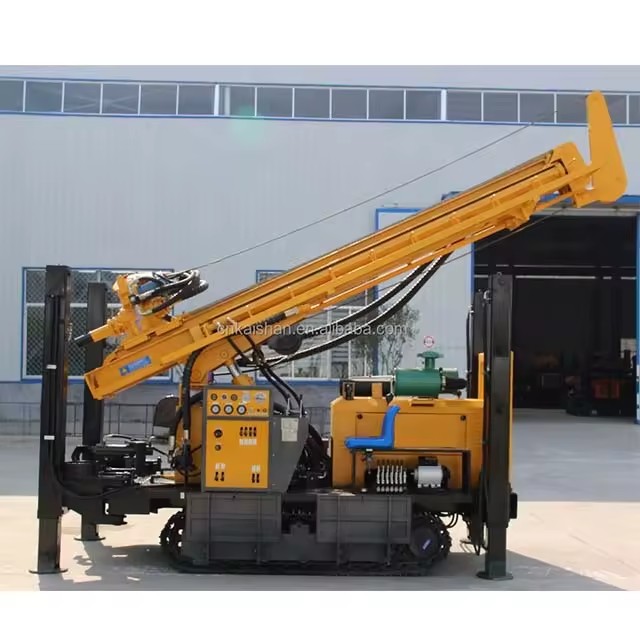

Name: Professional Factory Portable 180m 200m 300m 400m 600m Depth Borehole Drilling Rig Water Well Drilling Rig for Sale
SKU: B2B-39937
Price: 15640.0 USD
Availability: PreOrder

Product description

$70-99 / set

Model	KW180	KW200	KW280	KW300
Drilling depth	180m	200m	280m	300m
Diameter of hole	φ140-254mm	φ140-204 mm	φ140-305mm	φ140-325mm
Advance Length	3m	3.3m	6.6m	3.3 m
Working pressure	1.7-2.5MPa	1.7-3.0MPa	1.7-3.0MPa	1.7-3.3MPa
Air consumption	15-27m³/min	17-30m³/min	17-30m³/min	17-35mm³/min
Length of rod	1.5m,2m,3m	1.5m,2m,3m	1.5m,2m,3m, 6m	1.5m,2m,3m
Dia. Of rod	φ76, φ89,φ102	φ76, φ89,φ102	φ76, φ89	φ76, φ89,φ102
Lifting power	12 T	13T	17T	18T
Rotation torque	3200-4600N.m	3300-4700N.m	3700-5000N.m	5700-75000N.m
Rotation Speed	45-65r/min	45-70r/min	55-70-130r/min	40-70 rpm
Diesel Engine	Quanchai	Quanchai	Yuchai	Yuchai
Engine Power	55Kw/2200rpm	65Kw/2200rpm	70Kw / 2200 rpm	85Kw/2200rpm
Travelling speed	0-2.5 Km/h	0-2.5 Km/h	0-2.5 Km/h	0-2.5 Km/h
Climb capacity	30°	30°	30°	30°
Weight	4500kgs	5000kgs	7500kgs	7000kgs
Dimension	3800x1500x2200mm	3950x1700x2300mm	5900x1750x2450mm	4100x1950x2600mm
Application	Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
Dth Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170

Model	KW350	KW400	KW600
Drilling depth	350m	400m	600m
Diameter of hole	φ140-325mm	φ140-350mm	φ140-350mm
Advance Length one time	6.6m	6.6m	6.6m
Working pressure	1.7-3.3MPa	1.7-3.5MPa	1.7-3.5MPa
Air consumption	17-35m³/min	17-35m³/min	17-42m³/min
Length of rod	1.5m,2m,3m, 6m	1.5m,2m,3m, (6m can be choosed)	1.5m,2m,3m,6m
Dia. Of rod	φ89,φ102,φ114	φ89,φ102,φ114	φ76, φ89,φ102,φ114
Lifting power	24T	25T	30T
Rotation torque	6200-85000N.m	6500-9000N.m	8500-11000N.m
Rotation Speed	55-115r/min	45-115r/min	45-115r/min
Diesel Engine	Yuchai	Yuchai	Cummins Brand
Engine Power	92Kw/2200rpm	92Kw/2200rpm	6BTA5.9-C180-II, 132Kw/2200rpm
Travelling speed	0-2.5 Km/h	0-2.5 Km/h	0-2.5 Km/h
Climb capacity	30°	30°	30°
Weight	9000kgs	10000kgs	12000kgs
Dimension	5900x2000x2850mm	5900x2100x2850mm	6000x2200x2950mm
Application	Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
Dth Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Usage

Water Well

Type

water well drilling rig

Drilling Depth

100 - 600 meters(328.08-1968.50ft)

Drilling Diameter

140 - 350 mm(5.51-13.78in)

Power Type

Diesel

Voltage

Core components

Motor, Engine

Warranty

12 Months

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

Zhejiang, China

Weight

12000 kg(26455.47lb)

Dimension (L*W*H)

6000*2200*2950mm(236.22*86.61*116.14in)

Mobility

YES

Drill depth

100 - 600 m

Drill diameter (Specification)

140 - 350 mm

Working pressure

1.7-3.5Mpa

Air consumption

17-42m3/min

Color

Can be customized

Application

Mining Project

Travelling speed

0-2.5 Km/h

DTH Hammer

4",5",6",8",10" Drill hammer

Feature

High Drilling Efficiency

Selling Units

Single item

Single package size

14000X5500X5500 cm

Single gross weight

16800.0 kg

Model number

KW200, KW180, KW280, KW300, KW350, KW400, KW600, KW800

Power (W) (Product option)

92 kw(123.37hp), 55 kW(73.76hp), 65 KW(87.17hp), 70 KW(93.87hp), 85 KW(113.99hp), 132 KW(177.01hp), 194 KW(260.16hp)

Certifications & Compliance

Lead time

35 days

Minimum order

1 Units

Customer reviews

5.0 (1)

Alex Q. Verified buyer Repeat buyer

Chile ·17 Mar 2025

thank you.fast setup and versatile for all project types. Customer service was quick to assist with questions. A reliable machine that boosts productivity instantly! Delivery： good quality： good design： good service： good
