Product video
Certifications CE

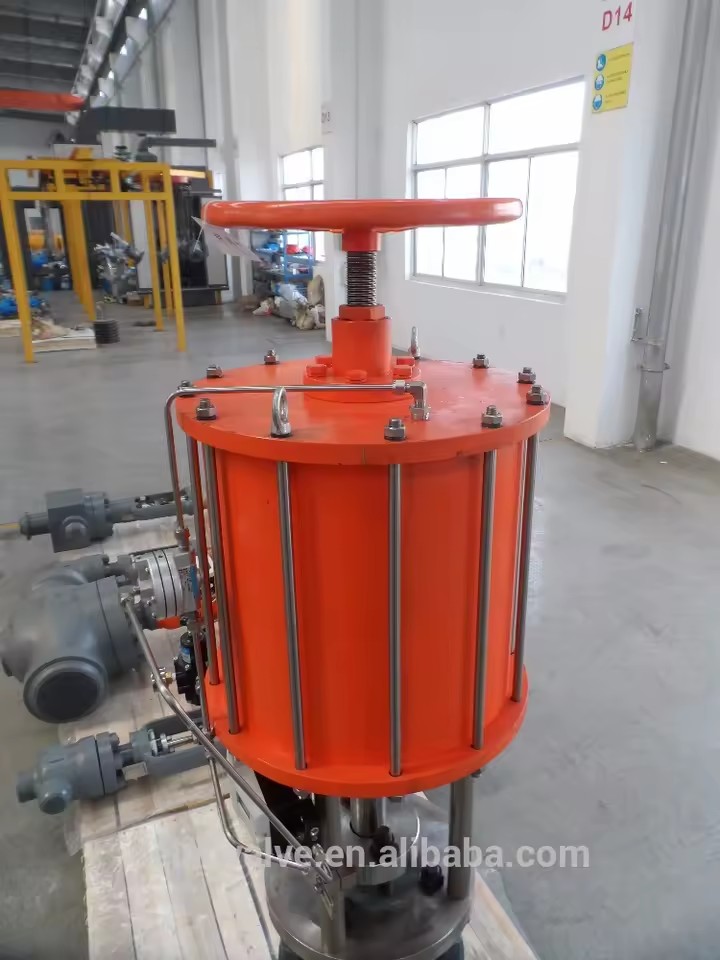

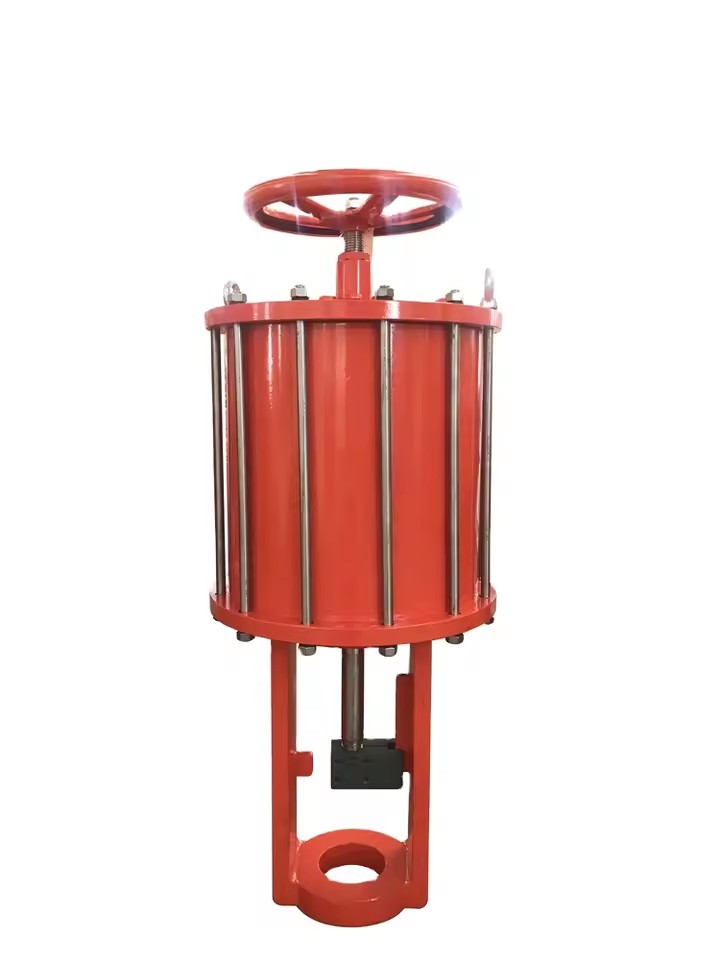

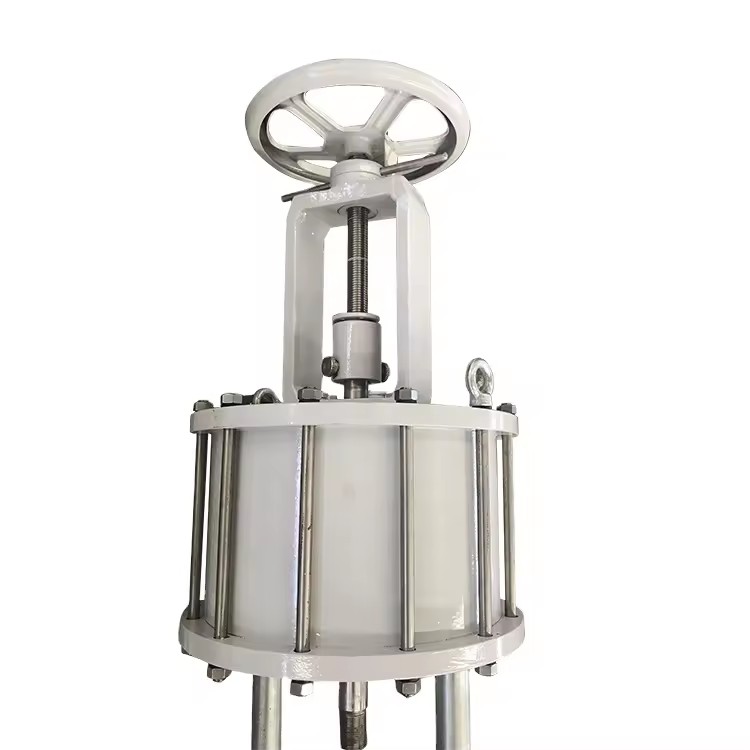

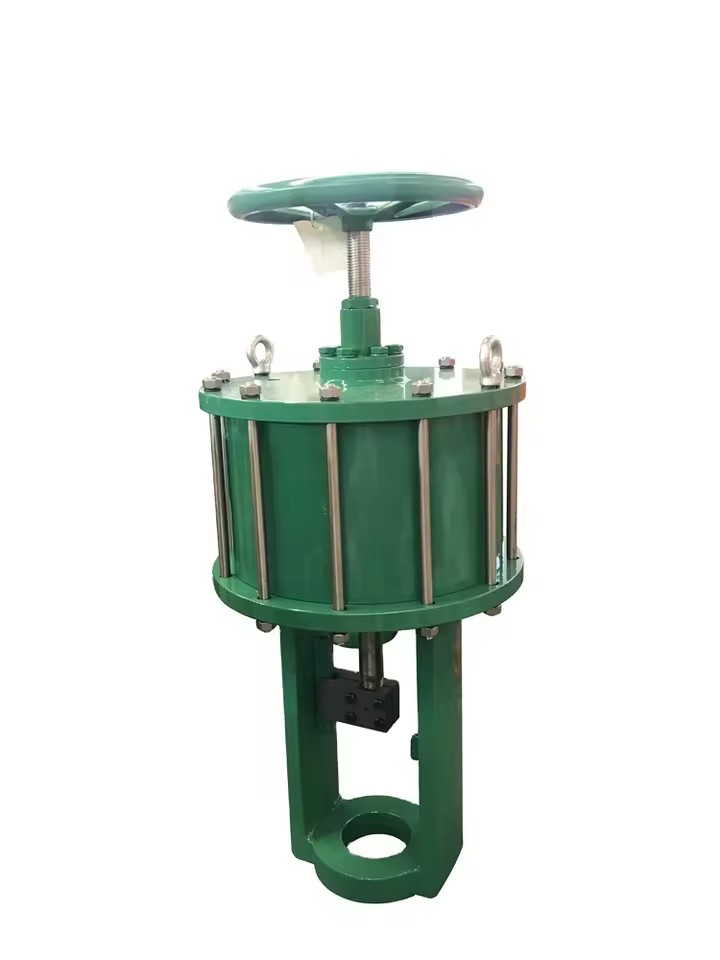

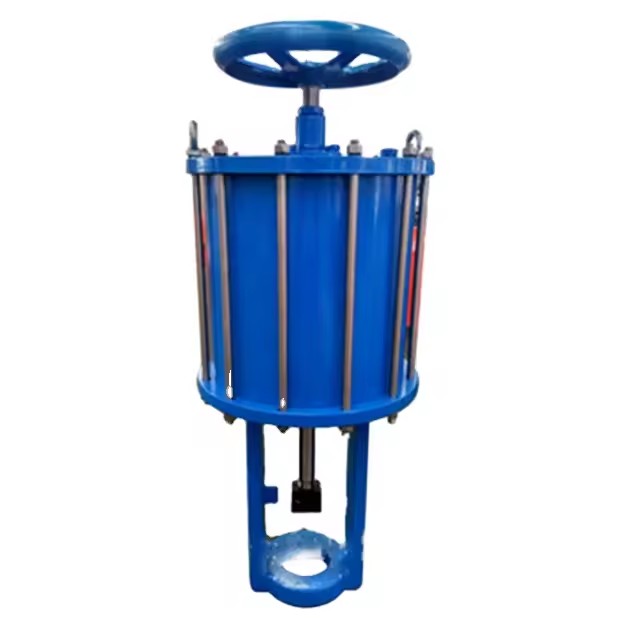

Pneumatic Linear Steam System Valves Cylinder Piston Actuator

Available for enquiry 0.0 · 0 reviews
USD

$ 650.00 650.0 USD $ 650.00

Not Available For Sale

Minimum order quantity: 2 Units
  • Type
  • Media
  • Port Size
  • Temperature of media
  • Application
  • Power
  • Structure
  • Customized support
  • Warranty
  • Place of origin
  • Model number (Specification)
  • Standard or Nonstandard
  • Certificate
  • Color
  • Name
  • Medium
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Type
Pneumatic Actuator
Media
Base
Port Size
1/4''-3/4''
Temperature of media
Medium Temperature, 29C~+80C
Application
Pneumatic straight stroke gate valve
Power
pneumatic
Product description
SeriesGD
Models20、30、31、40、41、42、43、50
Output FormStraight Trip
ActionDouble-Action：GD-D Single-Action：GD-Z(direct action)、GD-F(reverse action)
Maximum Thrust Outputsee table 1
Strokesee table 1
Supply Gas Pressure600Kpa
Piping InterfaceSee pages 8 to 12
Environment TemperatureStandard form：-40℃～82℃ Special form(choose)：-18℃～149℃、-54℃～149℃
Spring RangeDirect action:20～100Kpa、80～200Kpa Reverse Action:140～260Kpa、200～300Kpa

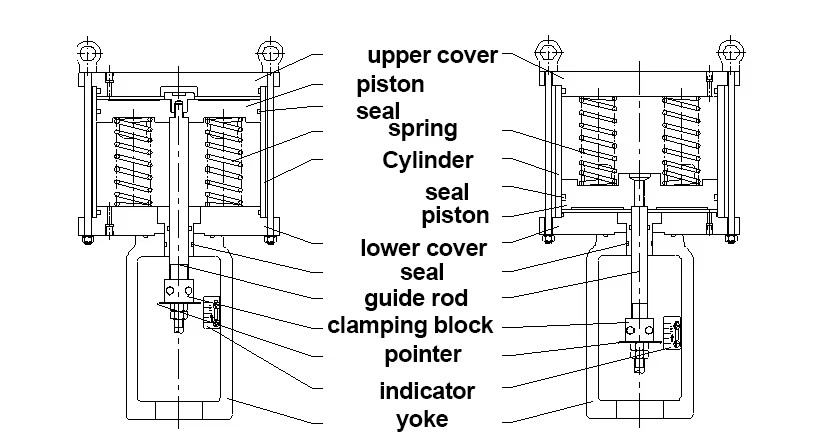

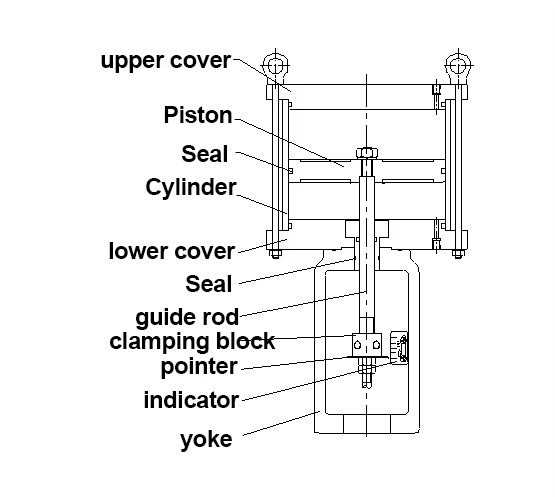

Major Parts MaterialsStandard Formupper and lower cover plates: steel Sealing ring: fluorine rubber O-type ring: chemigum Stroke sign: stainless steel pointer: stainless steel spring of actuator: steel guide rod of actuator: galvanized steel clamp block: galvanized steel holder: cast iron piston: steel pillar: steel cylinder: steel hand wheel: nodular cast iron
Special FormSealing ring / O-type ring: fluorine rubber (-18℃～149℃) / Silicone synthetic rubber (-54℃～149℃) upper and lower cover plates: stainless steel guide rod of actuator: stainless steel pillar: stainless steel piston: stainless steel cylinder: stainless steel
Coating colororange
AccessoriesLocator, Air Filter Regulator, Solenoid Valve, Limit Switch, Reversing Valve, etc
Equipment Selectionmanual operation mechanism, Special air piping and special air fittings, using with high temperature environment, using with low temperature environment, Salt corrosion prevention, designated coating color, etc.
Certifications & compliance
CE
Complies with EU standards
Description images

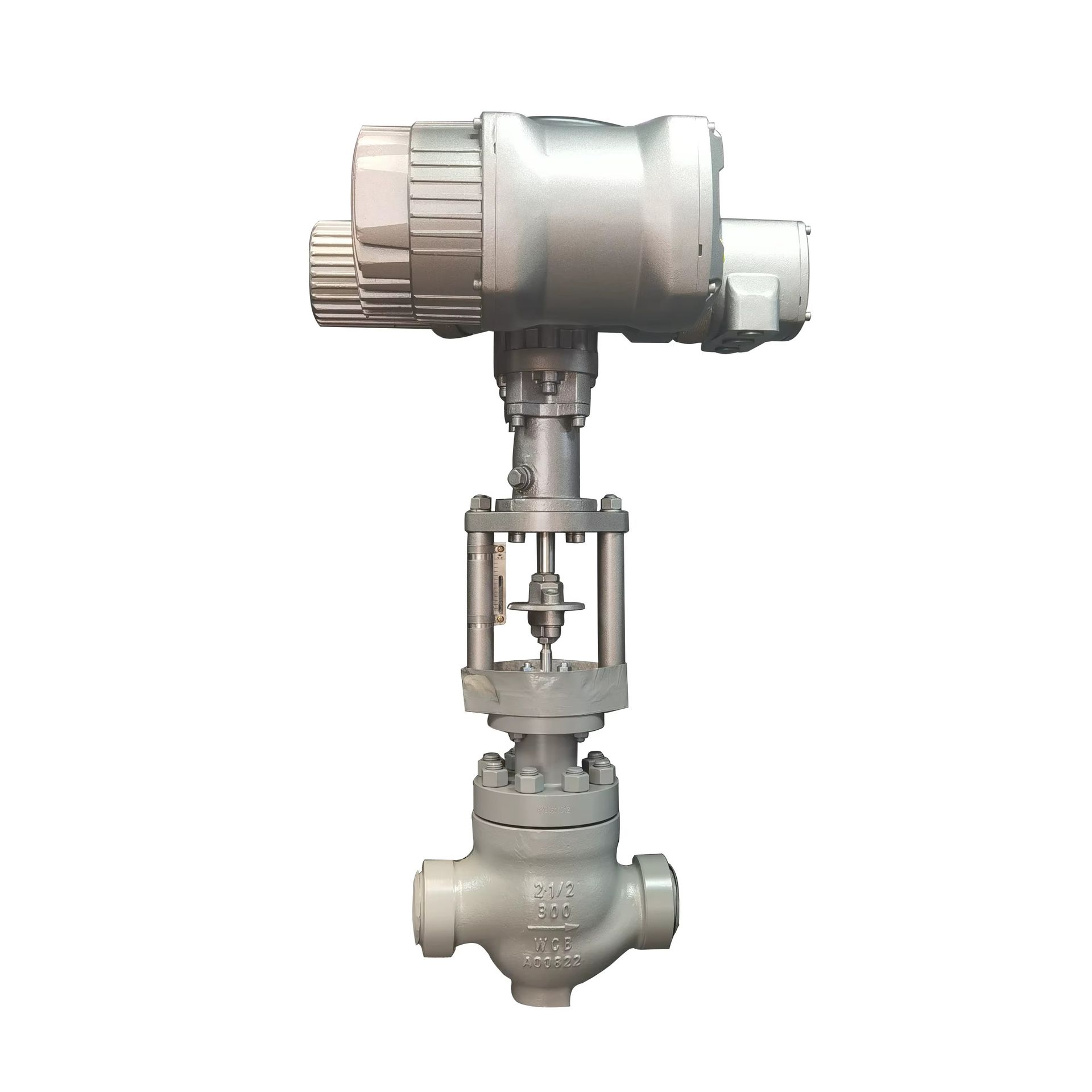

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 2 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Type
Pneumatic Actuator
Media
Base
Port Size
1/4''-3/4''
Temperature of media
Medium Temperature, 29C~+80C
Application
Pneumatic straight stroke gate valve
Power
pneumatic
Structure
Single piston / Double piston
Customized support
OEM, ODM, OBM
Warranty
18 Months
Place of origin
China, Jiangsu
Model number (Specification)
GD
Standard or Nonstandard
Nonstandard
Certificate
ISO9001 CE
Color
Customer's Request
Name
Pneumatic Piston Actuator
Medium
Air
Selling Units
Single item
Single package size
50X50X50 cm
Single gross weight
25.0 kg
Material (Product option)
Stainless Steel, Carbon Steel
Pressure (Product option)
MAX:6 BAR
Size (Product option)
GD-20, GD-30, GD-31, GD-40, GD-41, GD-42, GD-43, GD-50
Certifications & Compliance
CE
Lead time
31 days
Minimum order
2 Units
