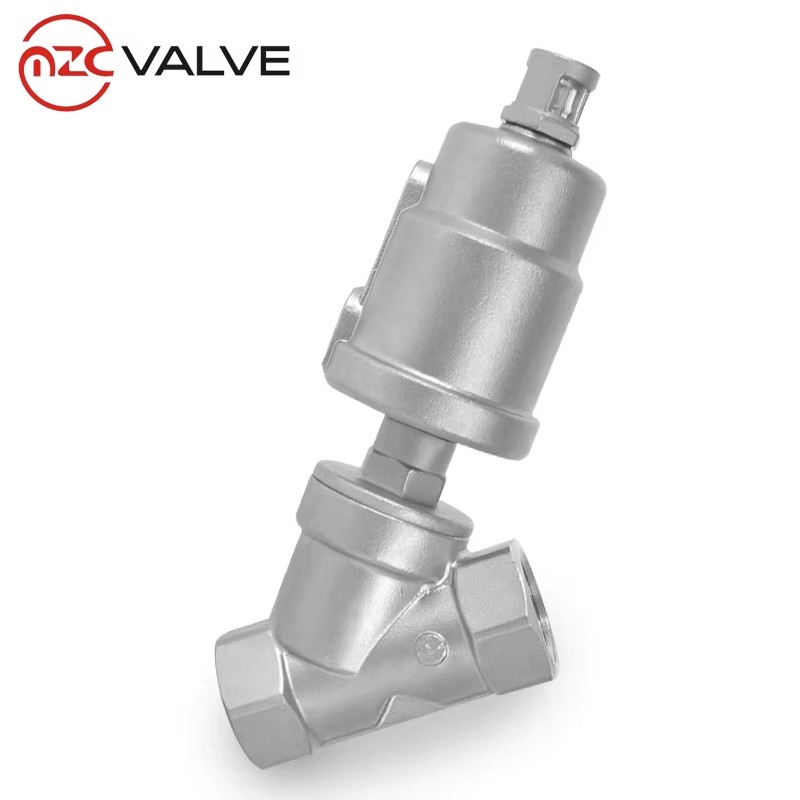

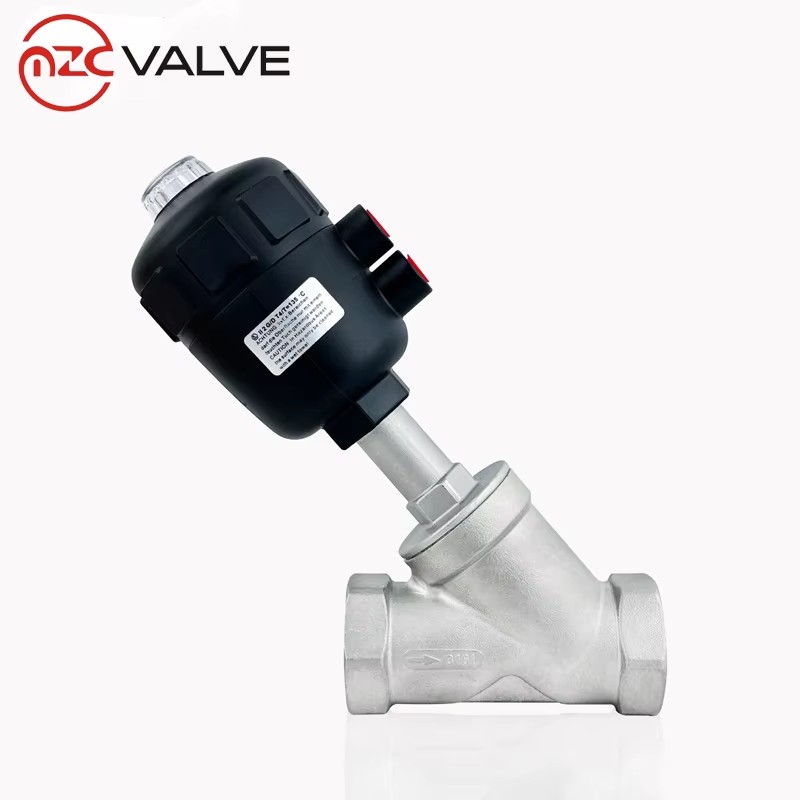

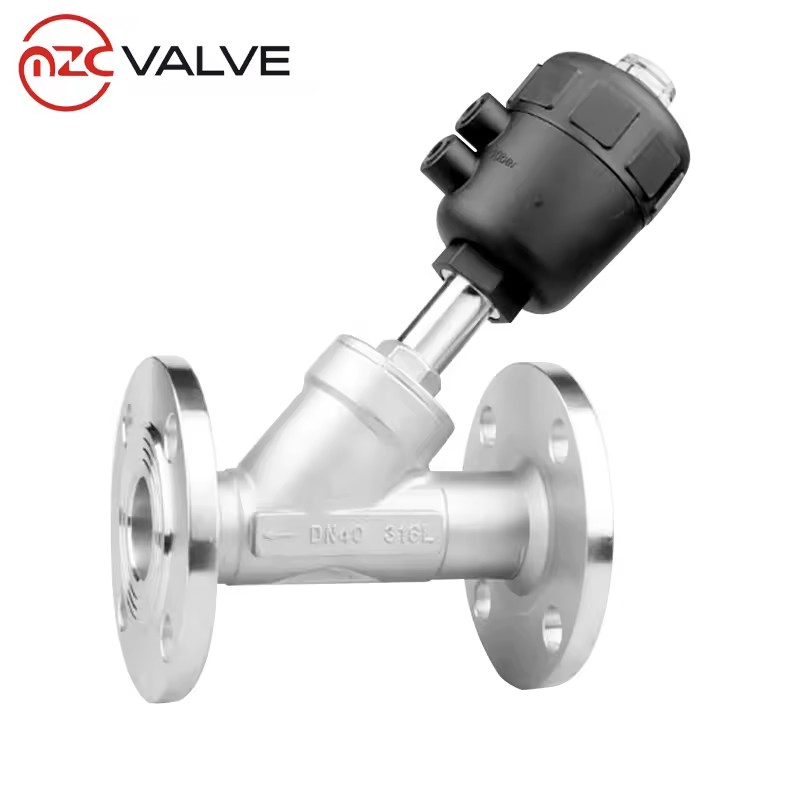

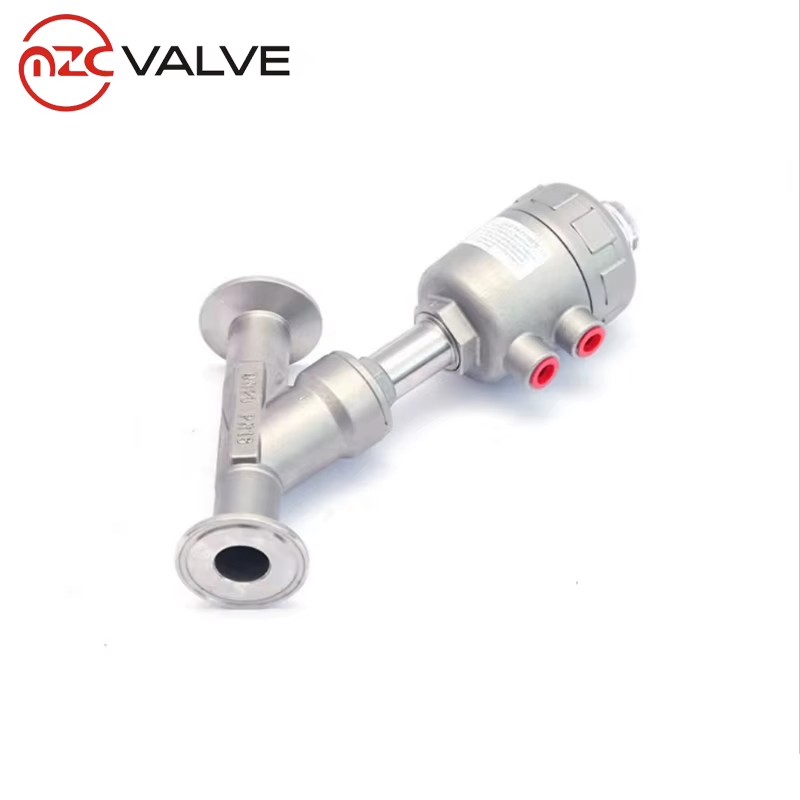

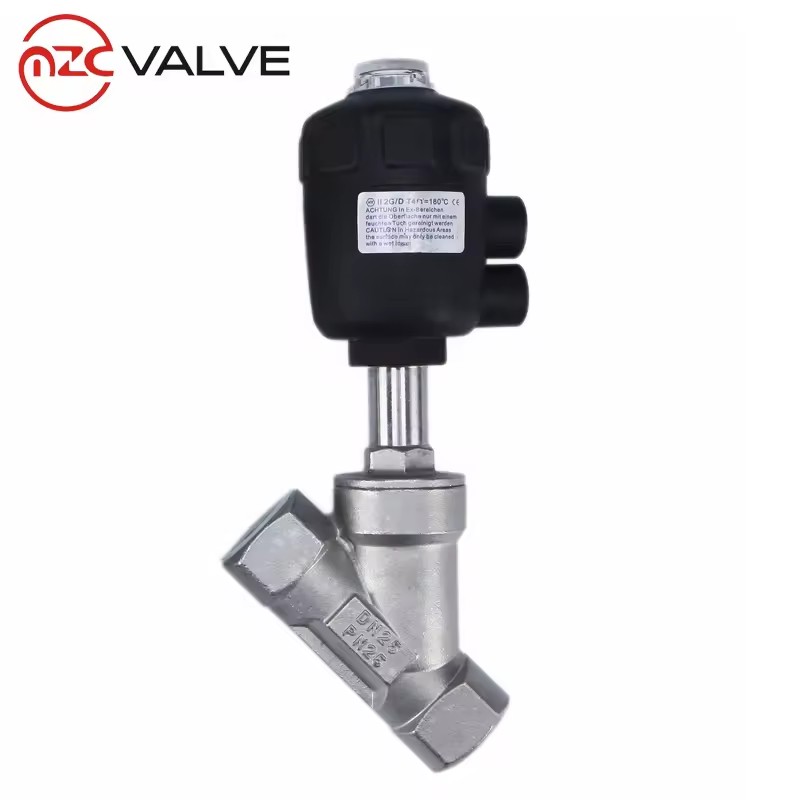

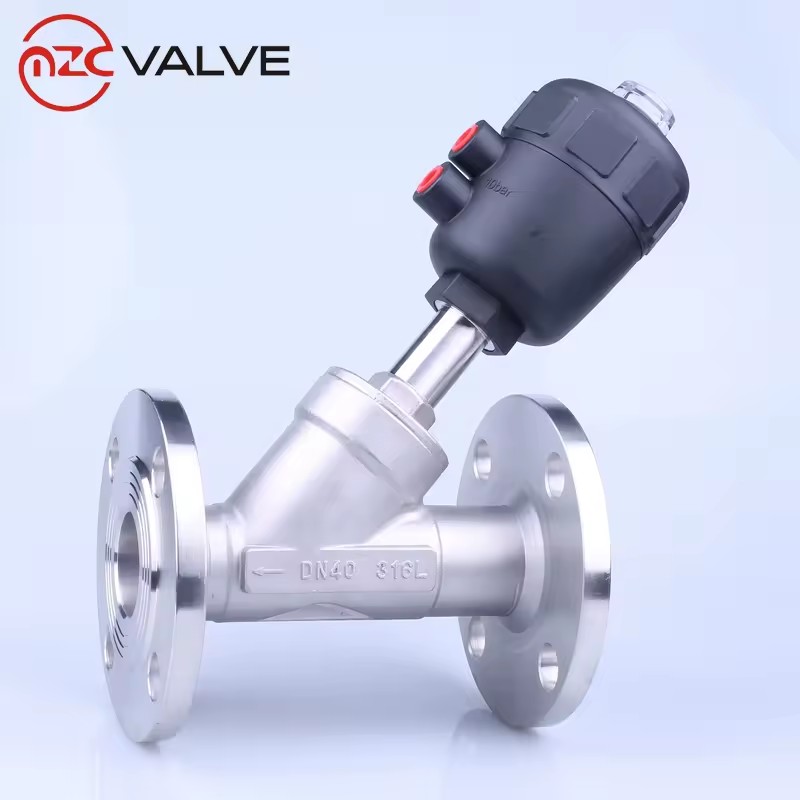

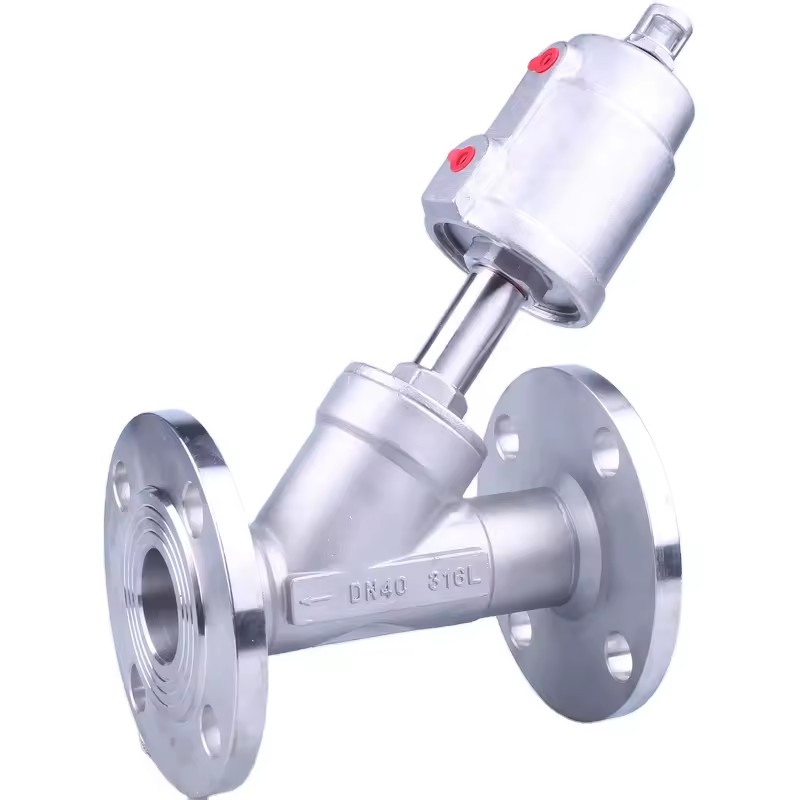

Name: Pn16 DN40 Pneumatic Flange Connection SS304 SS316 Angle Seat Valve
SKU: B2B-12539
Price: 30.0 USD
Availability: PreOrder

Product description

Pn16 DN40 Pneumatic Flange Connection SS304 SS316 Angle Seat Valve

Technical Data: Fluid Pressure: Max×1.6MPa(232psi) Control Pressure: 0.3-0.8MPa(43.5-116psi) Control Fluid: Neutral gas, Air Actuator Size: 50mm, 63mm, 80mm, 90mm, 125mm Applicable Fluid: Water, Alcohol, Oil, Dye, Steam, Neutral gas or liquid, Organic solvent, Acid and lye Fluid temperature: -10ºC~180ºC,25ºC~220ºC Ambient temperature:-10ºC~80ºC Control Type:Normally closed,Normally open,Double acting Connection: Threaded(BSP,NPT),Welded, Flanged, Clamp

Main Materials: Body Material:CF8M(SS316),CF8(SS304) Seals Material:PTFE Actuator Material:CF8M/CF8/Plastic

Applications

Beer& Drink Filling Machinery Textile printing & Dyeing Gas industry Pharmacy & Medical Equipment Chemical industry Disinfection Frothing Equipment Water sewage Disposal

Design Character

1. Can see the position indication

2. Easy to install

3. Actuator adopt low abrasion piston structure,big capacity and low wastage

4. There is lubricative for inner parts,no need maintenance

5. The actuator material have stainless steel and aluminum

6. Long life for the piston pole,PTFE seal,avoid the reif come in.

7. No water hammer affect,when the liquid flowed from valve underside,the water hammer will be absorbed

Specification

Orifice	DN15-DN80	Medium Temperature	20ºC~200ºC
Size	1/2''-3"	Environment Temperature	20ºC~60ºC
Valve Material	Stainless Steel 304	Installation	any position
Actuator material	Stainless Steel 304	Controlling medium	Air or neural gas
Valve core seal	PTFE	Controlling Pressure range	0.3~1 Mpa
Valve Stem seal	FKM	Liquid Working Pressure	0~1.6Mpa
0~1.6Mpa	Water,Liquid,Neural Gas,Oil
Water Steam,Weak acid or weak alkalis solution

Five Series Products

FAQ Q: What is your payment term? A: 1.T/T,30% down payment, balance to be paid before shipment. 2.L/C. Q: What is your main market? A: Southeast Asia,Middle East,North America,South America,Europe etc. Q: How about your capacity? A: As you know,we have 100 staff,own 30 CNC machines,and five person in charge of quality inspection. So please believe us we can delivery valves to you in time. Q: Can you give me a discount? A: As you know,we are manufactory,so please believe us our price is competitive. If the quantity is big,we can consider give you a discount. Q: Can i get free samples from your factory? A: Yes,samples can be free,however,you pay freight. Q: If products have some quality problem,how would you deal with? A: We will responsible for all the quality problems.

Q: What is your payment term?

A: 1.T/T,30% down payment, balance to be paid before shipment.

Q: What is your main market?

A: Southeast Asia,Middle East,North America,South America,Europe etc.

Q: How about your capacity?

A: As you know,we have 100 staff,own 30 CNC machines,and five person

Q: Can you give me a discount?

A: As you know,we are manufactory,so please believe us our price is competitive.

Q: Can i get free samples from your factory?

A: Yes,samples can be free,however,you pay freight.

Q: If products have some quality problem,how would you deal with?

A: We will responsible for all the quality problems.

Description images

Pn16 DN40 Pneumatic Flange Connection SS304 SS316 Angle Seat Valve

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 3 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 30.96 for 3 pieces · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Port Size

1/2" to 4"

Connection Type

Flanged, Flanged or Threaded or BW or Tri Clamped

For Media

Gases

Sealing Material

PTFE

Power

pneumatic

Finish (Specification)

Stainless Steel

Application

General

Media

Gas

Structure

Angle

Air Inlet Type

Compression

Air Inlet Size

8 mm

Temperature of media

Normal Temperature

Warranty

1 Year, 12 Months

Customized support

OEM, ODM, OBM

Place of origin

Zhejiang, China

Model number (Specification)

MZC251107001

Standard or Nonstandard

Standard

Body Material

Stainless steel

MOQ

3 pcs

Standard

ANSI BS DIN JIS

Certificate

ISO9001:2008 CE

HS CODE

8481804090

Selling Units

Single item

Single package size

40X30X30 cm

Single gross weight

6.0 kg

Material (Product option)

Stainless Steel

Pressure (Product option)

Low Pressure

Size (Product option)

2", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2-1/2"

Lead time

7 days

Minimum order

3 Units
