Used XSL5 Water Well Drill Rig for Depth Drilling up to 500m Good Condition Mine Drill Rig

Name: Used XSL5 Water Well Drill Rig for Depth Drilling up to 500m Good Condition Mine Drill Rig
SKU: PKRV-Y8B3-3783
Price: 71520.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 71,520.00 71520.0 USD $ 71,520.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Water Well

Type

water well drilling rig

Drilling Depth

500m(1640.42ft)

Drilling Diameter

400 mm(15.75in)

Power Type

Diesel

Voltage

220 V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Parameter	Unit	XSL5/280
Drilling capability	Drilling depth	m	500(φ89)
Max. diameter of working floor	mm	φ400
Feeding system	Max. liting capacity	kN	280
Max. feeding capacity	kN	120
Max. lifting speed	m/min	30
Max. feeding speed	m/min	60
Stroke	mm	7000
Top drive	Max. torque	N.m	9200/4600
Max. speed	r/min	95/190
I.D	mm	φ55
Deck engine	Type	YC6J175-T302
Rated power	kW	129
Tool winch	Hoisting capacity	kN	15
Breakout device	Max. breakout torque	N.m	32000
Mud pipe	I.D	mm	φ55
Max. pressure	MPa	8
Chassis	Highest speed	km/h	2
Max. climbing gradient	%	39
Max. ground clearance of crawler	mm	1300
Max. inner distance between front support legs	mm	2900
Max. iner dstance between back support legs	mm	2700
Working dimension	mm	465032009800
Transportation dimension	mm	590021002660
Weight	t	12

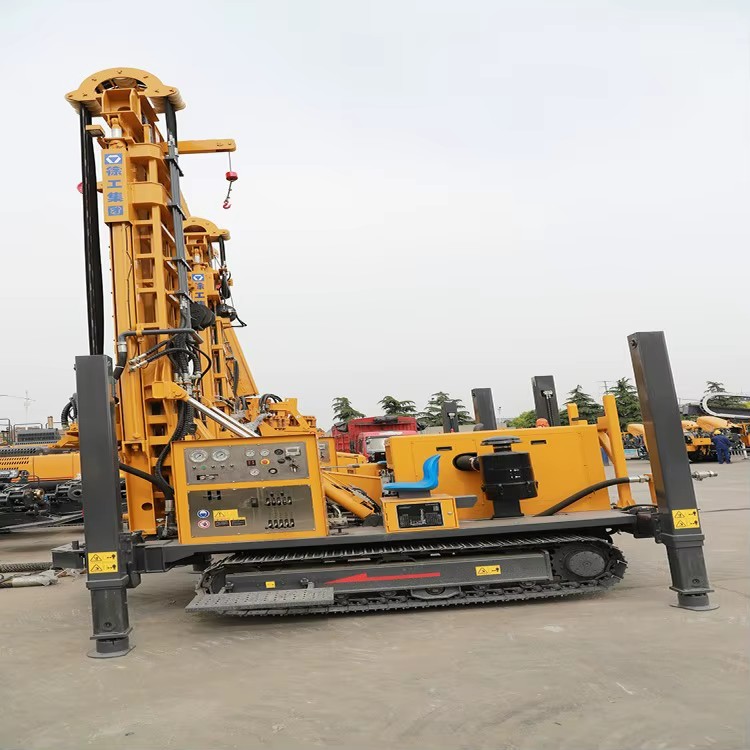

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Usage

Water Well

Type

water well drilling rig

Drilling Depth

500m(1640.42ft)

Drilling Diameter

400 mm(15.75in)

Power Type

Diesel

Voltage

220 V

Core components

PLC, Motor, Pressure Vessel, Gear, Pump, Other, Be

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Energy-saving, Environmental, Long lifetime, Large power engine

Place of origin

China, Jiangsu

Weight

12000 kg(26455.47lb)

Dimension (L*W*H)

5900*2100*2660mm(232.28*82.68*104.72in)

Applicable Industries

Construction works, Energy & Mining

Max. feeding capacity

12kN

Max. lifting speed

30m/min

Year

2017

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

XSL5

Power (W) (Product option)

113kw(151.54hp)

Lead time

30 days

Minimum order

1 Units
