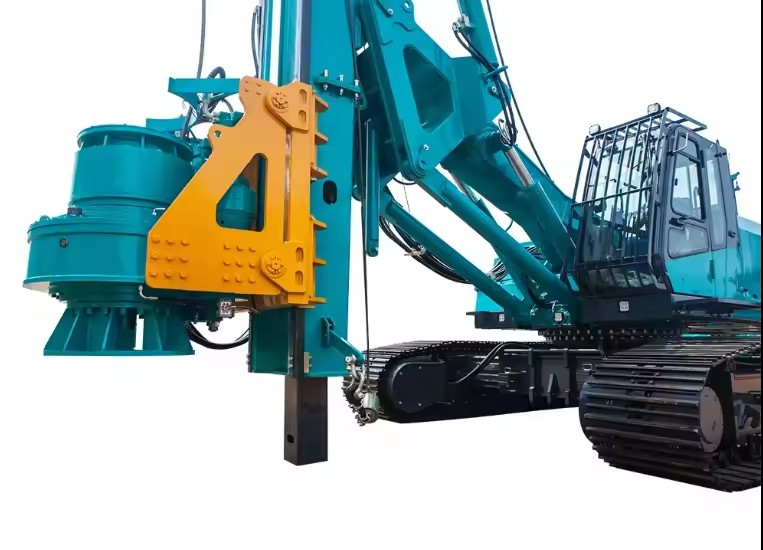

High-Performance Piling Machine Rotary Drilling Rig 21m Depth Small Pile Mine Drilling Rig SWDM60

Available for enquiry 0.0 · 0 reviews
USD

$ 77,520.00 77520.0 USD $ 77,520.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
21m
Drilling Diameter
1000 mm
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Product description
ParametersModelSWDM40SWDM60SWDM80
Drill holeMax. drilling diametermm100010001000
Max. drilling depthm22/1721/1627/20
EngineBrandYanmarCum-minsCum-mins
Model4TNV98CTQSF3.8 TC121QSF3.8 TC121
PowerkW/rpm53.7/210090/220090/2200
Rotary power headMax.torquekN.m456080
Rotation speedrpm5~508~358~42
High-speed throwing soil(optional)rpm7070
Pressurization systemMax. applied pressurekN60100100
Max.lifting forcekN70120130
Max. strokemm150030003000
Main winchMax.lifting forcekN608080
Max.rope speedm/min607272
Aux WinchMax.lifting forcekN153030
Max.rope speedm/min505050
Drilling mastLeft and Right tilto±3±3±3
Forward tilto555
ChassisCrawler widthmm450600600
Crawler extension widthmm232026002600
Chassis lengthmm322537653765
Complete machineWorking heightmm88051113612640
Working Weightt172223

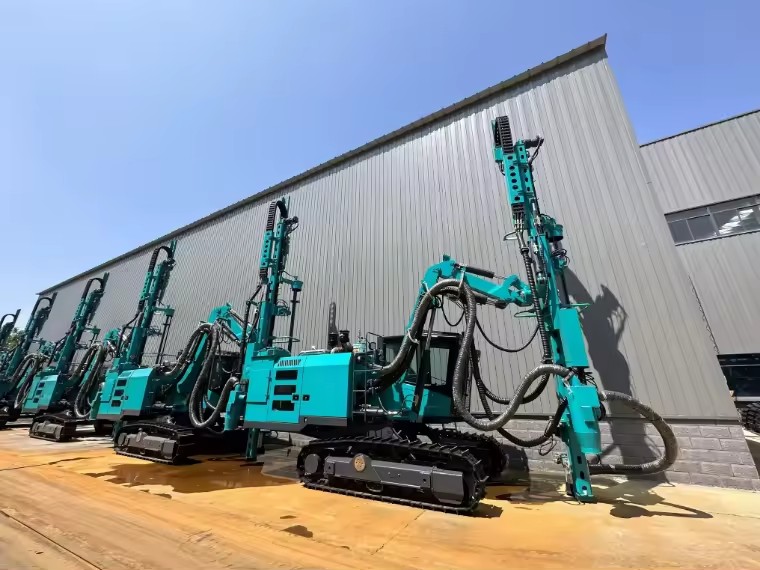

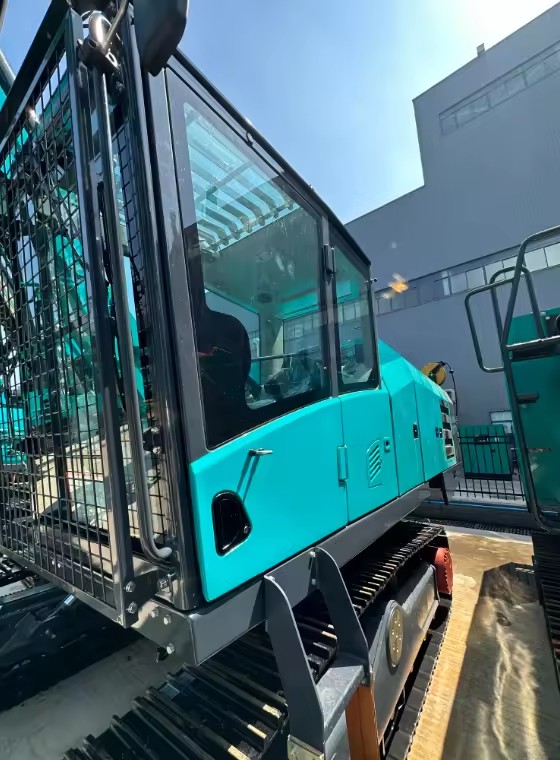

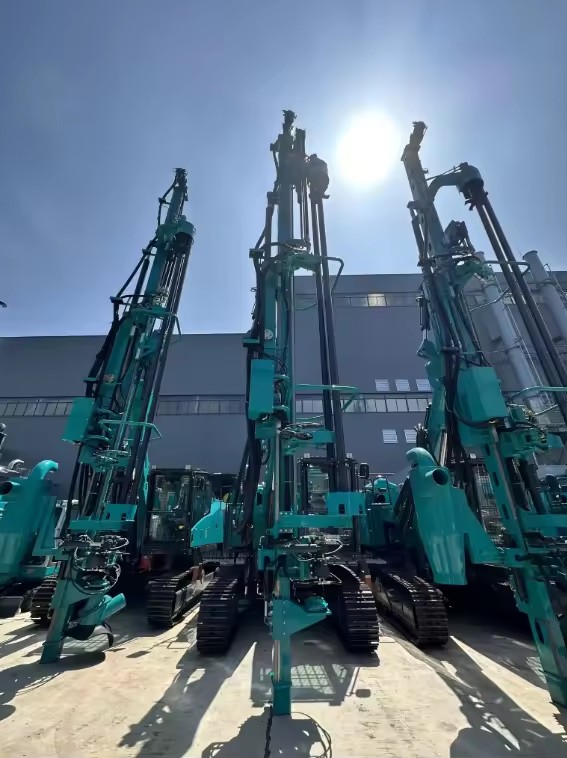

Description images

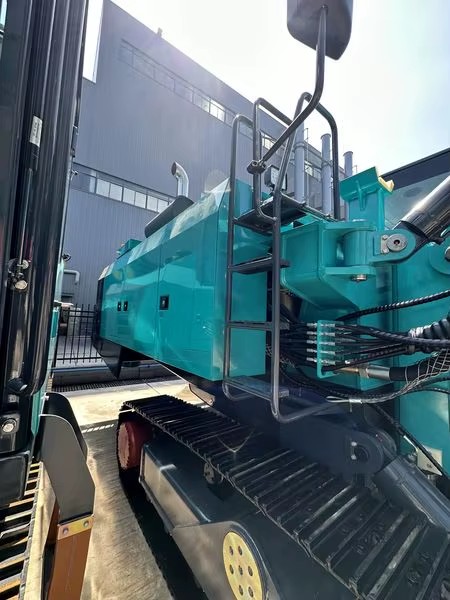

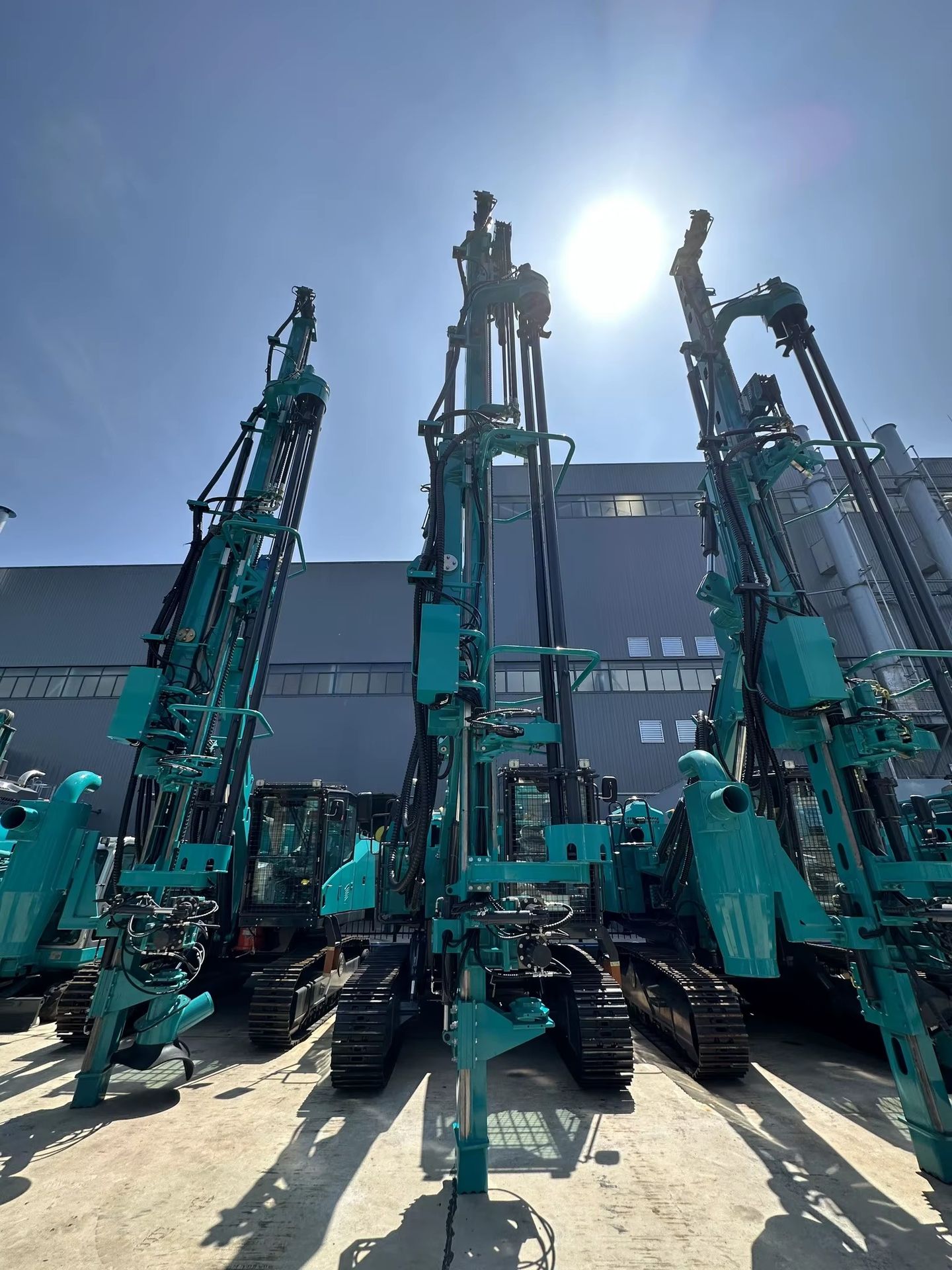

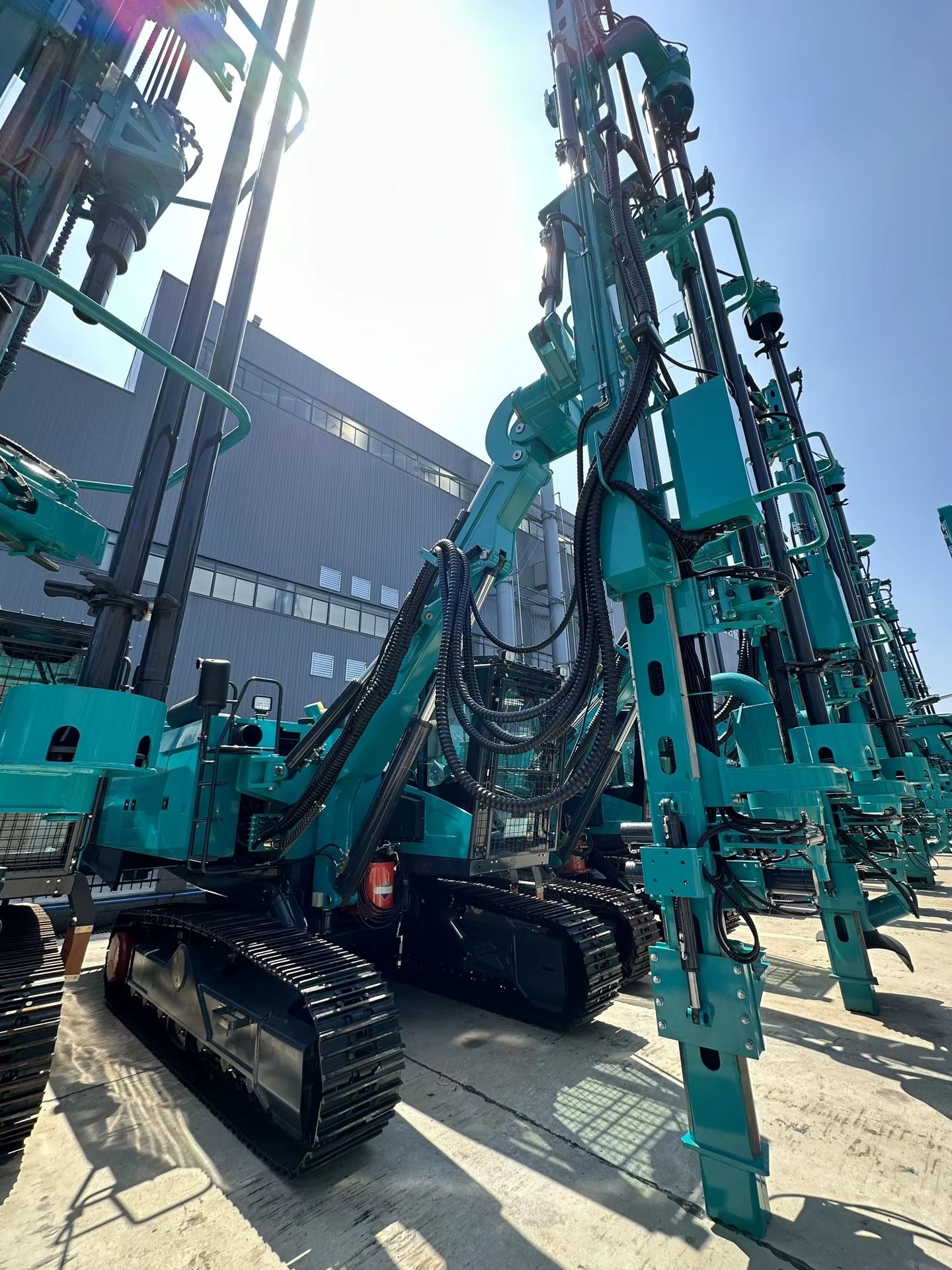

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
21m
Drilling Diameter
1000 mm
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China
Weight
22000 KG
Dimension (L*W*H)
10500*4400*21660mm
Mobility
portable
Maximum drilling depth (m)
21/16mm
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Model number
SWDM60
Power (W) (Product option)
90KW
Lead time
20 days
Minimum order
1 Units
