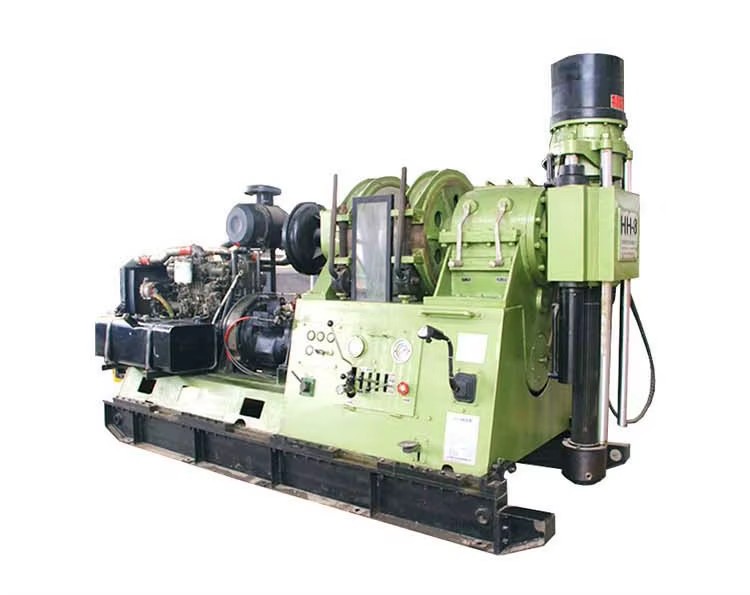

Factory Outlet Rig Mine Drilling Rig Used in Geology, Metallurgy, Coal Engineering and Other Fields Hydraulic Drilling Rig

PRODUCT DESCRIPTION

PRODUCT FEATURE

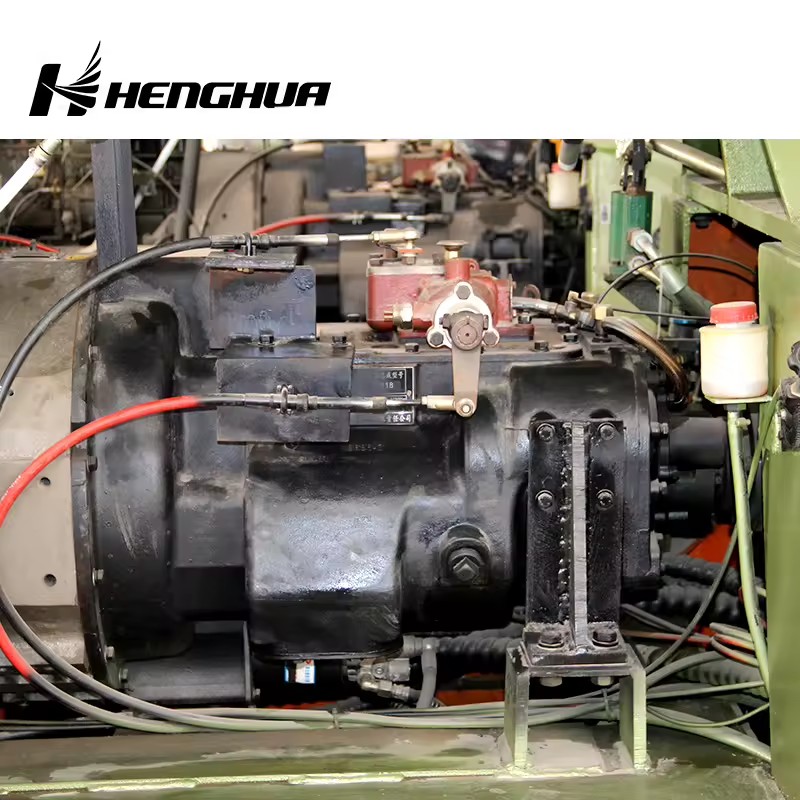

1. Adopting pneumatic shift Fast 8JS118 automobile gearbox and clutch, compact and reasonable structure, stable operation, stable performance and good compatibility.

2. The use of a special automotive flexible shaft shift mechanism to realize the remote control of the gearbox shift, the pneumatic shift is light and agile, and the operation is highly user-friendly.

3. It has a reasonable speed range and a large number of speed bases (8 levels for forward rotation and 1 level for reverse rotation), and large low-speed torque (up to 8000N.m).

4. Adopting a centralized forced lubrication mechanism. As long as the equipment is running, a separate lubricating oil pump will start pumping oil. The lubricating oil passes through the oil separator to reach each node that needs lubrication. While lubricating the transmission mechanism, the oil will take away the heat inside. (The lubrication system is equipped with a separate condenser) to avoid parts heating under high speed and high load conditions.

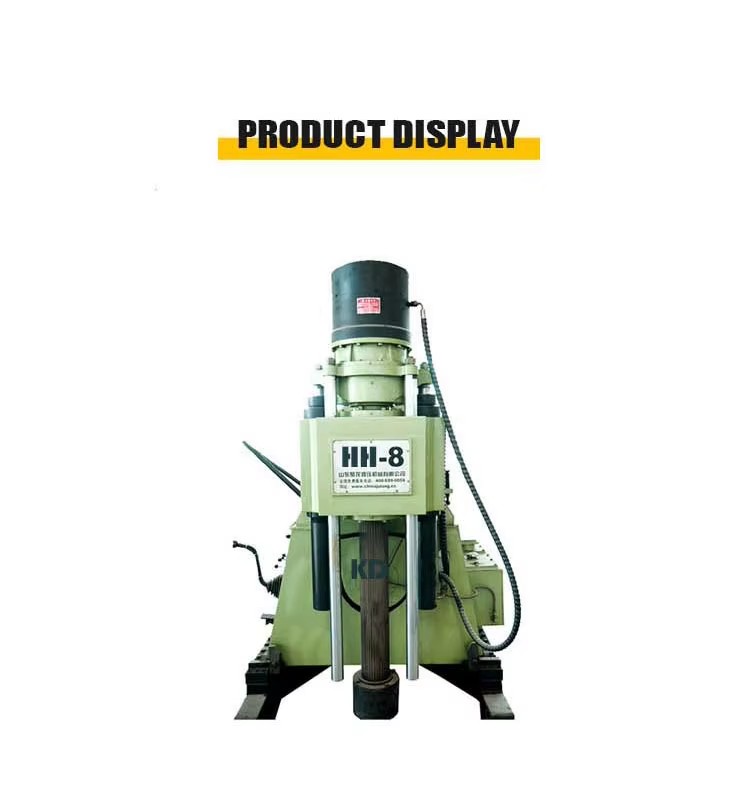

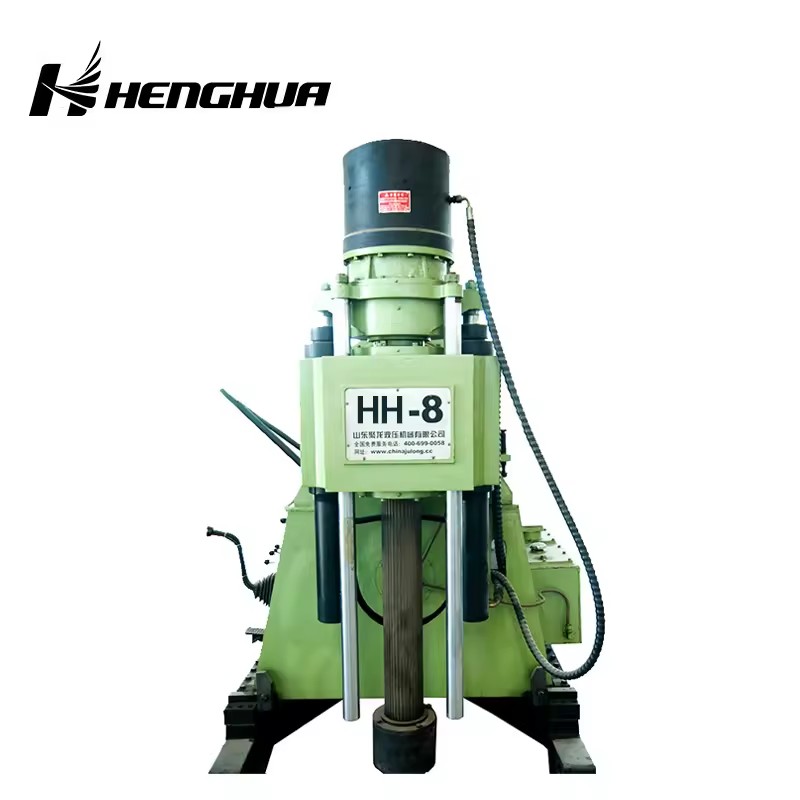

5. The traditional hexagonal vertical shaft is replaced with an involute spline vertical shaft, which doubles the transmission efficiency and carrying capacity of the gyrator. And the vertical shaft through-hole diameter is large (96 mm), double-cylinder hydraulic feed, long stroke (up to 1000 mm), strong process adaptability, especially suitable for large diameter drill rod rope core (upper core) drilling, there is Conducive to improving drilling efficiency and reducing accidents in the hole. 6. Large drilling capacity, 71 mm diameter rope core drill rod has a rated drilling depth of 1650 meters.

7. Light weight, good detachability, net weight of the drilling rig is 6500Kg.

8. Hydraulic unclamping normally closed hydraulic chuck, novel structure, good compensation, cemented carbide welding slip structure, large tightening force, long life and reliable work.

9. The gear pump is used for oil supply, with low power consumption, low oil temperature in the hydraulic system, and stable operation. The system is equipped with a hand-operated oil pump. When the power machine is not working, the hand-operated oil pump can still be used to lift the drilling tool from the bottom of the hole to avoid buried drill accidents.

10. The structure is advanced and compact, and the layout is reasonable. All parts are exposed and do not overlap each other, which is convenient for maintenance, maintenance and repair.

11. The rig has a low center of gravity, a long moving distance (up to 530), simple and reliable fixing, and good high-speed drilling stability.

12. Equipped with anti-vibration instruments to help grasp the situation in the hole. The drilling rig has few control handles, reasonable layout, flexible and reliable operation.

TECHNICAL PARAMETER

APPLICATION AREA

Hydraulic core drilling rig is a wide range of deep hole survey drilling rigs. Suitable for mines, water conservancy, bridges and dam foundations and other buildings Quality survey, geological core drilling, small blast hole, grouting hole, water well drilling, diamond can be selected according to different bottom layers, Composite sheet and alloy drill bit drilling.

Question 1: What are your advantages compared with your competitors?

Answer

With rich industry experience and strict Product Quality Control systems, we provide

1). Stable and reliable product at reasonable price

2). Good customer service: Fast response to any inquiry or question

3). On-time delivery.

Question 2: Can you customize the machine for me?

Answer: Yes, we can customize according to customer's requirements.

Question 3: What shall we do if breakdown occurs?

Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the
