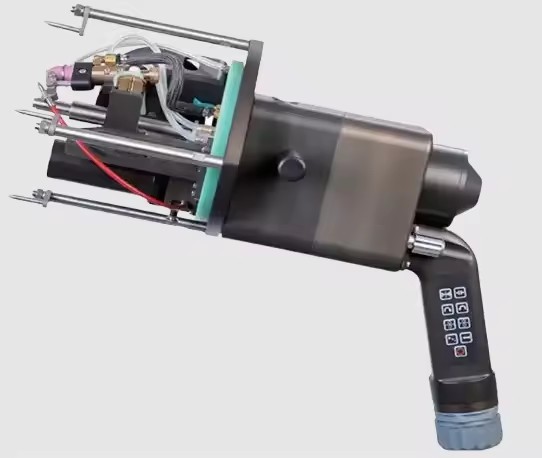

Product Importer Gallery 01 · 30fa39d4c7

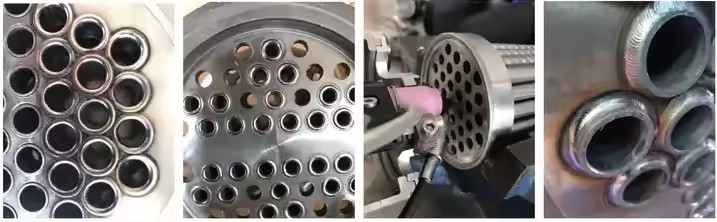

Product Importer Gallery 02 · 007b522257

Product Importer Gallery 03 · d909af6375

Product Importer Gallery 04 · 3eb467b90e

Product Importer Gallery 05 · 0e1c7904a1

Product video

Certifications CE

FYID Intelligent Welding Robot All Position Automatic Steel Tube Sheet TIG Plasma Pipe to Pipe Overlay Welding Machine

Name: FYID Intelligent Welding Robot All Position Automatic Steel Tube Sheet TIG Plasma Pipe to Pipe Overlay Welding Machine
SKU: PAYB-5QWF-SHH2-01
Price: 6180.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 6,180.00 6180.0 USD $ 6,180.00

Minimum order quantity: 1 Units

Key attributes

View all

Machine type

Welding Robot

Voltage

220v

Current

5-200A

Welding Mode

TIG

Type

Welding Head

Condition

New

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$3,100-3,800 / set

Product Introduction

Mainly divided into five major parts

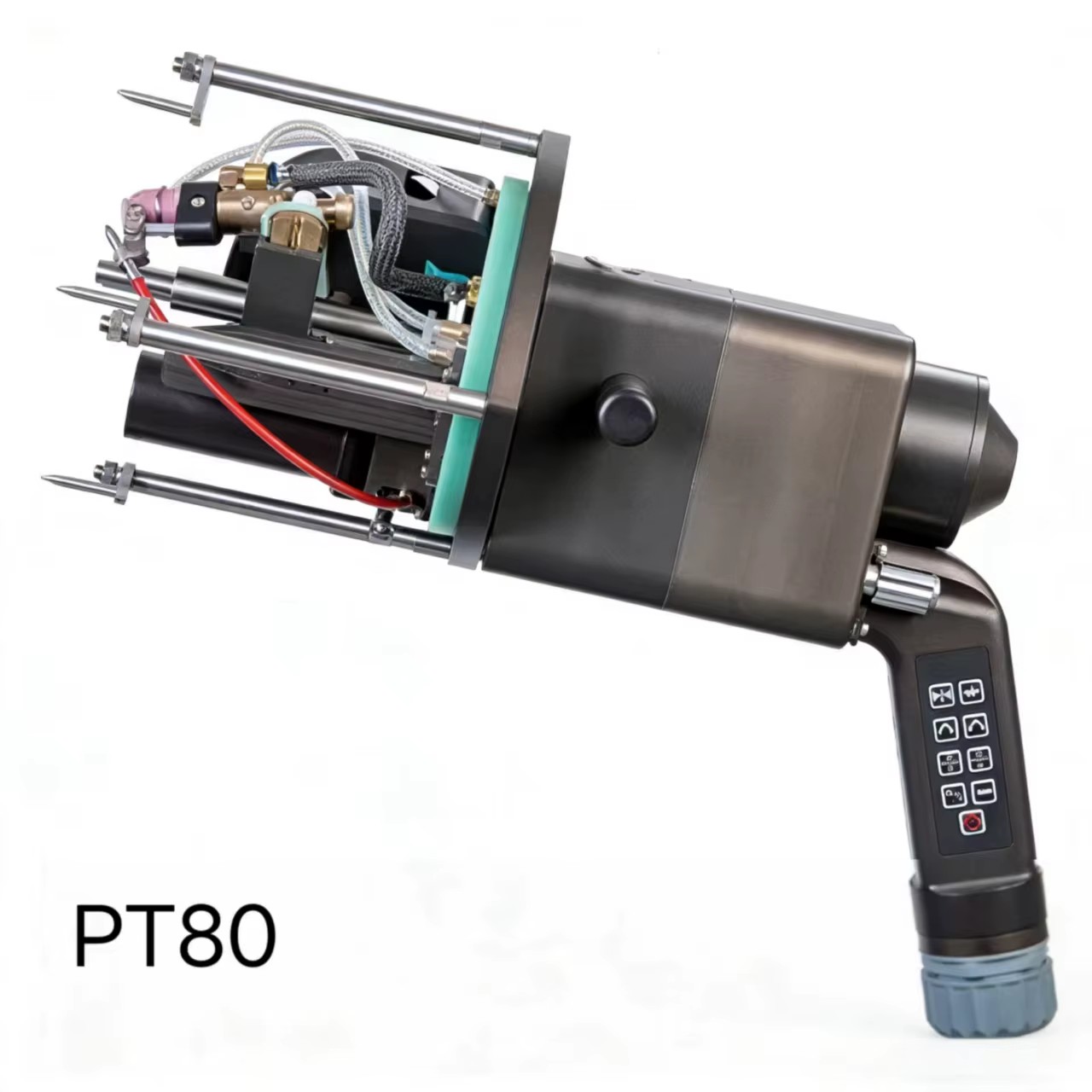

Welding handle model	PT40	PT80
Matching Power Supply	FXT20	FXT40 Pro
Welding pipe diameter range(mm)	Φ16~Φ38	Φ16~Φ80
Torch angle	0°or 7°	0°-30°
Wire feeding function	No	Yes
Cooling method	water cooling	water cooling
Weight(kg)	3	13
Overall Dimension(mm)	150x70x155	160x100x170

Product Features

Technical parameters
Model	FXT20 Digital programmable power supply
Current input(V)	220V ± 10% (AC)	Current output (A)	5-200A(DC)
No-load voltage (V)	65	Power(KVA)	4.5
Temporary load rate
Current input	Average output	Temporary load rate
220V/16A	200A	60%
220V/16A	150A	100%
Other
Protective gas	argon	Cooling method of welding gun	water-cooling
Overall dimension(mm)	500x380x300	Weight (KG)	27 (Including 2.2L cooling water)
control mode	PLC	Store parameters	200 Groups
Welding section	Optional 12	Protection class	IP21
Function control	Current Control, Gas Control, Rotary Control,Printing control, Water cooling control
Safety functions	Over-voltage, overload, leakage, arc failure, tungsten pin short circuit protection, and defect detection

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Machine type

Welding Robot

Voltage

220v

Current

5-200A

Welding Mode

TIG

Type

Welding Head

Condition

New

Warranty

1 Year

Material

Metal

Rated capacity (Specification)

4500V

put power

4.5KVA

Place of origin

China, Hubei

Dimensions

160x100x170mm(6.30x3.94x6.69in)

Rated Duty Cycle

60%-100%

Usage

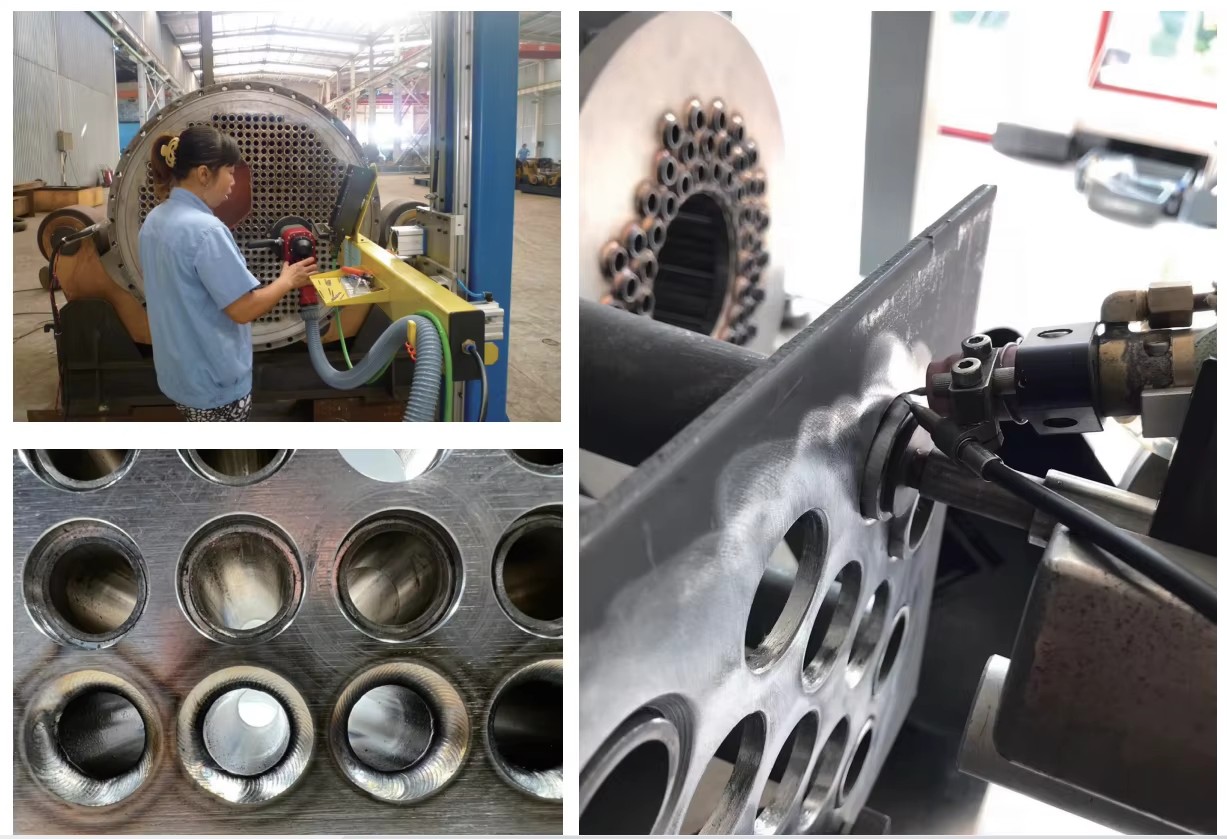

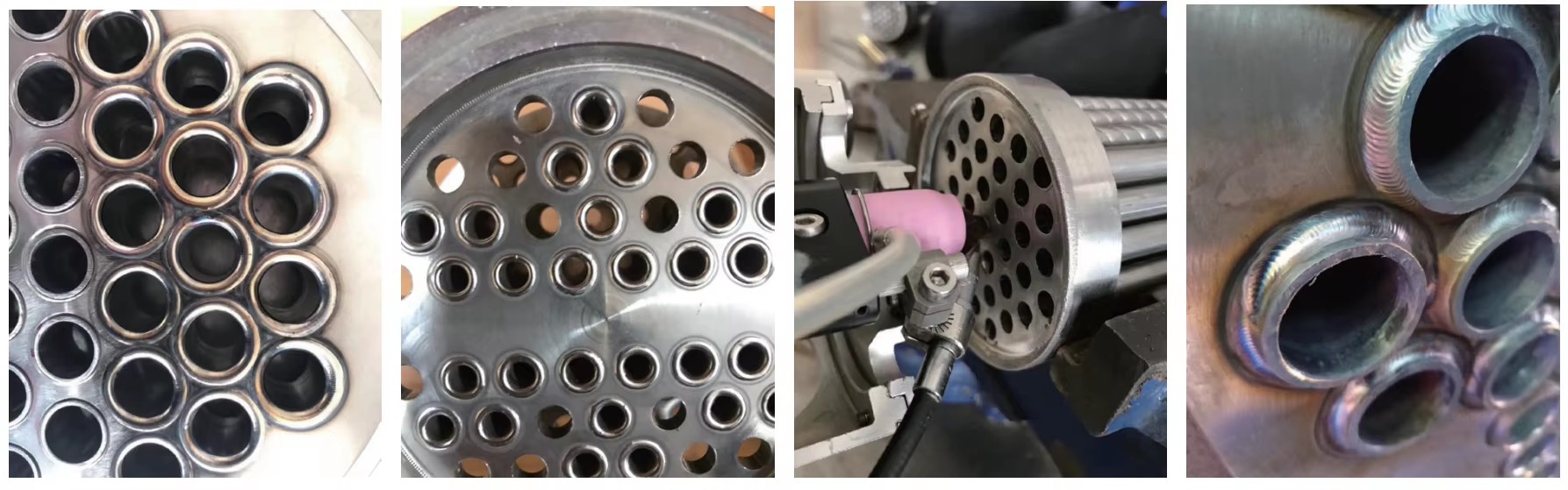

Tube plate welding

Weight (kg)

Selling Units

Single item

Single package size

64X46X38 cm

Single gross weight

56.0 kg

Model number

PT40

Certifications & Compliance

Lead time

31 days

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

FYID Intelligent Welding Robot All Position Automatic Steel Tube Sheet TIG Plasma Pipe to Pipe Overlay Welding Machine

Open URL

Price

$ 6180.00

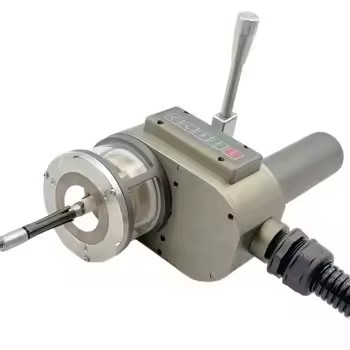

FYID Intelligent Welding Robot All Position Automatic Steel Tube Sheet TIG Plasma Pipe to Pipe Overlay Welding Machine product image
