Product video
Certifications CE ISO

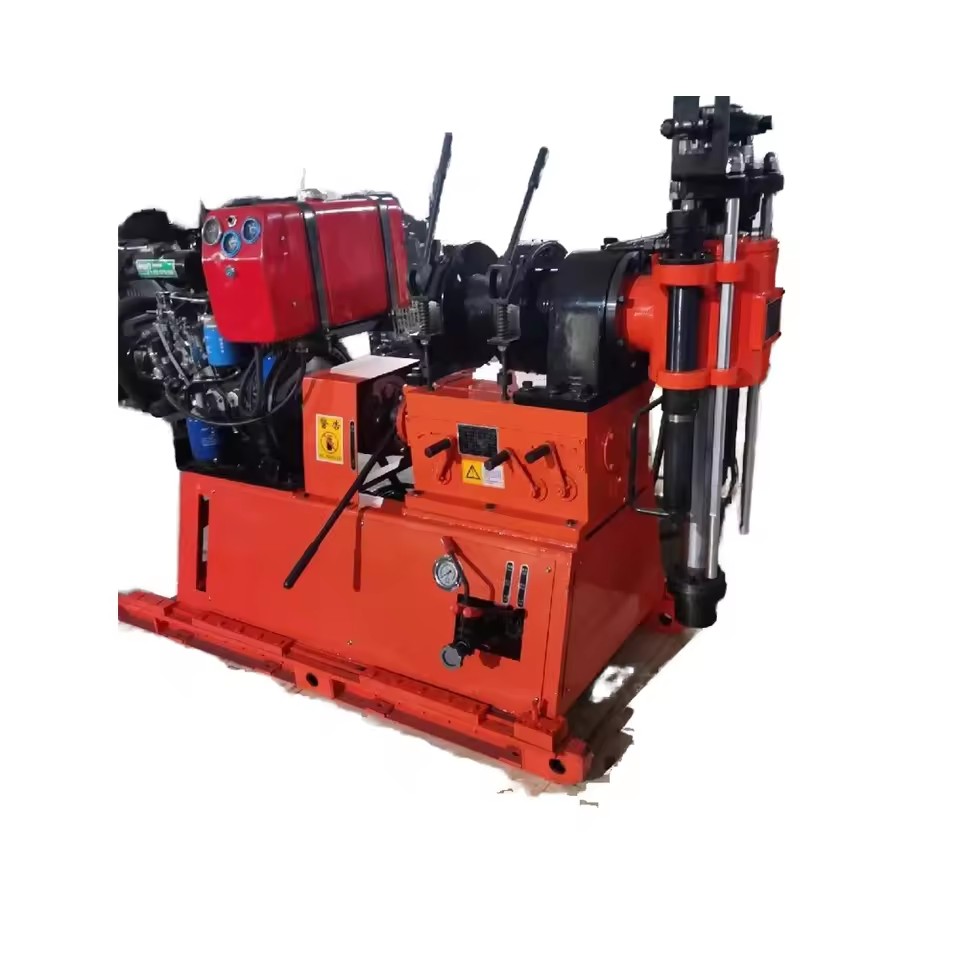

Mine Drilling Rig 200 500 Meters

Available for enquiry 0.0 · 0 reviews
USD

$ 12,720.00 12720.0 USD $ 12,720.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Drilling Rig
Drilling Depth
Max.1000m
Drilling Diameter
96mm, 114mm, 60mm 76mm
Power Type
Diesel
Voltage
220v 380v
Product description

Appendix 1: YH800 Drilling Rig Main Machine Configuration List

No.NameParameterRemarks
1Applicable Drill RodBTW/BQ, NTW/NQ, HTW/HQ, PQ, etc.Recommended to use thin-walled drilling tools
2Applicable Drill Rod1.5 M
3EngineQuanchai 55KW*4
4Rated Power55KW
5System Pressure20MPaDual water cooling
6Mud Pump Maximum Flow100L/minDual water cooling
7Main Cylinder (Dual)Push Force64KN
Lifting Force126KN
Stroke1.8M
8Chuck114, /HTW/NTW/BTW
9Drilling Angle45° - 90°Can be expanded to 0° - 90°
10Power Head SpeedLow speed 380rpm, Medium speed 800rpm, High speed 1300rpm
11Power Head Torque1430NM 780NM 680NM
12Total Weight of Largest Component300KG
Total Weight of Bare Machine1950KG
No.Drill Rod ModelDrill Diameter (MM)Rock Core Diameter (MM)Applicable Drill Rod (M)Applicable Drilling Tools (M)Drilling Depth Capability (M)
1BTW60421.51.5/31000
2NTW76561.51.5/3800
3HTW96711.51.5/3550
4PQ114851.51.5/3300
Needs AnalysisSolution DesignProduction ConfirmationQuality AssuranceLogistics TrackingAfter-sales Support
Heavy MachineryCustom export-grade wooden crates
Drills/Tools/PartsDouble-layer corrugated cartons or lightweight wooden boxes
Description images

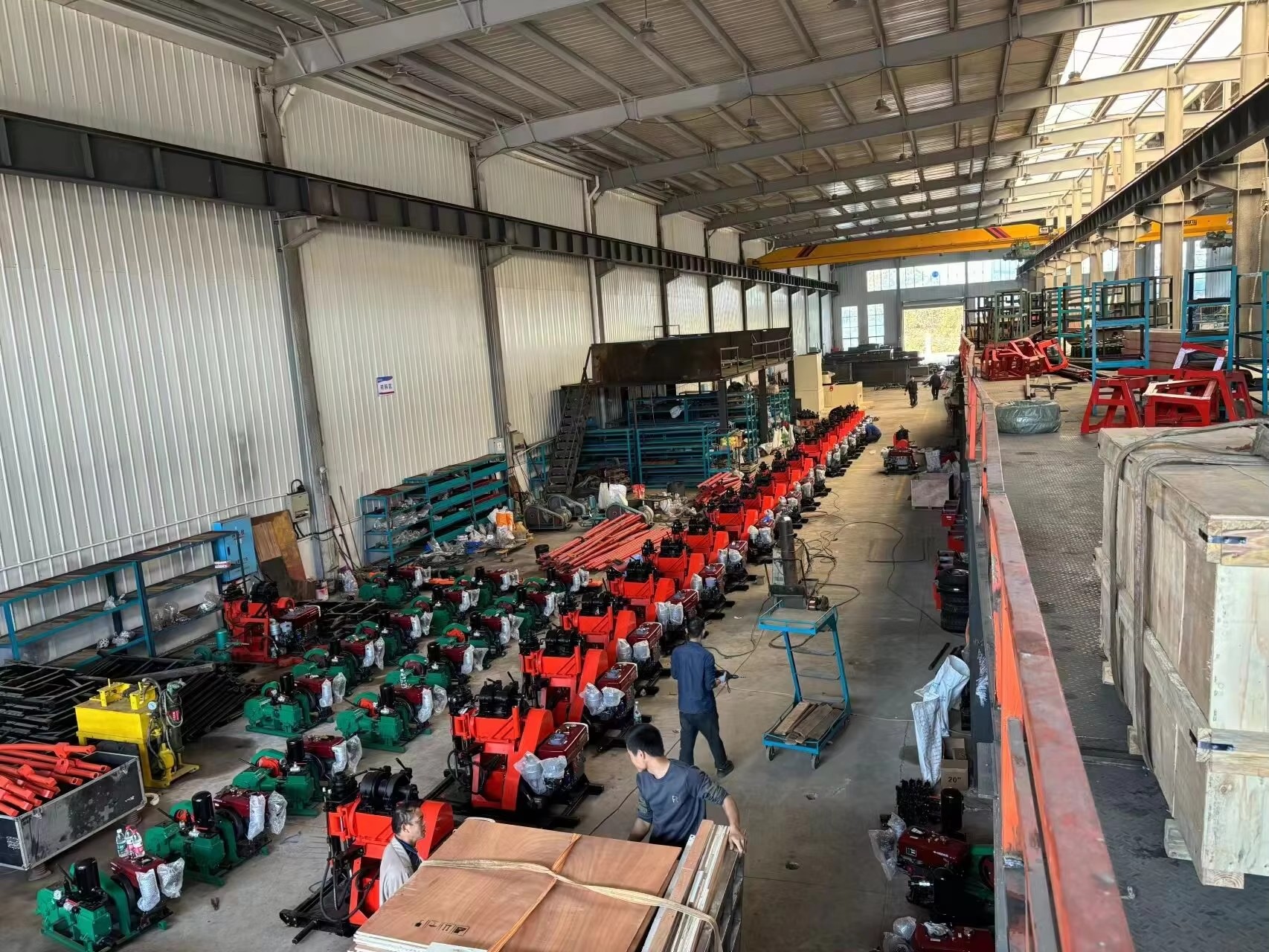

Product detail

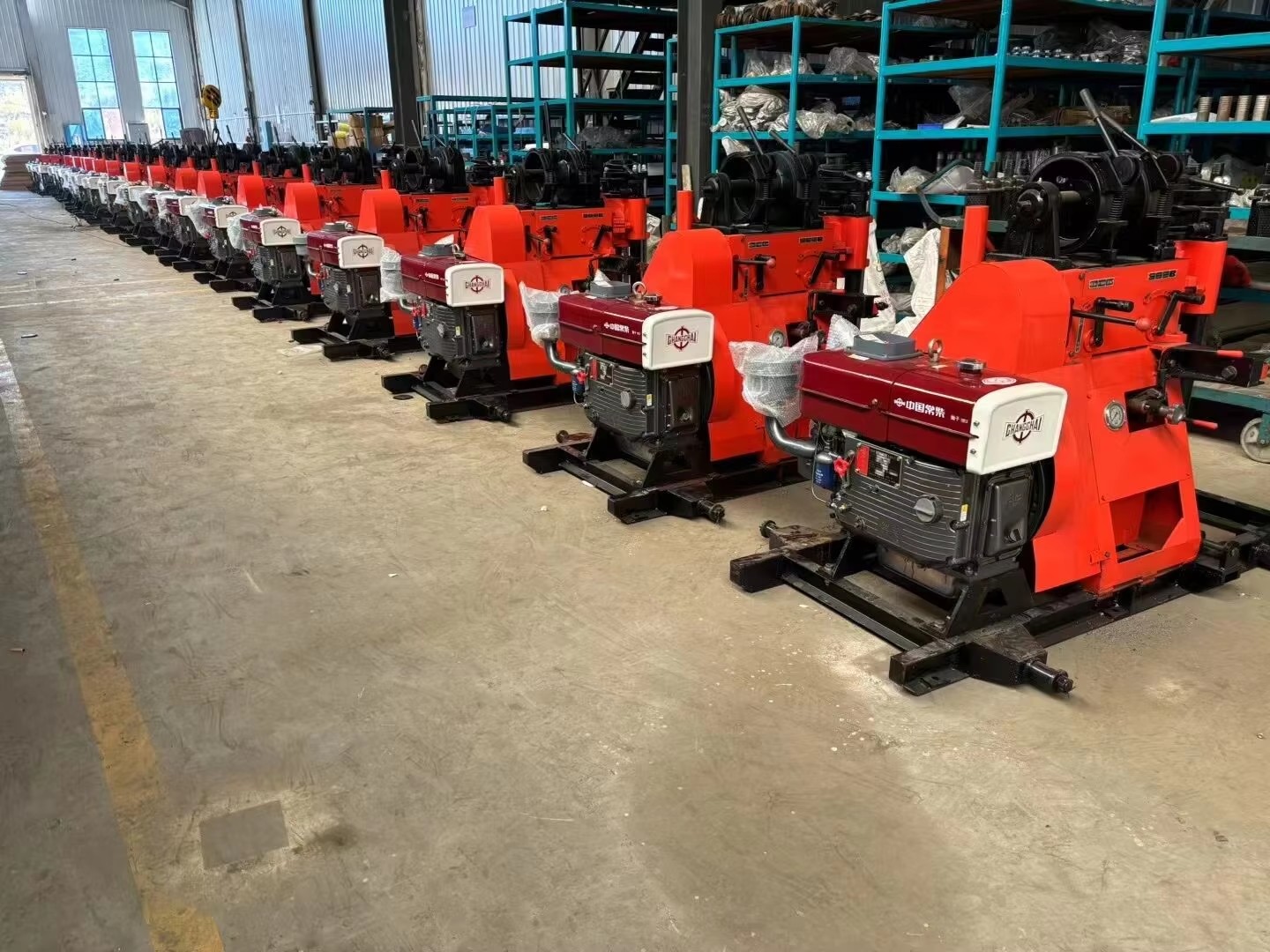

Product detail

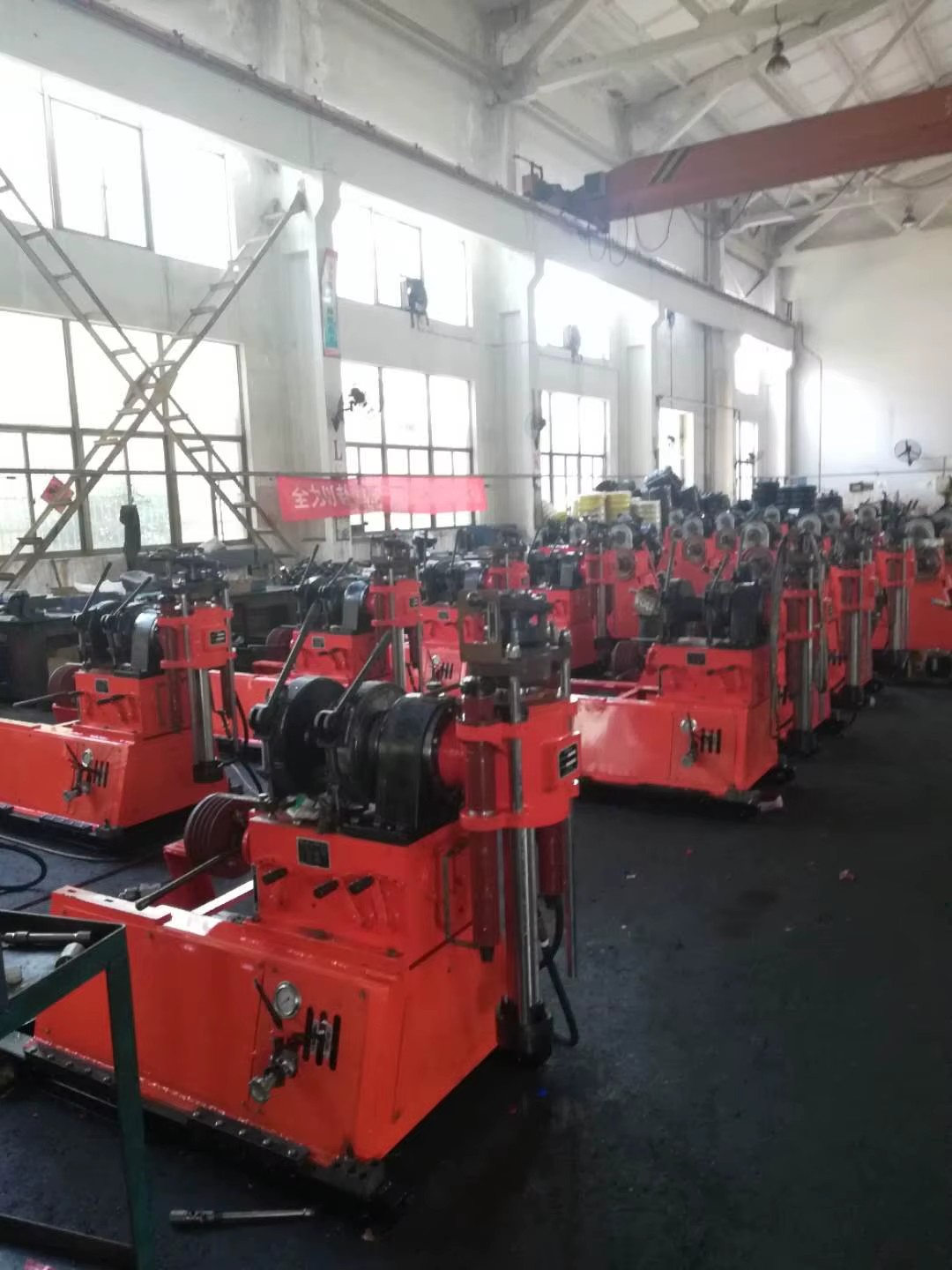

Product detail

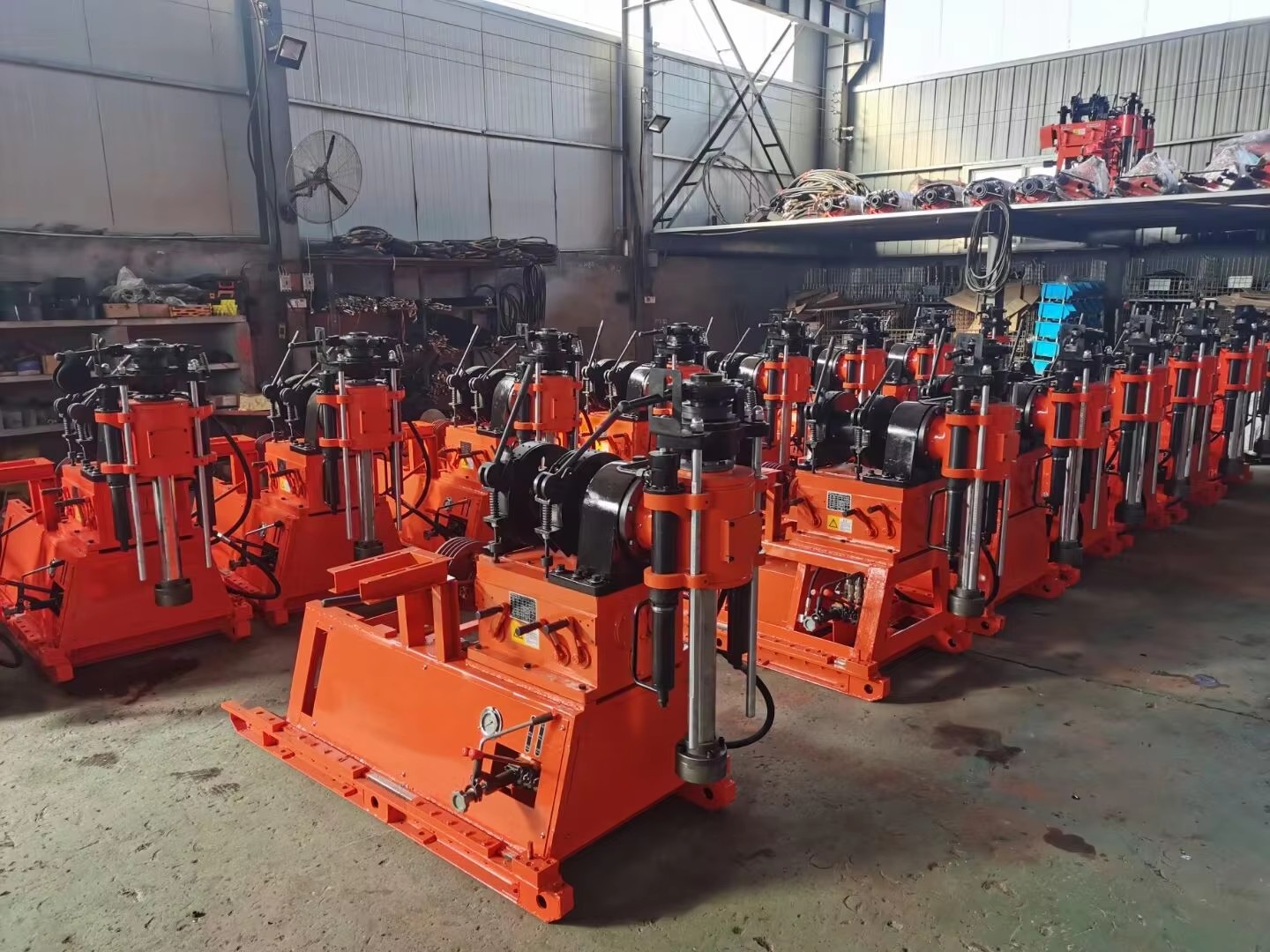

Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    16 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
coal
Type
Drilling Rig
Drilling Depth
Max.1000m
Drilling Diameter
96mm, 114mm, 60mm 76mm
Power Type
Diesel
Voltage
220v 380v
Core components
Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic
Place of origin
China, Hunan
Weight
1950 KG
Dimension (L*W*H)
4200*1900*2600mm
Mobility
Crawler Type
Application
Drilling Wells
Key words
Core Drilling Rig
Motor
diesel engine
Keyword
water well drilling rig
Certification
CE ISO
Specification (Specification)
4200*1900*2600mm
Air consumption
23m3/min
Transport Package
Carton or Wooden Box
Working pressure
1.7-3.3Mpa
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
Mining Drilling Rig
Power (W) (Product option)
55KW
Lead time
16 days
Minimum order
1 Units
