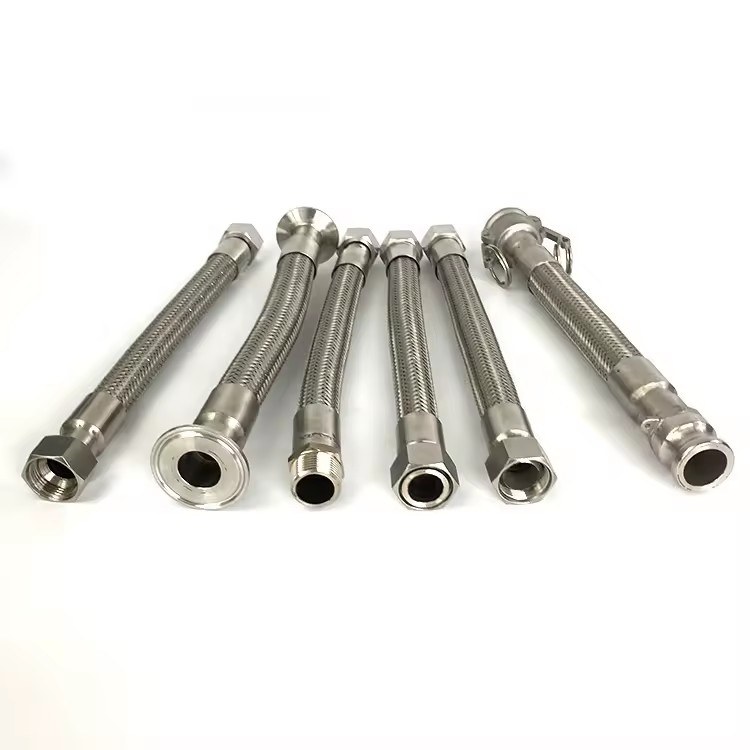

Metal Hose Tubing Pipe High Temp High Pressure Wire Braided Flexible Stainless Steel 20mm Welding ISO Stainless 304 Round ASTM

20mm High Temp High Pressure Wire Braided Flexible Stainless Steel Metal Hose Tubing Pipe

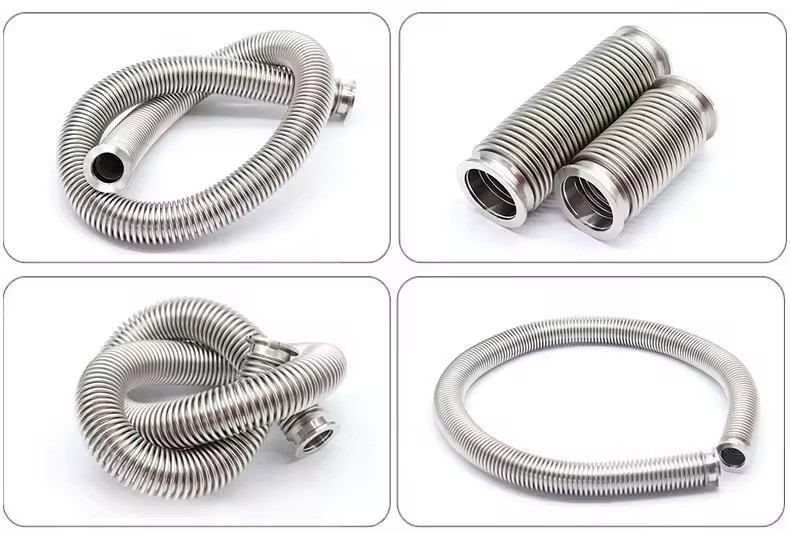

Spiral Wave Metal Hose with ID 1/4-2 inch for Industry

We produce Metal hoses professionally since 1990, there are two wave modes of interlock hose, Annular and Spiral corrugated bellows. Our

F lexible Metal hose is a high-quality flexible hose piece in modern industrial pipeline, it mainly consists of corrugated hose, network sleeve and joints, its inner hose is a thin-wall stainless steel corrugated hose with spiral or ring corrugated form, the outer network cover of the corrugated hose is woven by stainless steel wire or steel belt at certain parameters, hose joints or flange are matched with the joint or flange of the customer pipe.

Metal hose has good softness, fatigue resistance, high pressure resistance, high temperature resistance, corrosion resistance and many other characteristics, it is relative to other hoses (rubber, plastic, etc.) life is much higher, so it has high comprehensive economic benefits.With the development of modern industry, the demand for high-temperature-resistant and high-pressure-resistant corrugated metal hoses is also increasing.Scope of application of metal hose: need fully flexible conveying pipe to prevent vibration place matching pipe, for steam, gas, air, heavy oil, petroleum and chemical drugs

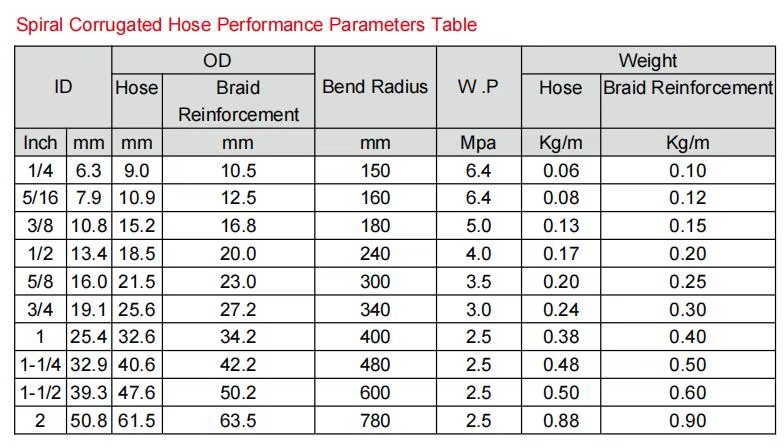

Waves and Parameters

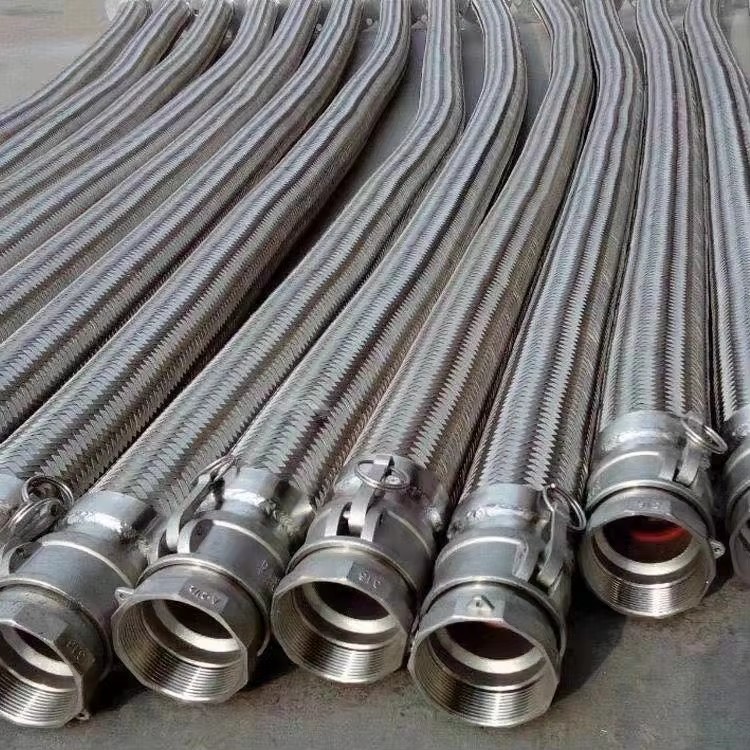

Details

Production process

1 Steel plate rolling: the steel plate will be thin and we cut them for width

2 Rolled round and automatic welding:steel plated rolled to steel pipe,and automatic welding the chink

3 Bellows forming:hydraulic system and mould,it can be pressed out the bellows

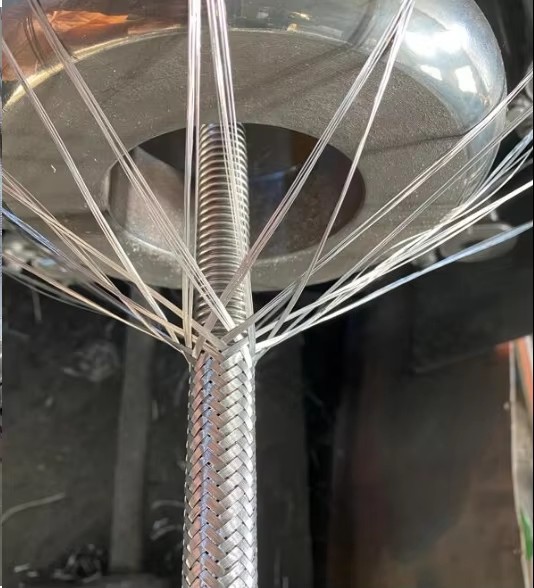

4 braided reinforcement:steel wire braided,but usually we have the hose nuts,and we put the metal bellows into the hose nuts.

5 welding:welding the nuts and the hose,welding the hose and the joints

6 pressure test:it must be test,and we can ensure the cooling metal hose 100% no leakage.

Metal Hose Working Shop

Application

Brief Introduction

Who located (Jinzhou)Rubber and plastic pipe base and f ounded in 1990, 300 employ ee s, the professional and s enior technicians are 100 totally. We have advanced standards for design, mainly produce stainless steel metal hoses, metal bellows, nets, metal& non-metallic compensator polyurethane, high /low pressure hose, hose sheathed insulation, all kind of connectors and other products. Which are widely used in electric power, dock, construction, steel, mining, petroleum, chemical, cement, transportation and other industries of v arious pipes and equipment.

All the product s ha ve passed the ISO9001 international quality system certification.

Certification

Using Instruction

A. When choosing hose, please pay attention to the folloings

Working environment: working temperature, weather, and the connection with other materials.

Conveyable Matter: Liquid, gasses, solid, mixture of above matters.

Convey ways: delivery matter under the pressure, delivery and suction under vacuum.

Working condition: the pressure and temperature for convying matter, use frquency, impulse and movement.

Installatio n: Bending,vibration of the system, the risk of damaged caused by hitting and friction, application of the right connecting mode.

B. There is life for hose assemble;please pay attention that the followings woud reduce the hose useful ife

a. Making the bend radius smaller than the min bend radius.

b. Twisting, stretching, weld line, squeeze or corrode the hose.

c. To be used exceeded max temperature or lower the min temperature.

d. To be used exceeded the impulse pressure of the max working pressure(the impulse pressure means the rapid rise of pressure).

e. The quality of fitting is not up to the standard and assembling is not well.

C. Requirements for using hose

a. The pressure(including the impulse pressure)filled in the hose must not be exceeded the max working pressure.

b. Hose can not be used under the temperature not stipulated or suggested including the conveable matter.

c. Hose can not be used under the bend radius that is smaller than the min bend radius stipulated or suggested, or it will block the matter passing, and reduce the hose useful life. The hose should be prevent from twisting or warping around the connection part, because the bending for this part will damage the reinforcement, as a result, the hose will be damaged quickly.

d. The hose can not be used when it is twisted.

e. The edge of hose fitting should be smooth; the size of mandril, sleeve or other accessory must be in confirmed. Less or more control of assembling power will also damage the assembly,.

f. There is a life for hose, please check and change it regularly.
