Product description

Ore Rotary Dryer Machine High Efficiency Industrial Drying Equipment 50TPH Energy Saving Dryer for Mineral Concentrate

3 Questions Ore Concentrate Buyers Ask Most Before Buying a Dryer

Q1. What final moisture do I need for sintering and transport? A: Below 8% in a single pass - the standard range for sintering, pelletizing and safe transport of concentrate.

Q2. Concentrate is abrasive - how durable is the dryer? A: Very. The thickened shell, wear-resistant lifting plates and reinforced riding rings are engineered for abrasive minerals and continuous duty.

Q3. Can you supply a complete concentrate drying line? A: Yes - feeder, furnace, dryer, dust collection, conveyors and control panel, plus plant design. One supplier from testing to commissioning.

Where Dried Concentrate Goes

The dried concentrate from our dryer feeds the most in-demand process lines

1.Sintering & Pelletizing: Low-moisture iron ore concentrate is the standard feed for sinter and pellet plants.

2.Smelting Feed: Dried concentrate improves furnace stability and energy efficiency in smelting.

3.Safe Transport: Controlled moisture prevents liquefaction and loss during rail and ship transport.

4.Non-Ferrous Concentrates: Copper, zinc and lead concentrates dried for smelter feed.

5.Tailings Utilization: Dried tailings for re-processing and dry-stacking applications.

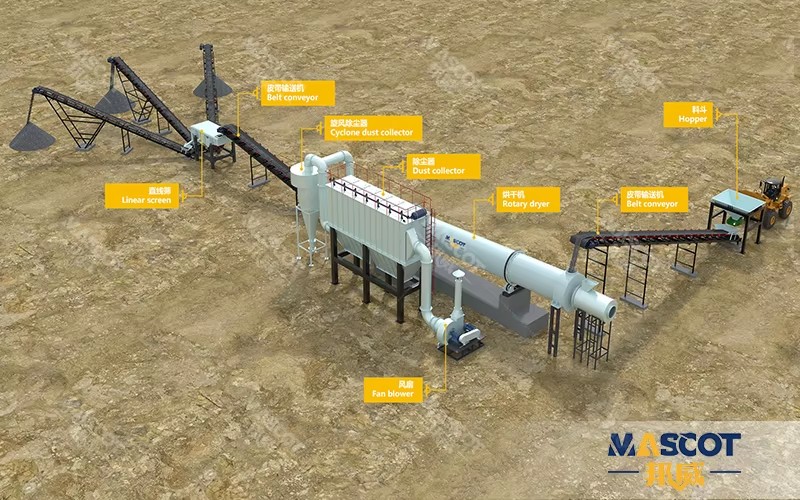

Complete Concentrate Drying Line

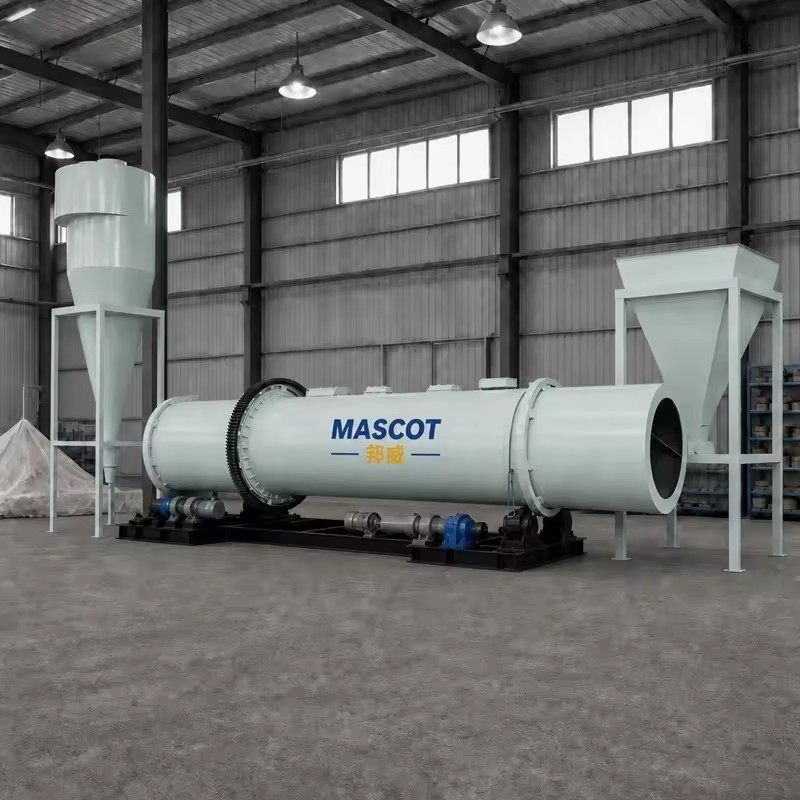

One supplier for your whole concentrate drying system: hot air furnace or burner, rotary dryer, cyclone + bag filter, conveyors and control panel - with single-source responsibility from material testing to commissioning.

Iron ore concentrate: 10-15% moisture, high throughput for sinter and pellet plants.

Copper & zinc concentrates: gentle, uniform drying to protect grade for smelter feed.

Fine concentrates: sealed feeding and bag filter system control dust from fine powders.

Tailings: large-capacity drying for re-processing or dry-stacking projects.

Technical Parameters

Model (Dia.×Length mm)	Volume(m³)	Capacity(t/h)	Gradient(%)	Inlet Air Temp.(℃)	Rotate Speed(r/min)	Motor Power(kw)
Φ600×6000	1.7	0.5-1.5	3~5	700~800	3~8	3
Φ800×8000	4.1	0.8-2.0	3~5	700~800	3~8	4
Φ800×10000	5.1	0.8-2.5	3~5	700~800	3~8	4
Φ1000×10000	7.9	1.0-3.0	3~5	700~800	3~8	7.5
Φ1000×12000	9.4	1.2-3.2	3~5	700~800	3~8	11
Φ1200×8000	9	1.9-2.4	3~5	700~800	3~8	7.5
Φ1200×10000	11.3	2.2-3.0	3~5	700~800	3~8	7.5
Φ1200×12000	13.6	2.4-3.2	3~5	700~800	3~8	7.5
Φ1500×12000	21.2	4.5-5.7	3~5	700~800	2~6	15
Φ1500×14000	24.7	5.3-6.6	3~5	700~800	2~6	15
Φ1500×16000	26.5	5.7-7.1	3~5	700~800	2~6	15
Φ1800×12000	30.5	6.5-8.1	3~5	700~800	2~6	18.5
Φ1800×14000	35.6	7.6-9.5	3~5	700~800	2~6	18.5
Φ1800×16000	40.7	7.8-10.2	3~5	700~800	2~6	18.5
Φ2000×18000	56.5	8.4-12.3	3~5	700~800	1.5~6	22
Φ2000×20000	62.8	9.0-13.6	3~5	700~800	1.5~6	22
Φ2200×16000	60.8	11.4-15.8	3~5	700~800	1.5~6	22
Φ2200×18000	68.3	12.8-16.2	3~5	700~800	1.5~6	22
Φ2200×20000	75.9	13.0-16.5	3~5	700~800	1.5~6	30
Φ2400×16000	72.3	13.5-16.9	3~5	700~800	1.5~5	37
Φ2400×18000	81.4	17.4-21.7	3~5	700~800	1.5~5	45
Φ2400×20000	90.4	19.3-24.1	3~5	700~800	1.5~5	55
Φ2600×24000	127.4	27.2-34.0	3~5	700~800	1.5~5	75
Φ2600×28000	148.6	28.6-36.2	3~5	700~800	1.5~5	75
Φ3000×20000	141.3	30.1-37.7	3~5	700~800	1.5~5	85
Φ3000×25000	176.6	37.7-47.1	3~5	700~800	1.5~5	90
Φ3200×25000	201	42.9-53.6	3~5	700~800	1.5~5	110

* Recommended for ore concentrate drying: Φ2400×20000 (19.3-24.1 t/h) - the most ordered model for concentrate drying in mining plants. Smaller or larger plants: the table covers 0.5 to 53.6 t/h.

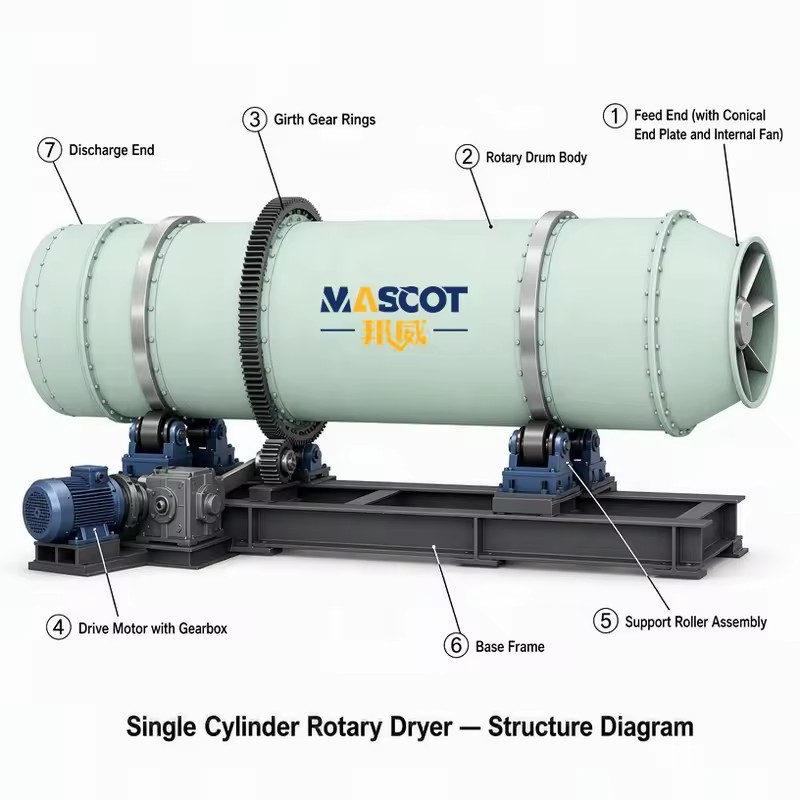

How Ore Concentrate Is Dried - Working Principle

The concentrate is evenly fed into the rotating cylinder. Internal lifting plates continuously lift and scatter the material, forming a uniform curtain through which 700-800°C hot air flows, evaporating moisture on full contact. The dried concentrate discharges at the opposite end while moist exhaust gas passes through the dust removal system.

Ore concentrate-specific notes: wear-resistant lifting plates and thickened shell handle abrasive minerals; retention time and rotation speed are tuned for precise final moisture.

The Customer Site - Concentrate Drying Plant

CASE STUDY: Iron Ore Concentrate Drying for a Large Mining Operation

Customer Profile: A large mining operation drying iron ore concentrate for shipment and smelting.

Requirement: Dry concentrate with 10-15% moisture down to below 8% at 20-22 tons per hour for sinter feed and transport.

Solution: Φ2400×20000 Single Cylinder Dryer with hot air furnace, wear-resistant lifting plates and multi-stage dust collection.

Operational Result

Performance: Consistently processes 21 t/h of concentrate, reducing moisture from 13% to below 8% in a single pass with thermal efficiency above 85%.

Reliability: Running 24 hours/day with routine maintenance only - rollers, rings and lifting plates checked on schedule.

Customer Feedback: "Reliable, high-output drying that our sinter line can depend on. The complete line package covered everything we needed."

1.Proven in Mining Operations: Heavy-duty concentrate drying trusted by mining companies worldwide.

2.Professional Technical Support: From concentrate testing to plant design, installation and maintenance, we are with you every step of the way.

3.Quality You Can Trust: We use premium materials and strict QC to ensure every machine performs as promised.

's Service

We offer a 12-month warranty for the whole machine and also a 12-month warranty for core components such as rollers, rings, and classifiers, along with 24/7 online consultation via

Description images

Ore Rotary Dryer Machine High Efficiency Industrial Drying Equipment 50TPH Energy Saving Dryer for Mineral Concentrate

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Rotary Drying Equipment

Voltage

220V/380V/UPON

Heating method

Gas Heating

Material

Other

Power(w)

Accroding to model

Application

Chemicals Processing

Core components

Motor, Gear, Pump

Key selling points

Competitive Price

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

2900

Dimension(L*W*H)

Accroding to model

Feature

High Efficiency Drying Machine

Function

Drying and dehumidifying the materials

Weight

2900-104900kg

Color

Customer's Request

Certification

After-sales Service Provided

Provided 1 year

MOQ

1 Set

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

600x6000, 800x8000, 800x 10000, 1800x12000, 2200x20000, 10000x10000, 10000 x 12000, 1200 x8000, 1200x10000, 1200x12000, 1500 x 12000, 1500x 14000, 1500x16000, 1800x14000, 1800x16000, 2000x18000, 2600x28000, 3200x25000

Lead time

15 days

Minimum order

1 Units
