Title
Description
Part Number
307548, 306805, 307094, 303245, 304999, 309383-112, 309383-44, 309383-49, 309383-53, 309383-59, 309383-84, 309451 For OMAX
Part Name
Waterjet U-Bend Nipples
Specifications
307548: Nipple Assembly, Manifold, EnduroMAX. Package contains 1 each 306805 and 2 each 200823, 200106 and 200274 to make one complete nipple assembly. 306805: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 15 in., 60 KSI. Used in EnduroMAX pump manifold, also available as complete assembly 307548. 307094: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 28.46 in., 60 KSI. Used to connect MAXIEM line machines (except 0707) to the pump. 303245: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 80.125 in., 60 KSI. Used in Z-axis Assembly, Dual Y-Carriage of 55100, and Nozzle Inlet Valve. 304999: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 23.875 in., 60 KSI. Used in scissor plumbing of 55100 and 2652. 309383-112: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 112in., 60 KSI. 309383-44: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 44 in., 60 KSI. Used on Scissor Plumbing for 60120. 309383-49: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 49 in., 60 KSI. Used on Scissor Plumbing for 60120 and 2080. 309383-53: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 53 in., 60 KSI. Used on Scissor Plumbing for 80X, 80X-1, and 80160. 309383-59: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 59 in., 60 KSI. Used on Scissor Plumbing for 2080, 80X, and 80X-1. 309383-84: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 84 in., 60 KSI. Used on Scissor Plumbing for 60120. 309451: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 7.813 in., 60 KSI. Used in Scissor Plumbing of 60120, 80160, and 80X.
Products Description
Specialize In Supplying
400-700MPA Waterjet Cutting Parts
For 10 Years
Product Informations
Waterjet
U-Bend Nipples

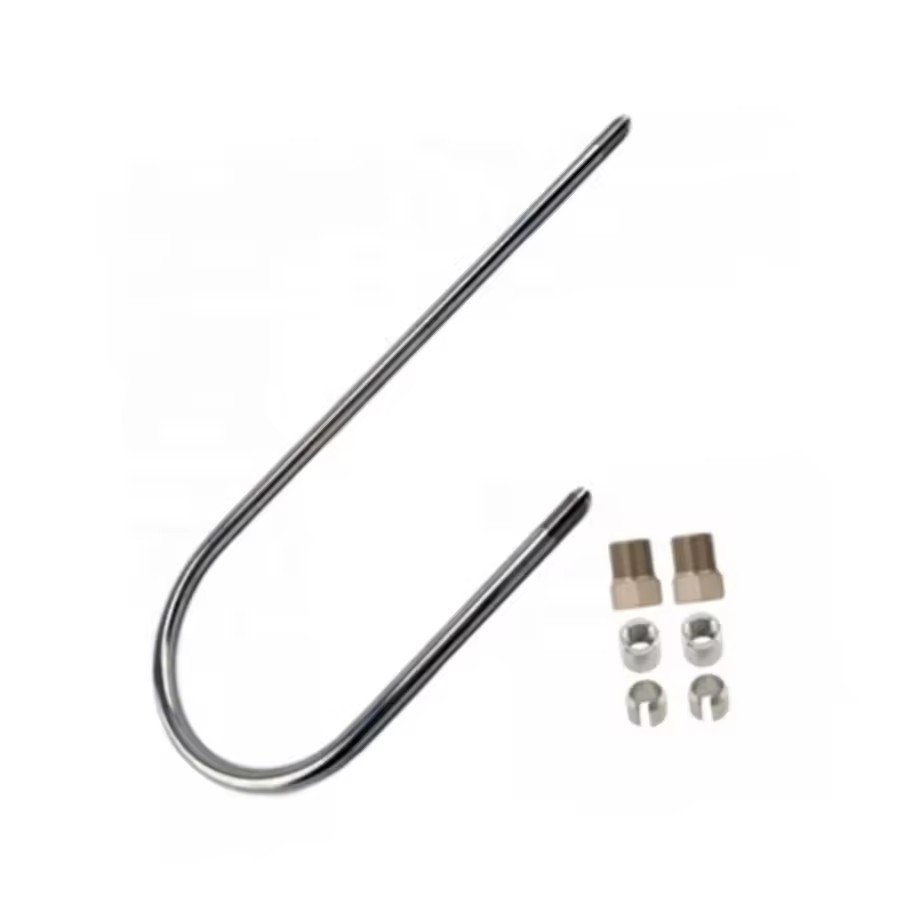

307548
Nipple Assembly, Manifold, EnduroMAX. Package contains 1 each 306805 and 2 each 200823, 200106 and 200274 to make one complete nipple assembly.
306805
Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 15 in., 60 KSI. Used in EnduroMAX pump manifold, also available as complete
assembly 307548.
307094
Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 28.46 in., 60 KSI. Used to connect MAXIEM line machines (except 0707) to the
pump.
303245
Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 80.125 in., 60 KSI. Used in Z-axis Assembly, Dual Y-Carriage of 55100, and
Nozzle Inlet Valve.
304999: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 23.875 in., 60 KSI. Used in scissor plumbing of 55100 and 2652.
309383-112: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 112in., 60 KSI.
309383-44: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 44 in., 60 KSI. Used on Scissor Plumbing for 60120.
309383-49: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 49 in., 60 KSI. Used on Scissor Plumbing for 60120 and 2080.
309383-53: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 53 in., 60 KSI. Used on Scissor Plumbing for 80X, 80X-1, and 80160.
309383-59: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 59 in., 60 KSI. Used on Scissor Plumbing for 2080, 80X, and 80X-1.
309383-84: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 84 in., 60 KSI. Used on Scissor Plumbing for 60120.
309451: Nipple, Bent, Stainless Steel, 3/8 OD X 0.125 ID X 7.813 in., 60 KSI. Used in Scissor Plumbing of 60120, 80160, and 80X.

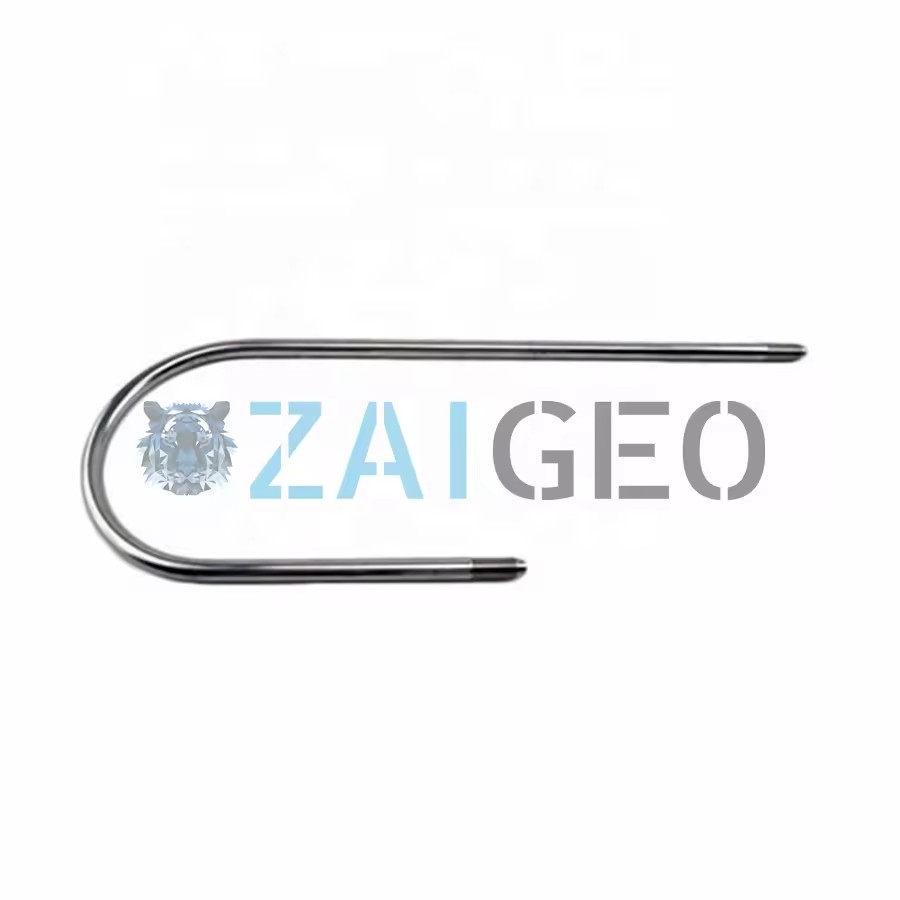

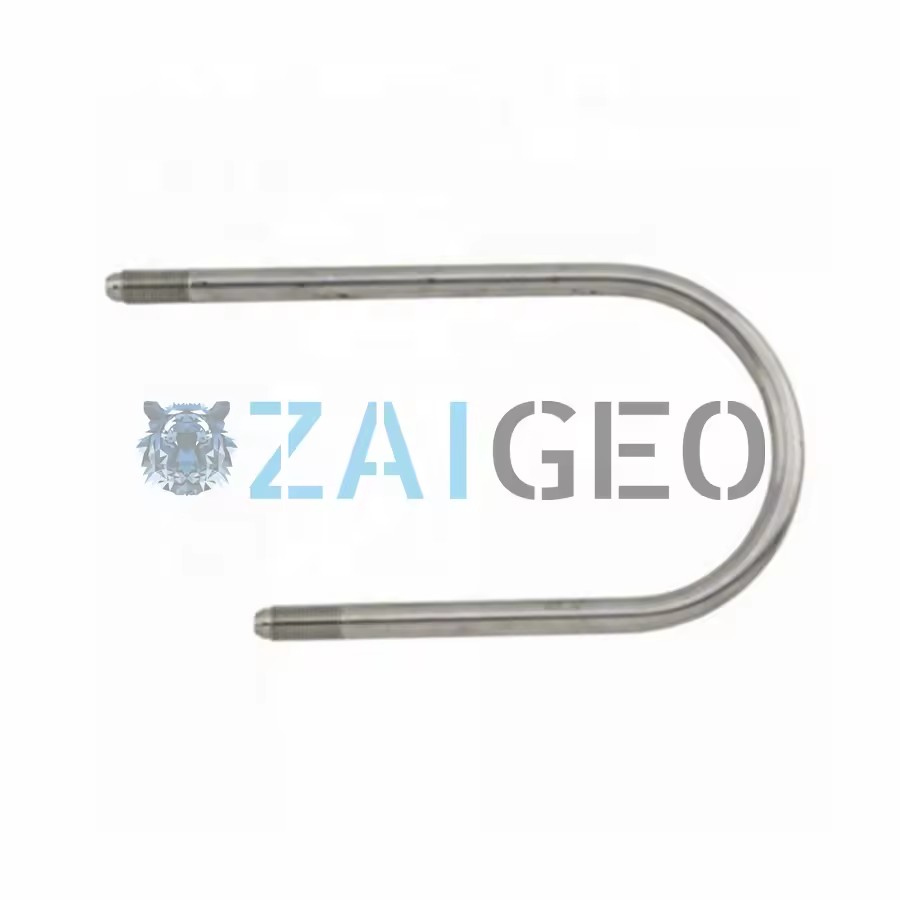

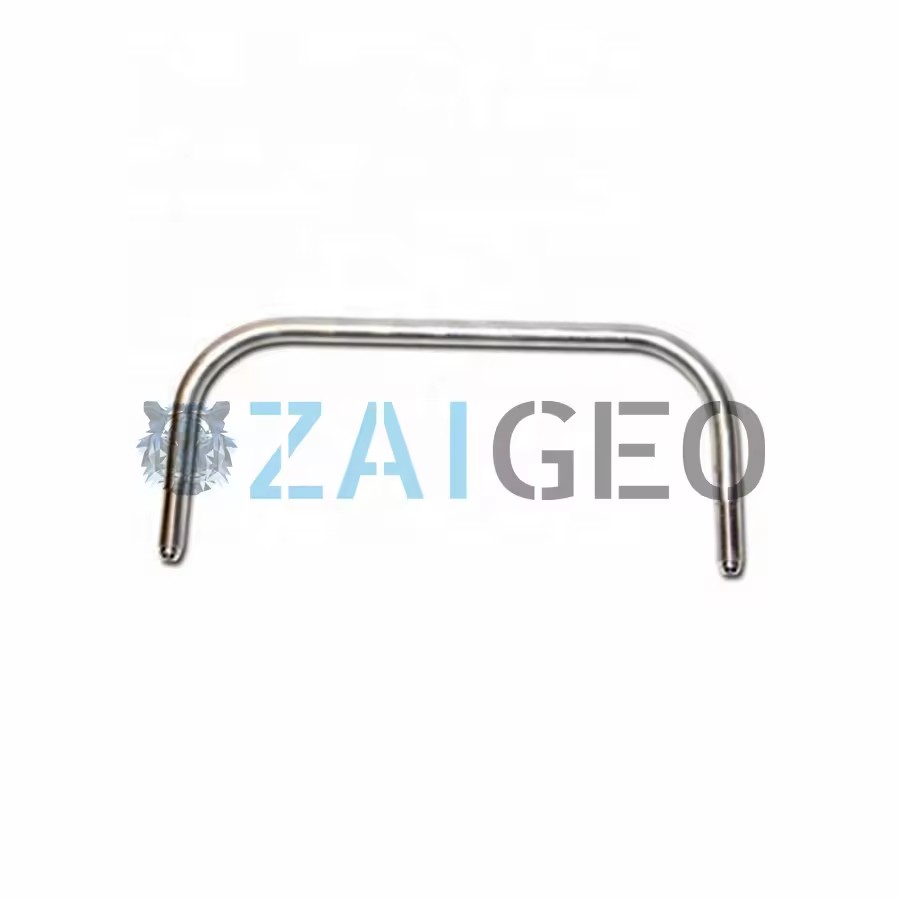

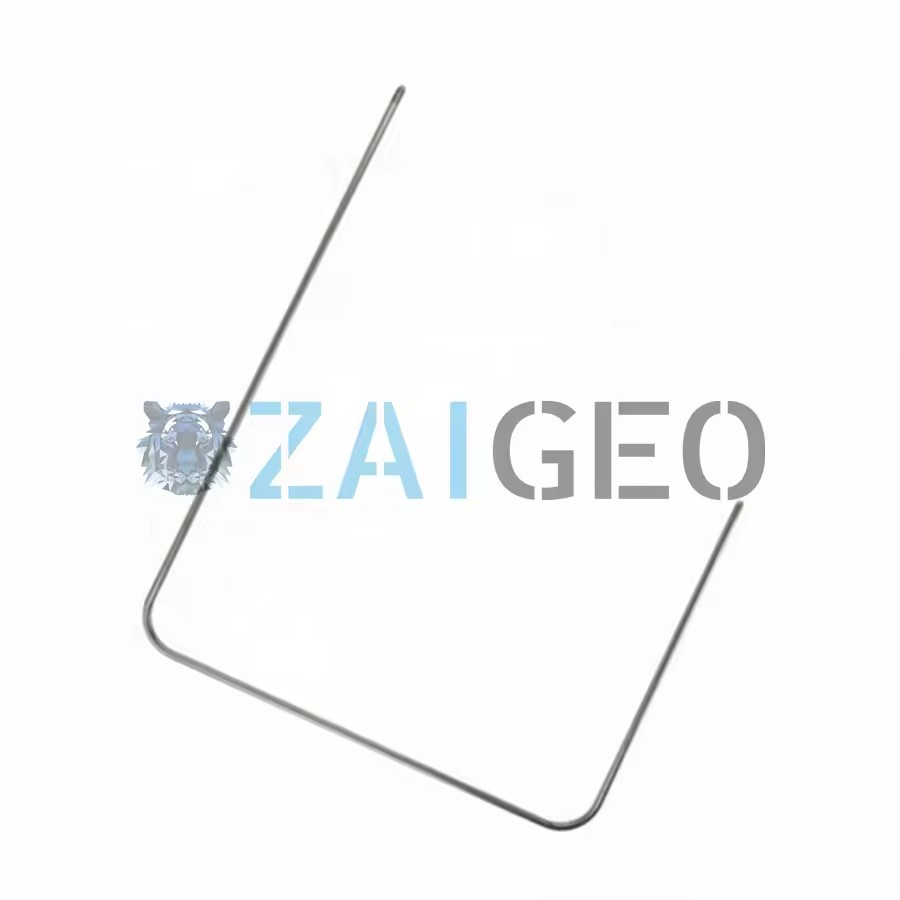

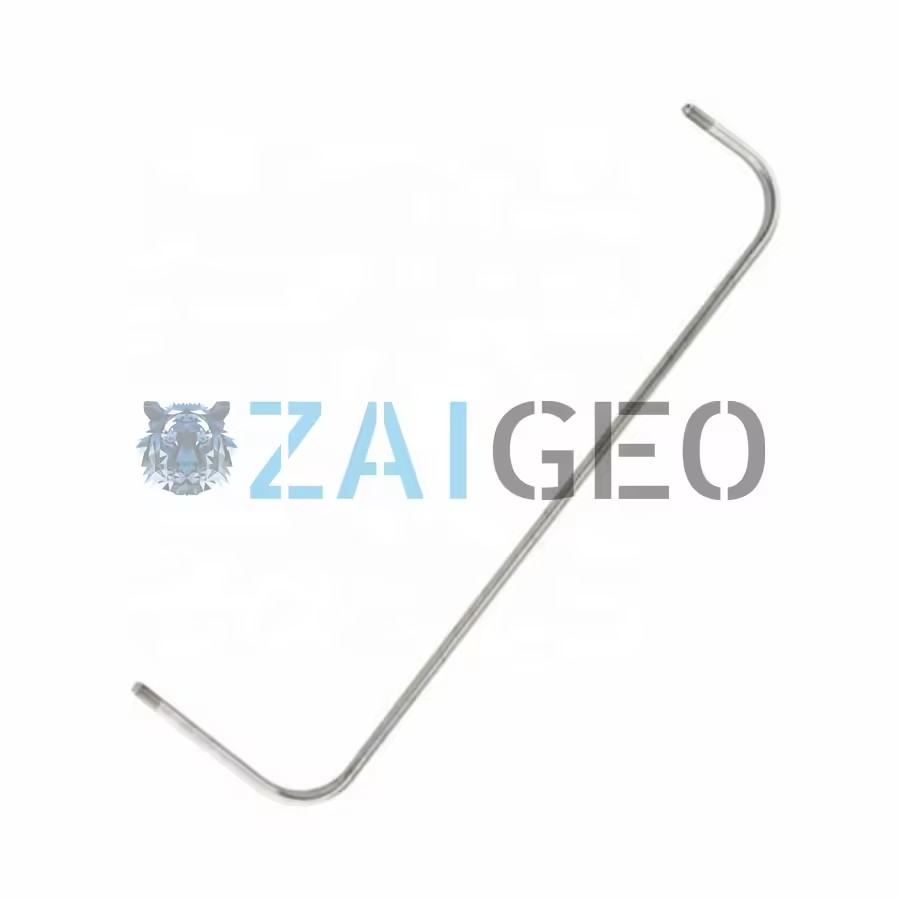

Detailed Photos
Company's Products
Waterjet Sapphire/Ruby/Diamond Orifice
Sapphire, ruby and diamond orifice.
Sapphire and ruby orifice start at just $1.99.
Diamond lifetime is more than 1000 hours.
Focusing tube/Mixing Tubes/Nozzles
OD 6.0, 6.35, 7.0, 7.14, 7.62, 7.97, 9.0, 9.45mm...
Length 50.8, 76.2, 79.5, 101.6, 120mm...
Waterjet Diamond Cutting Heads
For FLOW, KMT, OMAX, WJS, H2O, BFT...ect.
Lifetime is more than 1000 hours.
Waterjet Replacement Parts
For FLOW, KMT, OMAX, WJS, BFT, H2O, Dardi...ect.
High Pressure Components
1/4", 3/8", 9/16'' Tube
Elbow, Tee, Cross, Nipple
Straight Coupling, Swivel and Thread Tool...
UHP Industrial Cleaning Nozzles
1/4", 3/8", 7/16", M3, M4, M5, M6, M8, M10...
ID from 0.05mm to 1.50mm.
Company Profile and Factory
waterjet has been specializing in 480-680 MPa (60K-90K) waterjet cutting parts and UHP (Ultra High Pressure) industrial cleaning nozzles for 10 years. Our primary product range includes waterjet nozzle, mixing/focusing tubes, waterjet sapphire, ruby, diamond orifice, diamond cutting heads and waterjet replacement parts for various brands such as FLOW, OMAX, KMT, WJS, Jet Edge H2O, Dardi, BFT, Accustream etc.
Furthermore, we manufacture a wide variety of high-pressure cleaning nozzles and industrial cleaning nozzles, available in specifications including 1/4", 3/8", 7/16", M3, M4, M5, M6, M8, M10. These nozzles perform exceptionally well, withstanding pressures of up to 480 MPa. Our applications cover a broad spectrum, including industrial washing, ship cleaning, sidewalk and driveway cleaning, zebra crossing cleaning, sewer cleaning, wall cleaning, and more.
Leveraging our state-of-the-art facilities and extensive experience in the waterjet industry, we possess the capability to design a wide array of plastic and metal components for waterjet applications. This includes high-pressure cylinders, mixing chambers, diamond cutting heads, and many shapes of waterjet nozzles. We also offer specialized customization to meet your specific requirements.
