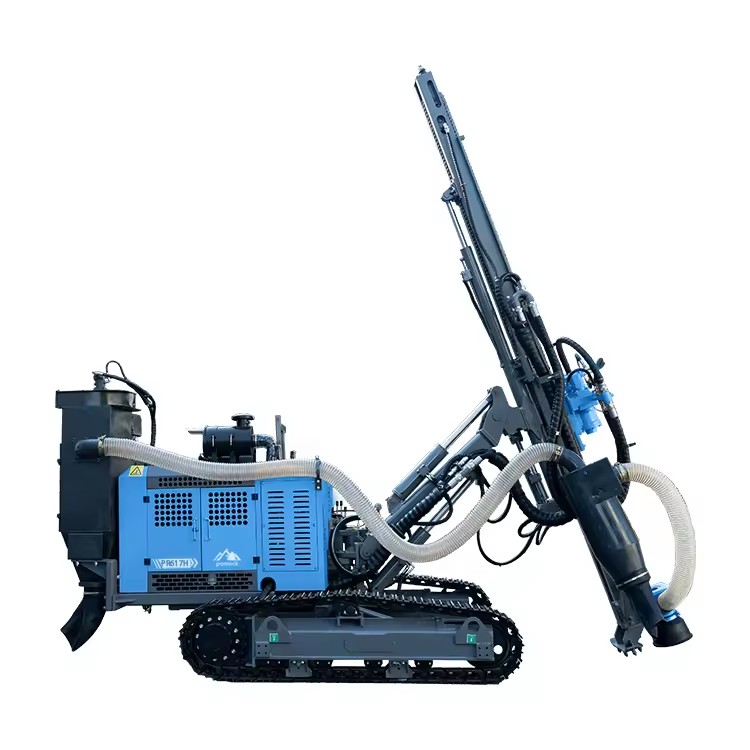

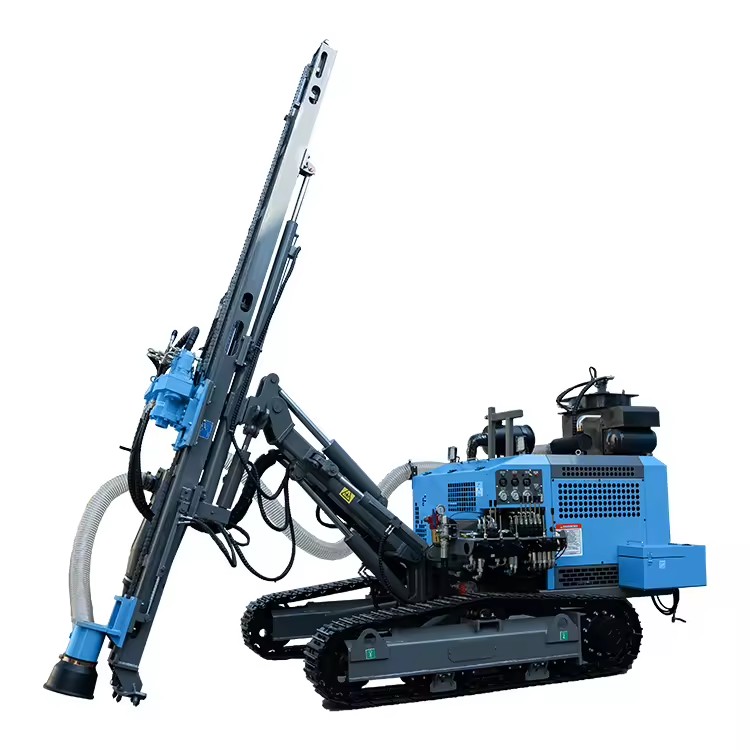

PR617H Top Quality Track-mounted Rock Drill Diesel Multifunctional Rock Bore Hole Drilling Machine Mine Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 25,280.00 25280.0 USD $ 25,280.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Drilling Rig
Drilling Depth
30m(98.43ft)
Drilling Diameter
90-100mm(3.54-3.94in)
Core components
Engine
Warranty
1 Year
Machinery test report
Provided
Product description
Drilling rig model617H Down-the-Hole Drill Rig

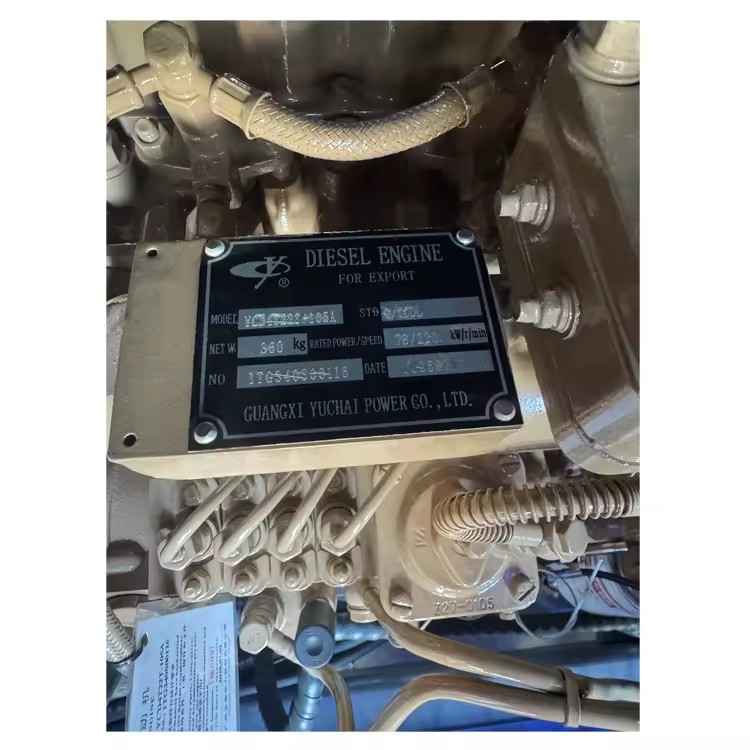

Supporting powerYuchai YCD4T22T-105A
Rated Power78KW
Drilling DiameterΦ90-100mm
Economic drilling depth30m
Drill pipe specificationsΦ64mm *3000mm
Matching impactor3”/4”
work pressure0.8-1.6Mpa
Air consumption9-15cm³/min
Maximum slewing torque2400N.m
Rotation speed0-150r/min
Advance the itinerary3340mm
Advancing compensation900mm
Propulsion15kn
Lifting power25kn
Propulsion methodOil cylinder
walking speed0-2km/h
Climbing ability25°
ground clearance450mm
Overall machine weight4526kg
Shipping dimensions5500*2050*2200
fuel tank capacity70L
Dustproof method8-Core dry dust collector
Description images

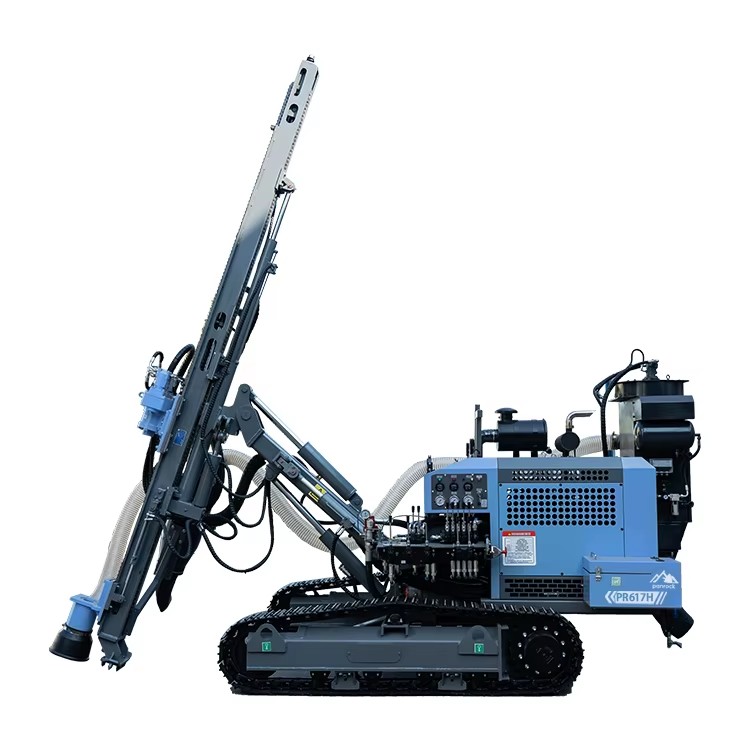

Product detail

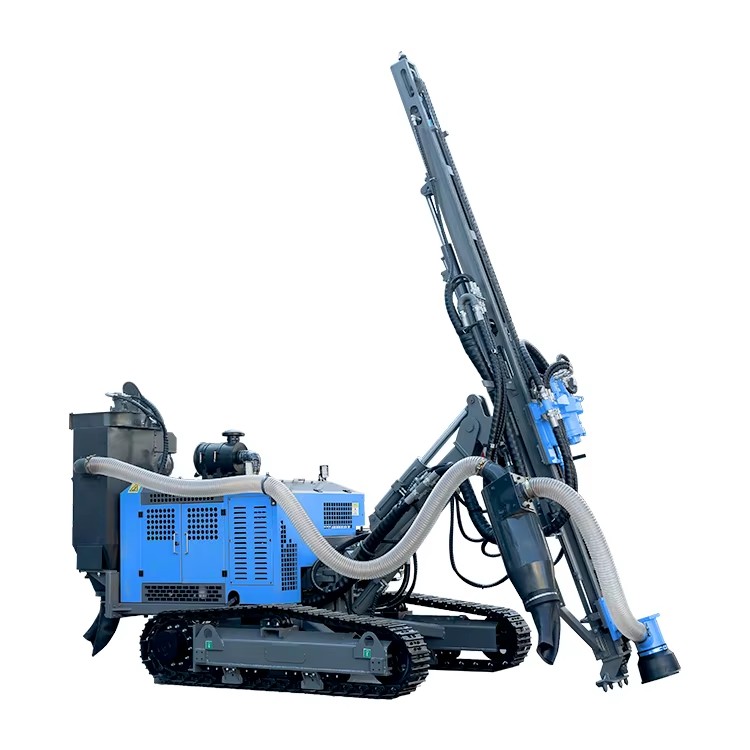

Product detail

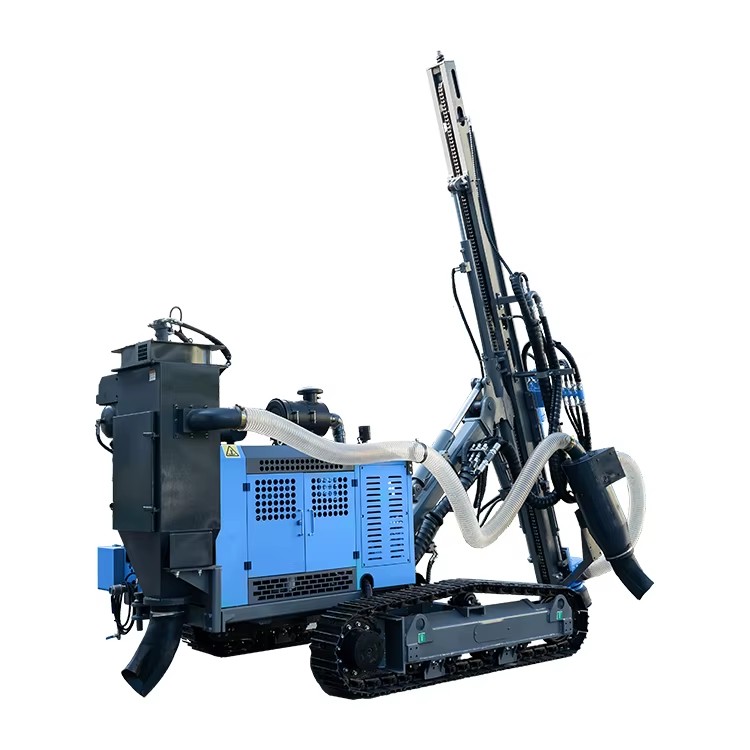

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Type
Drilling Rig
Drilling Depth
30m(98.43ft)
Drilling Diameter
90-100mm(3.54-3.94in)
Core components
Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
Zhejiang, China
Weight
4526 KG(9978.12lb)
Drilling rig model
617H Down-the-Hole Drill Rig
Supporting power
Yuchai YCD4T22T-105A
Rated power
78KW
Drill pipe specifications
64mm *3000mm
Work pressure
0.8-1.6Mpa
ROTATION SPEED
0-150r/min
Shipping dimensions
5500*2050*2200 mm
Dustproof method
8-Core dry dust collector
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
PR617H
Power (W) (Product option)
78KW(104.60hp)
Lead time
15 days
Minimum order
1 Units
