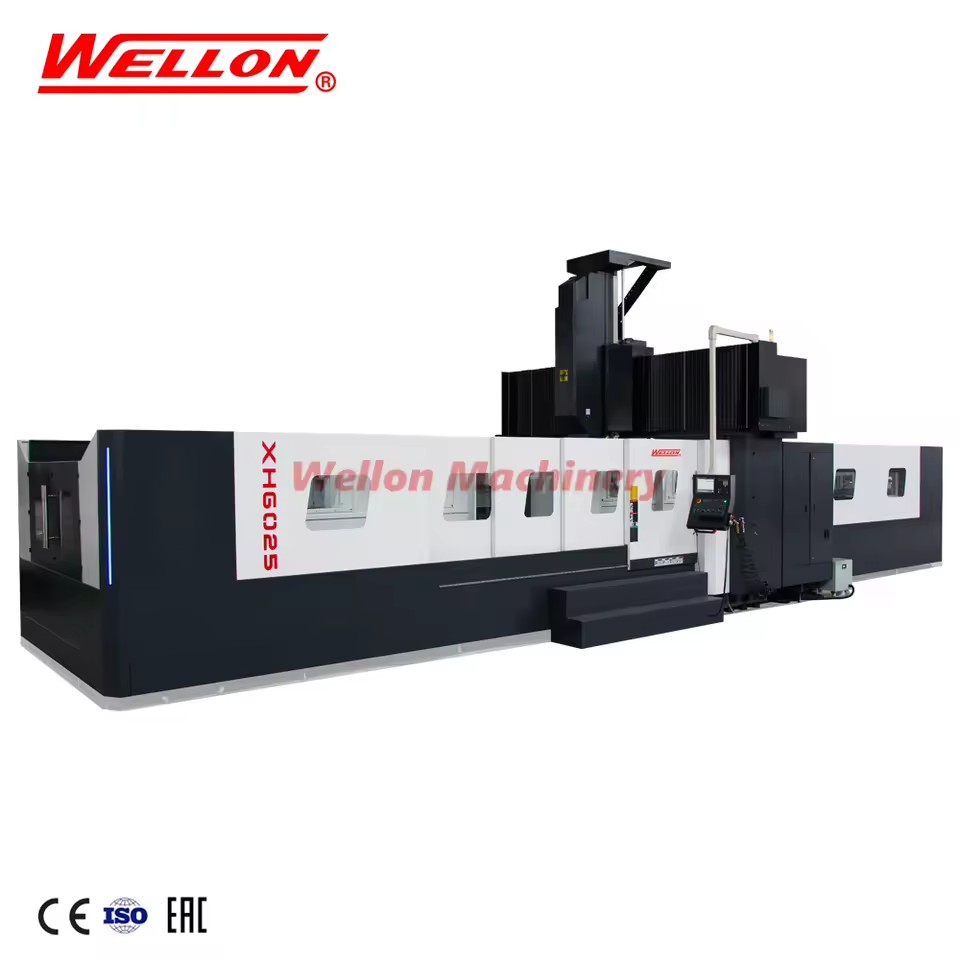

XH6025 Heavy Duty CNC Gantry Machining Center 6000mm X Travel BT50 Spindle 24ATC Hiwin Guideway Metal Mill

Available for enquiry 0.0 · 0 reviews
USD

$ 250,270.00 250270.0 USD $ 250,270.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Double Column
Table travel (x) (mm)
6000
Table travel (y) (mm)
2700
Table travel (z) (mm)
1000
Repeatability (x/y/z) (mm)
0.005
Positioning accuracy
0.008
Product description

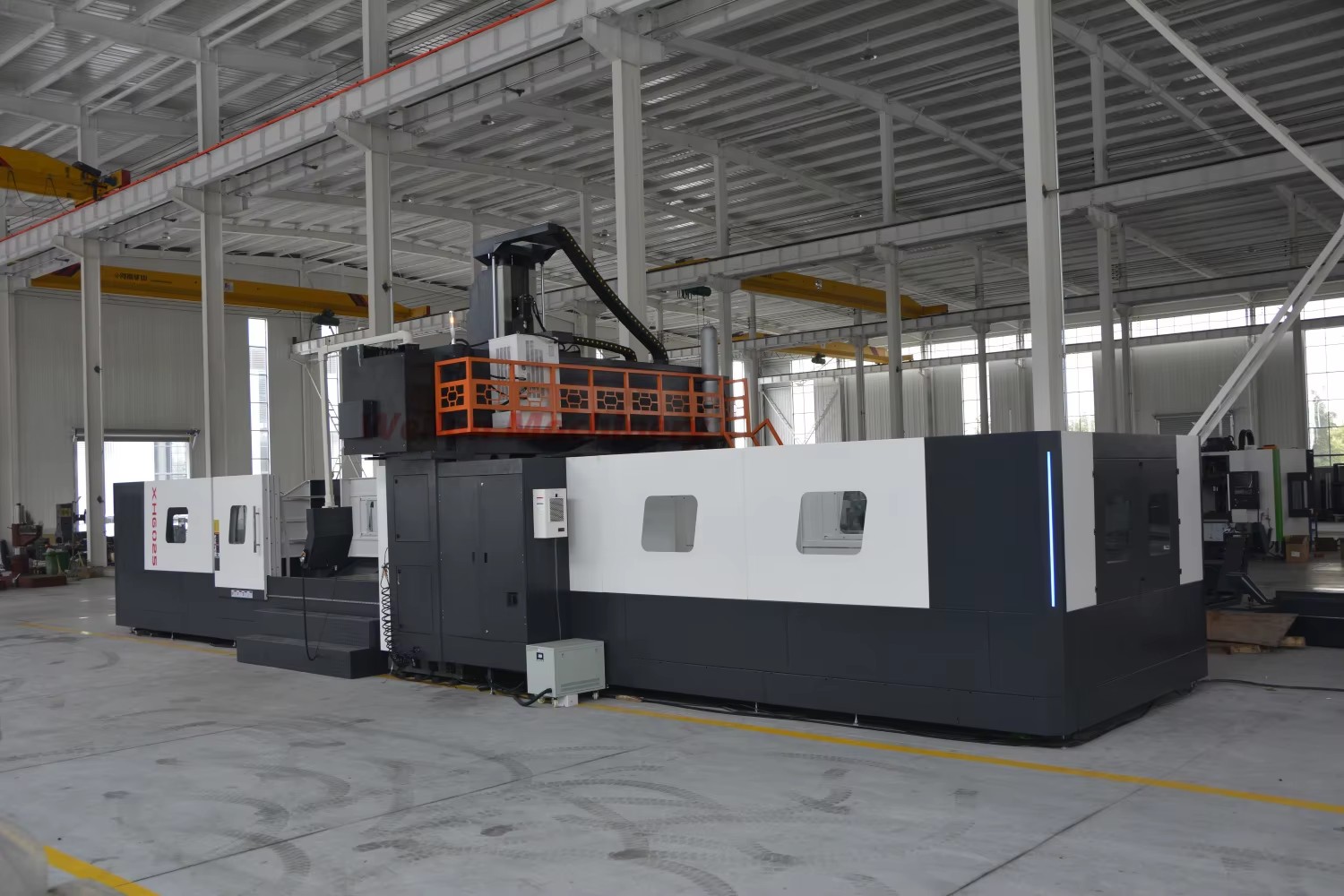

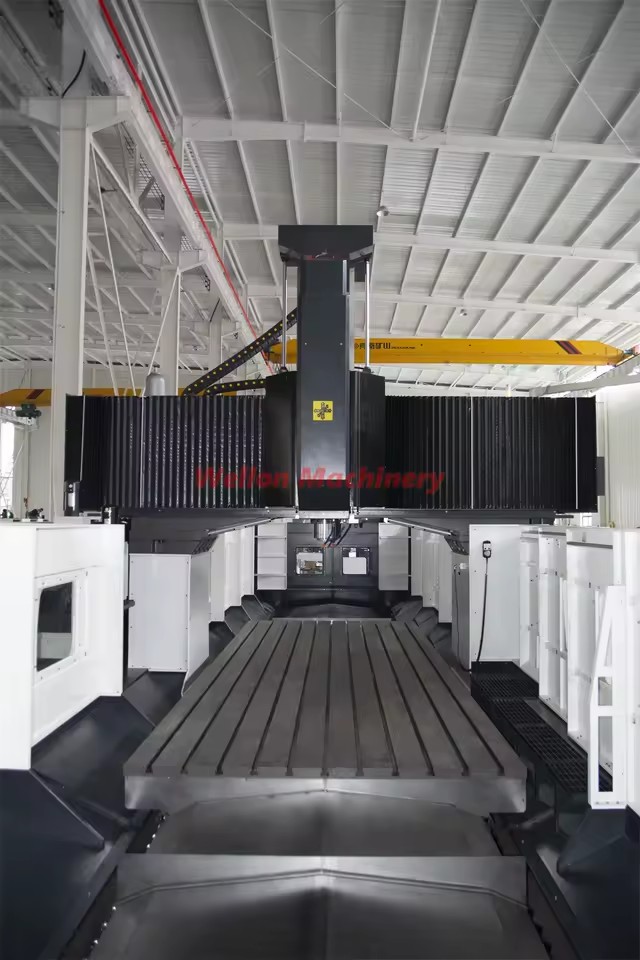

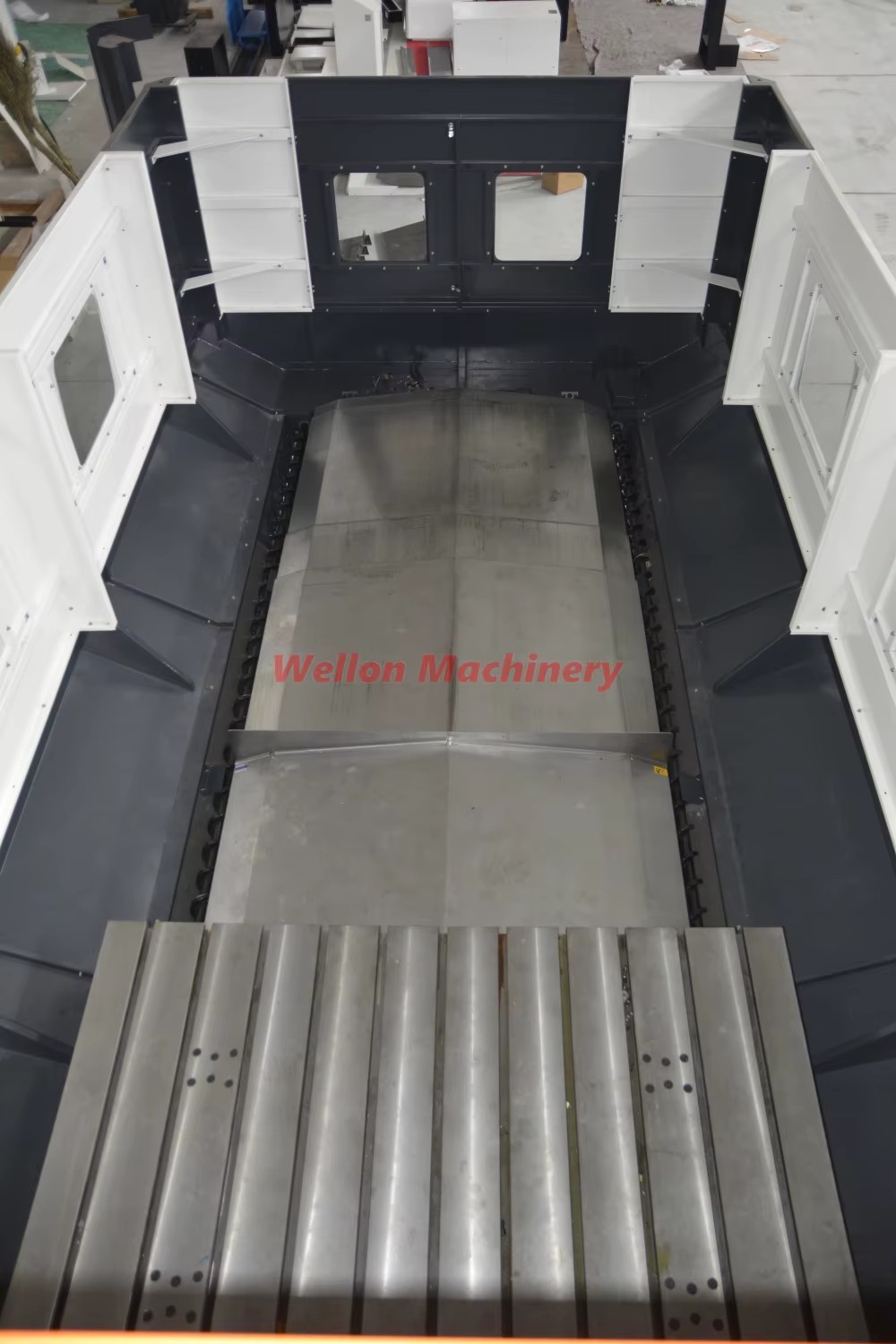

  • Heavy-Duty Gantry Structure with Ultra-Large Machining Range Built with a high-rigidity integral gantry frame, the XH6025 features 6000x2700x1000mm XYZ axis travel and a 6000x2300mm worktable with 18-ton maximum load capacity. It supports one-time clamping of oversized workpieces like large molds, heavy steel plates and structural components, effectively reducing repositioning errors and boosting processing efficiency for large-scale parts.

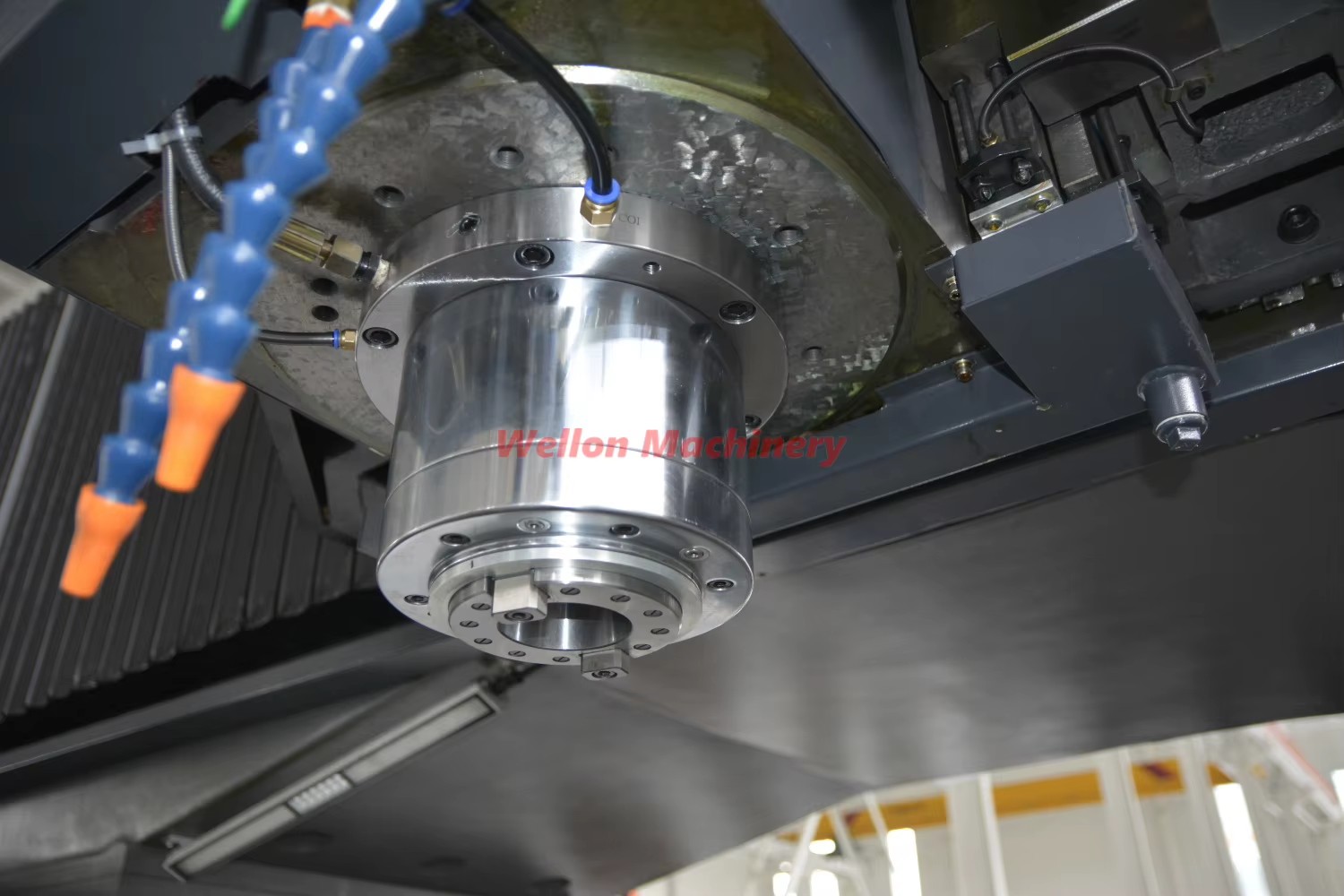

  • High-Precision Drive System & Powerful BT50 Spindle Adopting Hiwin linear guideways and ball screws, the machine delivers smooth and precise axis motion. The BT50 belt-driven spindle with 22kW power and 6000rpm max speed provides strong cutting force for steel, cast iron and alloy materials. Its excellent positioning and repeatability accuracy ensure stable machining quality for both heavy roughing and precision finishing.

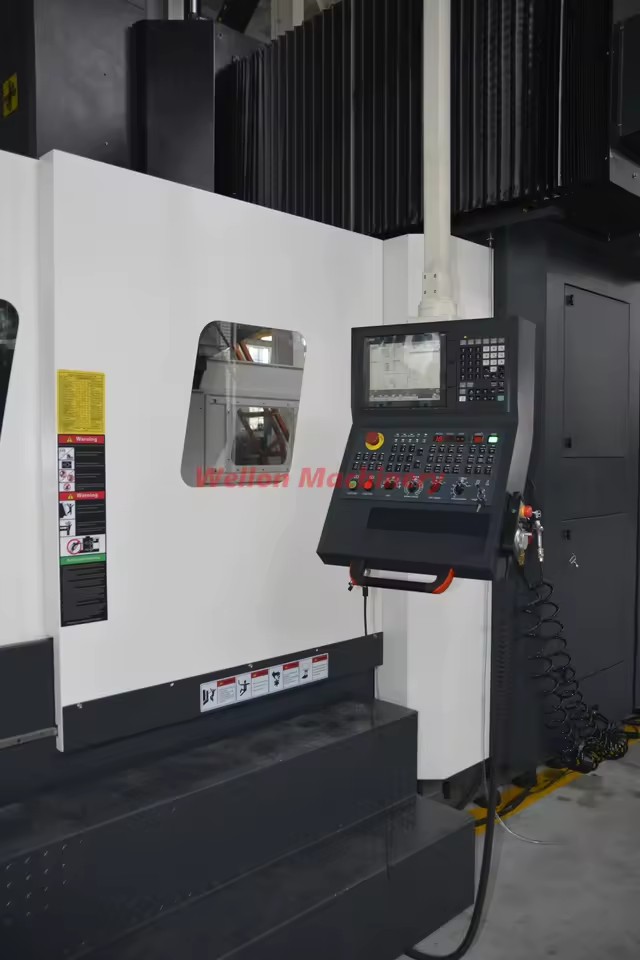

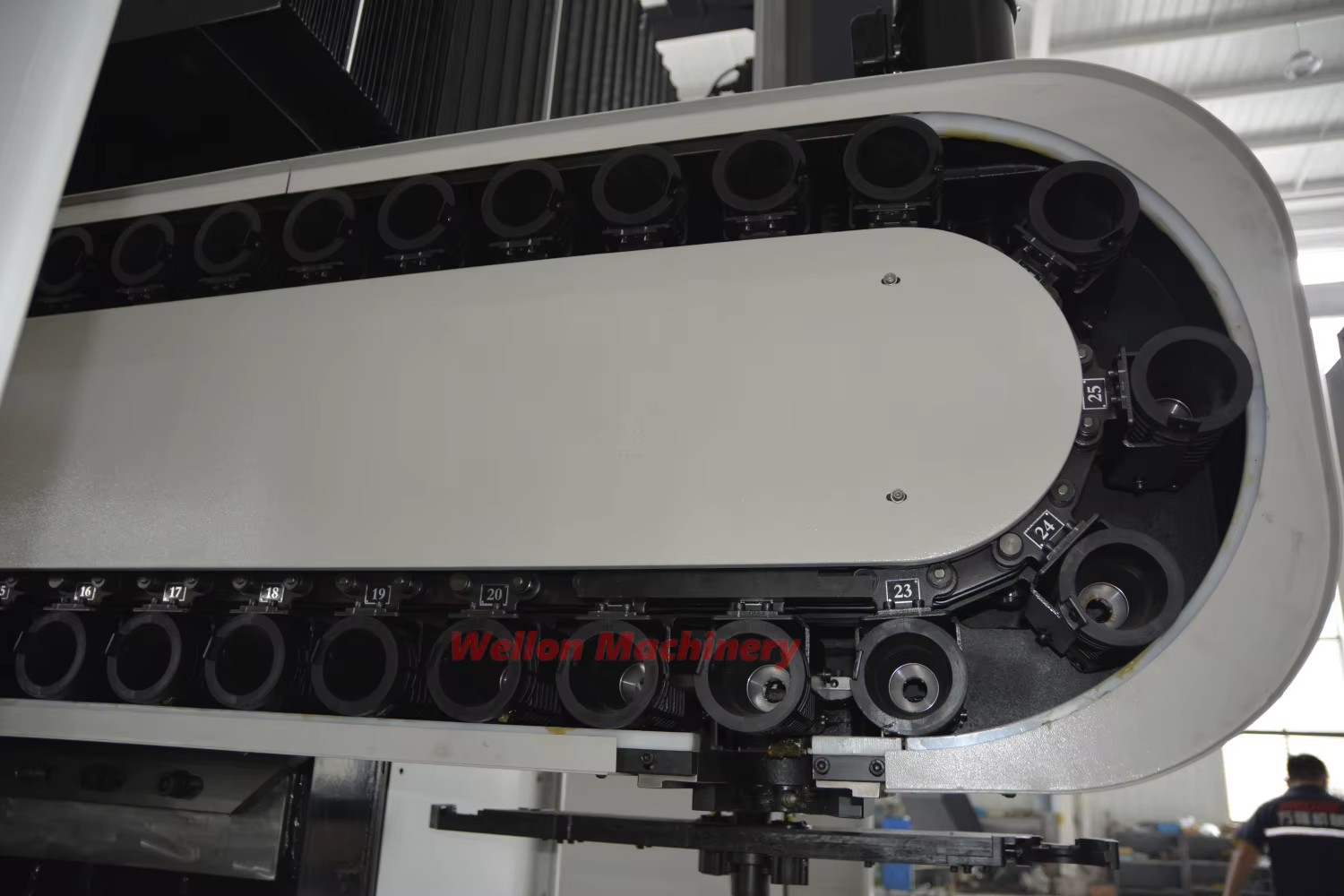

  • Reliable CNC System with Practical Standard Configurations Equipped with the globally recognized CNC controller, like Fanuc/mitsubishi...it ensures stable operation and easy programming. Standard configurations include a 24-position disc tool magazine for efficient tool change, nitrogen balance cylinder, automatic lubrication system, electrical cabinet air conditioner, and combined screw + chain chip conveyors, supporting long-time continuous production with minimal manual intervention.
  • Multi-Process Capability for Wide Industrial Applications This gantry machining center integrates milling, drilling, boring, tapping and face machining functions in one unit. It is perfectly suitable for large mold making, engineering machinery, wind power components, steel structure and aerospace parts processing, helping users reduce multi-equipment investment and shorten production cycles significantly.
    • Description images
    XH6025 Heavy Duty CNC Gantry Machining Center 6000mm X Travel BT50 Spindle 24ATC Hiwin Guideway Metal Mill
    XH6025 Heavy Duty CNC Gantry Machining Center 6000mm X Travel BT50 Spindle 24ATC Hiwin Guideway Metal Mill
    XH6025 Heavy Duty CNC Gantry Machining Center 6000mm X Travel BT50 Spindle 24ATC Hiwin Guideway Metal Mill
    XH6025 Heavy Duty CNC Gantry Machining Center 6000mm X Travel BT50 Spindle 24ATC Hiwin Guideway Metal Mill
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      60 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 38 fields
    Type
    Double Column
    Table travel (x) (mm)
    6000
    Table travel (y) (mm)
    2700
    Table travel (z) (mm)
    1000
    Repeatability (x/y/z) (mm)
    0.005
    Positioning accuracy
    0.008
    Spindle taper
    BT50
    No. of Spindles
    Single
    Tool magazine capacity
    24
    CNC control system
    FANUC
    Machining capacity
    Heavy Duty
    Voltage
    380 V, Optional
    Table size
    6000x2300mm(236.22x90.55in)
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Min. time of tool change(s)
    6
    Key selling points
    Automatic, Multifunctional, High-Accuracy, Long Service Life
    Weight (t)
    50
    Max. table load(kg)
    18000
    Place of origin
    China, Shandong
    Dimension(L*W*H)
    13750*5140*4100
    Range of spindle speed
    0 - 6000
    Machine type
    Double Column Machining Center
    Control system
    Fanuc/Mitsubishi System
    After-sales Service Provided
    Online Support/Engineers
    Color
    Customization services are available
    X/Y/Z axis travel
    6000/2700/1000mm
    Spindle nose to worktable
    280-1280mm
    Distance between two columns
    2700mm
    Worktable Size
    6000*2300mm
    Max loading capacity
    18Ton
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    XH6025
    Number of axes (Product option)
    3
    Spindle motor power
    22kw(29.50hp)
    Lead time
    60 days
    Minimum order
    1 Units
