Product description
304stainless steel cutting table avoidmetal corrosion,no paint

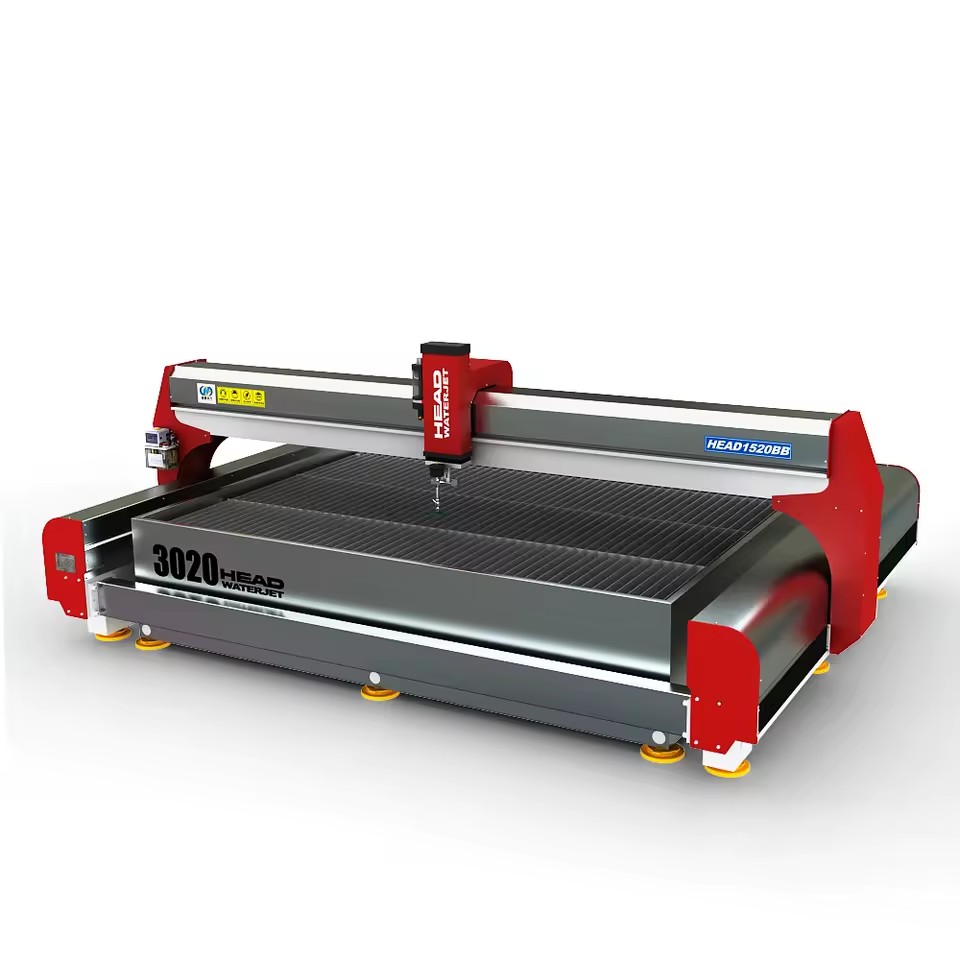

A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.

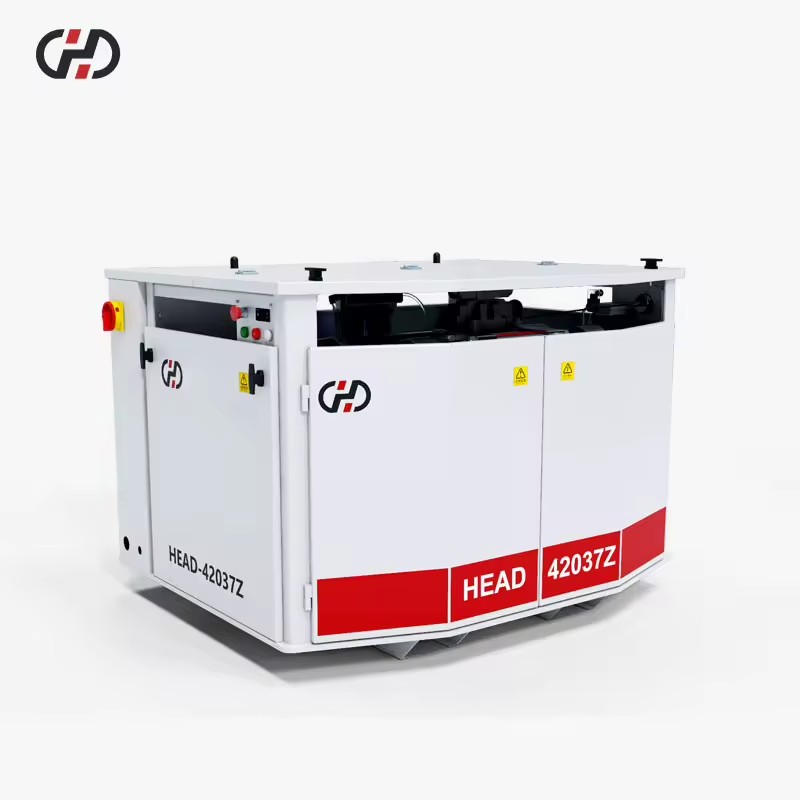

•50 HP High 420 MPa pressure for smooth finish cutting at high speed. •Main heart of Supercharger, "Intensifier" is "". •User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. •All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
•5 axis cutting enables operators to cut bevels and mitre cuts up to 45 degrees. provides the option to activate a "taper compensation" setting which offsets the taper in the water stream to accurately achieve the desired angle.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
>>>Brief Introduction Of waterjet company
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
>>View of Company honor
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials. Q3: How fast of speed? A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Our Package Advantage: 1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
WATER JET MAKES CUTTING IS NO LONGER PROBLEM!
Please
Product Description
Features
•50 HP High 420 MPa pressure for smooth finish cutting at high speed.
•Main heart of Supercharger, "Intensifier" is "".
•User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.
•All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
Machine parts show

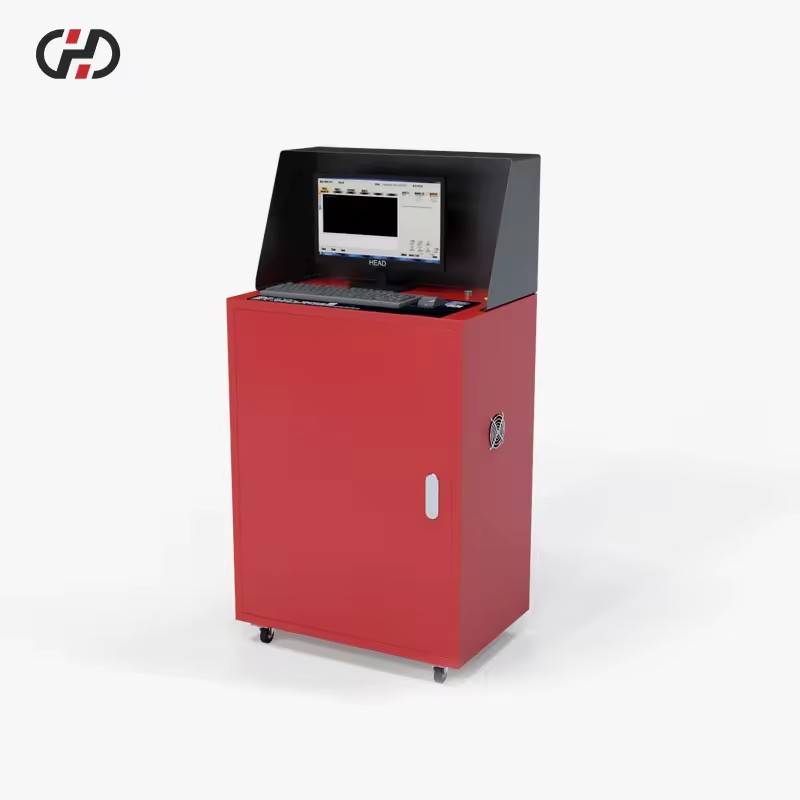

* To control all the cutting process
* Shanghai "WEIHONG"brand
* Easy to operate in just 8 hours to learn
Detailed Images
About our company
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team.
water jet, so cutting is no longer a problem!
Service & FAQ
1. Maintenance free of charge for
12 months.
2. We will provide the consumable parts at an agency price.
3.
24 hours online service
free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training
including working principle of machine, Auto CAD drawing, common problems and solution, etc
>>>Try to Read This · FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Transaction Details
Packing & Delivery
Our Package Advantage
1. Our
Wooden Case
is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery
we would do the test about
20-30
working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
