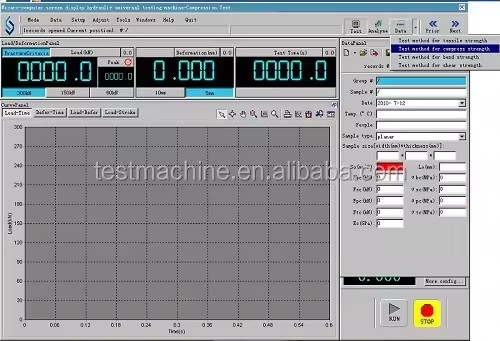

Product Importer Gallery 02 · c81b648438

Product Importer Gallery 03 · 05680f92c8

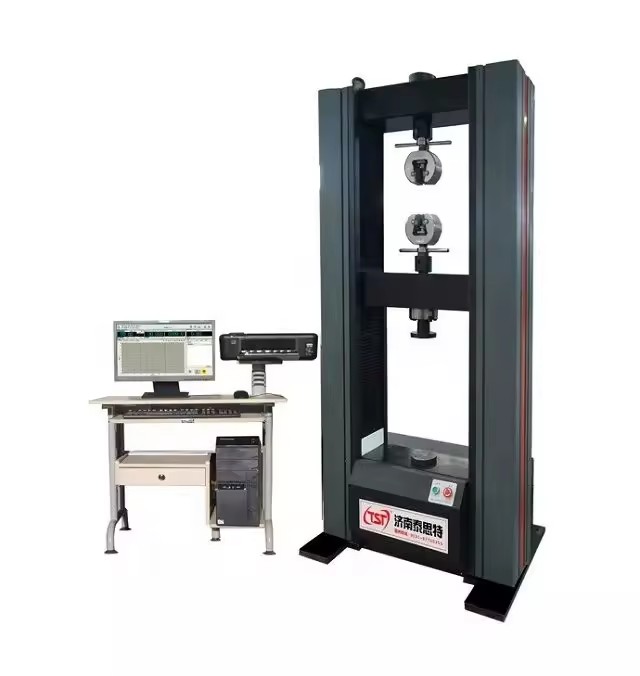

Product Importer Gallery 04 · 9b5df2d934

Product Importer Gallery 05 · f9dd94b2e9

Product video

TST High Accuracy Universal with 0.1%~0.5% FS 110V/220V/380V 1-Year Warranty IP65 Protection

Name: TST High Accuracy Universal with 0.1%~0.5% FS 110V/220V/380V 1-Year Warranty IP65 Protection
SKU: NTY8-K8NG-T3TQ
Price: 7820.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 7,820.00 7820.0 USD $ 7,820.00

Minimum order quantity: 1 Units

Key attributes

View all

Application

Universal

Accuracy Class

High Accuracy

Voltage

380 V, 220 V, 110 V

Protection Class

IP65

Warranty

1 Year

Customized support

OEM, ODM, OBM

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean + Truck via Maersk · Approx. shipping fee: $ 148.24 for 1 piece · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Serial Number	Project	Specification parameters
1	Maximum Test Force	3000KN
2	Test Force Measurement Range	1%-100%
3	Test Force Indication Accuracy	Within ±0.5%
4	Displacement Measurement Resolution	0.01mm
5	Constant Force Control Accuracy& Constant Deformation Control Accuracy& Constant Displacement Control Accuracy	When the set value is ≤ 10% FS, within ±1% of the set value; when the set value is ≥ 10% FS, within ±0.5% of the set value.
6	Deformation Rate Control Accuracy	When the rate is less than 0.05%FS, it is within ±2% of the set value. When the rate is greater than or equal to 0.05%FS, it is within ±0.5% of the set value.
7	Minimum Distance Between Two Grips	50mm
8	Minimum Gripping Length of Specimen	800mm
9	Maximum Compression Space	550mm
10	Clamping Range for Round Specimens	∅13-∅30 ∅30-∅50 ∅50-∅70 ∅70-∅90
11	Clamping Range for Flat Specimens	0-90mm
12	Maximum Stroke of Main Cylinder	650mm
13	Rated Pressure of Main Cylinder	25MPa
14	Maximum Clamping Force of Clamping Cylinder	3000KN
15	Rated Pressure of Clamping Cylinder	25MPa
16	Overall Dimension of Main Machine	1600X1200X4200mm

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Ocean + Truck via Maersk · Approx. shipping fee: $ 148.24 for 1 piece · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 12 fields

Application

Universal

Accuracy Class

High Accuracy

Voltage

380 V, 220 V, 110 V

Protection Class

IP65

Warranty

1 Year

Customized support

OEM, ODM, OBM

Power

1.5KW

Accuracy

±0.1% ~ ±0.5% FS

Place of origin

Jinan shandong

Selling Units

Single item

Single package size

80X60X180 cm

Single gross weight

380.0 kg

Lead time

20 days

Minimum order

1 Units
