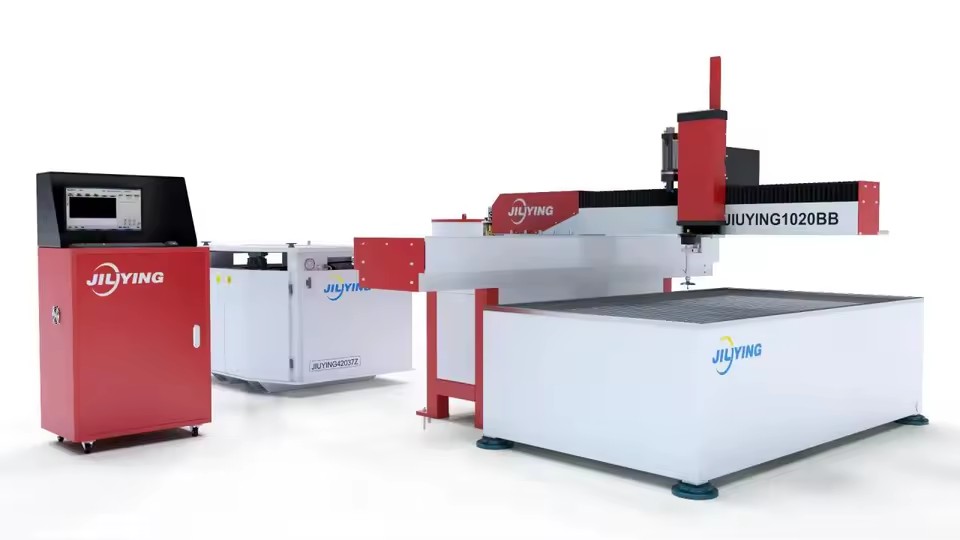

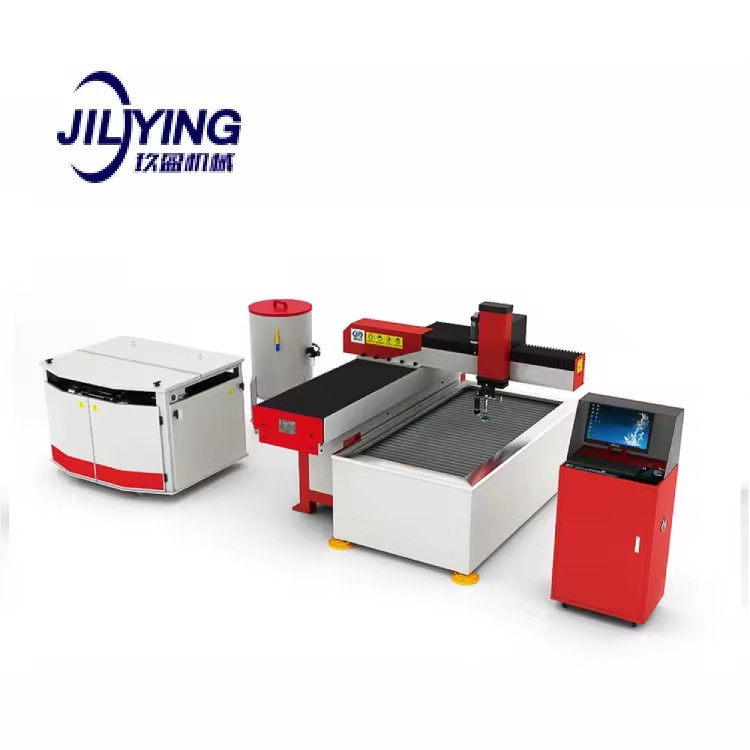

CNC Mini Water Jet Cutting Machine 30k Water Jet Cutting Machine Combined Cnc Table for Laser and Waterjet Cutting System

Good Sell CNC Flame Cutting Machine Plasma for CNC Gantry Plate Plasma Cutting Machine

Maximum cutting range(mm)

3000x2000

2500x1500

2000x1500

1500x1500

1500x1000

800*800

The turret trip(mm)

0-200

Driveing speed /servo motor(mm/min)

0-10000

Cutting precision(mm)

0.2

Control precision(mm)

0.05

Air compressor pressure(mpa)

0.6-0.8

Grit size

600-100

Software

CNC

Recommended by seller

$1,900-2,100

set

$8,912.35-9,325.21

Product description

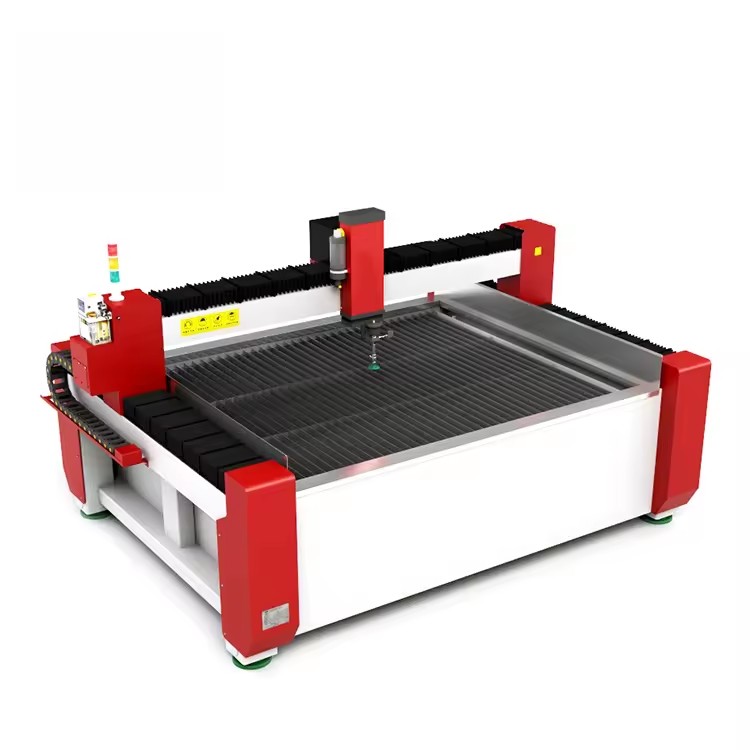

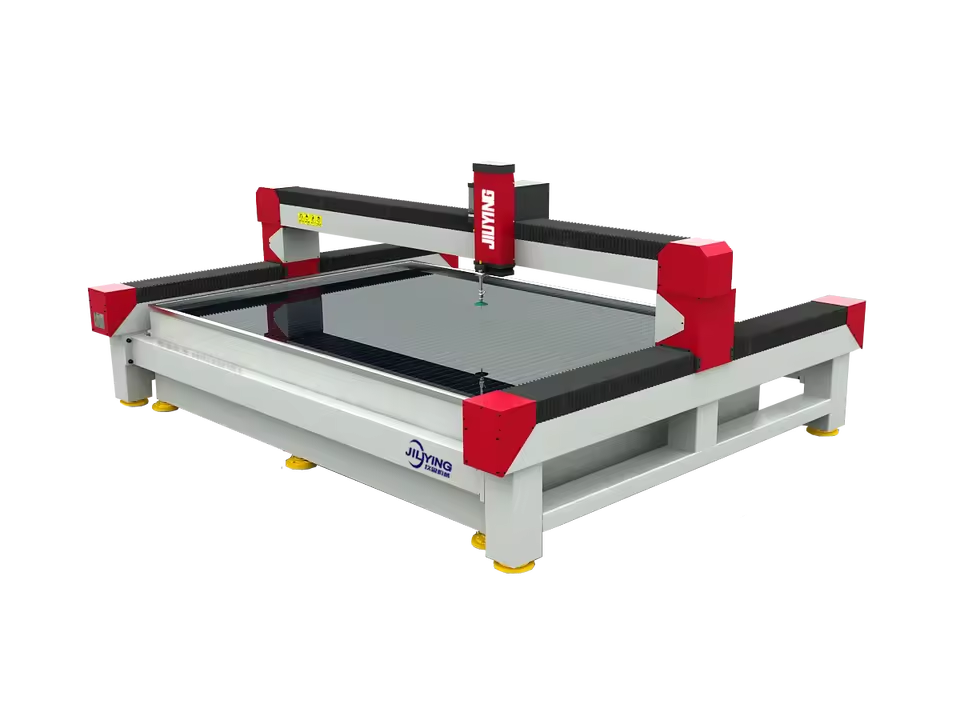

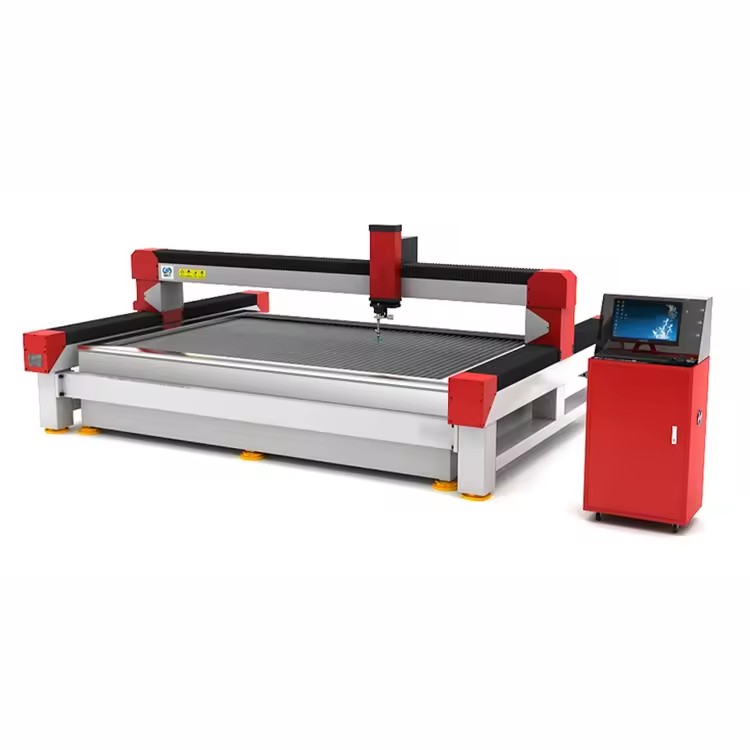

Characteristics of Px waterjet cutting platform

* Cantilever structure occupy less area and easy to use.

* The structure is strong and stable.

* The cutting platform uses high-quality liner guiding rail and rolling lead screw.

* Adopt servo-control system which makes the operation more stable.

* Centralized automatic lubrication system, humanization design, automatic equipment maintenance.

Simple, efficient, energy-saving.

The high pressure system is equipped with high pressure safety valve,which helps to achieve the

infinitely adjustment in high and low pressure condition and the overload protection. It is also equippedwith frequency changer which makes the perforating in the low pressure condition and cutting in the high pressure condition possible

Automatic cooling system, which is no need extra energy, can keep the machine working in 24 hours.

The temperature controlling system helps to check the operation condition of the machine.

Delivery pressure: 60. OOOpsi

Cooling system:automatic circulating cooling system.

Hydraulic pump:It uses the international high-end variable displacement plunger pump.

Water filter:three-layer filtering system.

Safety protection system:protection system of oil temperature, water pressure and oil pressure

Booster pump:It has the 60.000psi supercharger, powerful accumulator, high pressure water switch and pipeline system.

Application Field

Company Profile

Company Information

We are an enterprise specializing in the development and sales of CNC machine tools and automatic welding equipment. Our main products are shearing machines, bending machines, rolling machines, punching and shearing machines, presses, hydraulic presses, plasma cutting machines, sealing machines, welding equipment, polishing equipment and so on.

We adhere to the principle of "customers are the first priority" and continue to pursue innovation and development. We also strive to develop high-tech products to meet the needs of customers in different industries. Our goal is to become the most competitive enterprise in the field of providing automation products and cutting and welding equipment industry services. In short, join us and create a better future together, because J&Y can become your most reliable business partner!

Our order and visitors

Why Choose Us

Packaging & Shipping

FAQ

Waterjet cutting machine software

International advanced level water jet cutting dedicated software.

Processing program synchronizes with graphics simulation which can help to avoid processing error.

Automatically display cutting length of each part to make calculation convenient for customers.

It can set X,Yaxis stroke soft limit to prevent the cutting head from going beyond the limit.

Combine with graph of AUTO CAD drawing software.

Automatically generate the NC programming.

Automatic sand feeding system

Labor saving

It can control the amount of sand

It can store 150 kilograms sand for once

It can serve for two machines simultaneously.

Roll-over worktable

The roll-over table can turn over 85 degree angles.

It makes the material getting on and off the worktable more convenient and reliable.

Adopt high-power hydraulic station which can bear 600kg materials.

Customers can handle the operation directly on the worktable.

Working Environment

The working conditions and environments used are

1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements) or Input power: 220V ± 5% / 60Hz± 1, three-phase

2. Ambient temperature: 0℃-45℃

3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%

The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.
