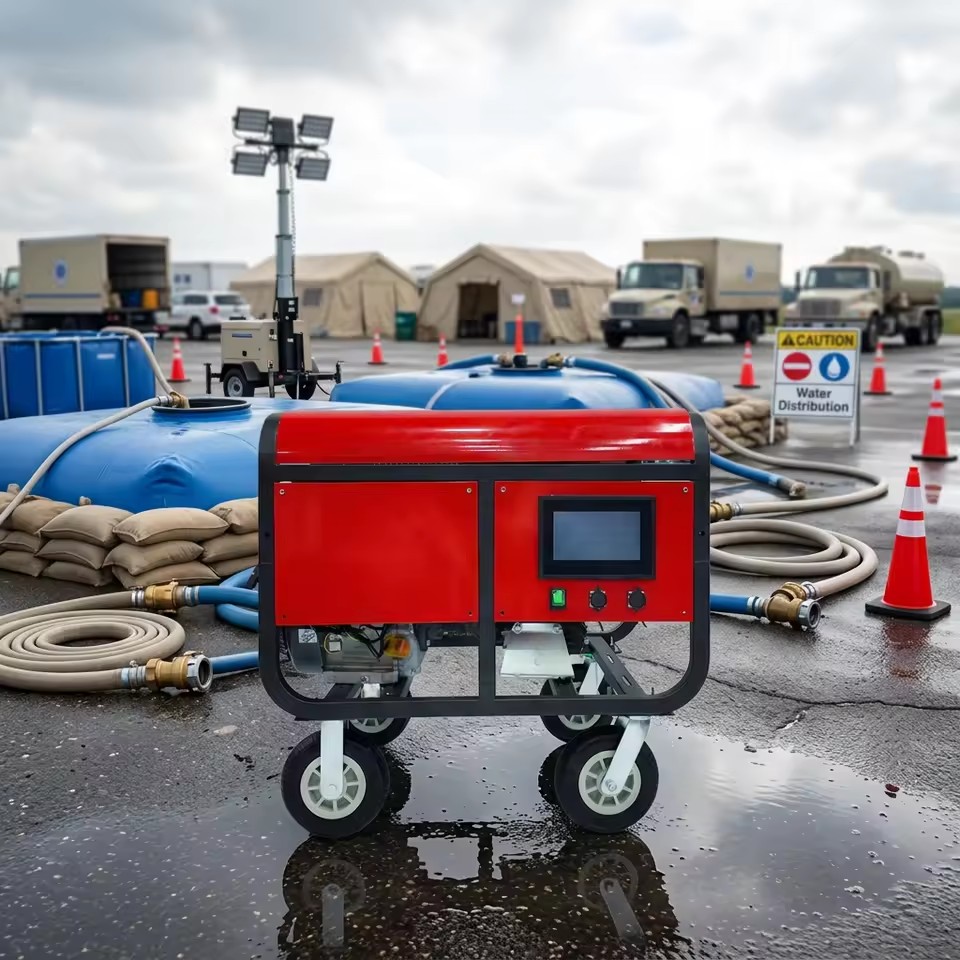

WBS-CM40 Emergency Diaphragm Water Pump 155L/min High Pressure Gasoline Pump for Rescue and Temporary Water Supply
Price
$
9490.00
Product information
Attributes
Application
Emergency Rescue / Temporary Water Supply
Structure

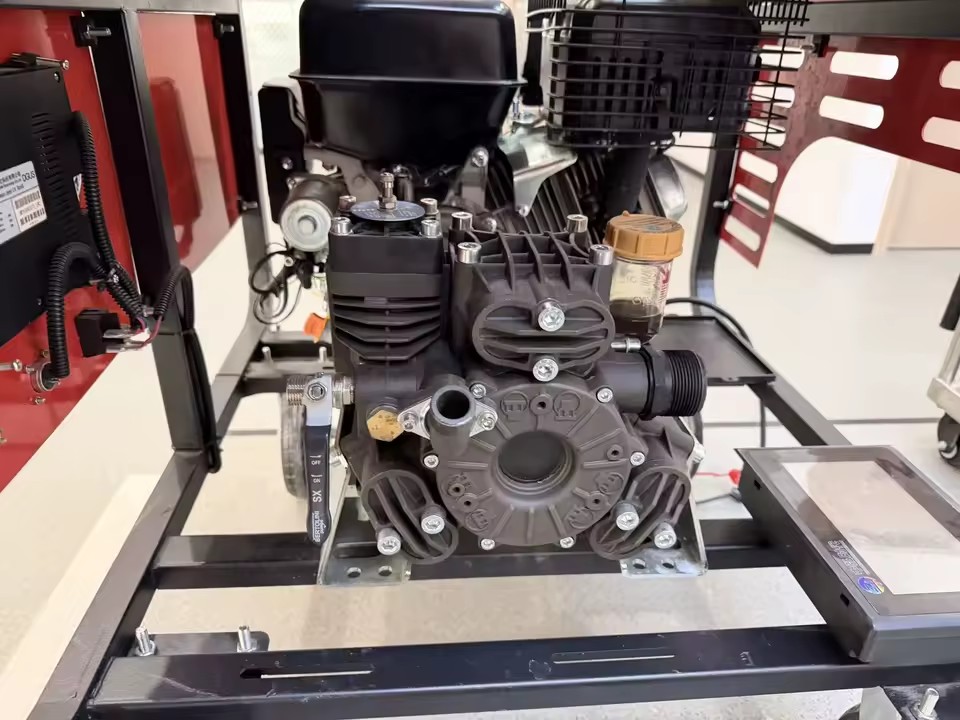

Triple-Cylinder Hydraulic Diaphragm Pump
Max flow rate
155 L/min
Max pressure
8.65 MPa
Power source
Gasoline-Powered
Chemical Compatibility
Compatible with Water, Fertilizer Solutions, Foam
Sealing Material
FKM
Impeller Material
Wear-Resistant Ceramic Alloy
Applicable temperature
10°C to 60°C
Outlet size
40 mm (1.6")
Import Size
40 mm (1.6")
Connection Type
Quick-Connect Stainless Steel (40 mm Inlet / 40 mm
Suction head
≥7 m
Outlet Type
High-Pressure Nozzle (20 mm)
Discharge Pipe Size
40 mm (1.6")
Inlet Height
≥7 m (Suction Head)
Material
Aluminum Alloy + Stainless Steel + FKM Seals
Control Method
Electric Start + Manual Pull Start
Motor
4-Stroke Forced Air-Cooled Gasoline Engine
Surface Treatment
Powder-Coated (Red Oxidation Layer)
Membrane material
Synthetic Diaphragm
Warranty
Negotiations between the two parties
Customized support
OEM, ODM
Horsepower
15HP (21kW Optional)
Pressure
8.65 MPa (Max Working Pressure)
Hardness
High-Impact Resistant
Flow Meter Specification
Integrated Pressure Gauge
Filter material
Stainless Steel Mesh
Outlet Water Oil Content
0% (Oil-Free Pumping)
Model number (Specification)
WBS-CM40
Place of origin
China
Selling Units
Single item
Single package size
85X55X70 cm
Single gross weight
120.0 kg
Flow Rate (Product option)
155 L/min
Maximum head
86.5 m
Type (Product option)
Diaphragm Pumps
Voltage (Product option)
Gasoline-Powered
Fulfilment
Delivery
Lead time
31 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
