Energy Saving Hot Top Aluminium Homogenizing Furnace Aluminum Billet Casting Equipment with Scrap Preheating Melting Furnace

Available for enquiry 0.0 · 0 reviews
USD

$ 57,220.00 57220.0 USD $ 57,220.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Machine type
Melting Casting Machine
Voltage
380V 50HZ
Core components
N/A
Machinery test report
Provided
Video outgoing-inspection
Provided
Warranty
1 Year
Product description
Furnace structureFixed type rectangular furnace
Liner typeBrick
Capacity20T
Furnace body size5500x5500mm
Furnace wall steel profile thickness160+6mm
Furnace wall liner thickness500mm
Average aluminum liquid depth650mm
Furnace mouth typeInclined furnace mouth
Furnace mouth size2600x1400mm
Furnace threshold width500mm
Furnace mouth column width500mm
Furnace door liftingMotor with weight balancing
Furnace door lock downSelf-weight press lock
Power requirement380V/ 220V
Aluminum liquid grade1-8 series
Furnace pool working temperature1000-1200
FuelNatrual gas
Fuel heat value requirement>8400 kcal, offer pressure 0.08-0.1Mpa. Furnace mouth natural gas pipe: DN80. Max. Flowage 350Nm³/H
Burner typeRegenrative type burner
Burner quantity2 guns
Melting rate4-6 tons/hour
Melting time fuel consumption standard65-70 m³/ton
Furnace shell temperature≤ ambient temperature +35℃ Except for the parts of the mouth, around the furnace door, the surface of the flue, the opening of each monitoring point, the water outlet, except for increasing the intensity of the furnace shell
Aluminum emissionsWater eye brick with fibrous sleeve
Out of aluminum liquid mouth height690mm higher than base
Aluminum liquid outlet flowage≥800kg /minute
Description images

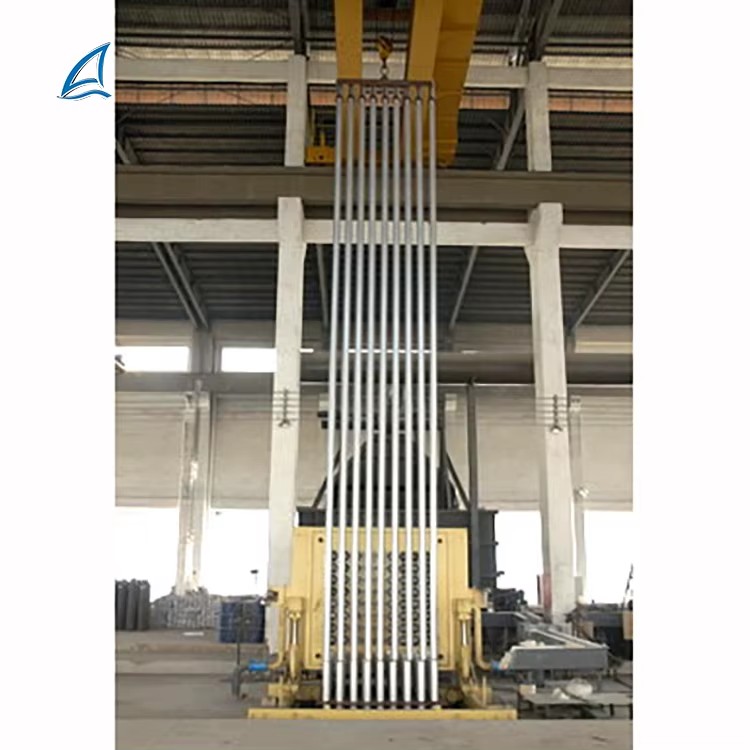

Product detail

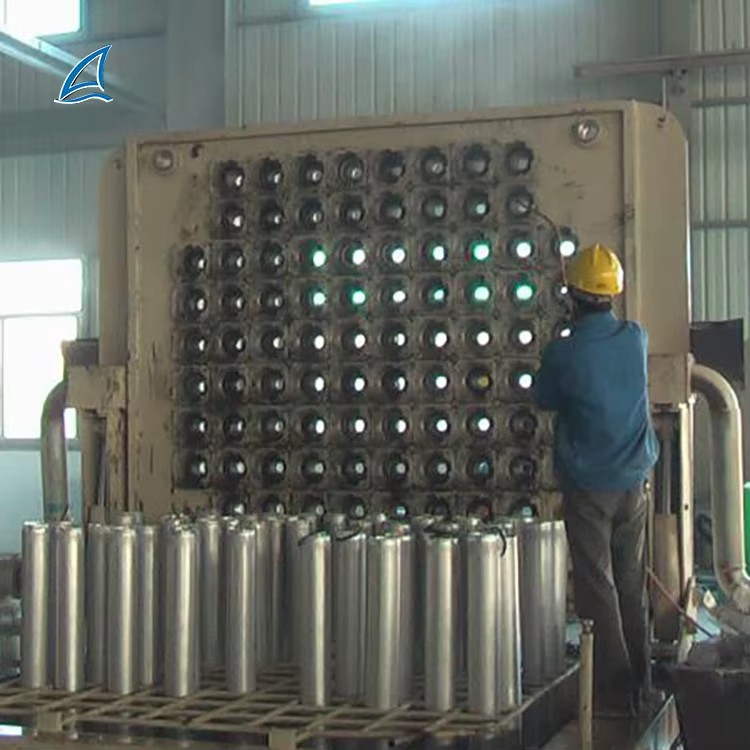

Product detail

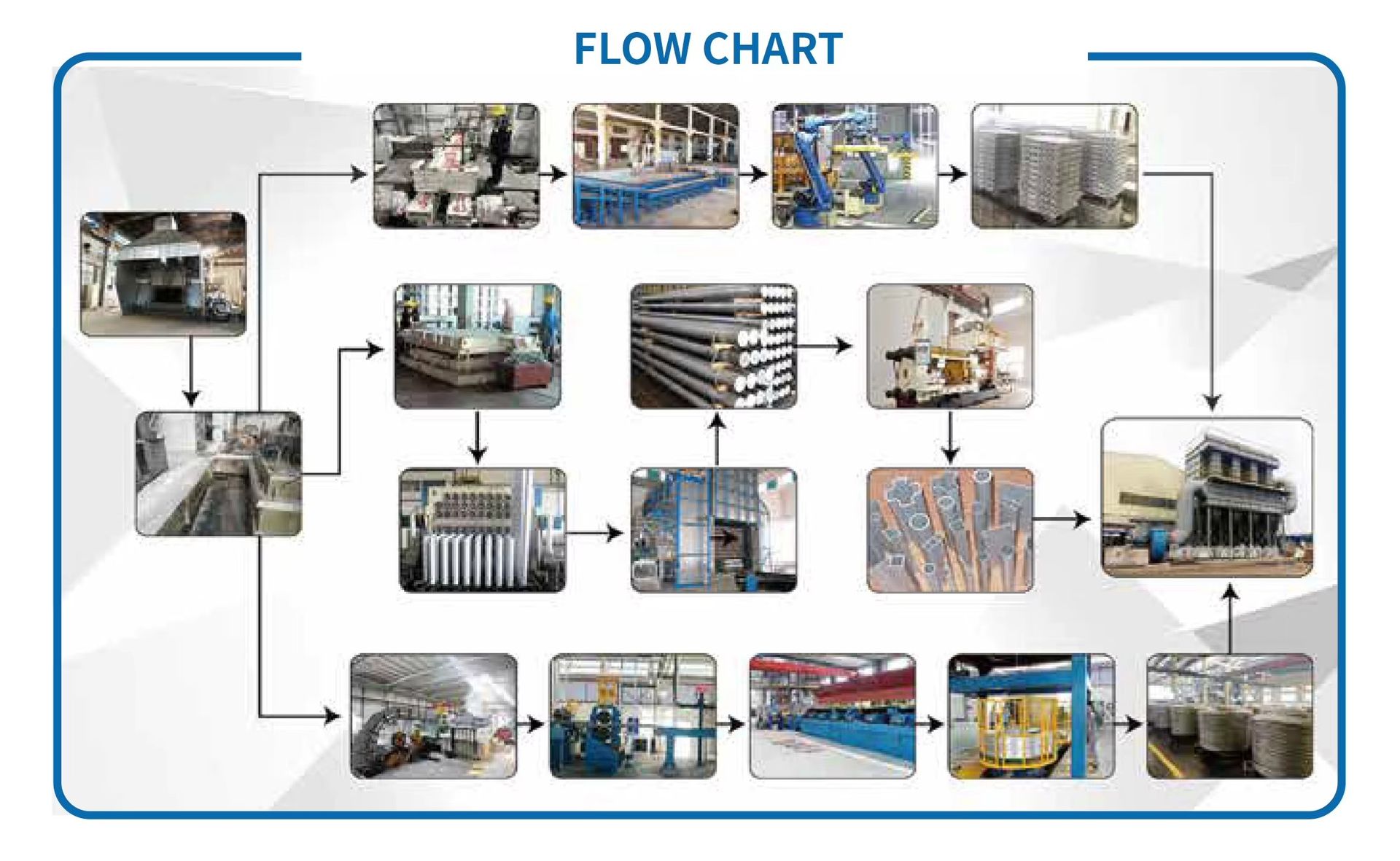

Product detail

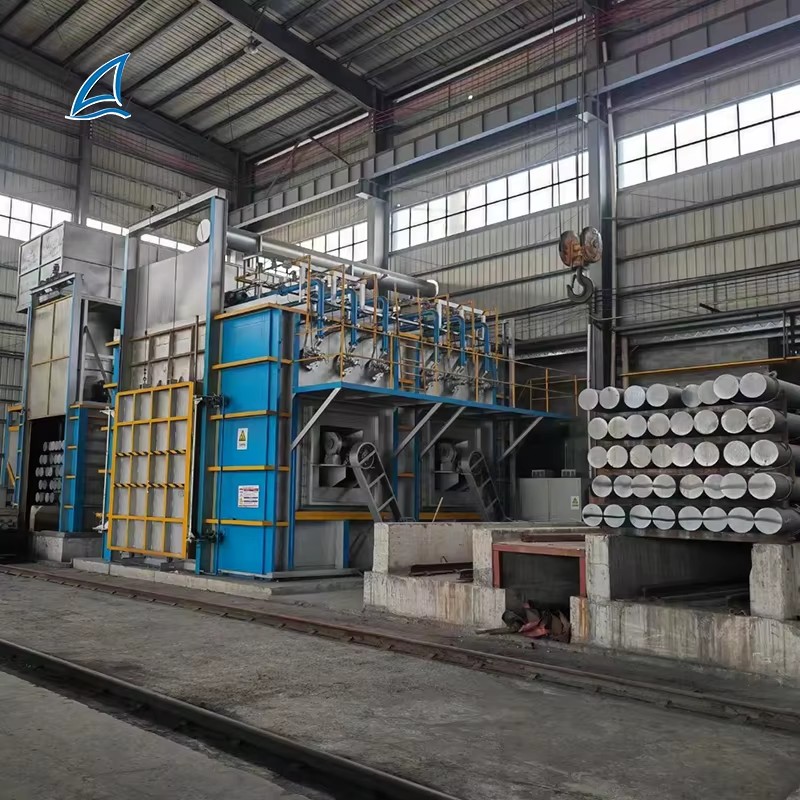

Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    60 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Machine type
Melting Casting Machine
Voltage
380V 50HZ
Core components
N/A
Machinery test report
Provided
Video outgoing-inspection
Provided
Warranty
1 Year
Material
Galvanized Steel
Key selling points
High Productivity
Power(w)
N/A
Place of origin
China, Guangdong
Weight (kg)
45000
Dimension(L*W*H)
5500x5500mm(216.54x216.54in)
Product Type
Aluminum Billet Melting Casting Equipment
Capacity
10T/ 20T/ Customized
Furnace pool working temperature
1000-1200
Fuel
Natrual gas
Melting rate
4-6 tons/hour
Melting time fuel consumption standard
65-70 m3/ton
Aluminum liquid outlet flowage
≥800kg /minute
Furnace shell temperature
≤ ambient temperature +35°C
Burner quantity
2 guns
Provide turn-key solution
plant design, proposal, manufacturing, shipping, installation
Selling Units
Single item
Single package size
30000X30000X30000 cm
Single gross weight
1000000.0 kg
Model number
10T
Lead time
60 days
Minimum order
1 Units
