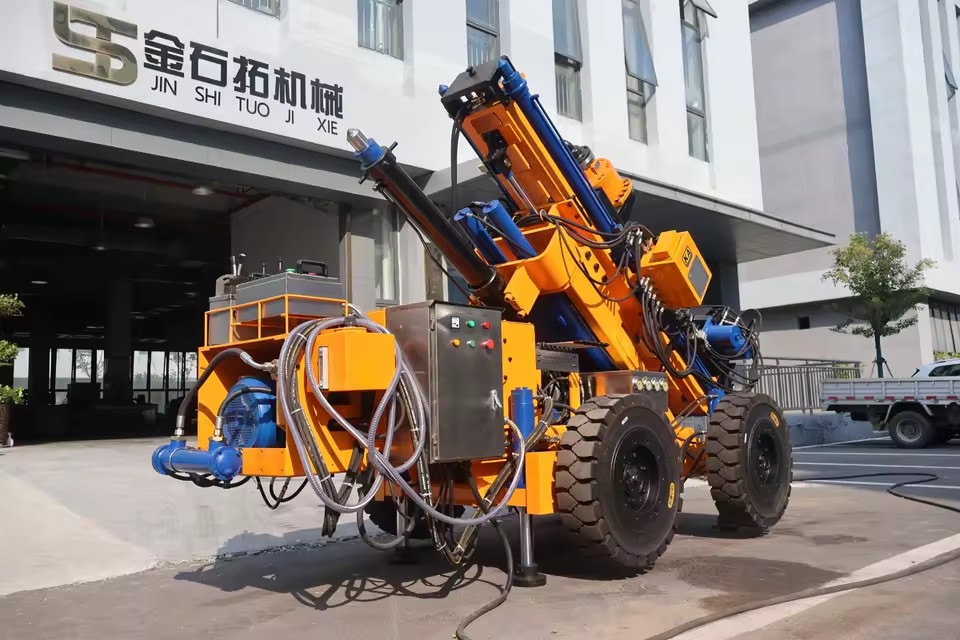

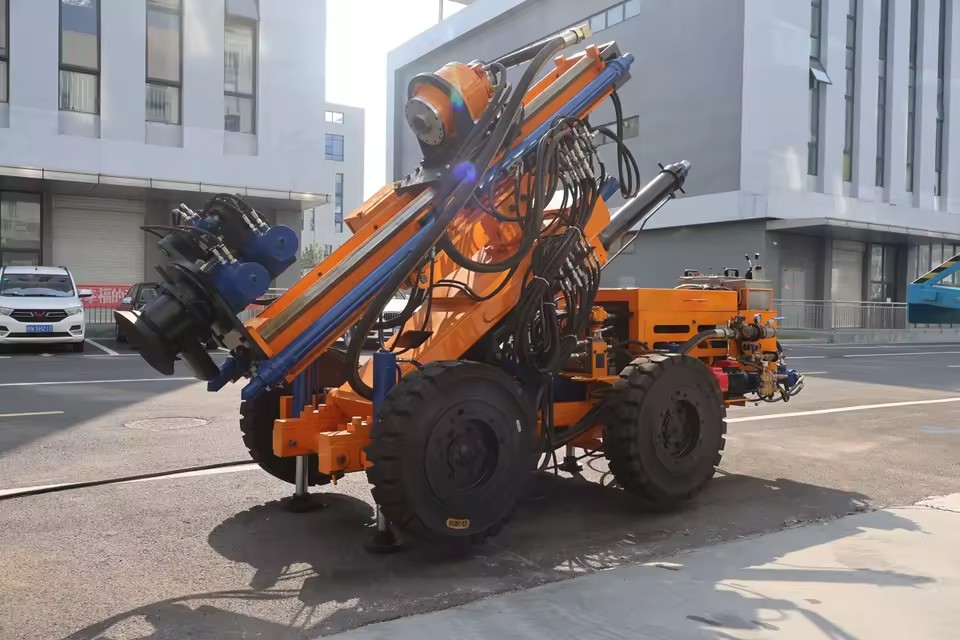

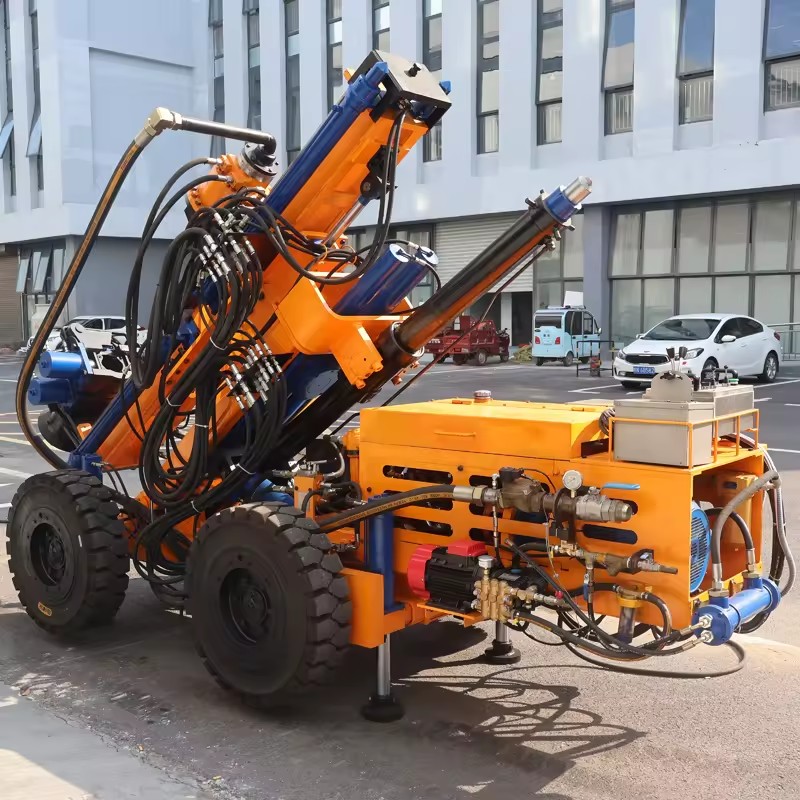

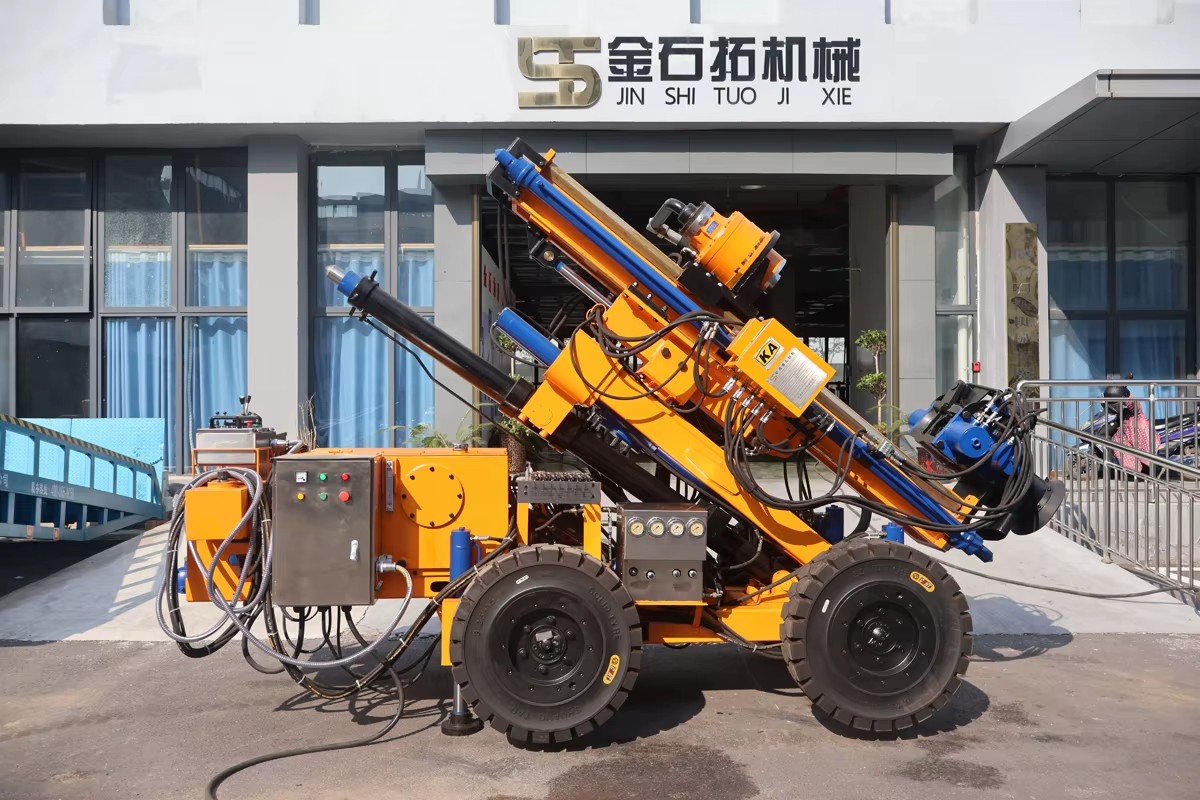

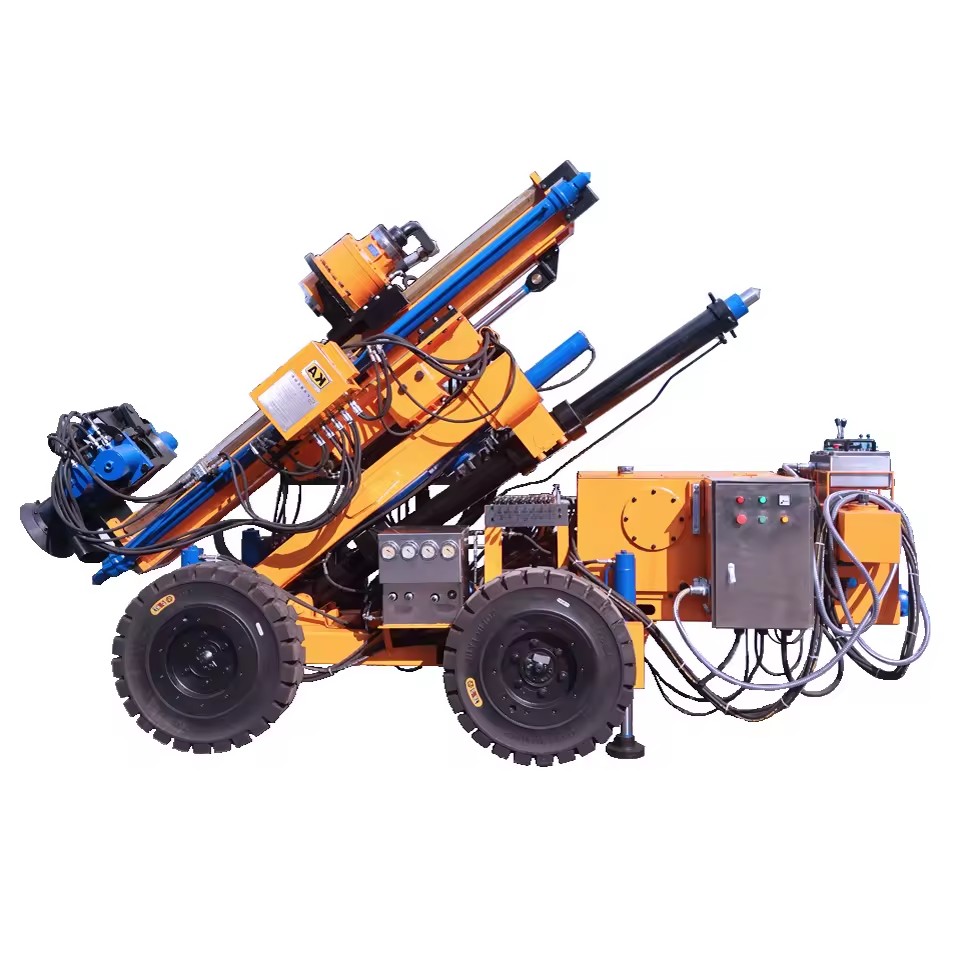

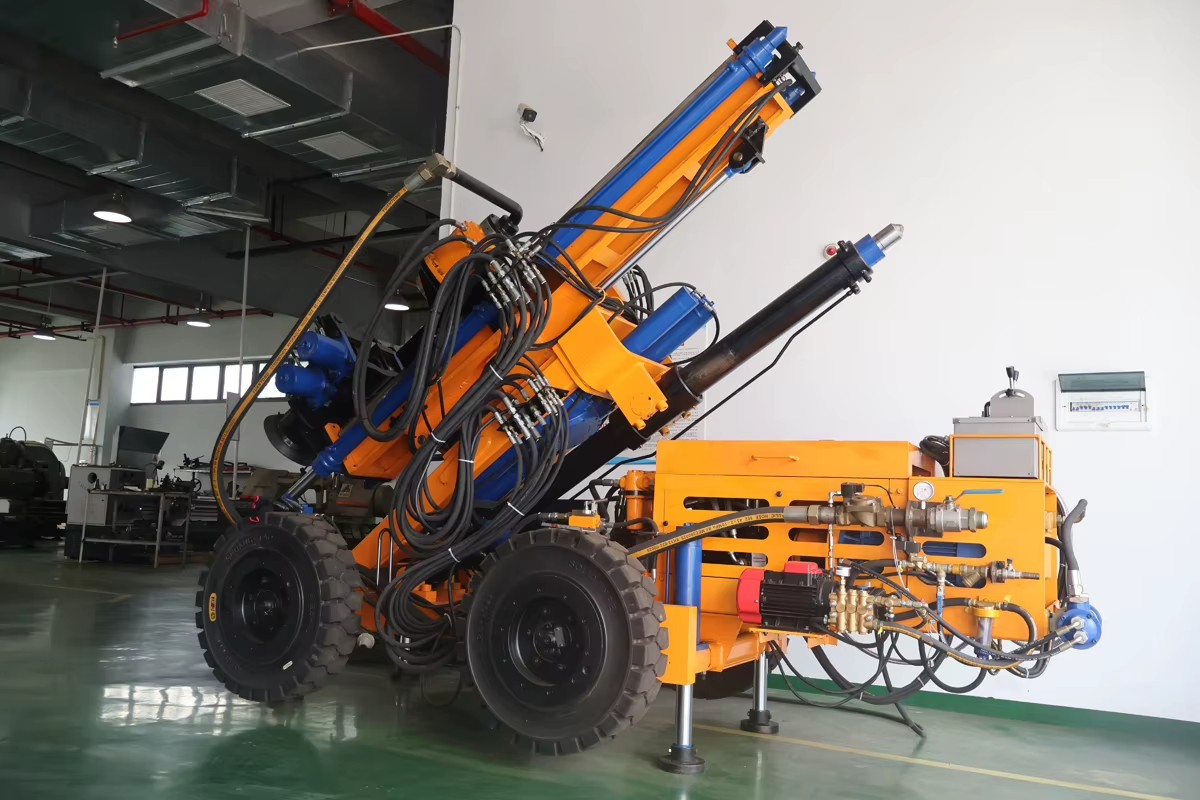

Hard Rock High Air Pressure Power Hydraulic DTH Mining Drill Rig for Tunnel Boring Quarry Underground Driving Machinery
Price
$
15710.00
Product information
Attributes
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.100m
Drilling Diameter
120mm~250mm
Power Type
Electric
Voltage
380V
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Productivity
Place of origin
China, Anhui
Weight
6000 kg
Mobility
Trolley with four wheel
Color
Accept Customized
Rated total power
25.5KW
Rotary torque(max)
3500N.m
Rotate speed
0-30r/min
Propulsion
45kN
Application
Mining/DTH drilling/Tunneling/Quarry
Advance speed(Drilling)
over 0.2m/min
Hydraulic system pressure(max)
24MPa
Working Air Pressure
0.8~1.8MPa
Selling Units
Single item
Single package size
240X210X210 cm
Single gross weight
900.0 kg

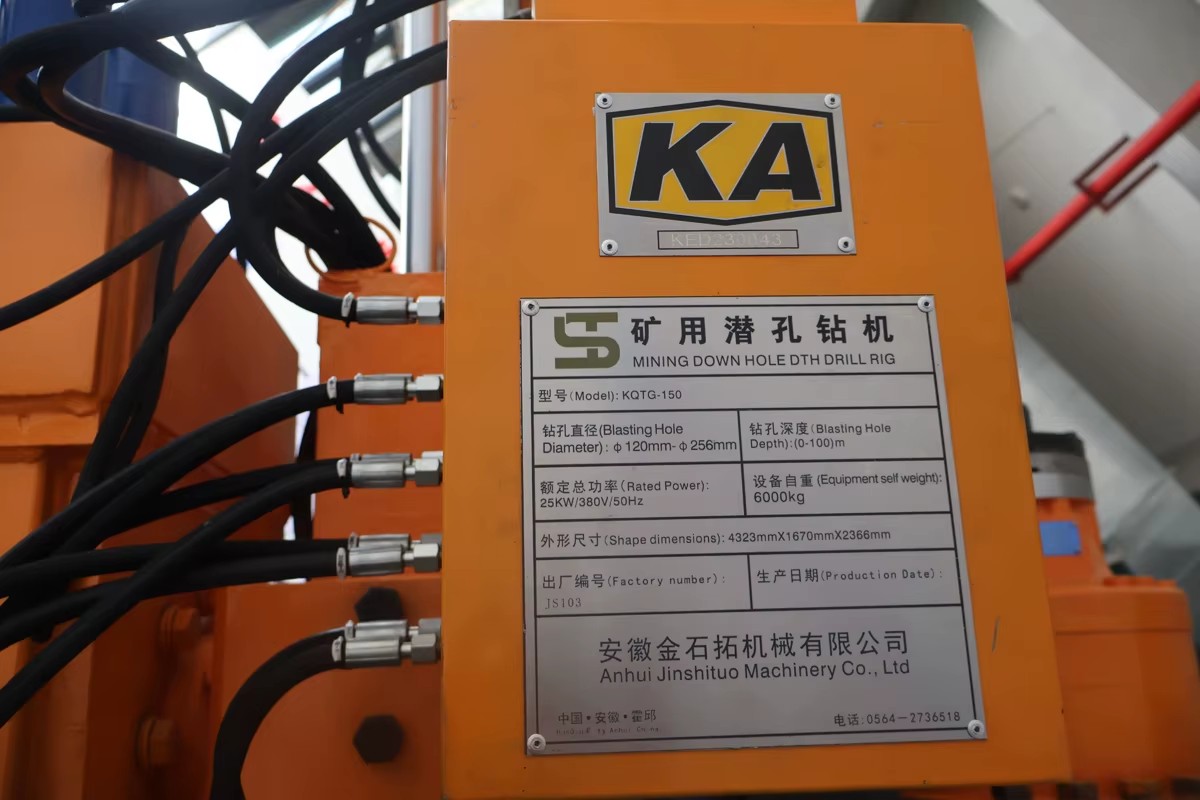

Model number
KQTG-150
Power (W) (Product option)
25.5KW
Fulfilment
Delivery
Lead time
10 days
Shipping and estimated delivery
Economy · Approx. shipping fee: $ 2,292.42 for 1 piece · Estimated delivery: Oct 13–Nov 28 (41–87 days)
