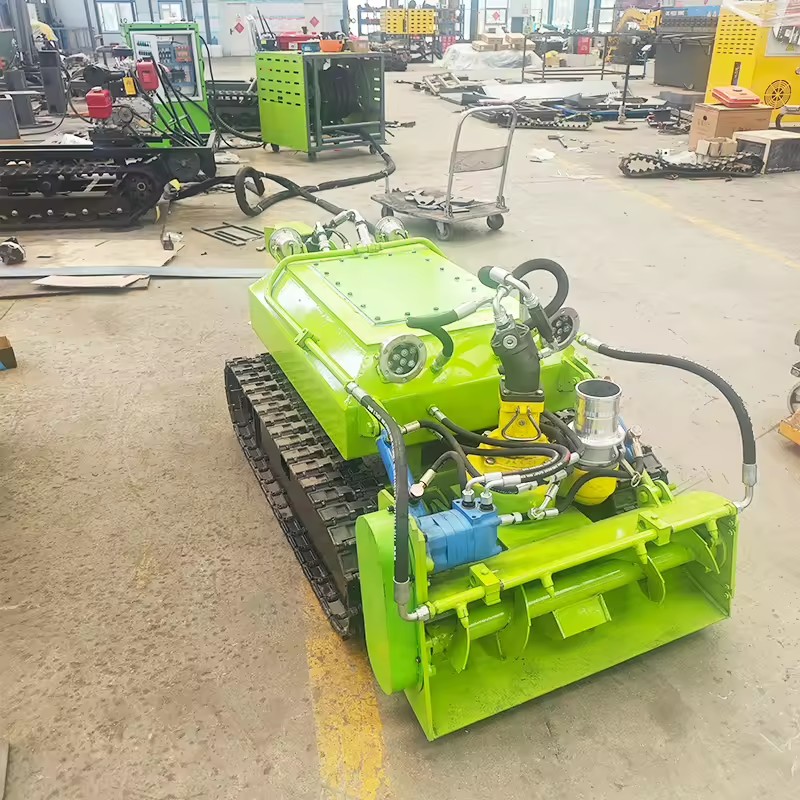

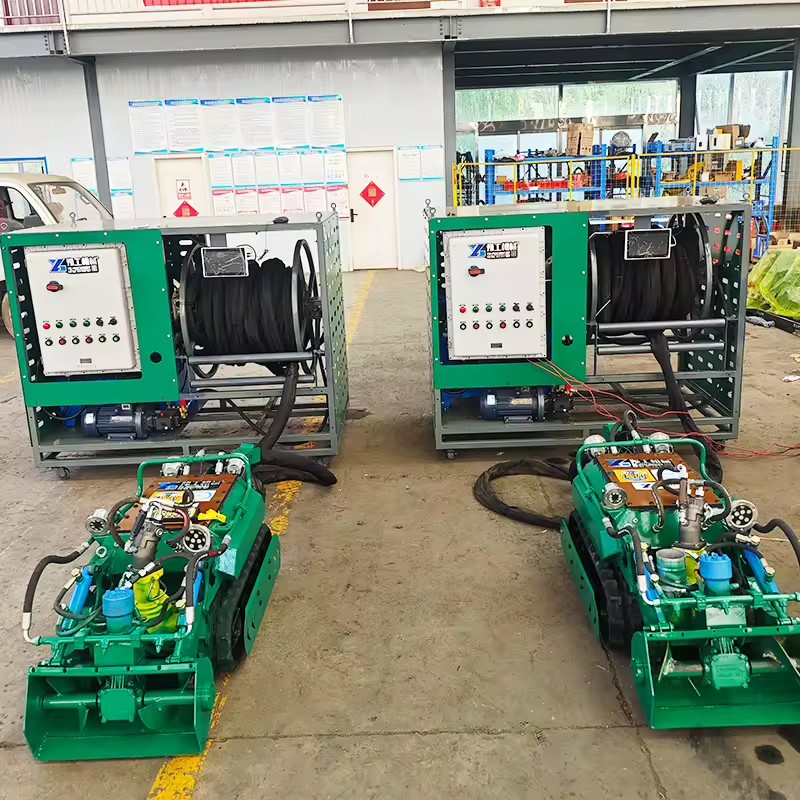

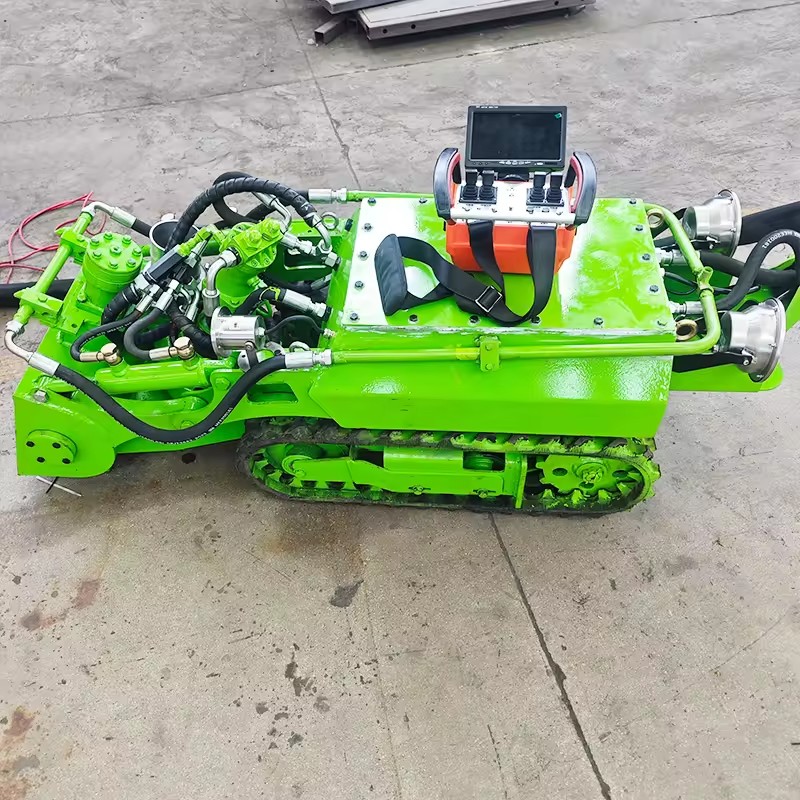

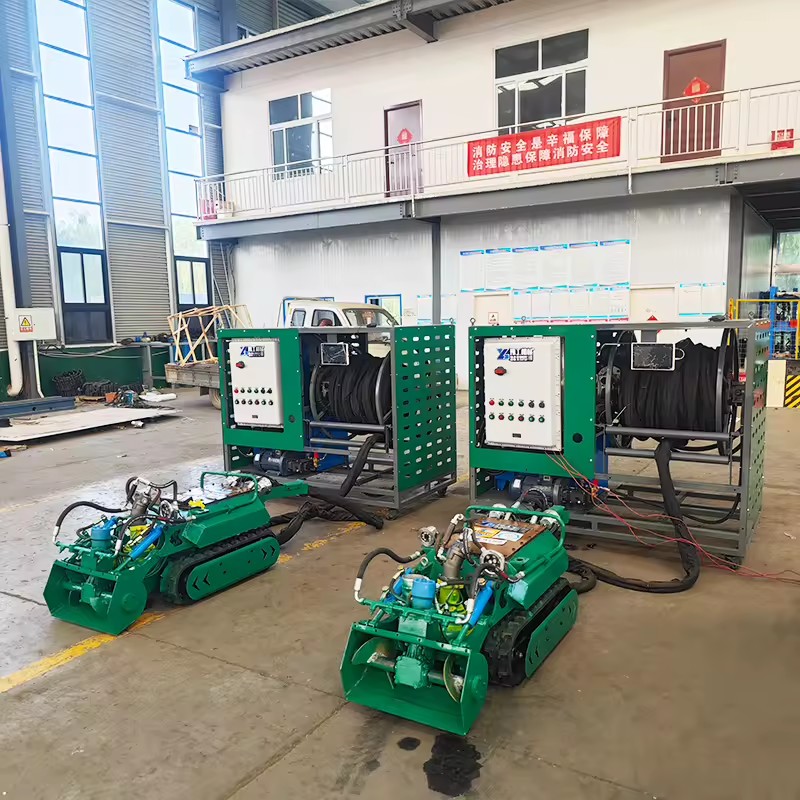

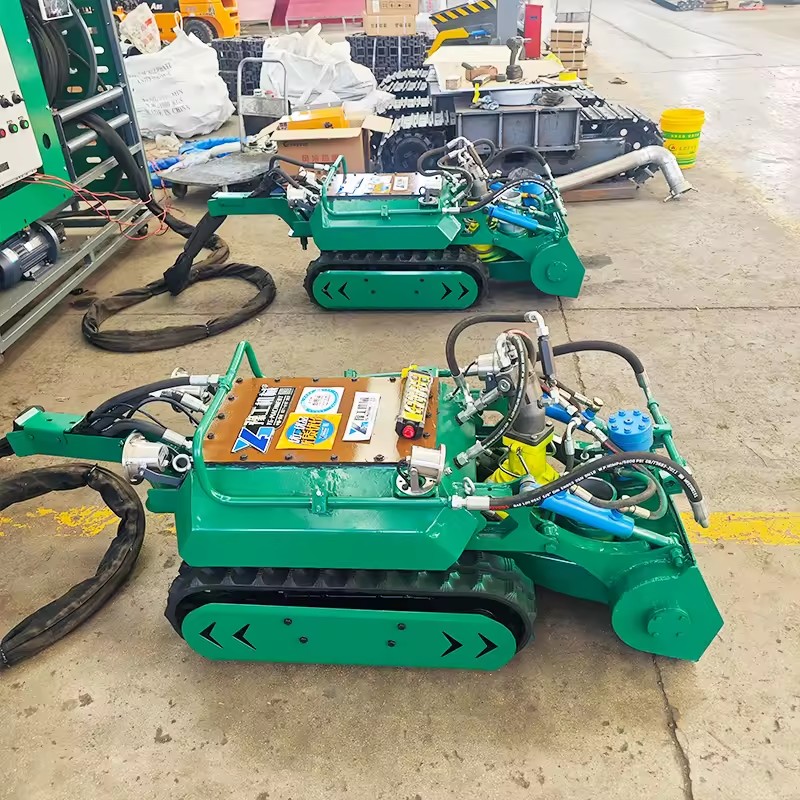

High Pressure Water Jet Remote Control Industrial Dredging Robot for Sewer Pipe Sediment Removal and Blockage Cleaning Work

Available for enquiry 0.0 · 0 reviews
USD

$ 16,460.00 16460.0 USD $ 16,460.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380 V, 220 V, 110 V, 440 V
Power(w)
30
Core components
Motor, Engine, Pump
Warranty
1 Year
Video outgoing-inspection
Provided
Production Capacity
20
Product description
Simple dredging robot
Model YG500 YG600 YG700 YG800 YG900 Robot Dimensions 1500*500*650mm 1500*600*650mm 1600*700*650mm 1600*850*700mm 1650*960*750 Dredging Width 500mm 600mm 700mm 800mm 900mm Track Travel Speed 3-15m/s 3-15m/s 3-15m/s 3-15m/s 3-15m/s Robot Weight 320kg 350kg 360kg 380kg 400kg Pump Diameter 3-inch 3-inch 4-inch 4-inch 4-inch Pump Head 0-30 meters 0-30 meters 0-25 meters 0-25 meters 0-25 meters Hydraulic Power Unit Dimensions 2200*1200*1700 2200*1200*1700 2200*1200*1700 2200*1200*1700 2200*1200*1700 Main Motor Power 18kw 18 kW 22 kW 22 kW 22 kW Hydraulic System Pressure 0-16Mpa 0-16 MPa 0-16 MPa 0-16 MPa 0-16 MPa Particle Size 15mm 15 mm 40 mm 40 mm 50 mm Reel System Speed 0-10r/min 0-10 rpm 0-10 rpm 0-10 rpm 0-10 rpm Pipe Length 30-50 meters (optional) Control System Wireless remote control Lighting System Underwater LED lights*2 Work efficiency 100 cubic meters per hour 150 cubic meters per hour 160 cubic meters per hour 180 cubic meters per hour 200 cubic meters per hour Underwater camera system Equipped with 1 underwater camera
ModelYG500YG600YG700YG800YG900
Robot Dimensions1500*500*650mm1500*600*650mm1600*700*650mm1600*850*700mm1650*960*750
Dredging Width500mm600mm700mm800mm900mm
Track Travel Speed3-15m/s3-15m/s3-15m/s3-15m/s3-15m/s
Robot Weight320kg350kg360kg380kg400kg
Pump Diameter3-inch3-inch4-inch4-inch4-inch
Pump Head0-30 meters0-30 meters0-25 meters0-25 meters0-25 meters

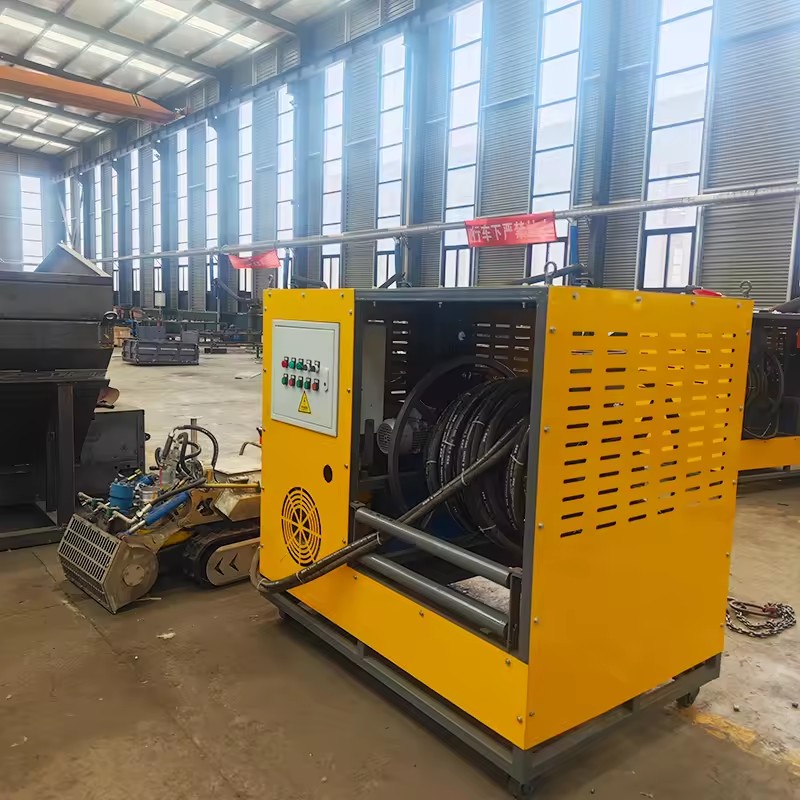

Hydraulic Power Unit Dimensions2200*1200*17002200*1200*17002200*1200*17002200*1200*17002200*1200*1700
Main Motor Power18kw18 kW22 kW22 kW22 kW
Hydraulic System Pressure0-16Mpa0-16 MPa0-16 MPa0-16 MPa0-16 MPa
Particle Size15mm15 mm40 mm40 mm50 mm
Reel System Speed0-10r/min0-10 rpm0-10 rpm0-10 rpm0-10 rpm
Pipe Length30-50 meters (optional)
Control SystemWireless remote control
Lighting SystemUnderwater LED lights*2
Work efficiency100 cubic meters per hour150 cubic meters per hour160 cubic meters per hour180 cubic meters per hour200 cubic meters per hour
Underwater camera systemEquipped with 1 underwater camera
ModelYG500YG600YG700YG800YG900
Robot Dimensions1500*500*650mm1500*600*650mm1600*700*650mm1600*850*700mm1650*960*750
Dredging Width500mm600mm700mm800mm900mm
Track Travel Speed3-15m/s3-15m/s3-15m/s3-15m/s3-15m/s
Robot Weight320kg350kg360kg380kg400kg
Pump Diameter3-inch3-inch4-inch4-inch4-inch
Pump Head0-30 meters0-30 meters0-25 meters0-25 meters0-25 meters
Hydraulic Power Unit Dimensions2200*1200*17002200*1200*17002200*1200*17002200*1200*17002200*1200*1700
Main Motor Power18kw18 kW22 kW22 kW22 kW
Hydraulic System Pressure0-16Mpa0-16 MPa0-16 MPa0-16 MPa0-16 MPa
Particle Size15mm15 mm40 mm40 mm50 mm
Reel System Speed0-10r/min0-10 rpm0-10 rpm0-10 rpm0-10 rpm
Pipe Length30-50 meters (optional)
Control SystemWireless remote control
Lighting SystemUnderwater LED lights*2
Work efficiency100 cubic meters per hour150 cubic meters per hour160 cubic meters per hour180 cubic meters per hour200 cubic meters per hour
Underwater camera systemEquipped with 1 underwater camera
Description images

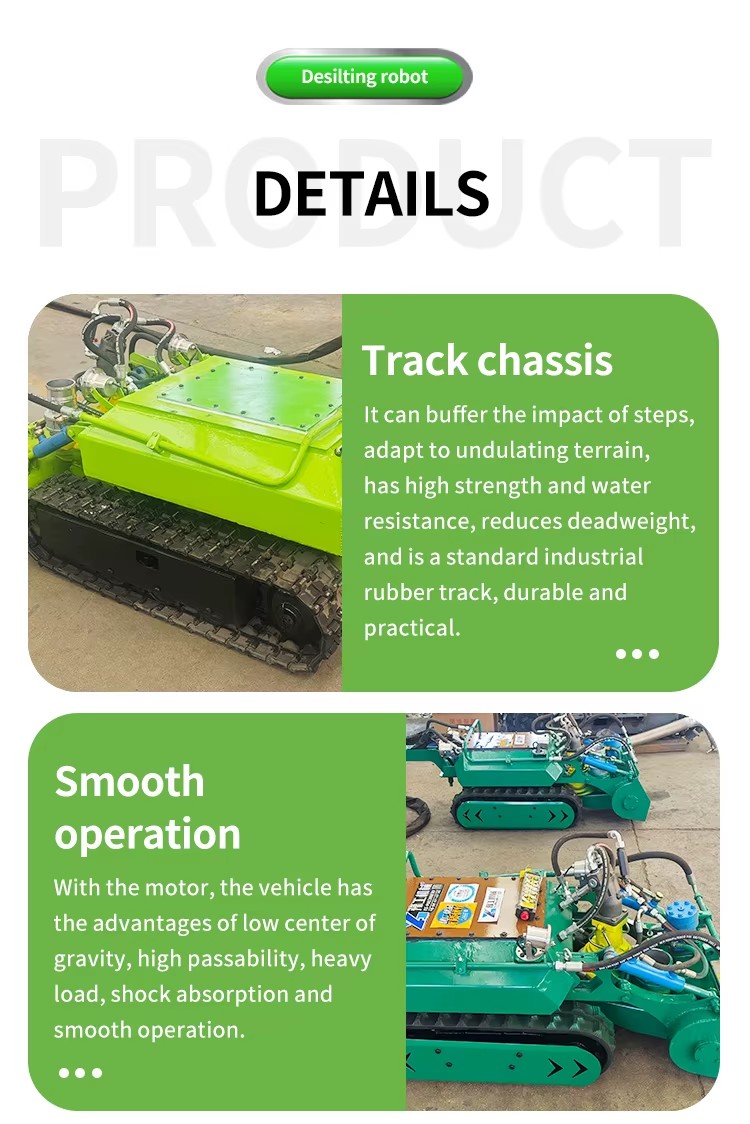

High Pressure Water Jet Remote Control Industrial Dredging Robot for Sewer Pipe Sediment Removal and Blockage Cleaning Work
High Pressure Water Jet Remote Control Industrial Dredging Robot for Sewer Pipe Sediment Removal and Blockage Cleaning Work
High Pressure Water Jet Remote Control Industrial Dredging Robot for Sewer Pipe Sediment Removal and Blockage Cleaning Work
High Pressure Water Jet Remote Control Industrial Dredging Robot for Sewer Pipe Sediment Removal and Blockage Cleaning Work
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 13 fields
Voltage
380 V, 220 V, 110 V, 440 V
Power(w)
30
Core components
Motor, Engine, Pump
Warranty
1 Year
Video outgoing-inspection
Provided
Production Capacity
20
Place of origin
China, Henan
Weight (kg)
350
Dimension(L*W*H)
1500*600*650MM(59.06*23.62*25.59in)
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
Leo500-900
Lead time
30 days
Minimum order
1 Units
