High-Pressure 3-Axis 1313 Marble Steel Abrasive Waterjet Cutting Machine
3 Axis Waterjet Cutting Table
Type
Gantry
Effective Working Area
X-Axis 1300mm, Y-Aixs 1300mm, Z-Axis 200mm
Max. Swivel Angle
±68°
Swivel Angle Resolution
±0.01°
Cutting Accuracy
0.1mm
Control Accuracy
0.01mm
Repeatability of Positioning
0.025mm
Max. Travel Speed
10000mm/min

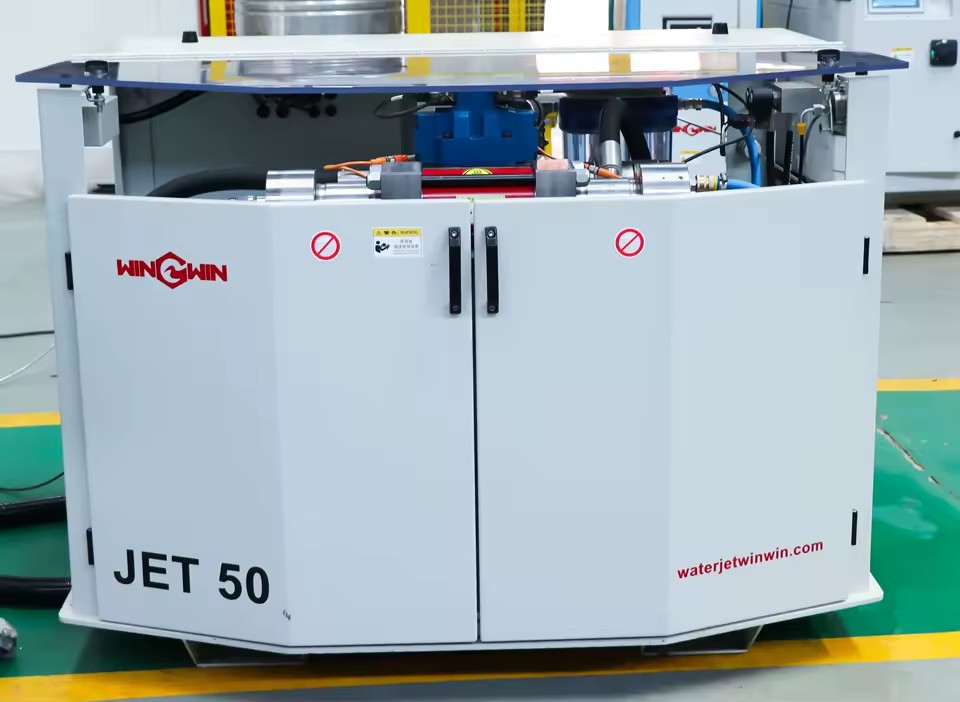

SL-VI 50HP Intensifier Pump
Voltage
380V / Customize
Rated Power
50HP
Max. Operating Pressure
420Mpa / 4137Bar / 60,000Psi
Max. Discharging Rate
3.8L/min
Orifice Diameter
0.33mm or others
Nozzle Diameter
1.02mm or others
Oil Tank Volume
180L
Win-Win has been focusing on waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800square meters, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.
Q: What is the advantage of water jet cutting machine? A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine. Q: How to choose the cutting table? A:You need to offer the size of the materials you want to process or the size of the cutting table. Q:How to solve the incision problem of water cutting? A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. Q:Is the equipment easy to operate? A:WIN-WIN intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of CAD/G/DXF/ENG/PLT format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
Product Description
Reduce cycle time with fast and nimble acceleration and deceleration. The WINWIN1313 cuts with astounding speed, driving overall part processing times down. Industry leading helical rack and pinion drive system ensures smooth motion across the table for accurate and precise cutting.
The WINWIN1313 is engineered for strength and speed, built with all-steel construction to handle heavy duty use 24/7. Engineered to order
With the WINWIN1313 you are guaranteed a total solution: complete with service, software, and cutting edge technology. delivers more productivity and reliability with service solutions for parts, training, and preventative maintenance.

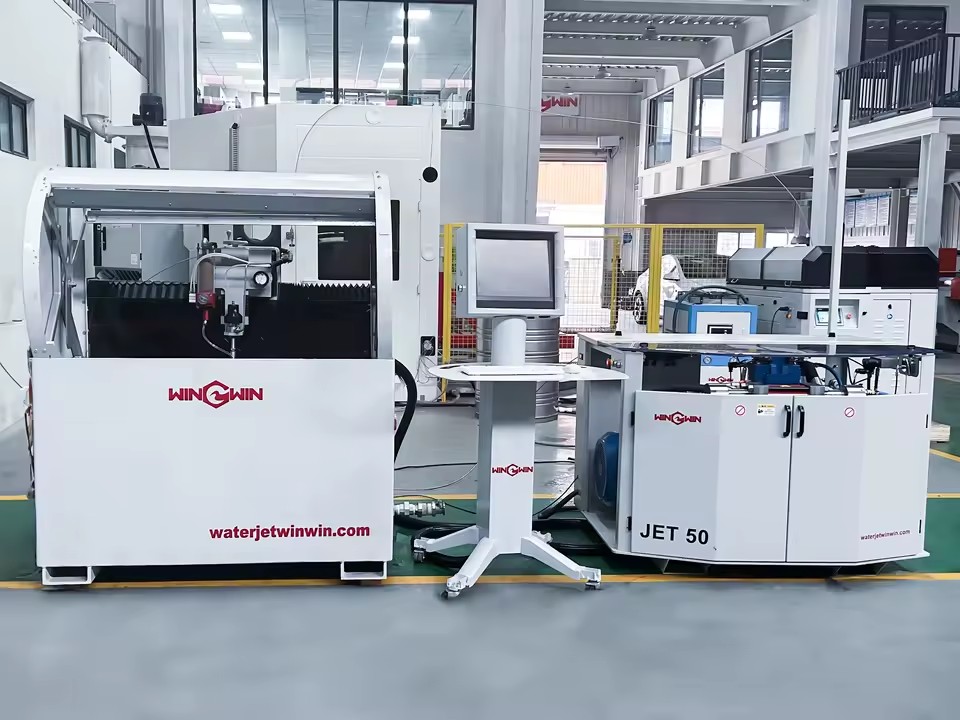

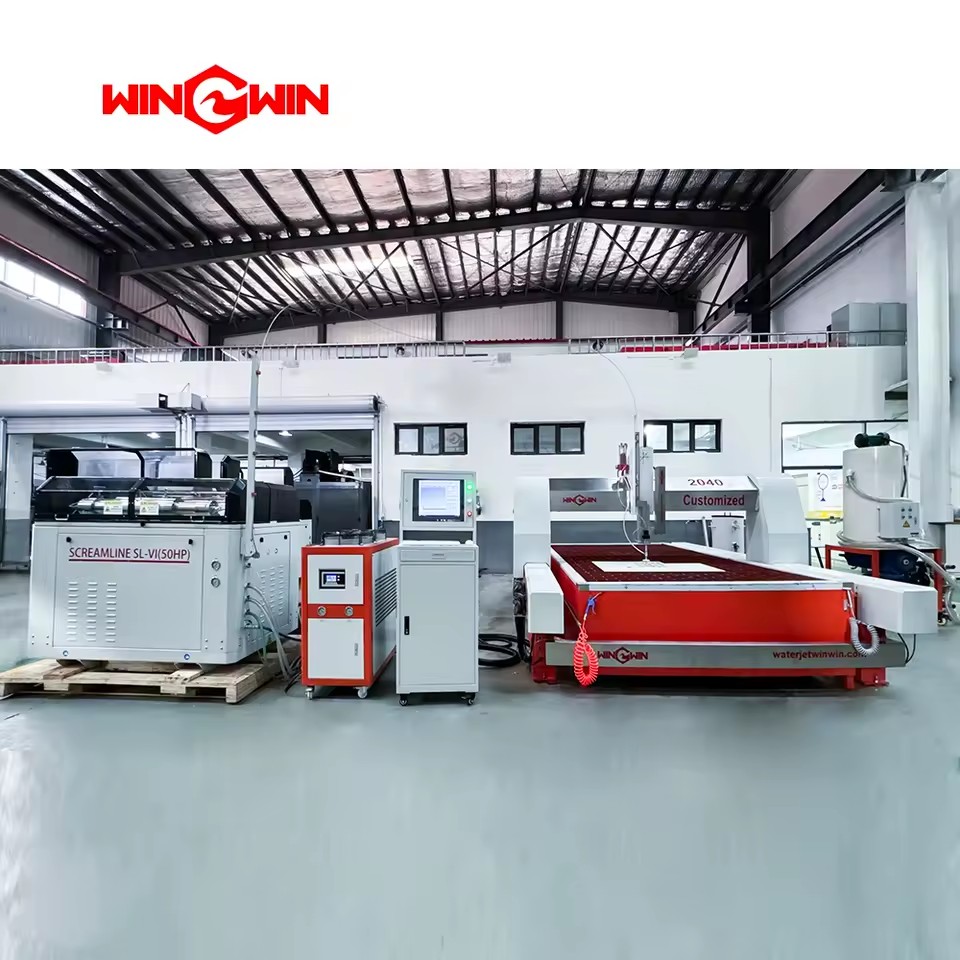

The whole set waterjet cutting machine equipped with AC 5 axis cutting head, 1300mm x 1300mm cutting table, the WW5060JET intensifier pump, WEIHONG CNC control system, 200KGS abrasive feeder, industrial chiller and also the water soften system.
A. High-Quality Cutting Head
Aluminum AC-5aixs waterjet cutting head, light weight but high hardness, lighten gantry running load, relatively fast walking speed, higher cutting efficiency.
B. Fully Oil-Immersed Linear Guide
WW2515-5A adopts thick linear guides and large screw balls. The X, Y axis adopts the self-made oil-immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.

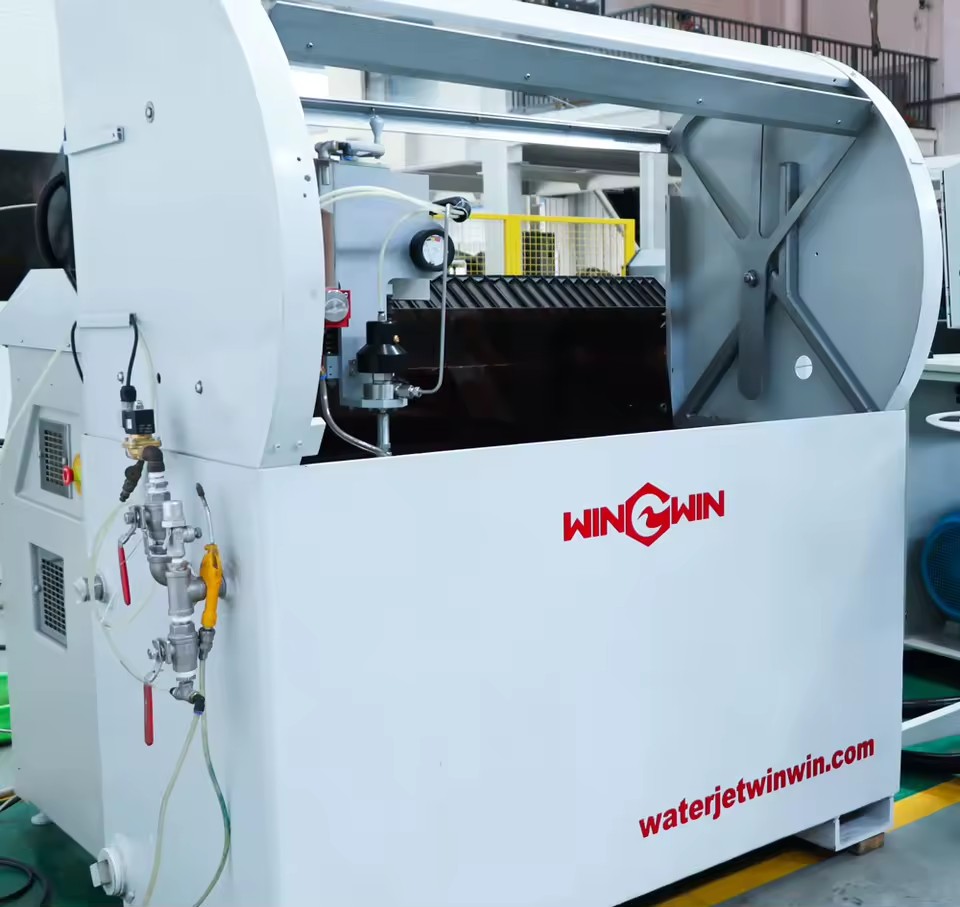

C. Integrated Stainless Steel Bath
The table is made of fully stainless steel, anti-rust, anti-corrosion, bright as new for 10 years.
D. The cutting table size can be customize.
A.
High Performance and Standard Design
Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can purchase the corresponding parts in any waterjet machine market.
B. Double Oil-Filtration System
Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked
and prolong the service life of the Intensifier Pump.
C. Double-Level Water-Filtration System
WW5060JET adopts double layers of water filtration in low pressure water transport to remove hard metal elements from industrial water. The waterjet is less likely to produce scale, protecting important high pressure components and extending the service life of the entire Waterjet Cutting Machine.
D. 1L Large Capacity Accumulator
1L capacity accumulator, eliminate the fluctuation of the cutting, integral forging, no rubber seals, maintenance-free.
Optional Devices
Abrasive Removal System
*
When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each
other.
* The device can be installed within 10m of the waterjet cutting machine.
* The flow rate can reach 162L/min.
* The abrasive removal rate is more than 90%.
* During the entire abrasive removal process, the filtered water continues to be discharged into the water sink, and the water sink
does not need to be replenished after abrasive removal.
