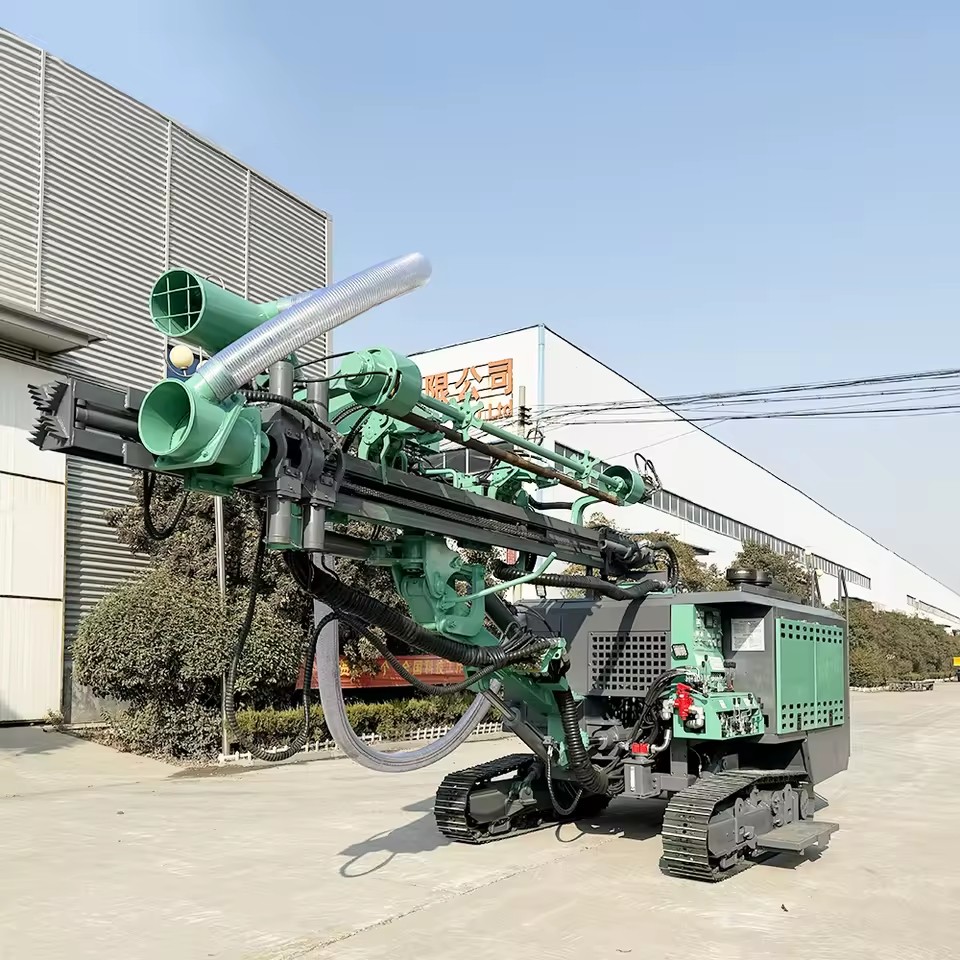

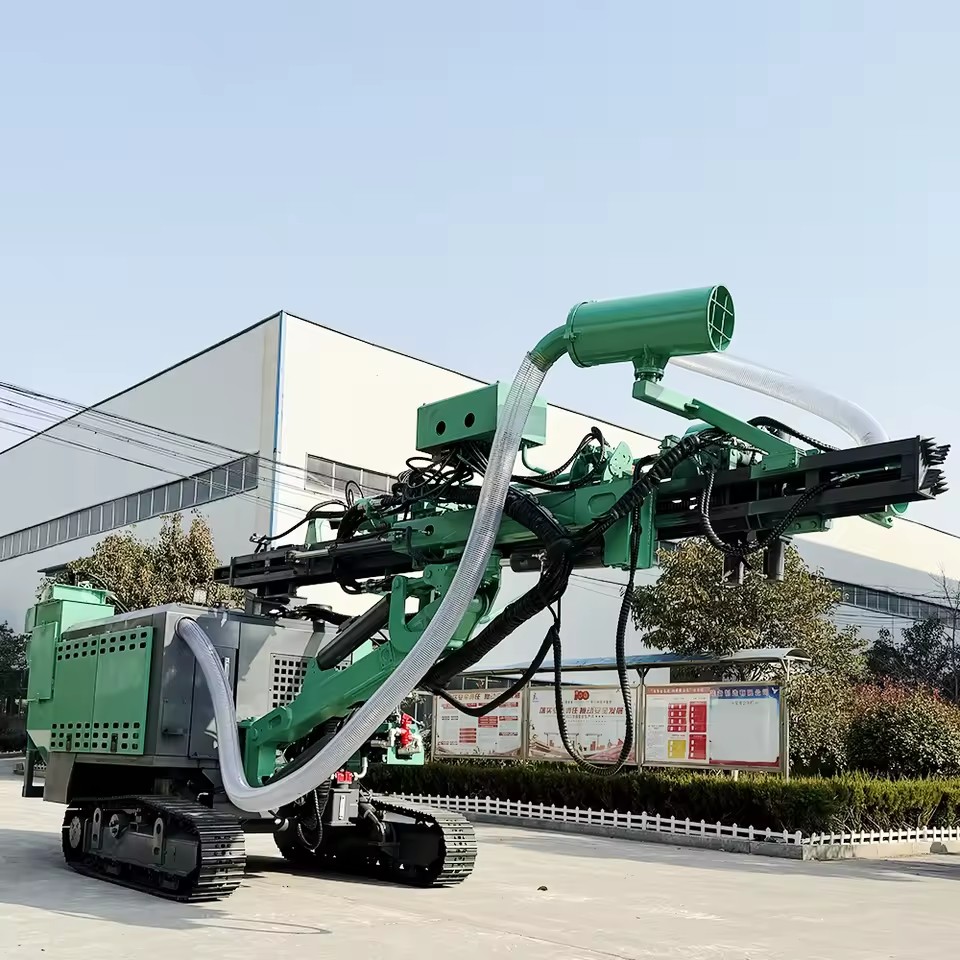

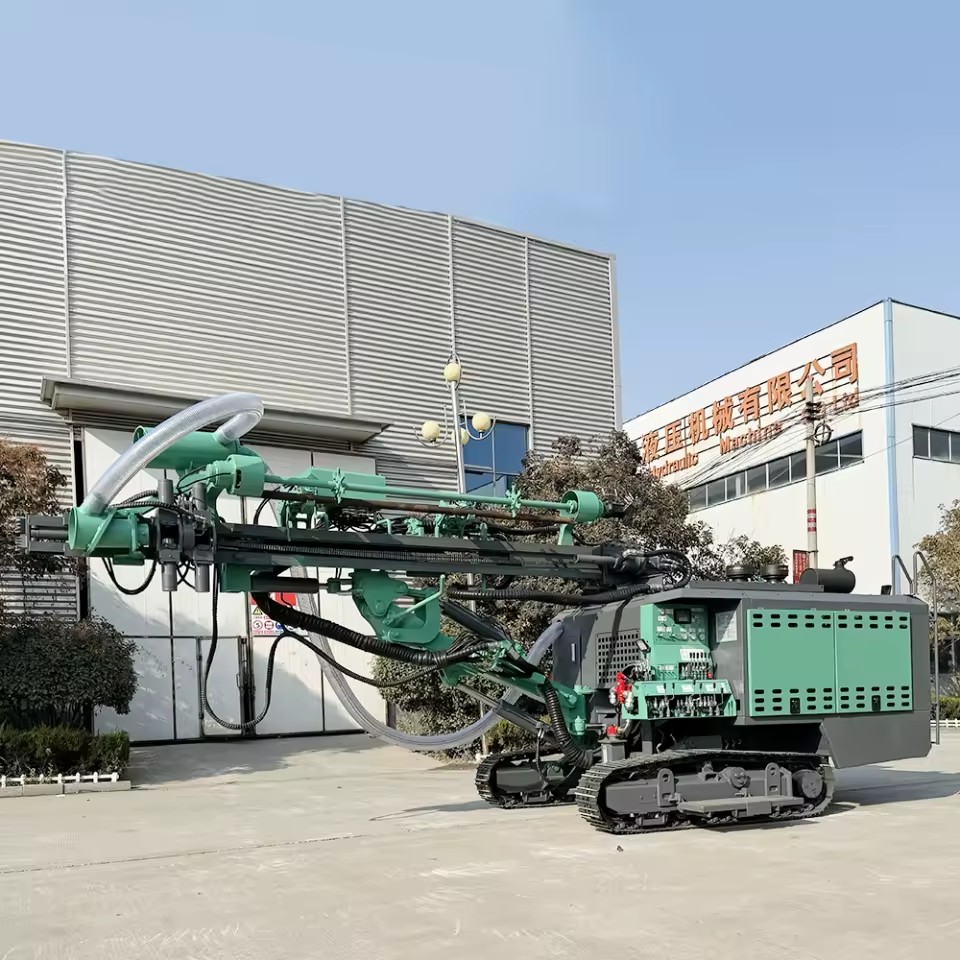

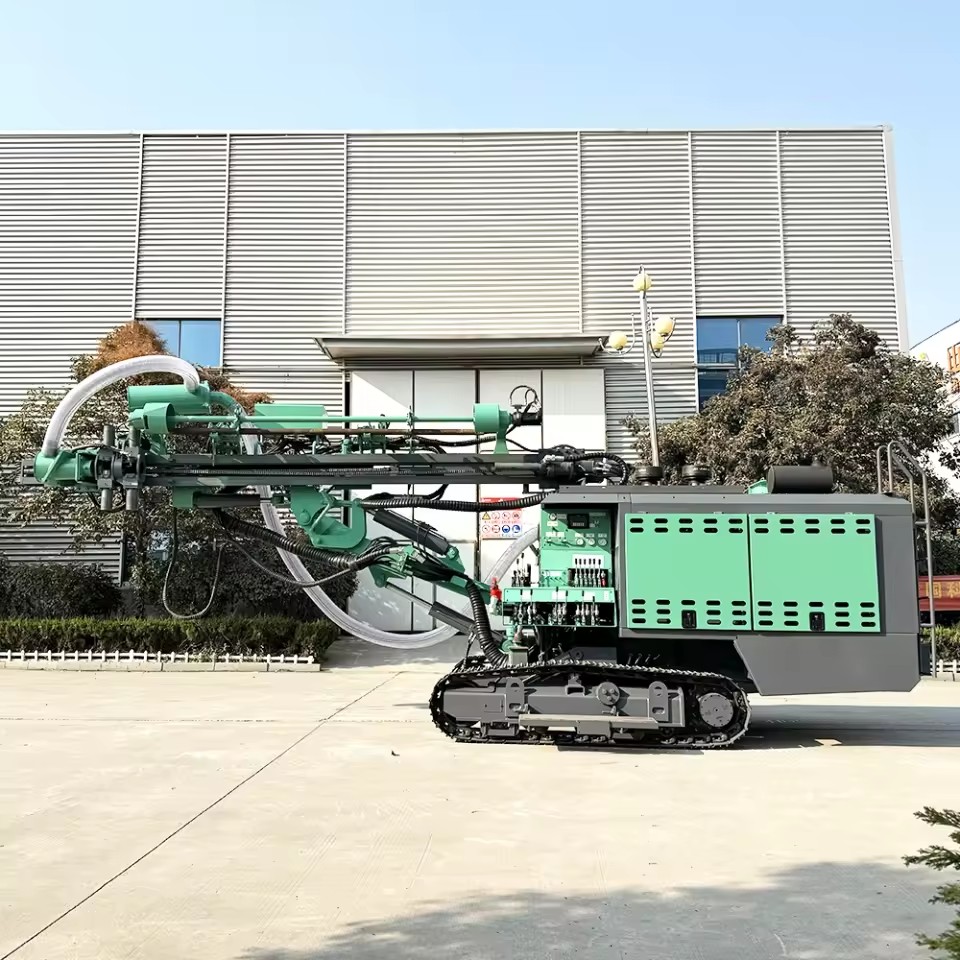

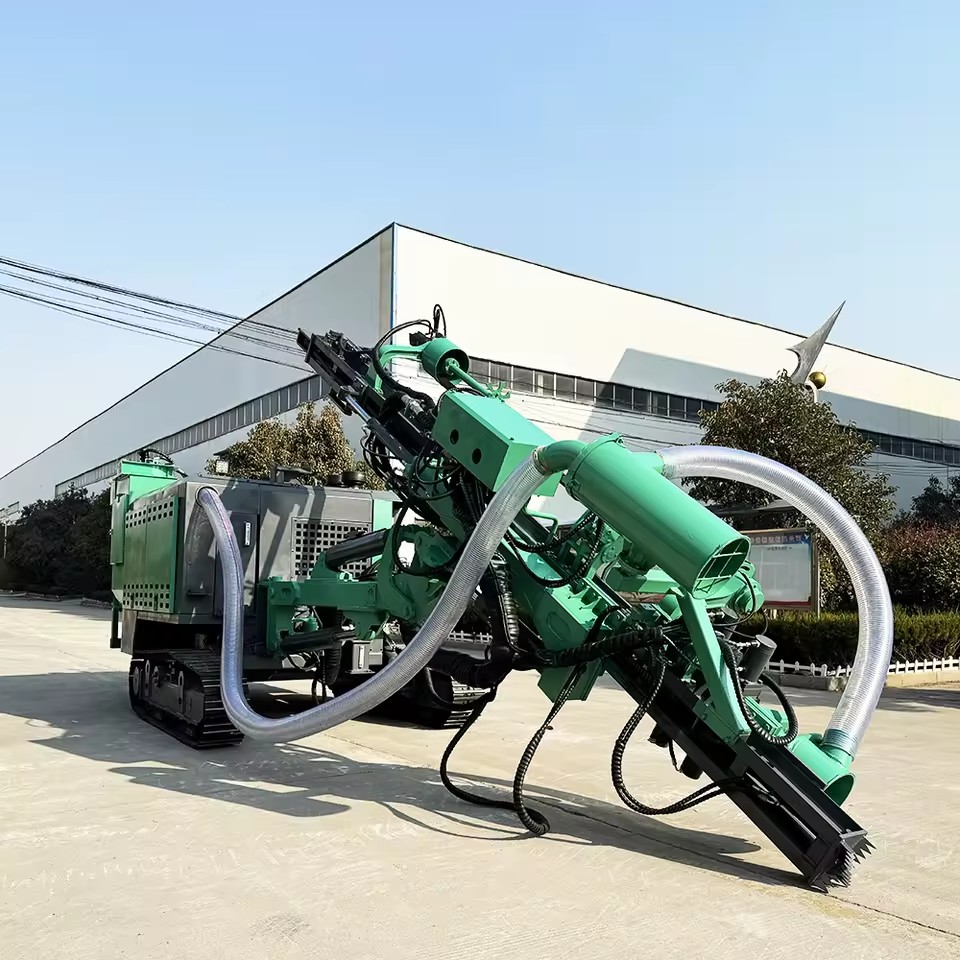

New Listing Drilling Dth Mine Machine Borehole Vertical Boring Open Pit Rock Drilling Machine Stone Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 4,890.00 4890.0 USD $ 4,890.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Engine
  • Color
  • Rotate speed
  • Walking speed
  • Leveling Angle
  • Application
  • Promotion Type
  • After-sales Service Provided
  • Function
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
Ore
Type
dth drill rig
Drilling Depth
Max.50m
Drilling Diameter
90-200mm(3.54-7.87in)
Power Type
Diesel
Voltage
220 V
Product description
WL-105D（431H Main Technical Parameters）
ProjectUnitParameter
Drill Diametermm90-165
Drilling Depthm21
Drill Rod Specificationsmm60*3000
Quantity Of Cobalt Rods6+1
Rod Replacement MethodAutomatic
Specification Of Impactorinch3. 5”
Engine ModelYC6J220-T300
Rated Power/Speed Of EnginekW/rpm162/2200
Fuel Tank CapacityL250
Maximum Working Pressure Of The Main PumpMPa25
Main Pump Flow Rateml/r32
Secondary Pump Flow Rateml/r32+32
Maximum TorqueN.m1500
Maximum Speedrpm135
Promotion Typemmhydraulic cylinder+chain
Advance The Itinerarymm3700
Promote The Overall Length Of The BeamkN5500
Maximum Feed ForcekN7.5
Maximum Walking Speedkm/h3.2
Maximum Climbing Angle°25
Width Of Strip Boardmm300
Track Outer Widthmm2240
Total Length Of Trackmm2550
Leveling Angle°14°
Transportation status drilling rig size (length * width * height)mm7480*2300*2750
Whole machine weight (standard)kg9100
WL-200D（452 Main Technical Parameters）
ProjectUnitParameter
Drill Diametermm90-200
Drilling Depthm21
Drill Rod Specificationsmm76*3000
Quantity Of Cobalt Rods6+1
Rod Replacement MethodAutomatic
Specification Of Impactorinch3. 5”
Rated Power/Speed Of EnginekW/rpm176/2200
Fuel Tank CapacityL250
Maximum Working Pressure Of The Main PumpMPa25
Main Pump Flow Rateml/r32
Secondary Pump Flow Rateml/r32+32
Maximum TorqueN.m1600
Maximum Speedrpm135
Promotion Typemmhydraulic cylinder+chain
Advance The Itinerarymm3700
Promote The Overall Length Of The BeamkN5500
Maximum Feed ForcekN7.5
Maximum Walking Speedkm/h3.2
Maximum Climbing Angle°25
Width Of Strip Boardmm300
Track Outer Widthmm2240
Total Length Of Trackmm2550
Leveling Angle°14°
Transportation status drilling rig size (length * width * height)mm8800*2300*3100
Whole machine weight (standard)kg9900
Description images

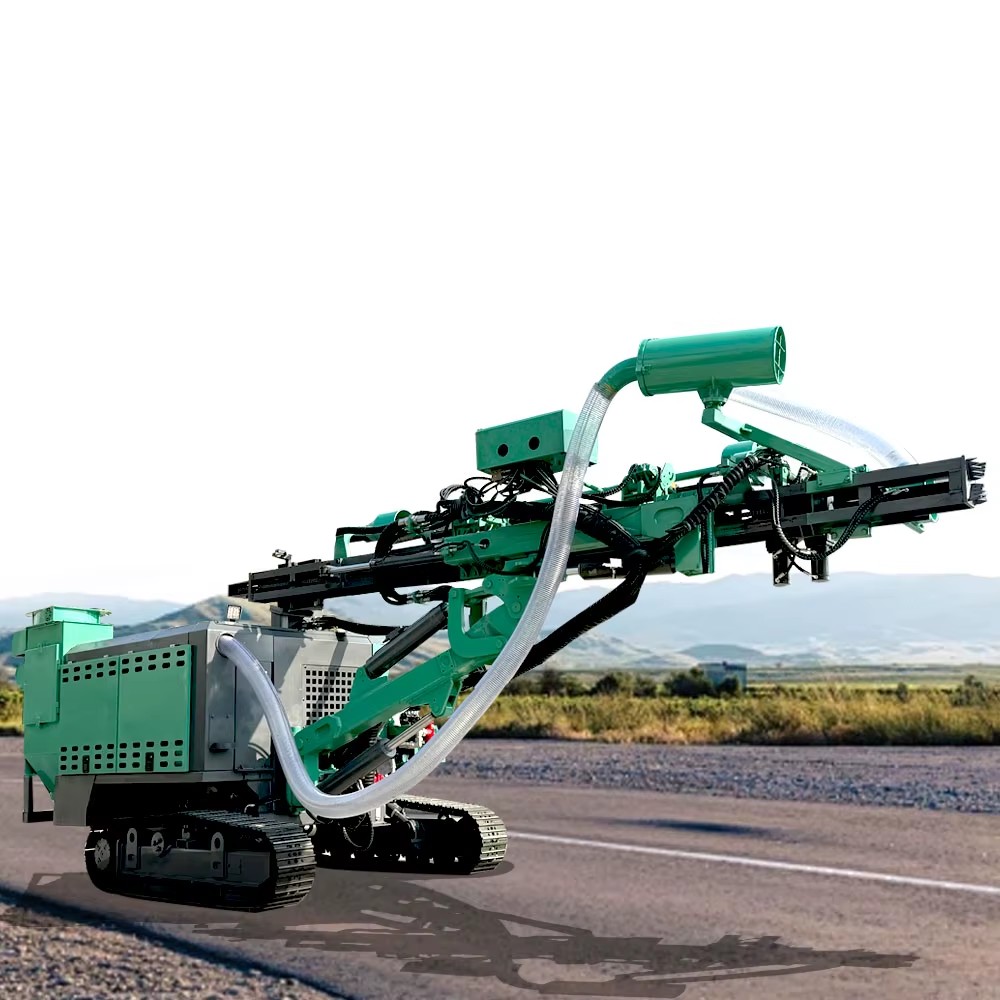

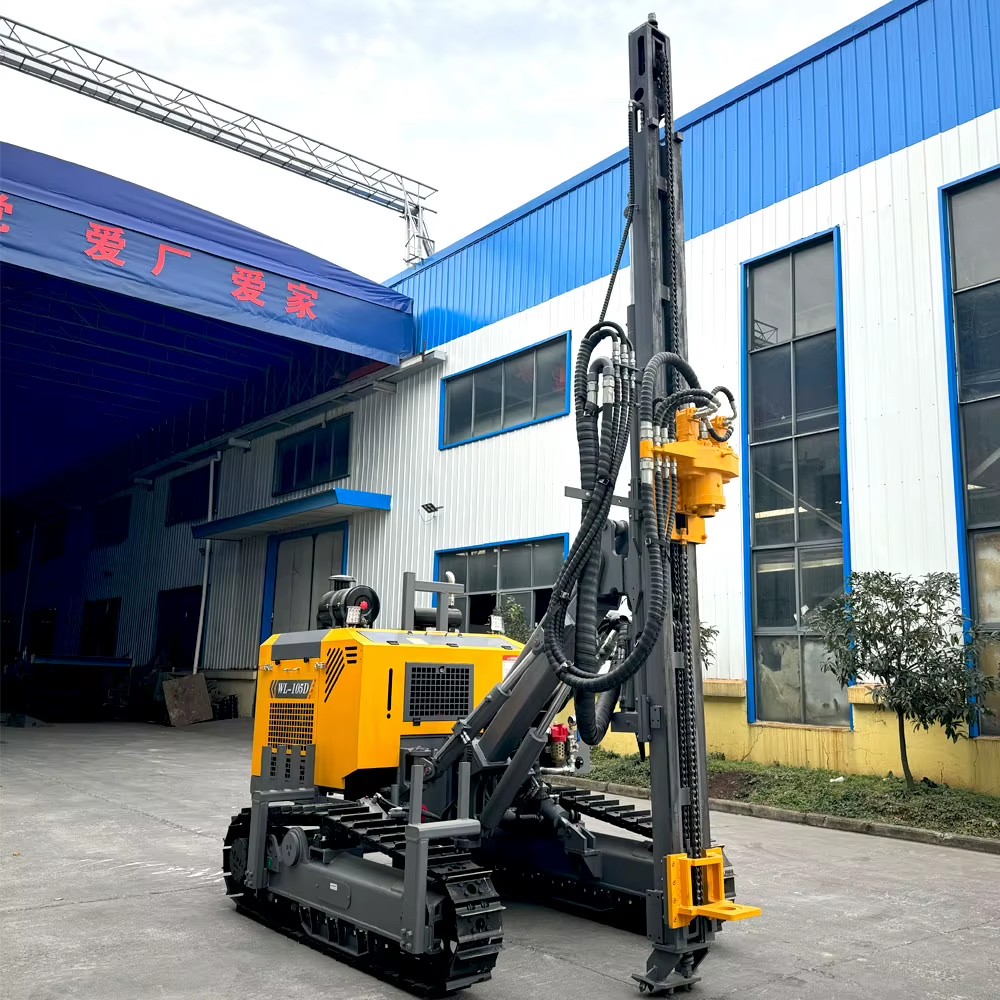

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Ore
Type
dth drill rig
Drilling Depth
Max.50m
Drilling Diameter
90-200mm(3.54-7.87in)
Power Type
Diesel
Voltage
220 V
Core components
Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China shandong
Weight
9100 KG(20062.07lb)
Dimension (L*W*H)
7480*2300*2750
Mobility
1
Engine
Yunnei
Color
Customer Required
Rotate speed
0-135rpm
Walking speed
3.2Km/h
Leveling Angle
14°
Application
Mining Project
Promotion Type
hydraulic cylinder+chain
After-sales Service Provided
24h Online Support
Function
Borehole Drilling Rig DTH Borehole Drill Rig
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
Customized, WL-105D, WL-200D
Power (W) (Product option)
162, 176
Lead time
7 days
Minimum order
1 Units
