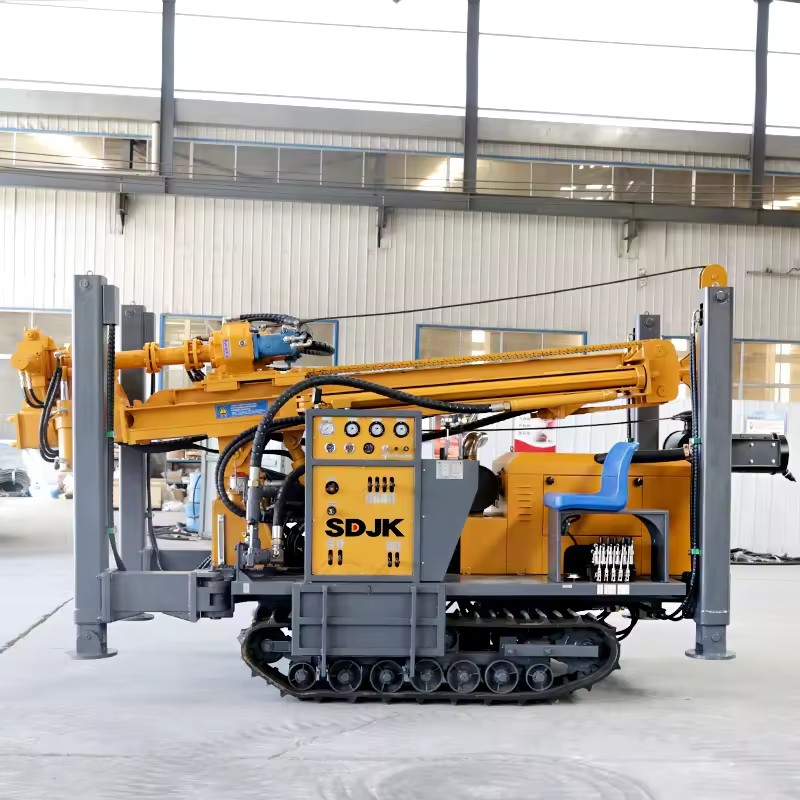

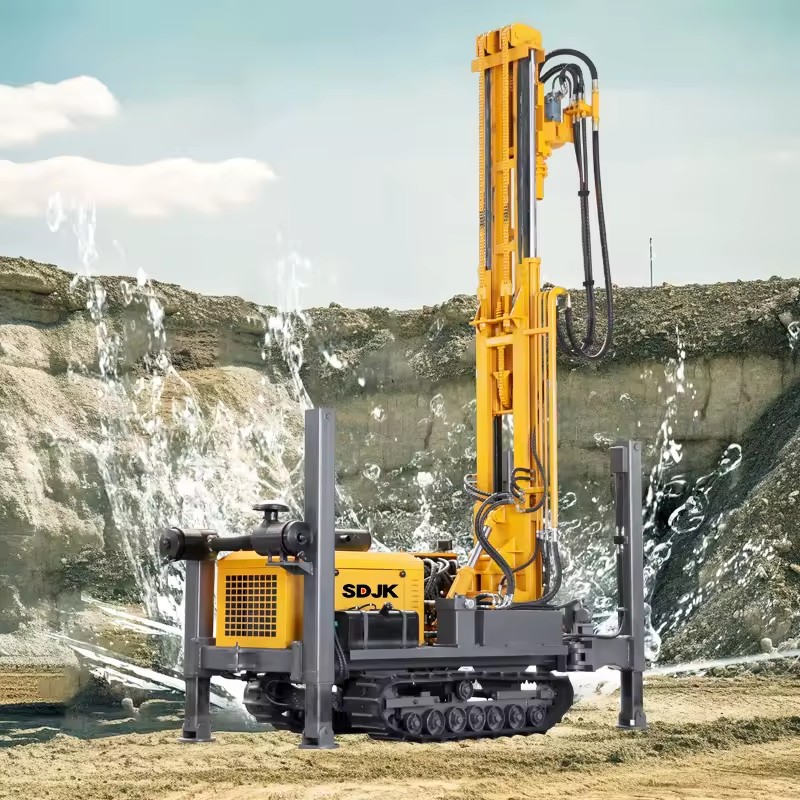

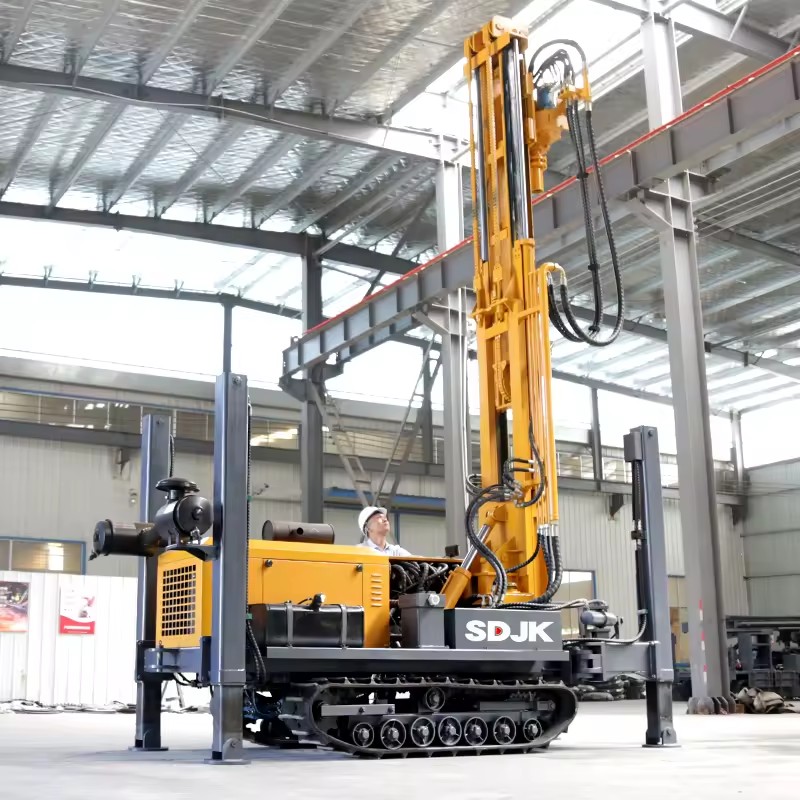

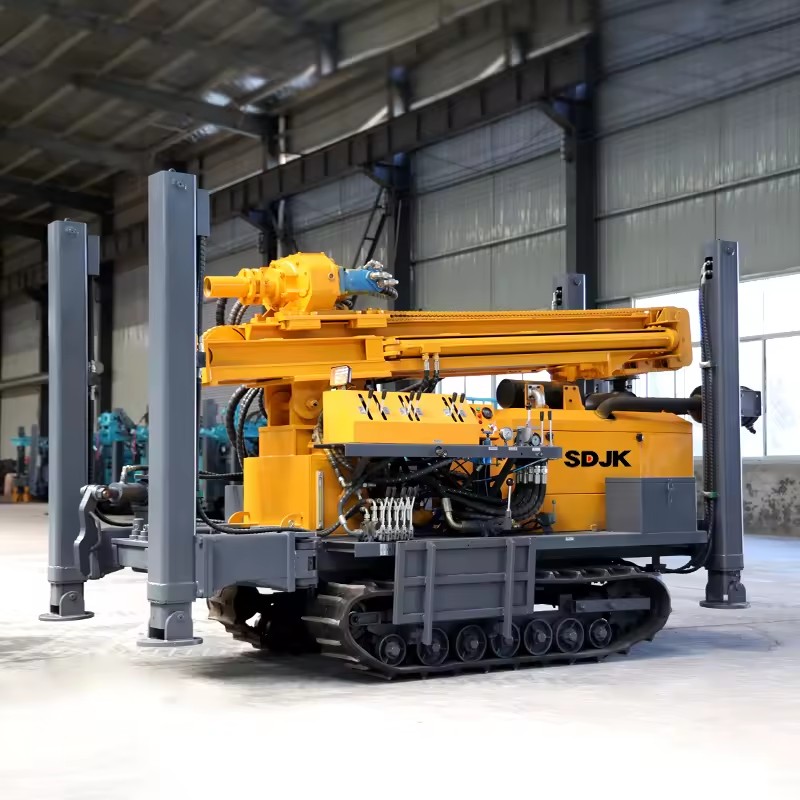

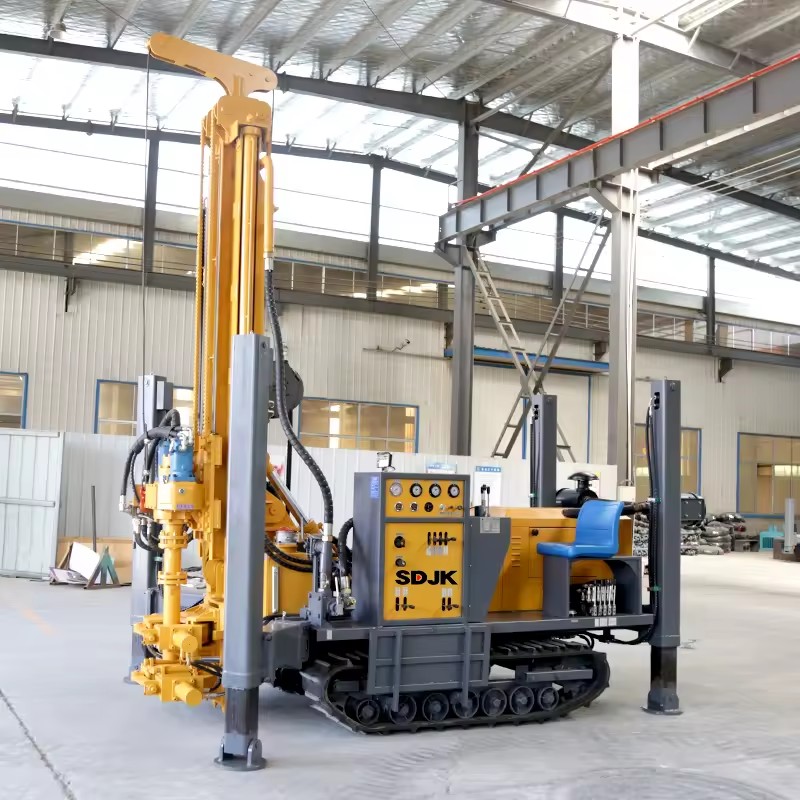

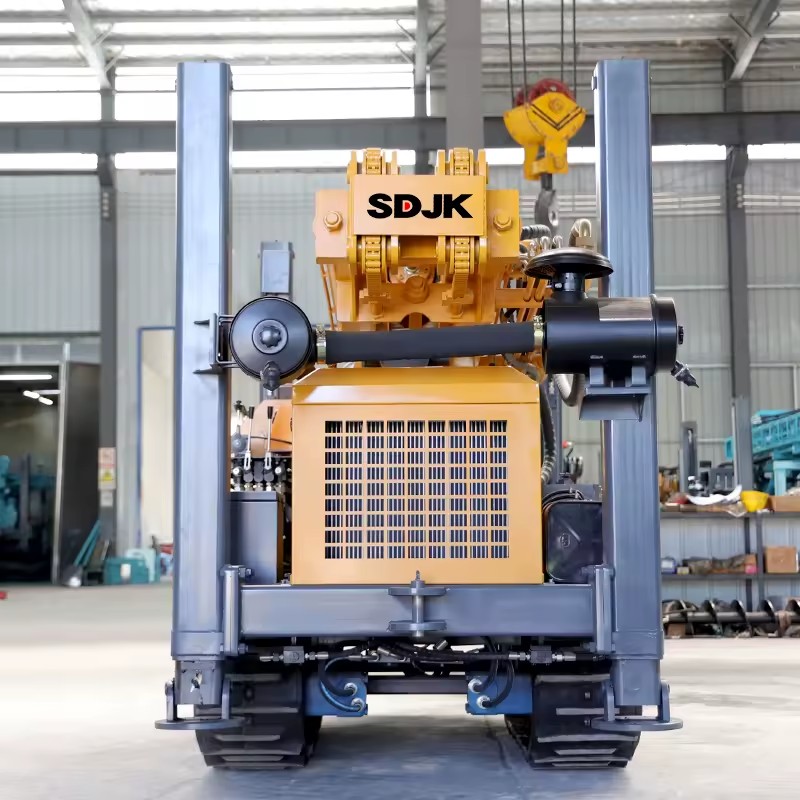

Name: New Diesel Mine Drilling Rig Bore Hole Water Well Drilling Rig Machine Small Water Well Drilling Rigs for Sale
SKU: B2B-38652
Price: 19600.0 USD
Availability: PreOrder

Product description

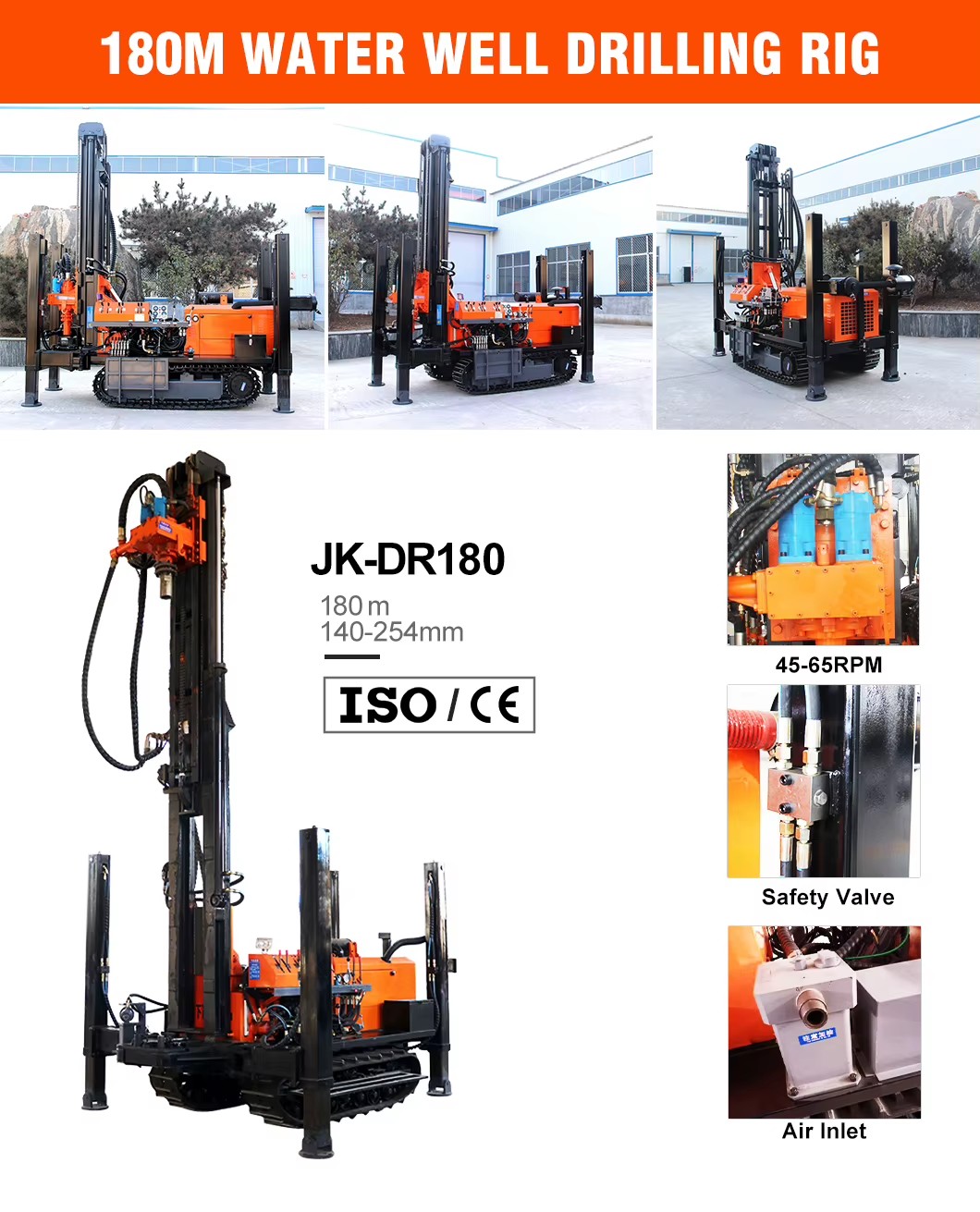

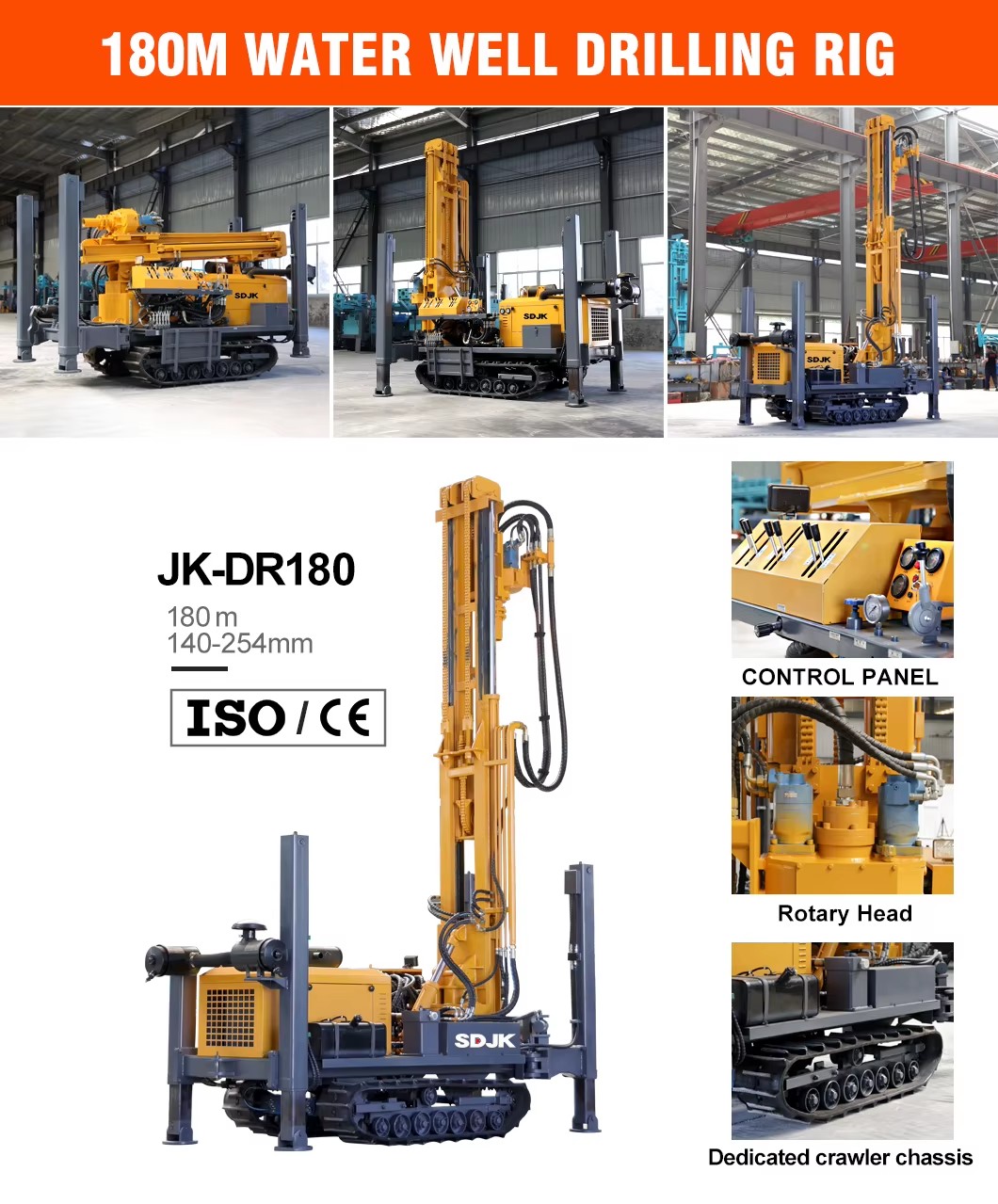

Model & Name	JK-DR180	Travelling speed	2.5km/h
Weight	4500 kg	Gradeability	30%
Dimensions（mm）	380015002200mm	Rated pressure	1.7-2.5MPa
Power Oil	Diesel	Air consumption	17-31m³/min
Engine Model	QUANCHAI	Drill rod diameter	Φ76,Φ89mm
Rated Power	55 kW	Drill rod length	1.5m, 2.0m, 3.0m
Travelling System	Rubber Crawler	Elevating capacity	12 Ton
Drilling depth	180m	Swing speed	45-65rpm
Bore diameter	140-254mm	Swing torque	3200-4600 N.m
Drive Head Stroke	3.4m

Model & Name	JK-DR200X	Drive Head Stroke	3.4m
Weight	5000 kg	Travelling speed	2.5km/h
Dimensions（mm）	395017002300mm	Gradeability	30%
Power Oil	Diesel	Rated pressure	1.7-3.0 MPa
Engine Model	QUANCHAI	Air consumption	17-30 m³/min
Rated Power	65 kW	Drill rod diameter	Φ76,Φ89mm
Travelling System	Rubber Crawler	Drill rod length	1.5m, 2.0m, 3.0m
Drilling depth	200m	Elevating capacity	13Ton
Bore diameter	140-350mm	Swing speed	45-65rpm
Swing torque	3500-4700 N.m

Model & Name	JK-DR350	Travelling speed	2.5km/h
Weight	9000 kg	Gradeability	30%
Dimensions（mm）	590020002850mm	Rated pressure	1.7-3.3MPa
Power Oil	Diesel	Air consumption	17-35 m³/min
Engine Model	YUCHAI	Drill rod diameter	Φ89 / Φ102 mm
Rated Power	92 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	24 Ton
Drilling depth	350m	Swing speed	55-115rpm
Bore diameter	140-325mm	Swing torque	6200-8500 N.m
Drive Head Stroke	6.6m

Model & Name	JK-DR400	Travelling speed	2.5km/h
Weight	10 Ton	Gradeability	30%
Dimensions（mm）	590021002850mm	Rated pressure	1.7-3.5 MPa
Power Oil	Diesel	Air consumption	17-35 m³/min
Engine Model	YUCHAI	Drill rod diameter	Φ89 / Φ102 / Φ108 mm
Rated Power	92 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	25 Ton
Drilling depth	400m	Swing speed	45-115rpm
Bore diameter	140-350mm	Swing torque	6500-9000 N.m
Drive Head Stroke	6.6m

Model & Name	JK-DR500	Rated pressure	1.7-3.5 MPa
Weight	11.5Ton	Air consumption	17-42 m³/min
Bore diameter	140-350mm	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Drilling depth	500m	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Engine Model	YUCHAI	Elevating capacity	26Ton
Rated Power	118 kW	Swing speed	40-100rpm
Stroke	6.6m	Swing torque	7500-10000N.m
Travelling speed	2.5km/h	Dimensions	600022002950mm
Gradeability	30%

Model & Name	JK-DR600	Travelling speed	2.5km/h
Weight	12Ton	Gradeability	30%
Dimensions（mm）	620022002950mm	Rated pressure	1.7-3.5 MPa
Power Oil	Diesel	Air consumption	17-42 m³/min
Engine Model	CUMMINS	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Rated Power	132 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	28 Ton
Drilling depth	600m	Winch Elevating capacity	3 Ton
Bore diameter	140-350mm	Swing speed	45-115rpm
Drive Head Stroke	6.6m	Swing torque	8500-11000 N.m

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

5 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 33 fields

Usage

Water Well

Type

Rotary Drilling Rig

Drilling Depth

400, 180, 600m, 200, 300, 350, 500

Drilling Diameter

200 mm(7.87in)

Power Type

Diesel

Voltage

24v

Core components

Bearing, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Shandong

Weight

4.5 KG(9.92lb)

Dimension (L*W*H)

5200*2000*2780mm(204.72*78.74*109.45in)

Mobility

portable, Crawler Tracked

Certification

CE, ISO

Showroom

None

Engine model

Quanchai

Power Oil

Diesel

Travelling System

Rubber Crawler

Travelling speed

2.5km/h

Name

water well Drilling Rig

Key words

New Mine Drilling Rig

Keyword

Farm Mine Drilling Rig

Packaging Details

seller's method Full Container

Port of dispatch

Qingdao

Selling Units

Single item

Single package size

6000X2200X2950 cm

Single gross weight

50000.0 kg

Supply Ability

150 sets per Week

Model number

Hydraulic Motor, JK-DR180, JK-DR200X, JK-DR200, JK-DR300, JK-DR350, JK-DR400, JK-DR500, JK-DR600, Drill pipes

Power (W) (Product option)

55kW(73.76hp), 132kw(177.01hp), 92KW(123.37hp), 118kW(158.24hp), 70KW(93.87hp), 85KW(113.99hp), 65KW(87.17hp), 76*3000mm, 89*3000mm, 102*3000mm, BM5-375
