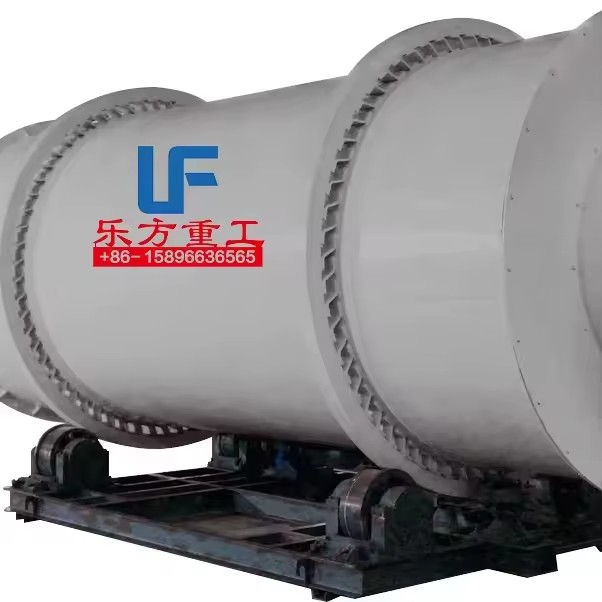

Name: New Design Lefang Brand Rotary Kiln High Gear Engine Bearing Energy Saving Core Components Jute Molybdenum Iron Making Machinery
SKU: B2B-32609
Price: 14970.0 USD
Availability: PreOrder

Product description

窑名称 Name of Rotary Kiln	处理物料 Processing Materials	窑规格 ( 米 ) Kiln Dimension in Meter
氧化铝熟料窑	Alumina clinker kiln	碱石灰铝土矿生料浆，水分40%	Alkali lime bauxite raw slurry, with a moisture content of 40%	φ4×100
氧化铝焙烧窑	Aluminum oxide roasting kiln	氢氧化铝，水分12～18%	Aluminum hydroxide, moisture content 12-18%	φ4.3/3.556/3.75×72.4
炭素煅烧窑	Carbon calcination kiln	混合焦，水分3%	Mixed coke, moisture content 3%	φ3.6×79
炭素煅烧窑	Carbon calcination kiln	混合焦，水分3%;延迟焦	Mixed coke, with a moisture content of 3%; Delay focus	φ2.83/2.53×56.6
内热式反应炉	Internal heating reactor	萤石粉及硫酸(浓度98%)	Fluorite powder and sulfuric acid (concentration 98%)	φ1.8×24
外热式反应炉	External heating reactor	萤石粉及硫酸(浓度98%)	Fluorite powder and sulfuric acid (concentration 98%)	φ2.016/2.316×36
离析窑	Separation kiln	难选结合氧化铜矿	Difficult to select combined copper oxide ore	φ2.038×33
氨浸法还原焙烧窑	Ammonia leaching method for reducing roasting kiln	含铜尾矿	Copper containing tailings	φ1.18×14
铅锌挥发窑	Lead zinc volatilization kiln	锌浸出渣；铅水淬渣	Zinc leaching residue; Lead water quenched slag	φ3.6×50
锌挥发窑	zinc volatilization kiln	锌浸出渣	Zinc leaching residue	φ2.8×44
脱砷焙烧窑	Arsenic removal roasting kiln	粗锡熔析渣	Crude tin melting slag	φ2.3×32
砒霜蒸馏窑	Arsenic distillation kiln	含氧化砷熔析渣烟尘	Smoke and dust from arsenic oxide containing melting slag	φ2.8×44
氯化挥发窑	Chlorination volatilization kiln	锡中矿、焦粉、氯化钙	Tin ore, coke powder, calcium chloride	φ1.96×20
镍精矿半氧化焙烧窑	Nickel concentrate semi oxidation roasting kiln	硫化镍精矿及电解渣，水分 20～30%	Nickel sulfide concentrate and electrolytic slag, with a moisture content of 20-30%	φ0.45×8
钨精矿烧结窑	Tungsten concentrate sintering kiln	钨精矿、碱、硝石	Tungsten concentrate, alkali, saltpeter	φ3.6×50
外热干燥煅烧窑	External heat drying calcination kiln	钨酸	Tungstic acid	φ3.6×52
外热还原窑	External thermal reduction kiln	三氧化钨加氢气	Tungsten trioxide with hydrogen gas	φ2.2×20
氧化锂熟料窑	Lithium oxide clinker kiln	锂矿石、碱等	Lithium ore, alkali, etc	φ0.52/0.65×11
铬烧结窑	Chromium sintering kiln	铬矿石、碱、白云石	Chromium ore, alkali, dolomite	φ0.4×4.8
焙烧窑	Baking kiln	铜电解阳极泥	Copper electrolytic anode mud	φ1.6×25.2
汞蒸馏窑	Mercury distillation kiln	汞精矿	Mercury concentrate	φ2.3×32
贫铁矿磁化还原焙烧窑	Low iron ore magnetization reduction roasting kiln	贫铁矿	Poor iron ore	φ0.7×7
焙烧窑	Baking kiln	粘土矿；高铝矿	Clay ore; High alumina ore	φ0.38×4.2
湿法水泥窑	Wet cement kiln	水泥生料浆	Cement raw slurry	φ3.6×50
料浆蒸发机窑	Slurry evaporator kiln	烘干赤泥水泥生料	Drying Red Mud Cement Raw Material	φ2.5×50
湿法水泥窑	Wet cement kiln	水泥生料浆	Cement raw slurry	φ4.4/4.15/4.4×180
立波尔窑	Lepol kiln	煅烧水泥生料球	Calcined cement raw material balls	φ3.5/4×128.8
旋风预热窑	Cyclone preheating kiln	水泥生料粉	Cement raw material powder	φ3.5×145
立筒窑	Vertical kiln	水泥生料粉	Cement raw material powder	φ3.6×65

Product Specifications	Kiln Dimensions	Motor Power(kw)	Total Weight(t)
Capacity(t/d)	Rotation Speed(r/min)
Φ2.5 x 40	180	0.44-2.44	55	149.61
Φ2.5 x 40	200	0.62-1.86	55	187.37
Φ2.7 x 42	320	0.10-1.52	55	198.5
Φ2.8 x 44	450	0.437-2.18	55	201.58
Φ3.0 x 45	500	0.5-2.47	75	210.94
Φ3.0 x 48	700	0.6-3.48	100	237
Φ3.2 x 50	1000	0.6-3	125	278
Φ3.3 x 52	1300	2.66-2.66	125	283
Φ3.6 x 70	1800	0.25-1.25	125	419
Φ4.0 x 56	2300	0.41-4.07	315	456
Φ4.3 x 60	2500	0.396-3.96	315	510
Φ4.5 x 66	3200	0.396-3.96	375	583
Φ4.7 x 74	4000	0.41-4.1	560	710.4
Φ5.0 x 74	4500	0.35-4	630	849
Φ5.6 x 87	6000	0.35-4	710	944

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Voltage

380 V, 220 V

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Key selling points

Energy Saving

Video outgoing-inspection

Provided

Power (W)

50-5000kw(67.05-6705.10hp)

Place of origin

China, Henan

Weight

20000 KG(44092.45lb)

Dimension (L*W*H)

11000*1500*1500MM(433.07*59.06*59.06in)

Capacity

50----2000t/d

Factory Visit

Warm welcome

Price

TBD

Installation and Trial

We Can Send Engineer for Guidance

After sale service

Reply Within 24 Hours

Keyword

China Rotary Kiln

Selling Units

Single item

Single package size

1000X200X200 cm

Single gross weight

5000.0 kg

Production Capacity (Product option)

50---2000t/d

Model number

RotaryKiln, CementProducingLine

Lead time

30 days

Minimum order

1 Units
